Plenum Chamber, Assembly and Components

  1. Remove the instrument panel. For additional information, refer to BODY SYSTEM - EXTERIOR .
  2. Remove the components in the order indicated in the following illustration.

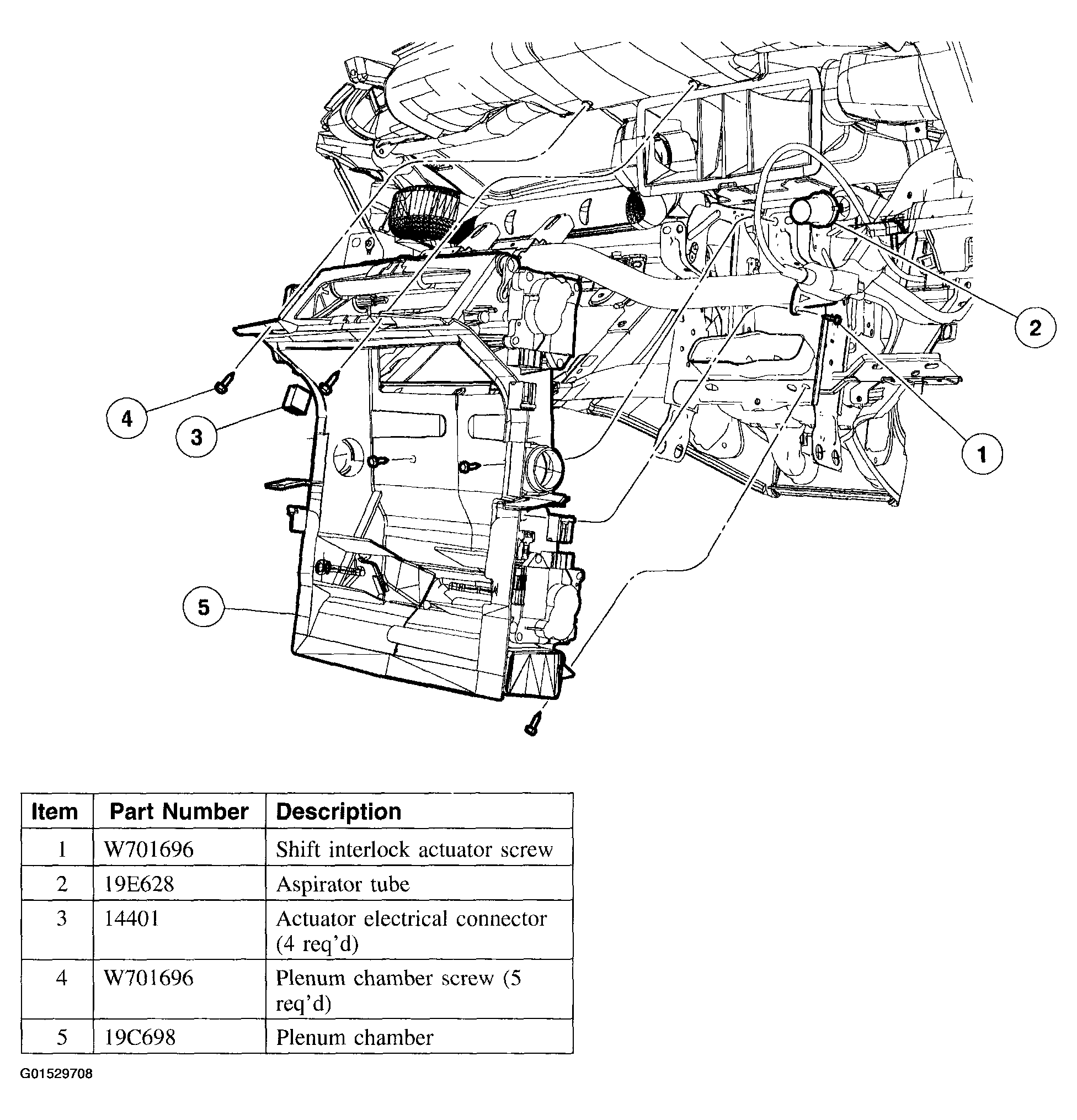

    Fig 1: Plenum Chamber Assembly Component Removal Sequence
    G01529708Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
