Rear Axle Backlash Shim Variation Table

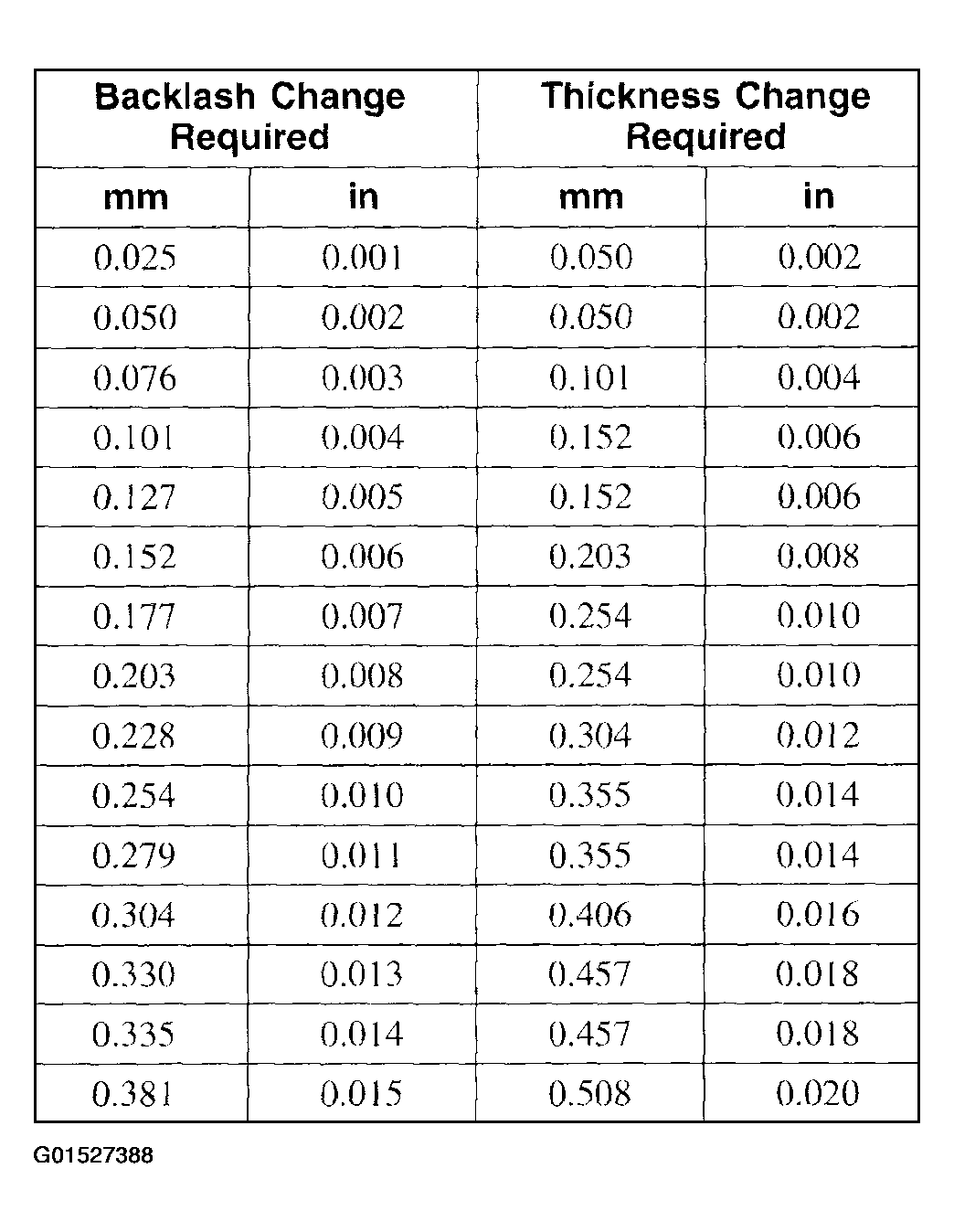

Fig 1: Rear Axle Backlash Shim Variation Table
Courtesy of FORD MOTOR CO.
