LR Wheel Speed Sensor C440

Fig 1: LR Wheel Speed Sensor C440 Terminal
G01527624Courtesy of FORD MOTOR CO.

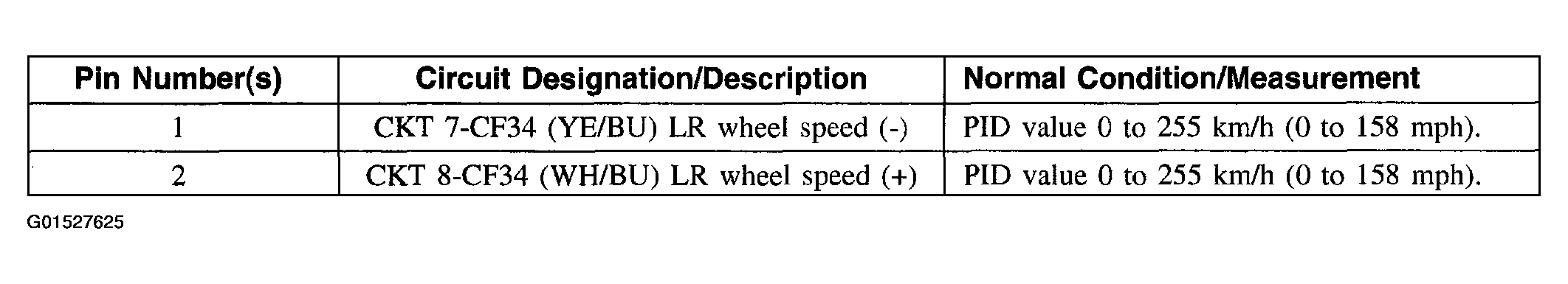

Fig 2: Connector Reference Chart
G01527625Courtesy of FORD MOTOR CO.
