Multifunction Switch C202

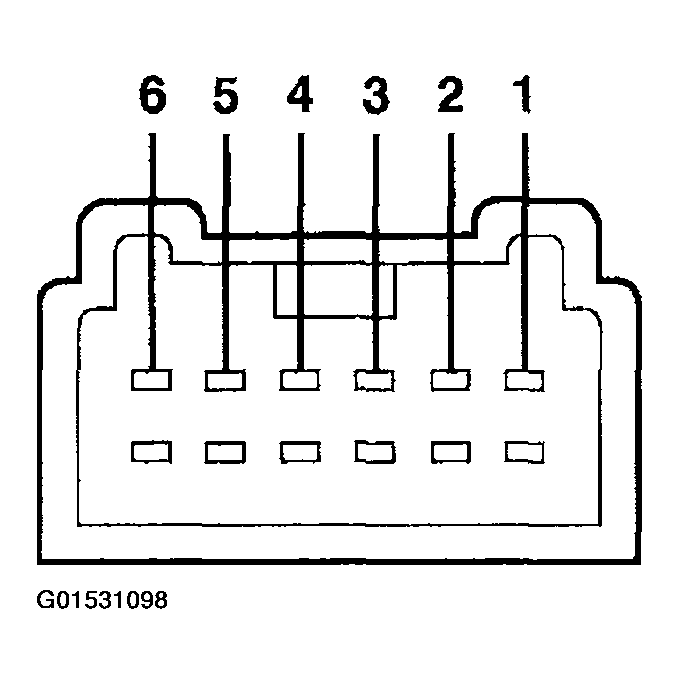

Fig 1: Multifunction Switch Connector Terminals
G01531098Courtesy of FORD MOTOR CO.

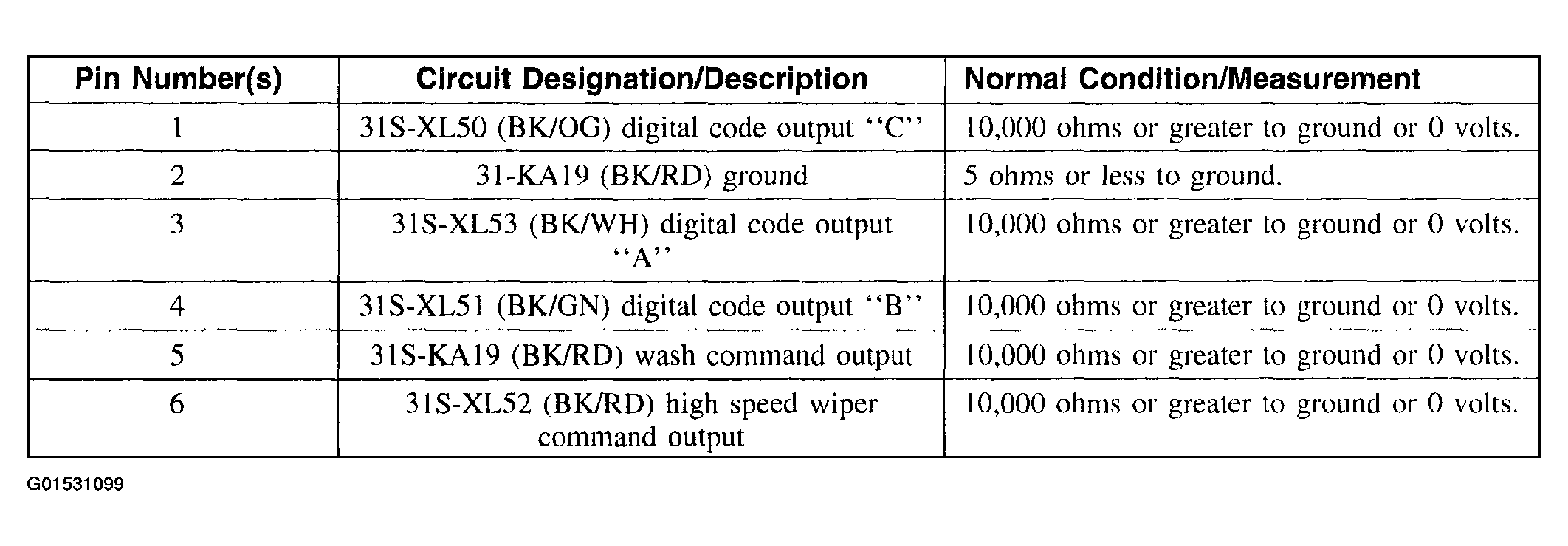

Fig 2: Multifunction Switch Connector Terminals Specifications Chart
G01531099Courtesy of FORD MOTOR CO.
