Driver Window Control Switch C504

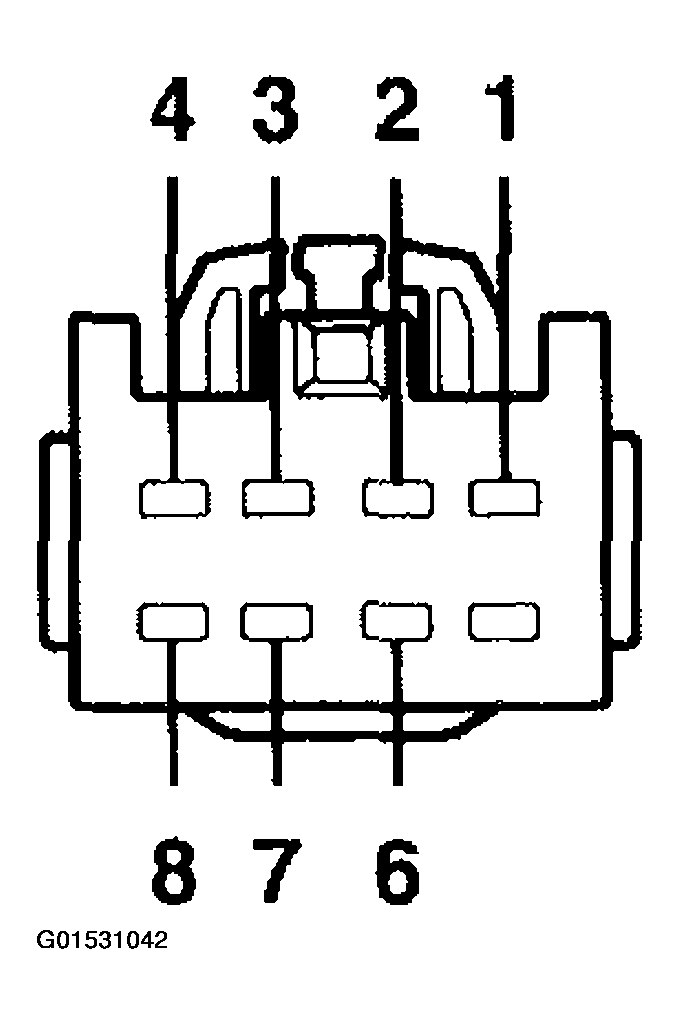

Fig 1: Driver Window Control Switch Connector Terminals
G01531042Courtesy of FORD MOTOR CO.

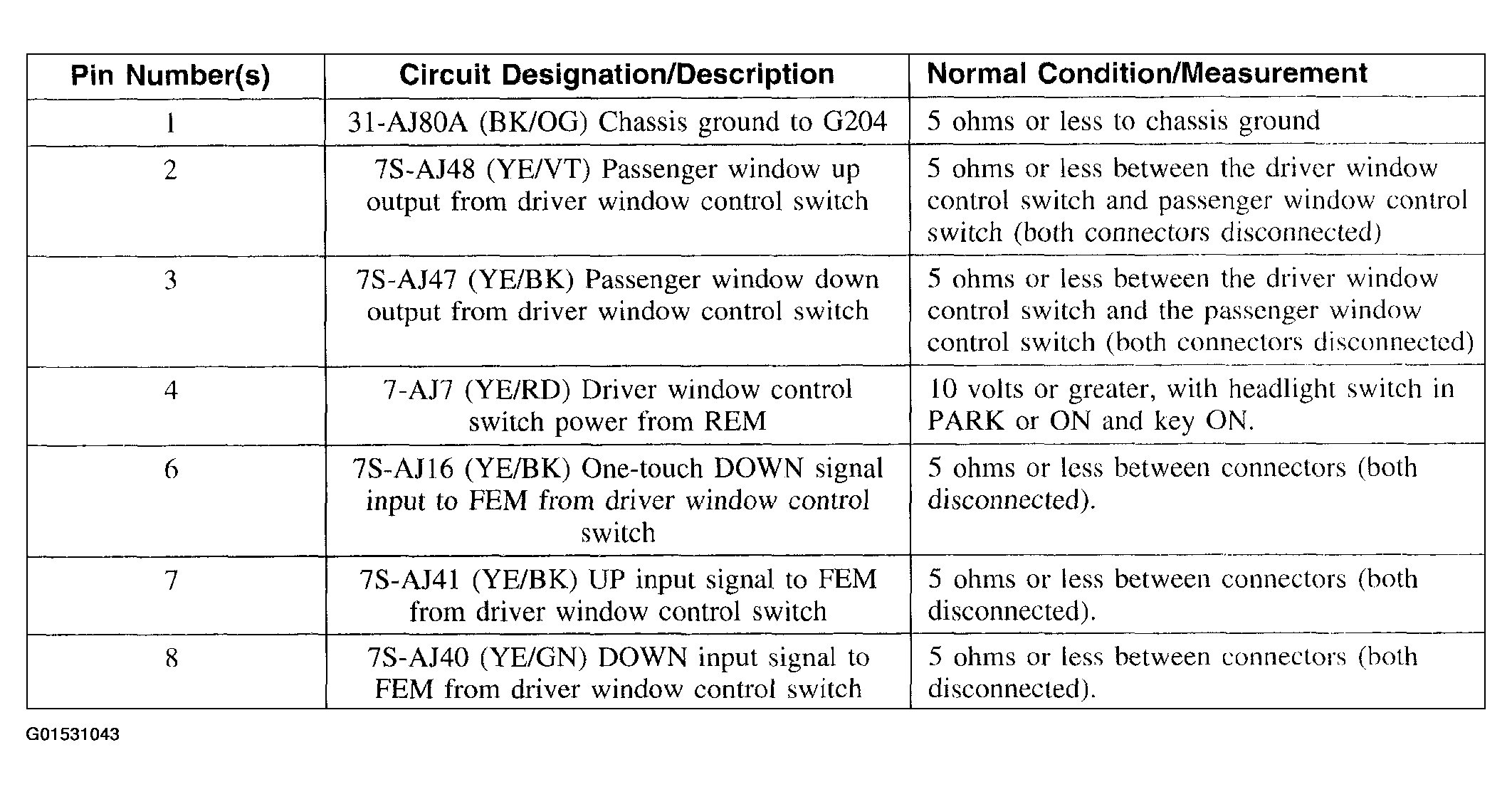

Fig 2: Driver Window Control Switch Connector Terminals Specifications Chart
G01531043Courtesy of FORD MOTOR CO.
