Test A

PINPOINT TEST A: SINGLE POWER WINDOW IS INOPERATIVE - DRIVER FRONT POWER WINDOW IS INOPERATIVE/DOES NOT OPERATE CORRECTLY

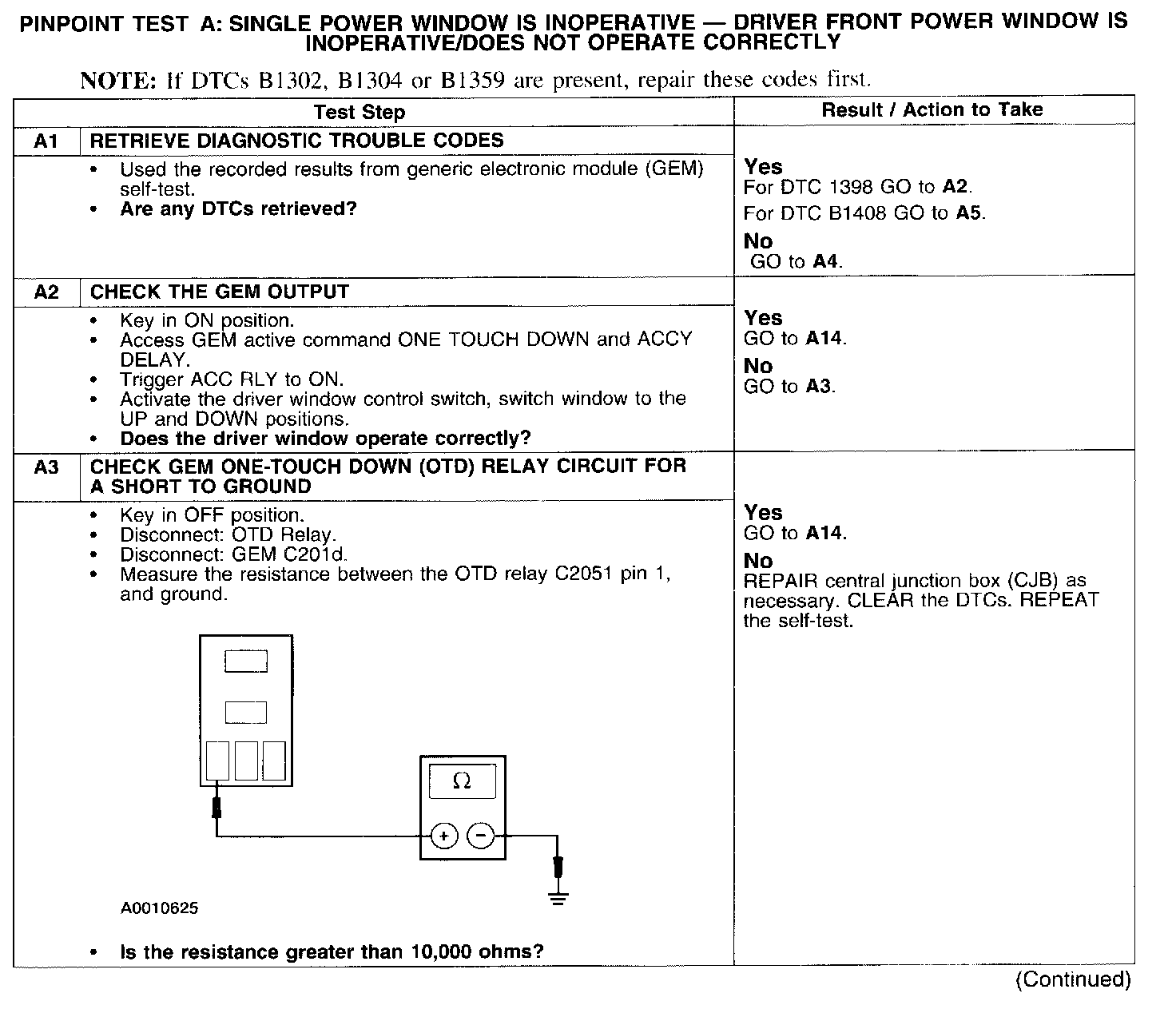

Test A1-A3:

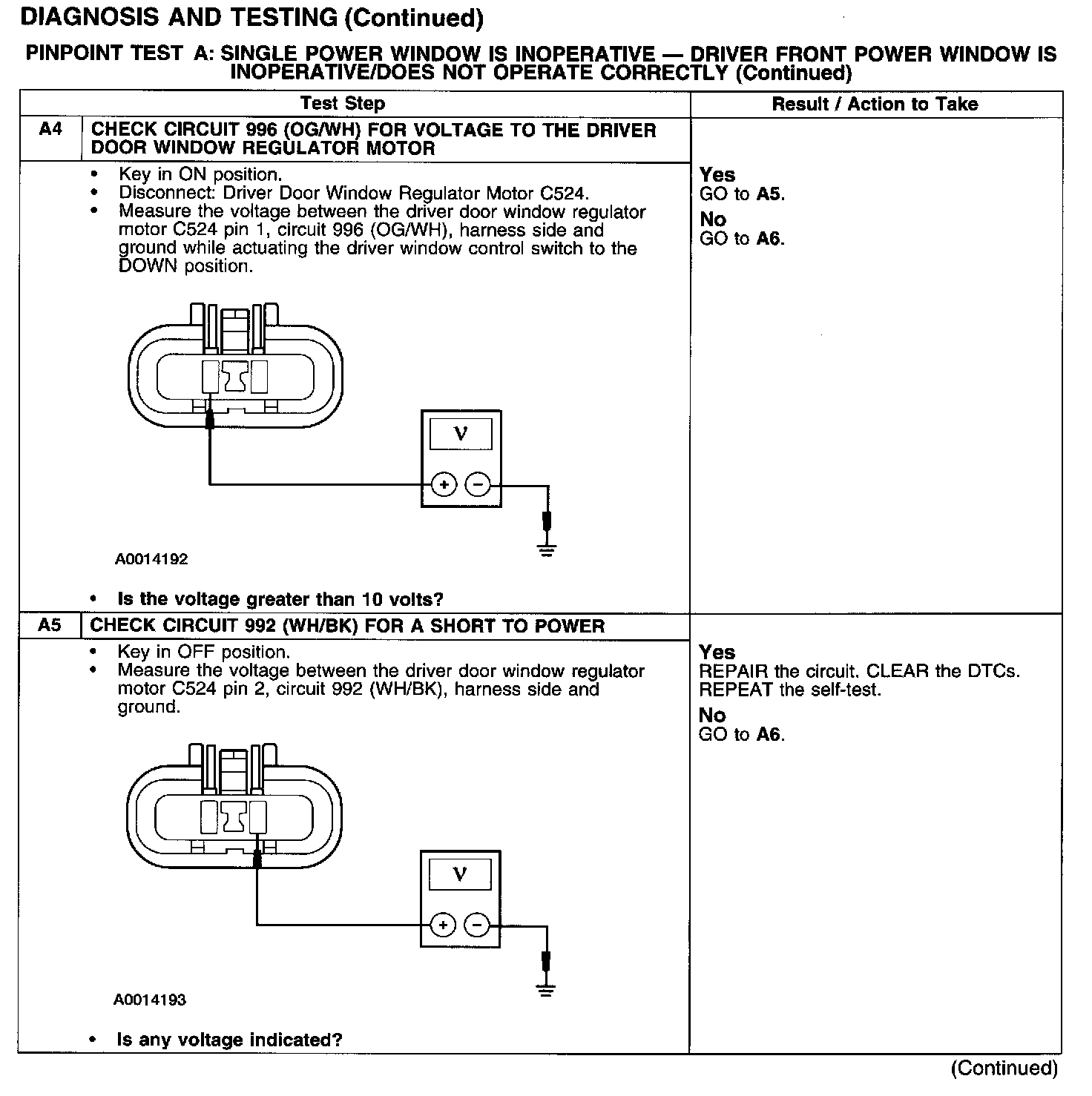

Test A4-A5:

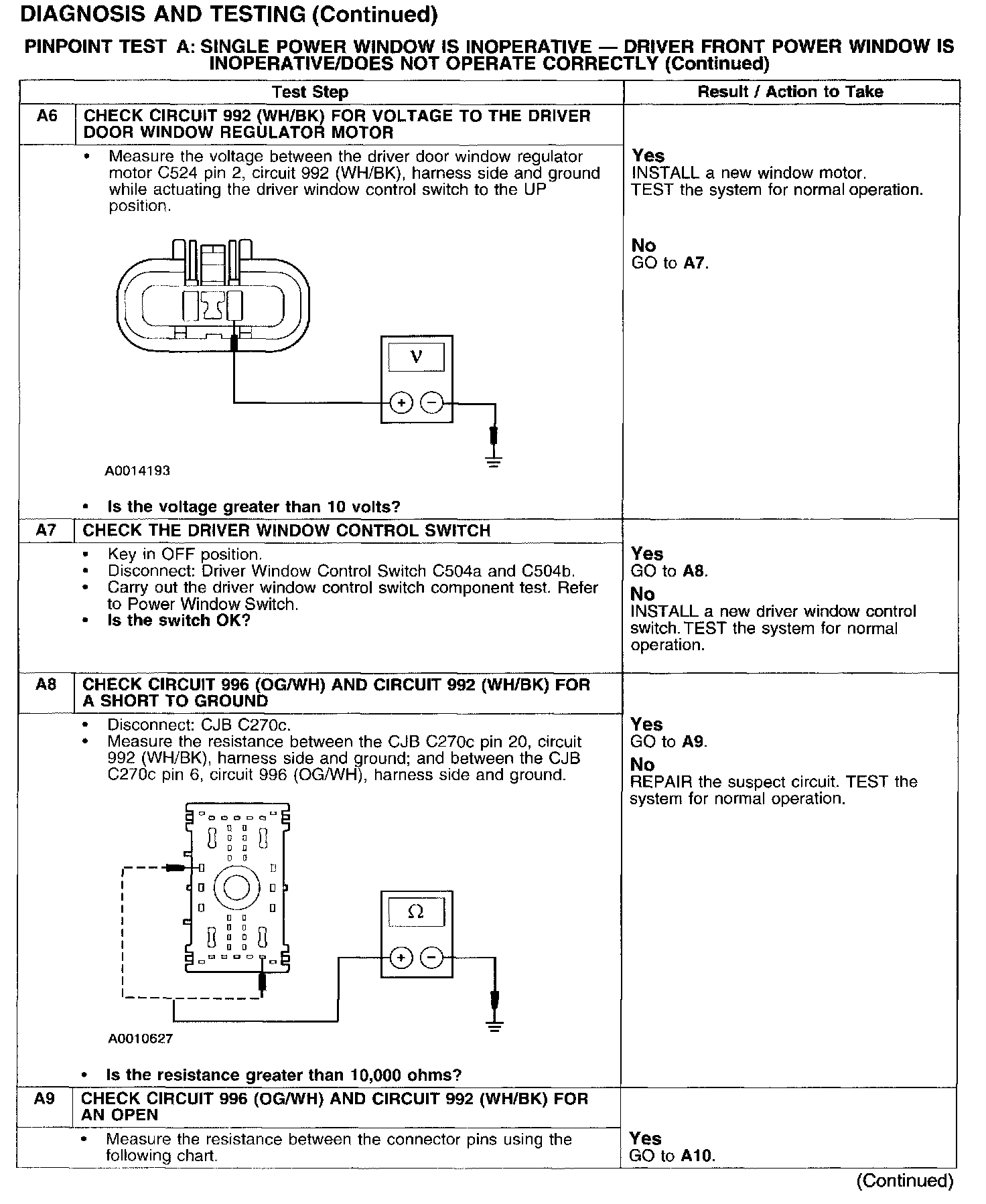

Test A6-A9:

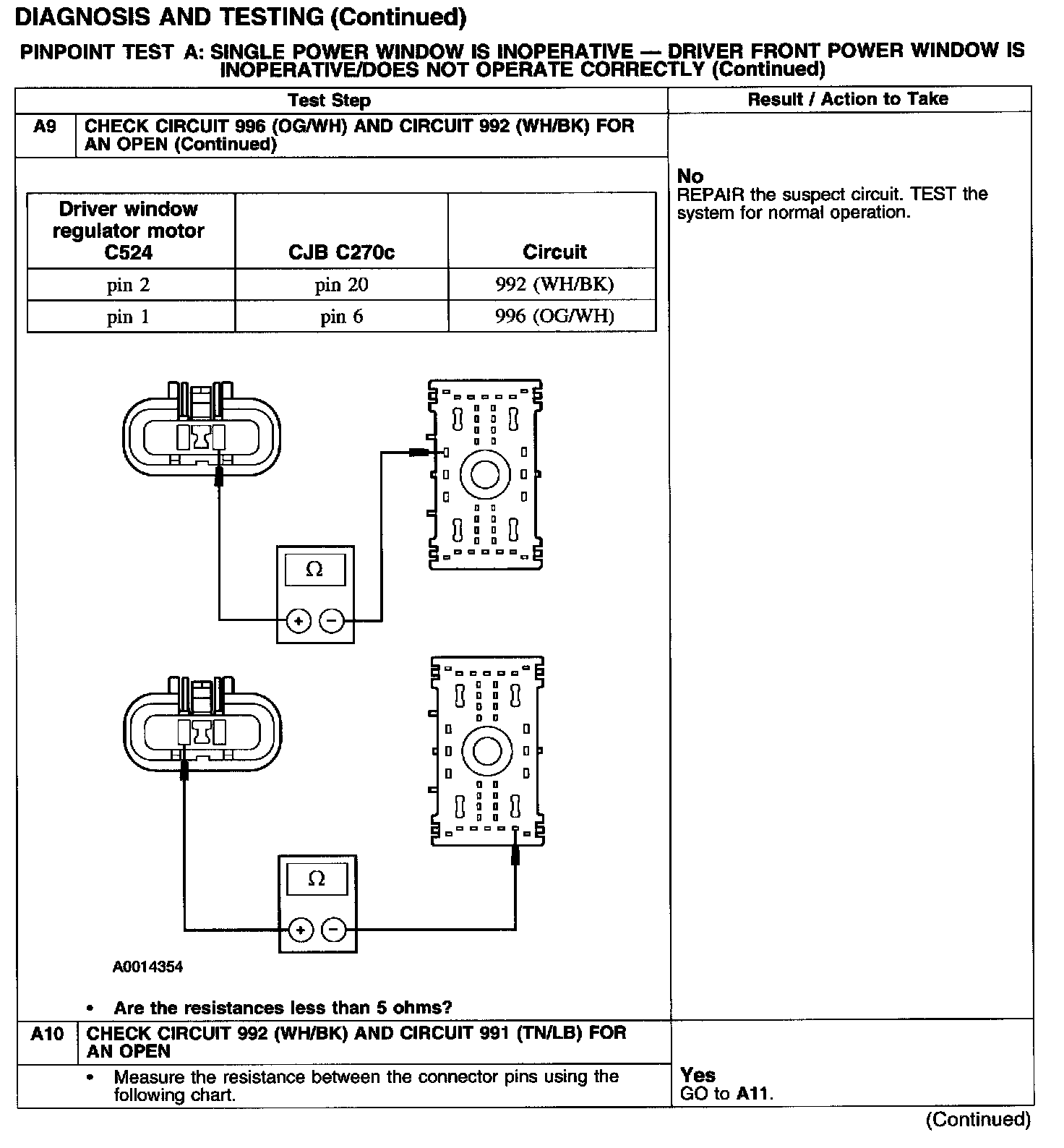

Test A9-A10:

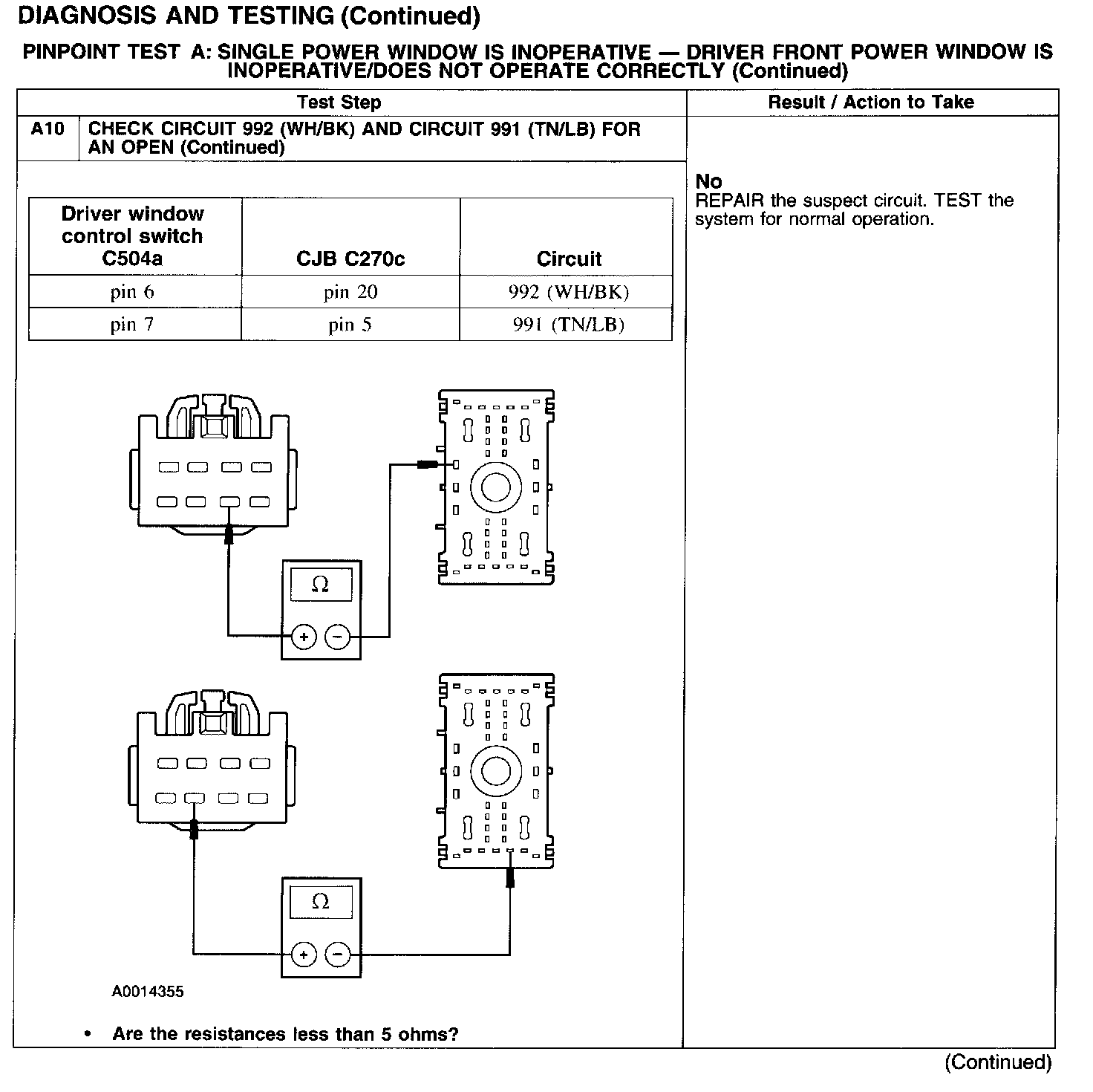

Test A10 Continued:

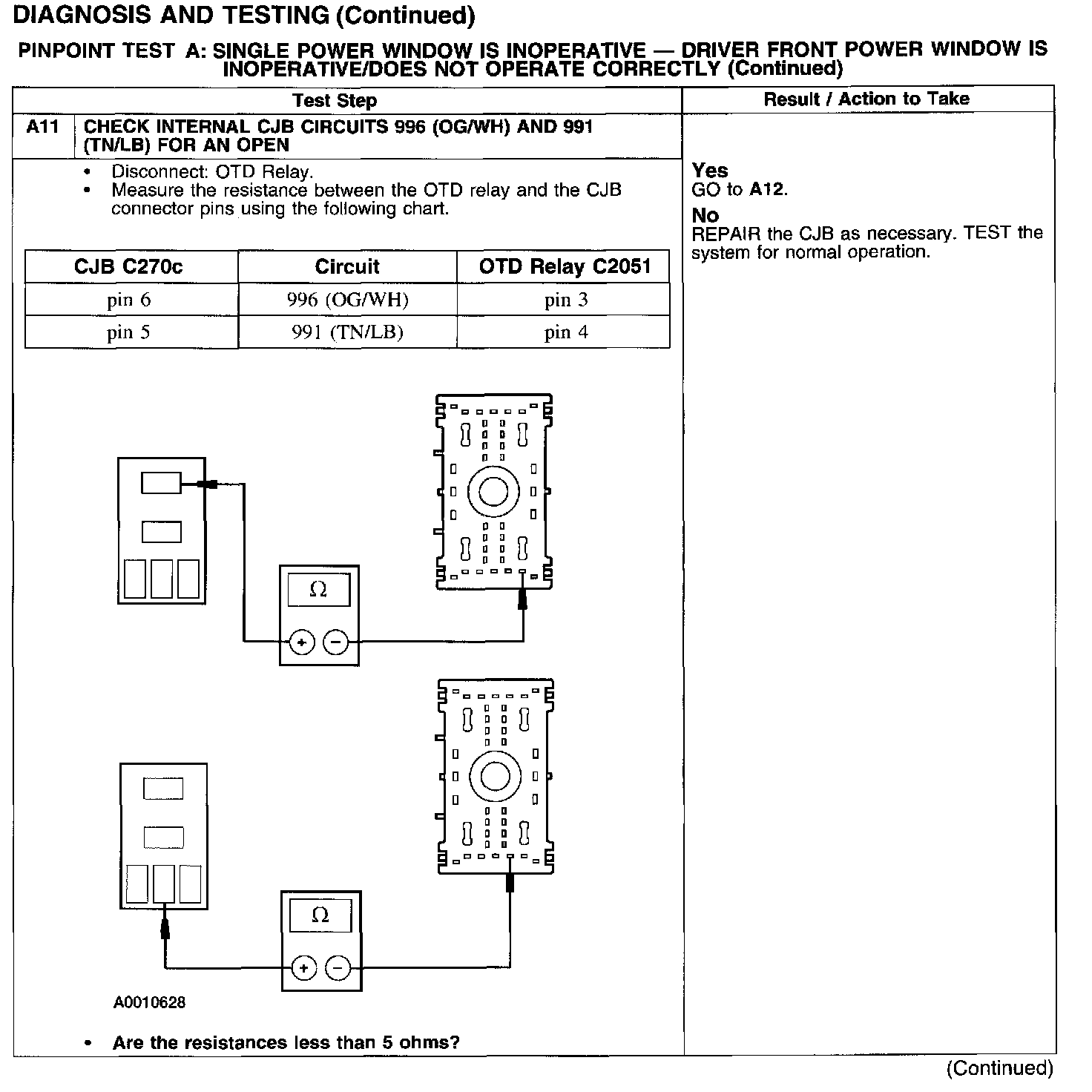

Test A11:

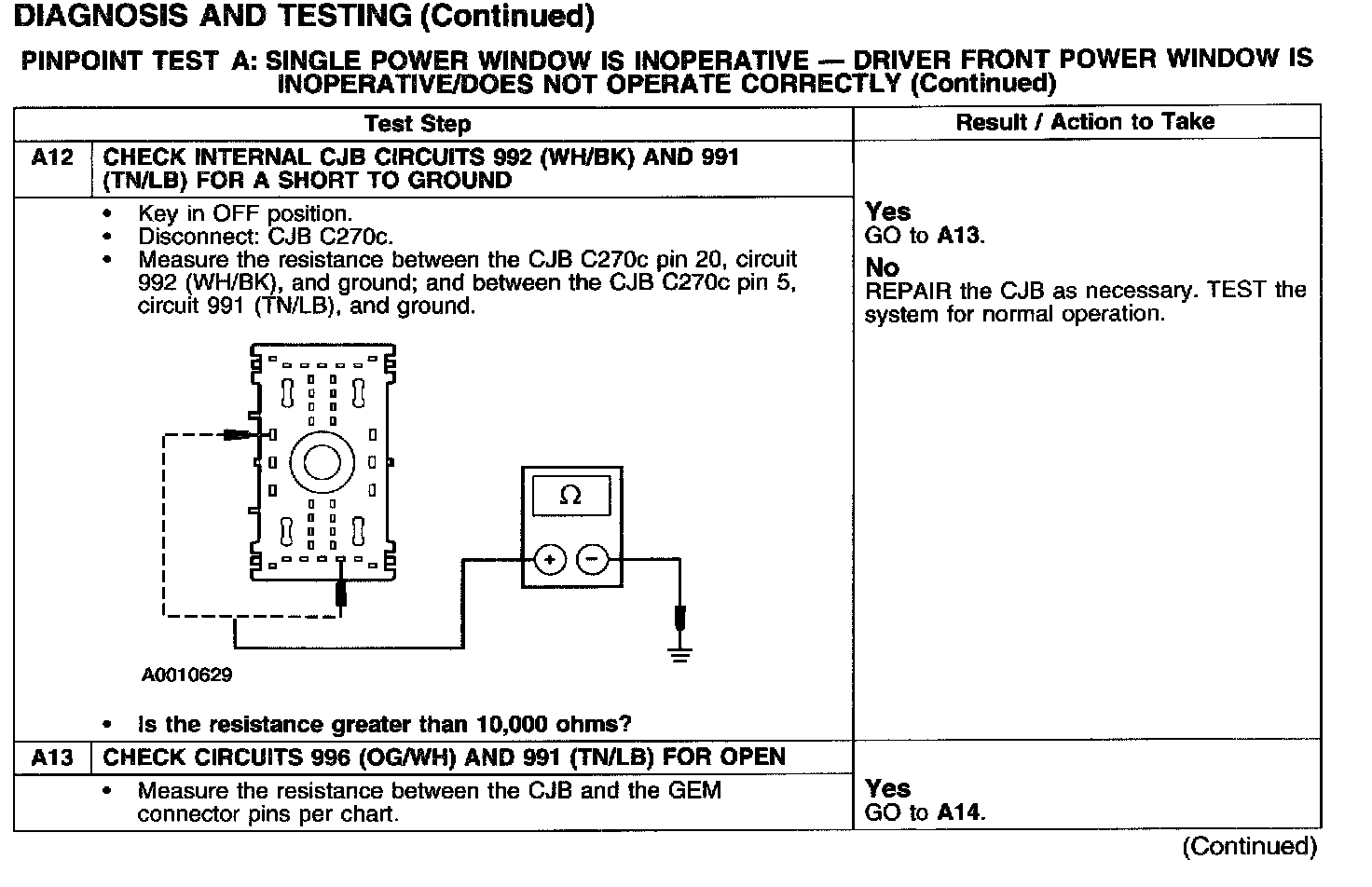

Test A12-A13:

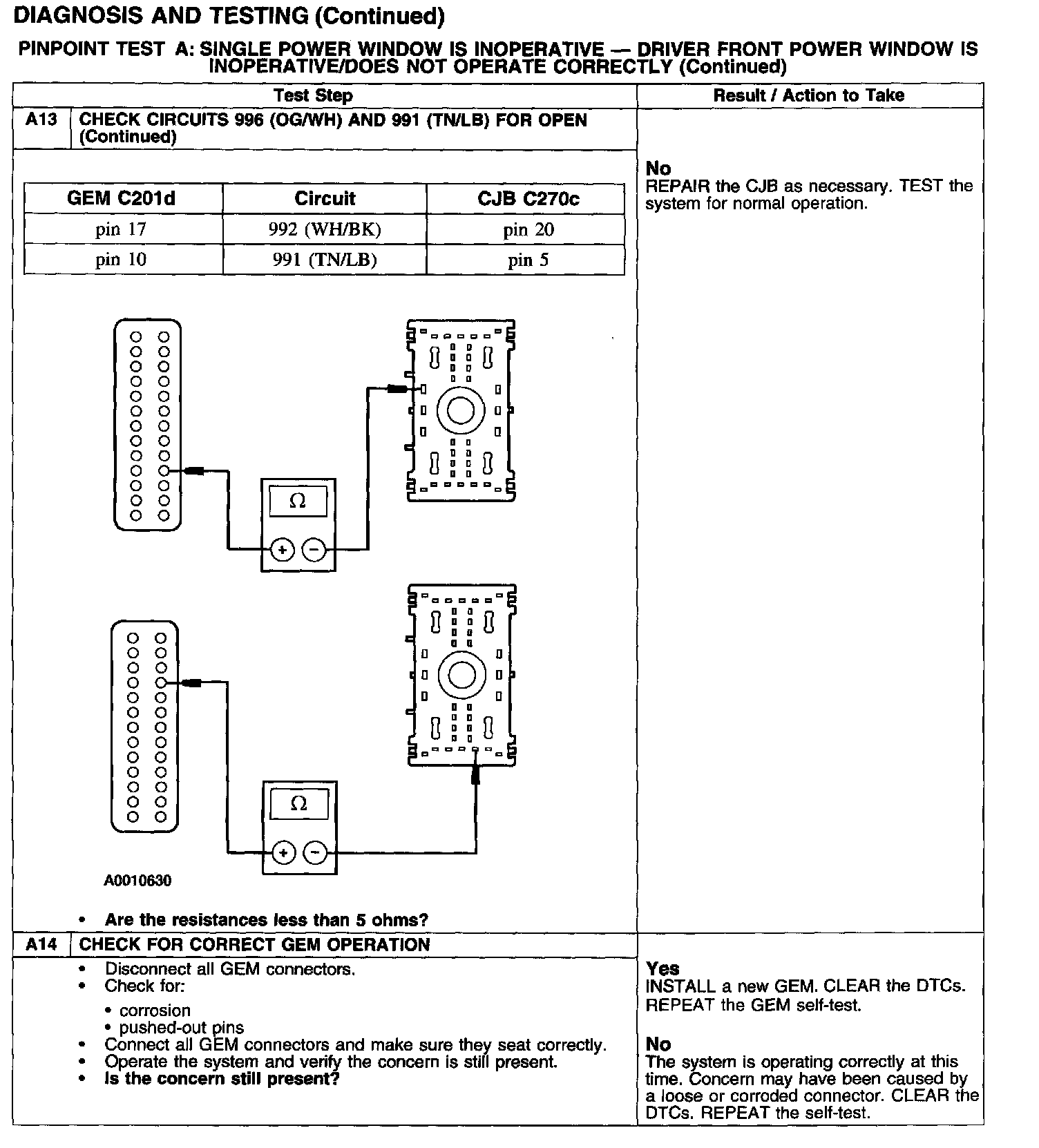

Test A13-A14:
