Connector Location Index

PLEASE NOTE: If a link on the Connector Location Index to a view is not provided, that means that the Connector and/or View in question does NOT apply to the vehicle model selected.

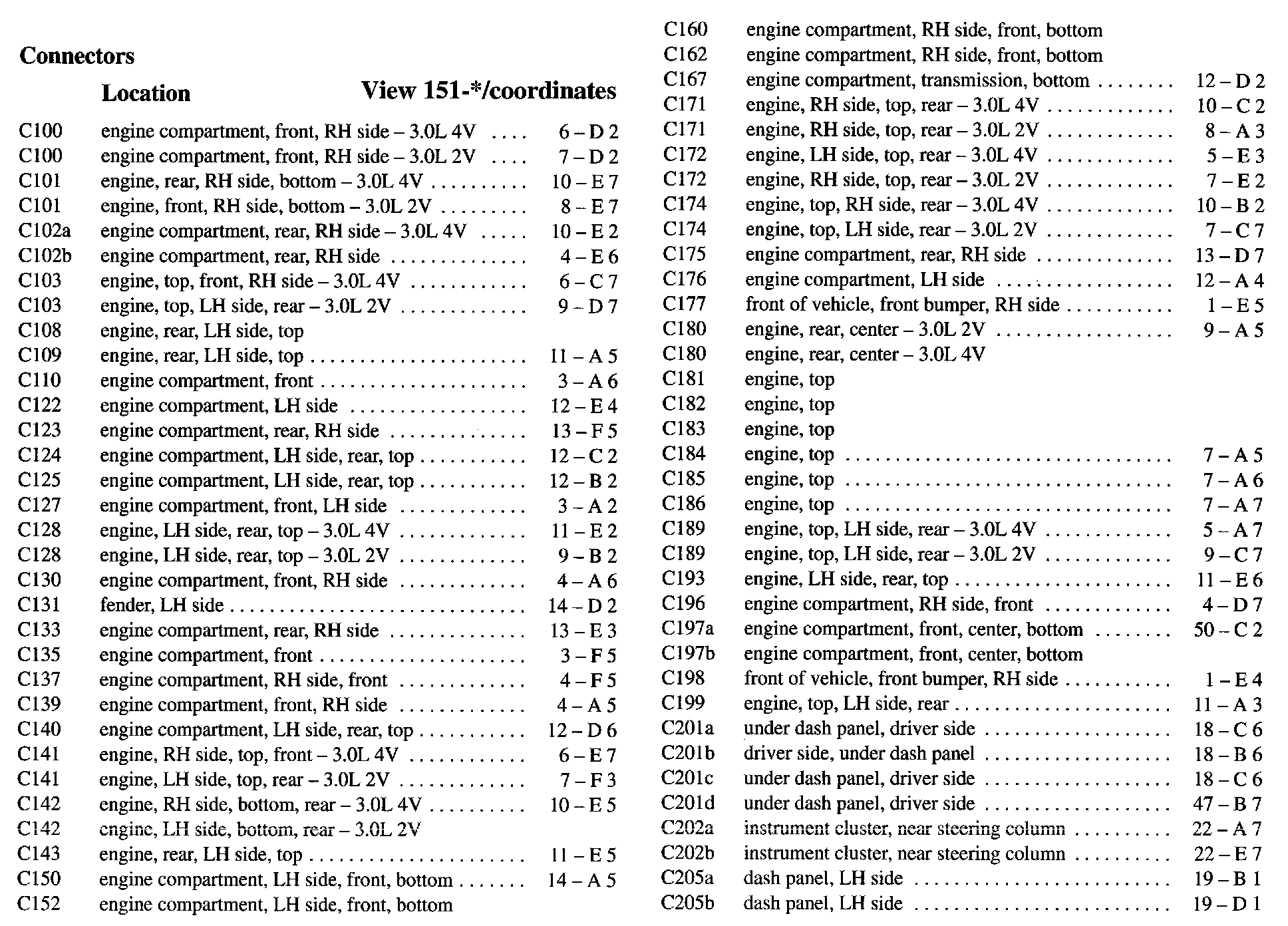

C100 - C205b:

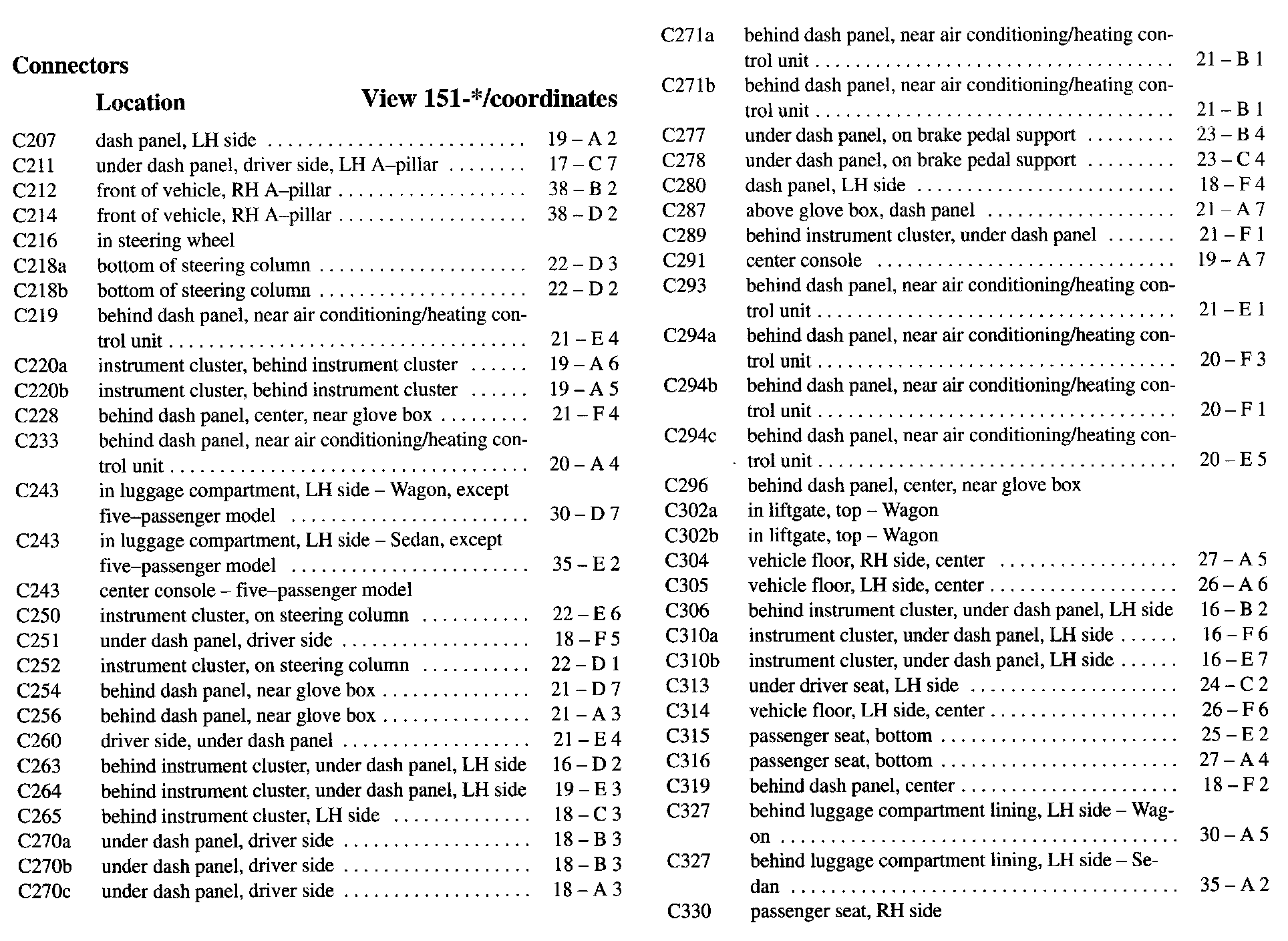

C207 - C330:

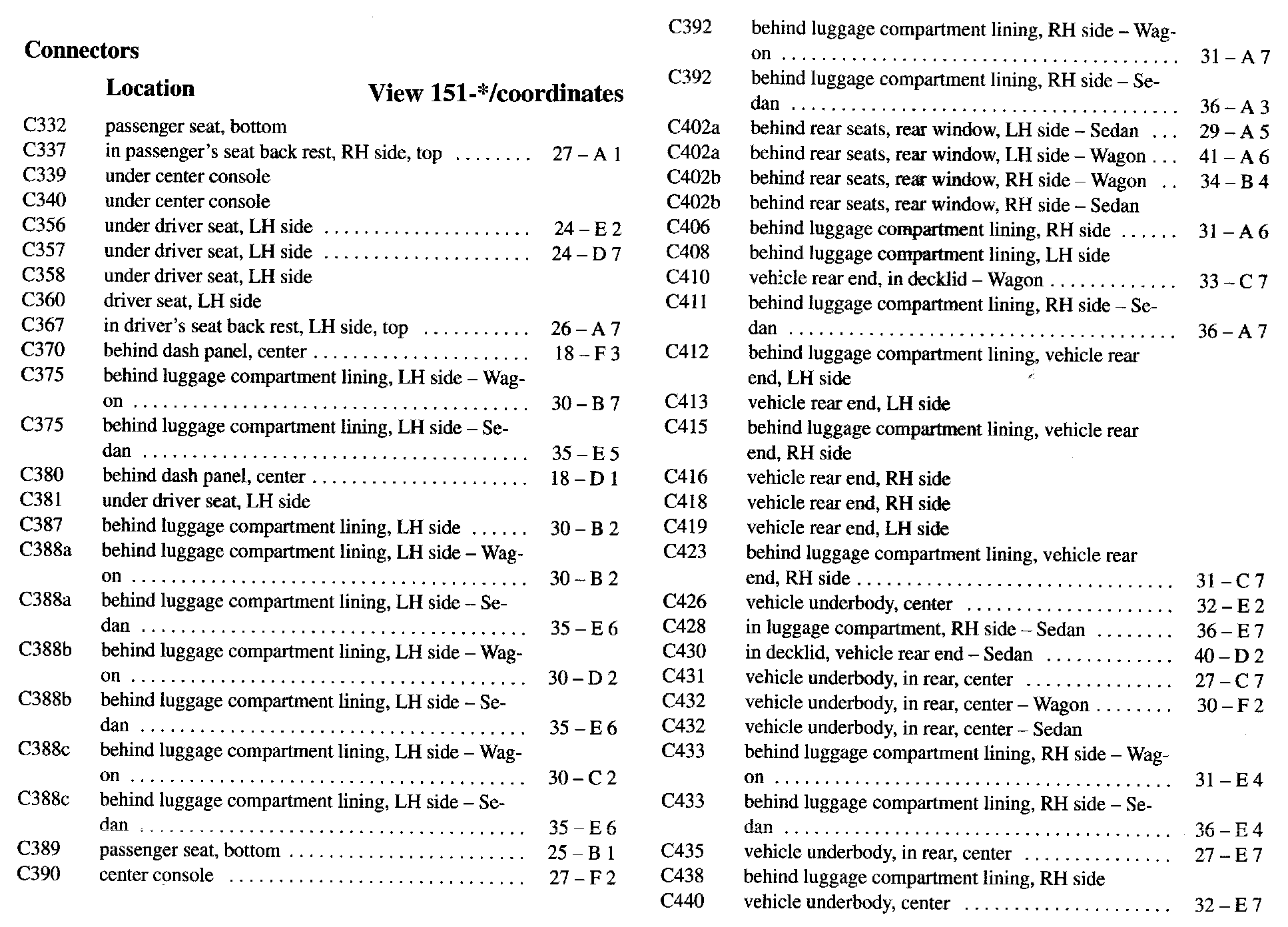

C332 - C440:

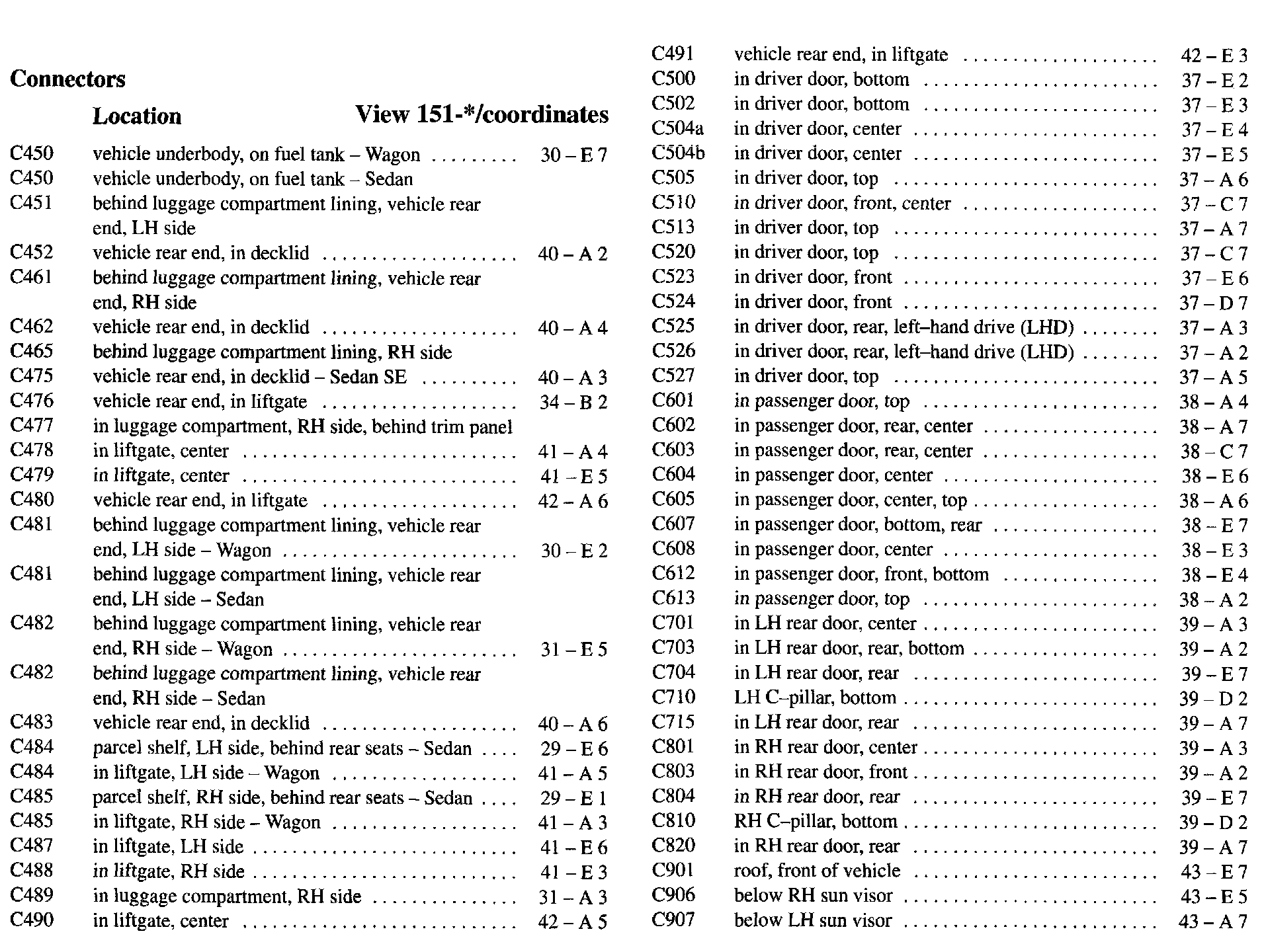

C450 - C907:

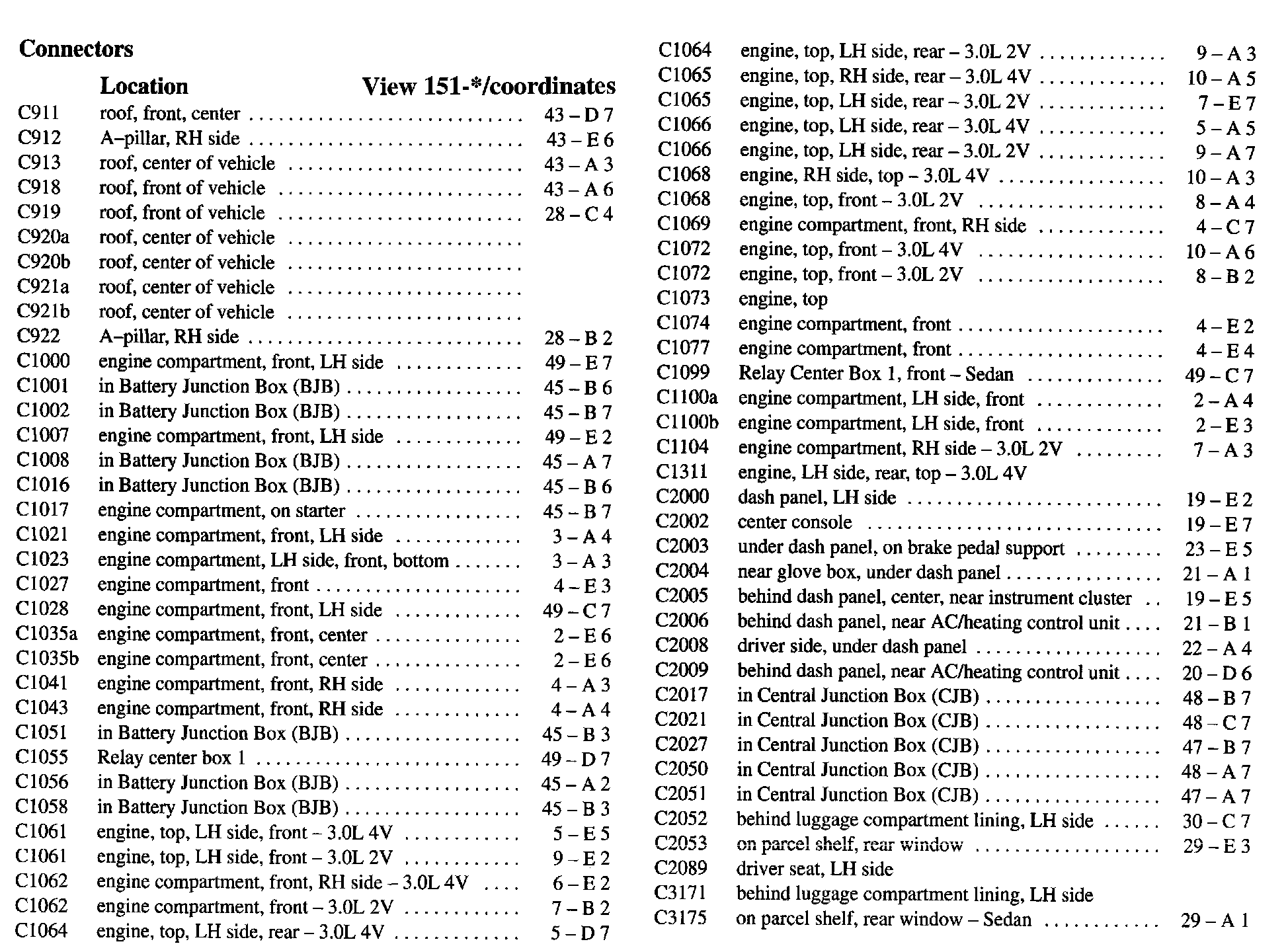

C911 - C3175:
