Torque Specifications

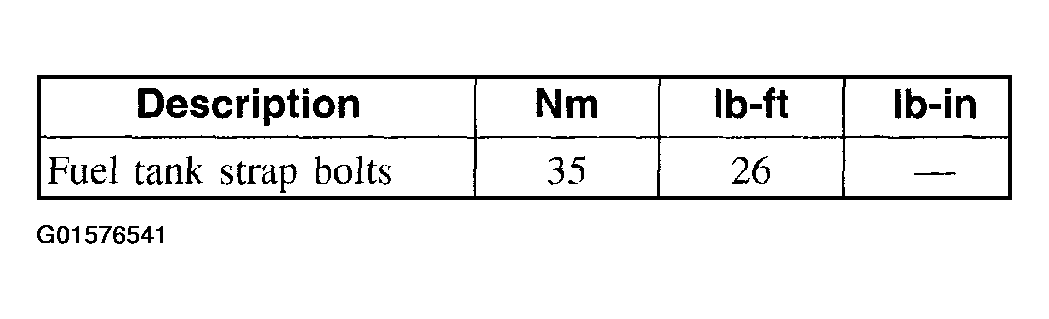

Fig 1: Torque Specifications Table (1 Of 2)
G01576541Courtesy of FORD MOTOR CO.

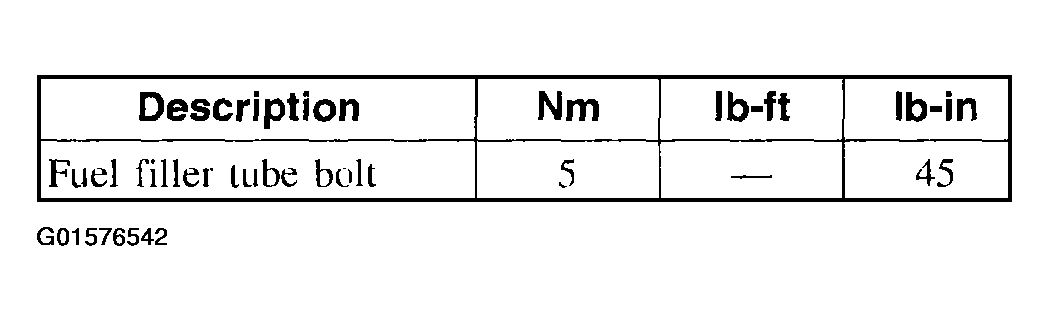

Fig 2: Torque Specifications Table (2 Of 2)
G01576542Courtesy of FORD MOTOR CO.
