Automatic Shift

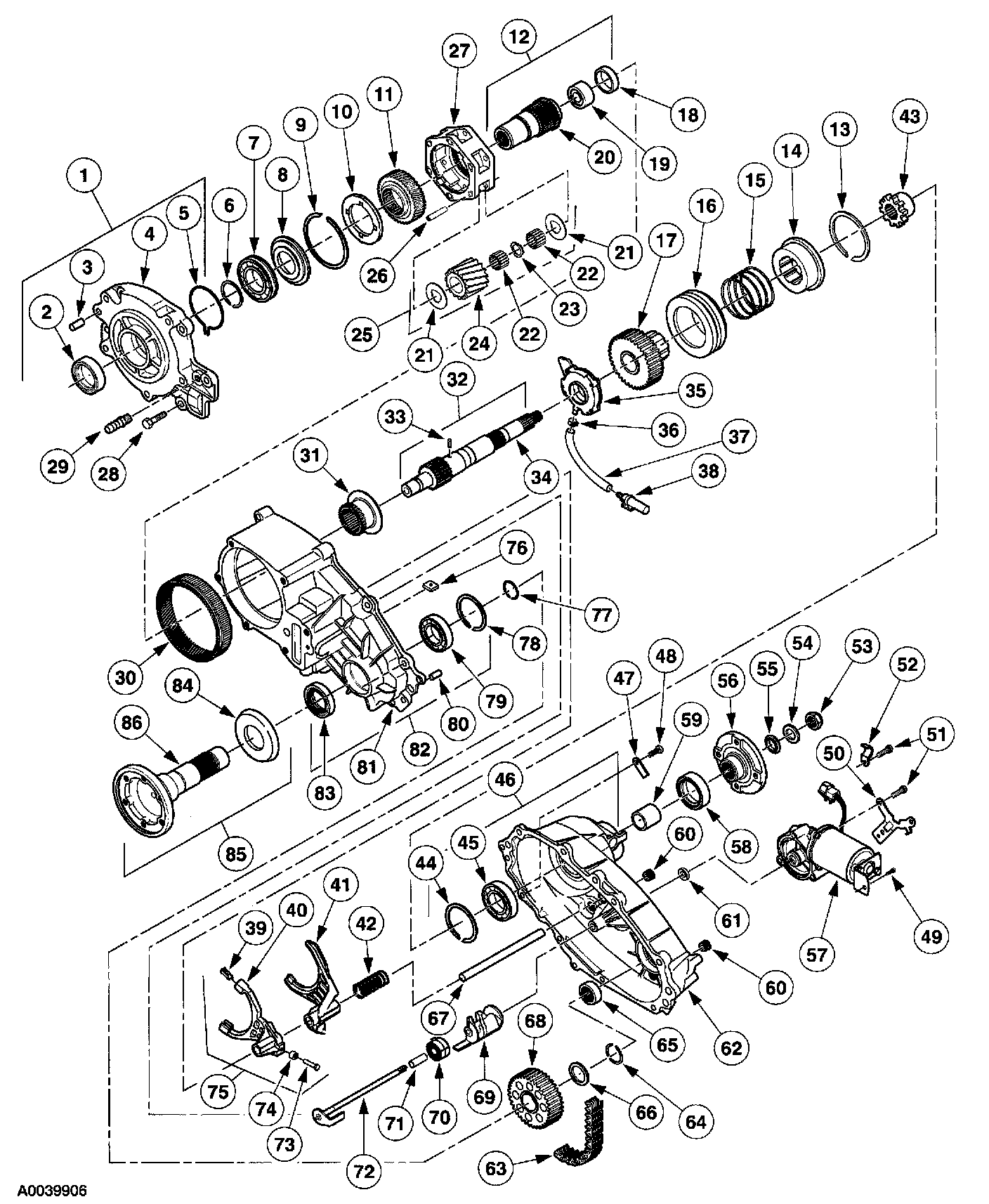

Transfer Case Disassembled View

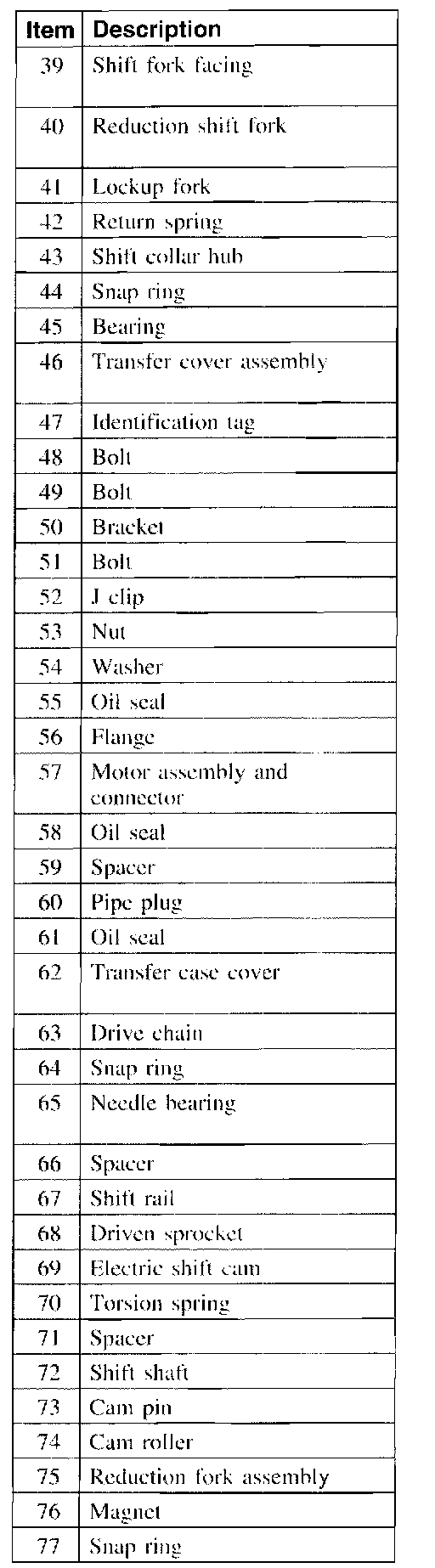

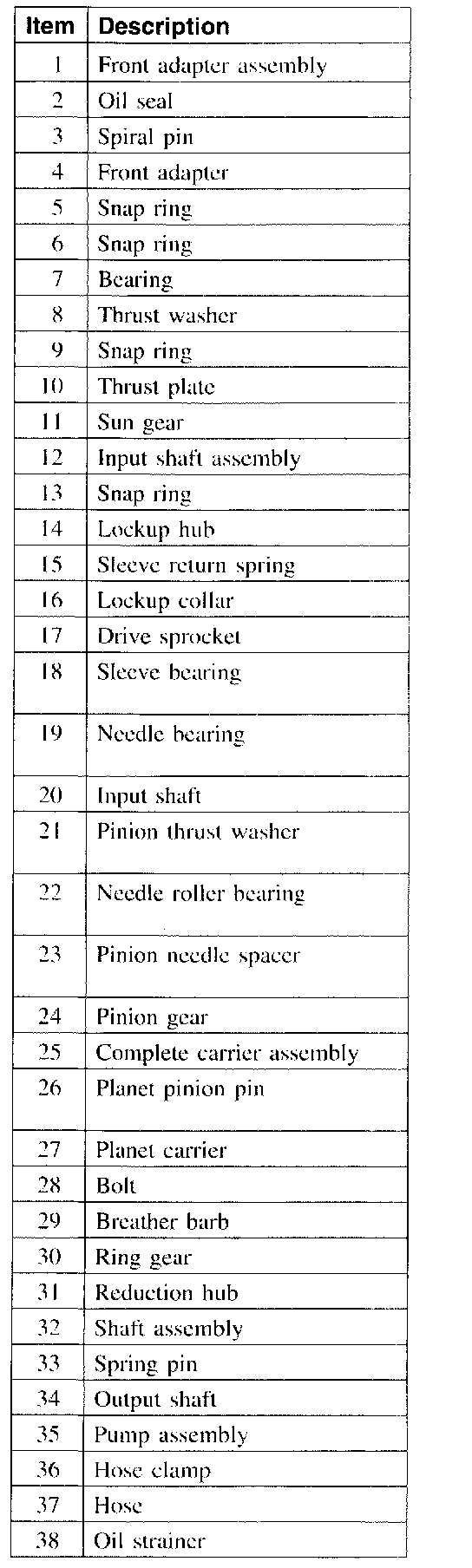

Part 1 Of 4:




Part 2 Of 4:




Part 3 Of 4:




Part 4 Of 4:
