Test E

PINPOINT TEST E: THE POWERTRAIN CONTROL MODULE (PCM) DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

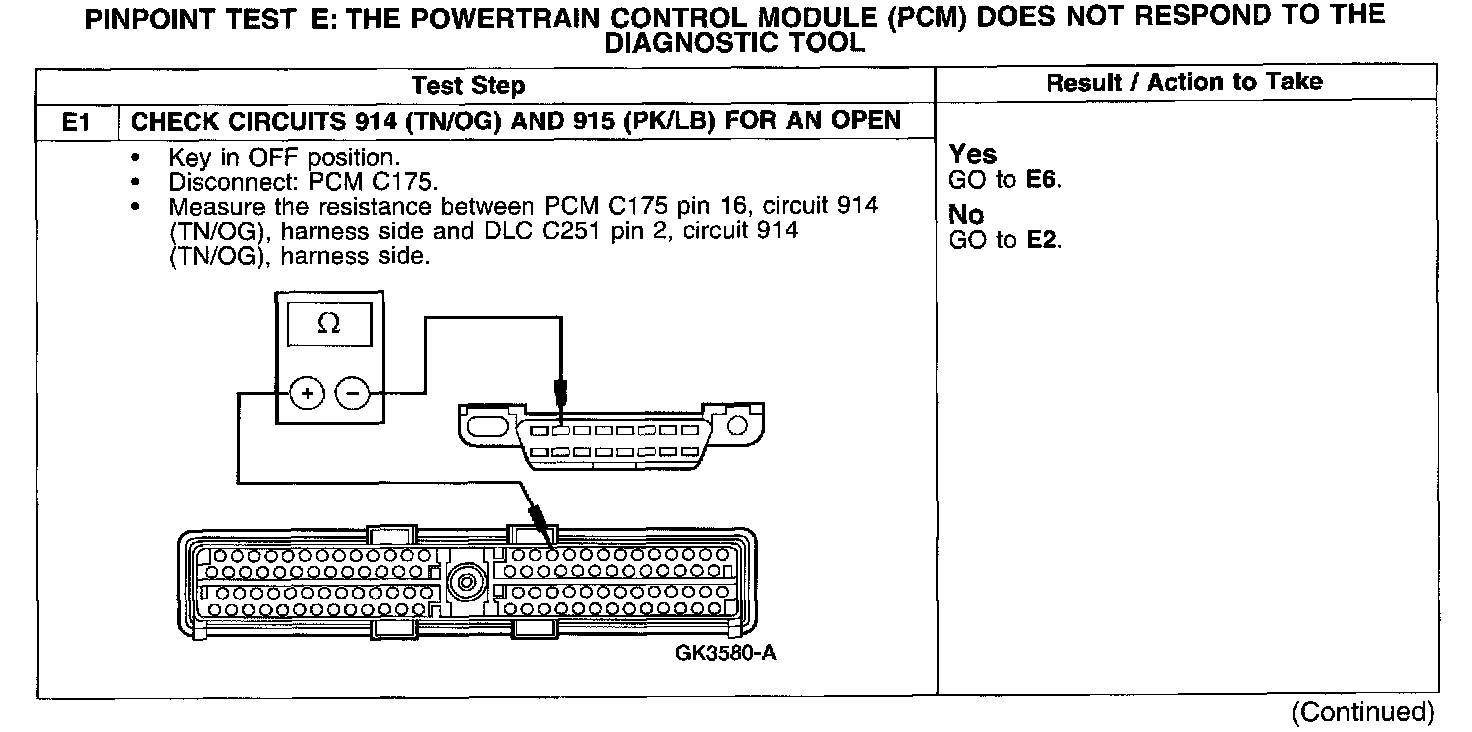

Test E1:

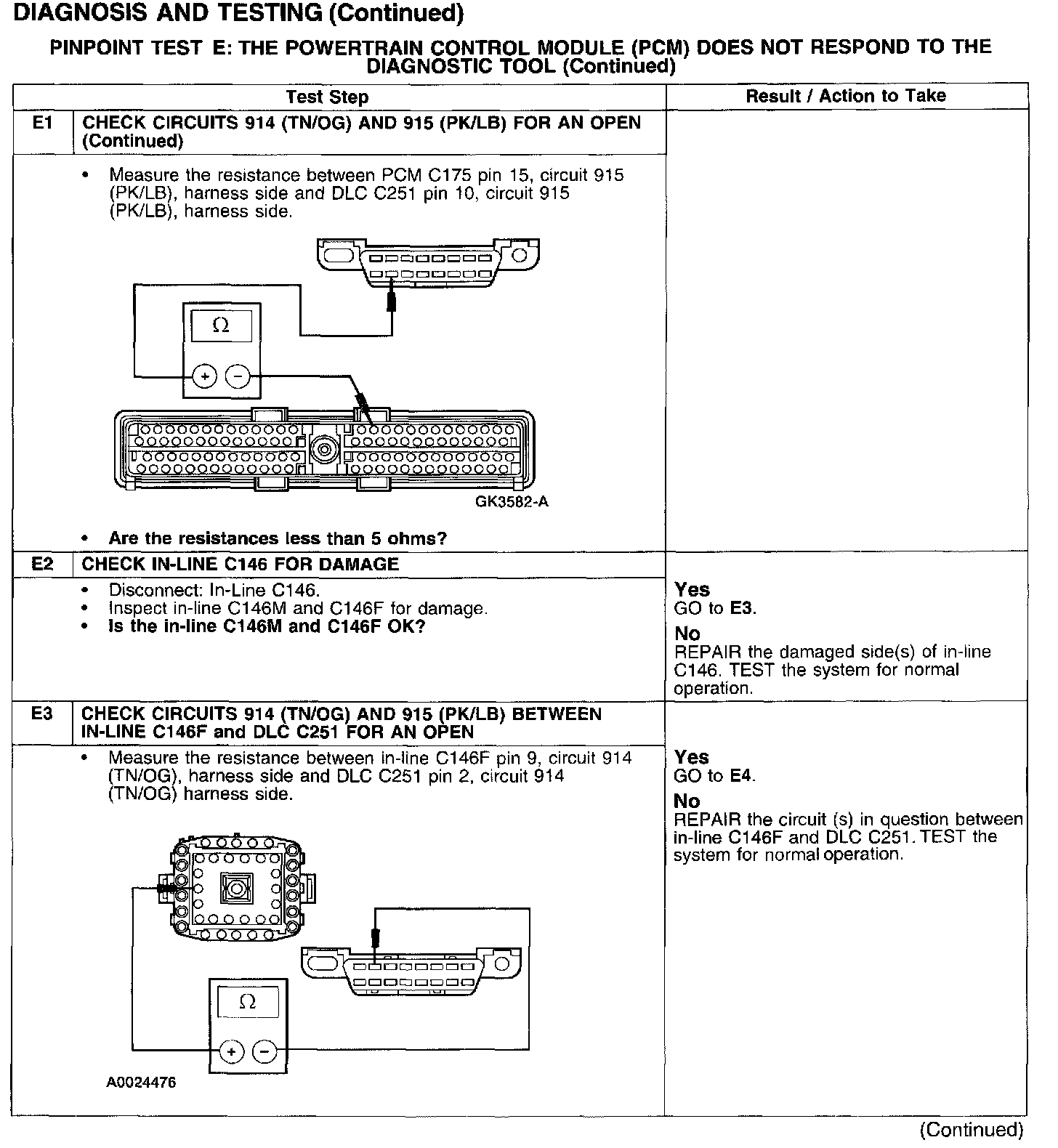

Test E1-E3:

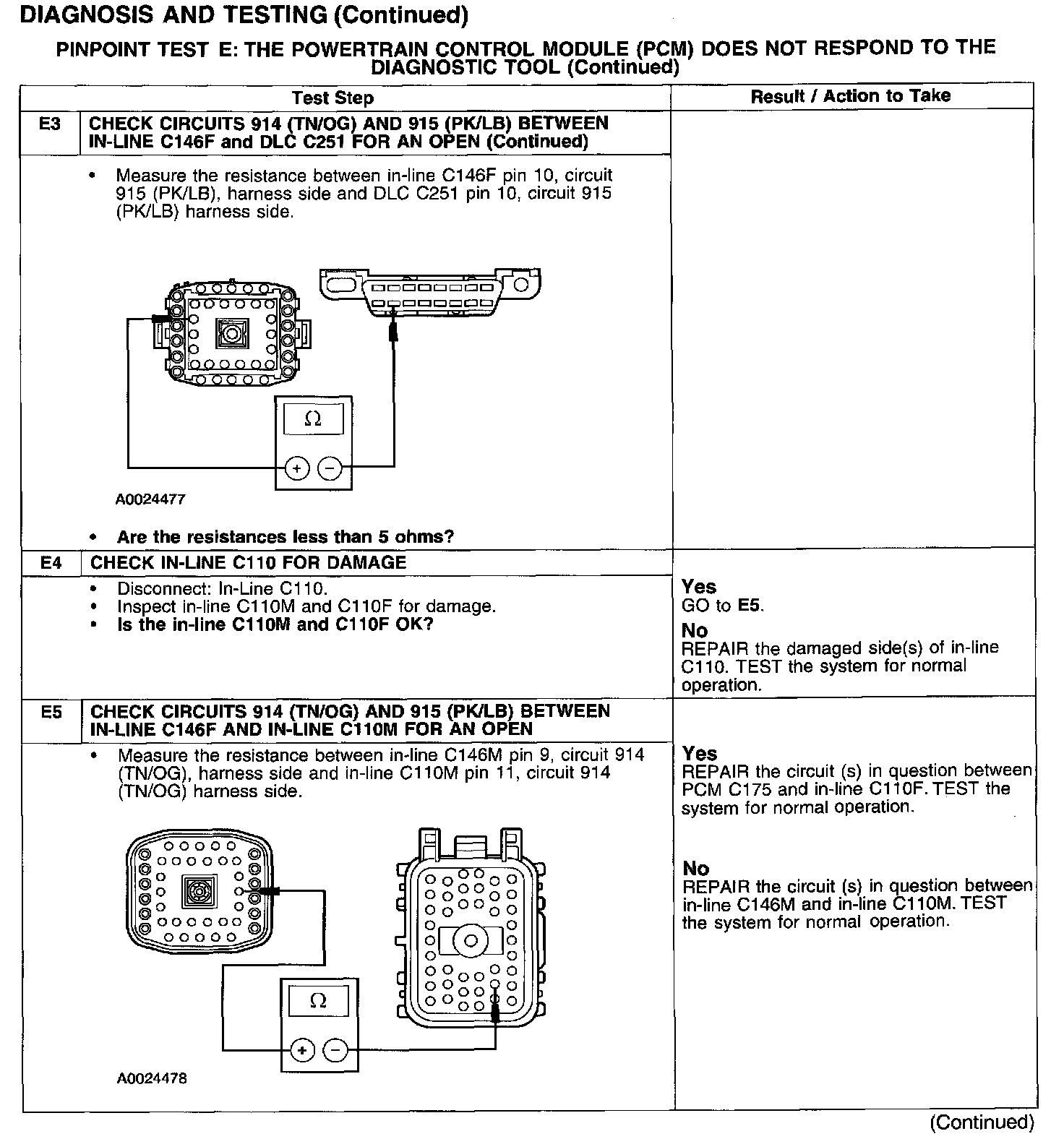

Test E3-E5:

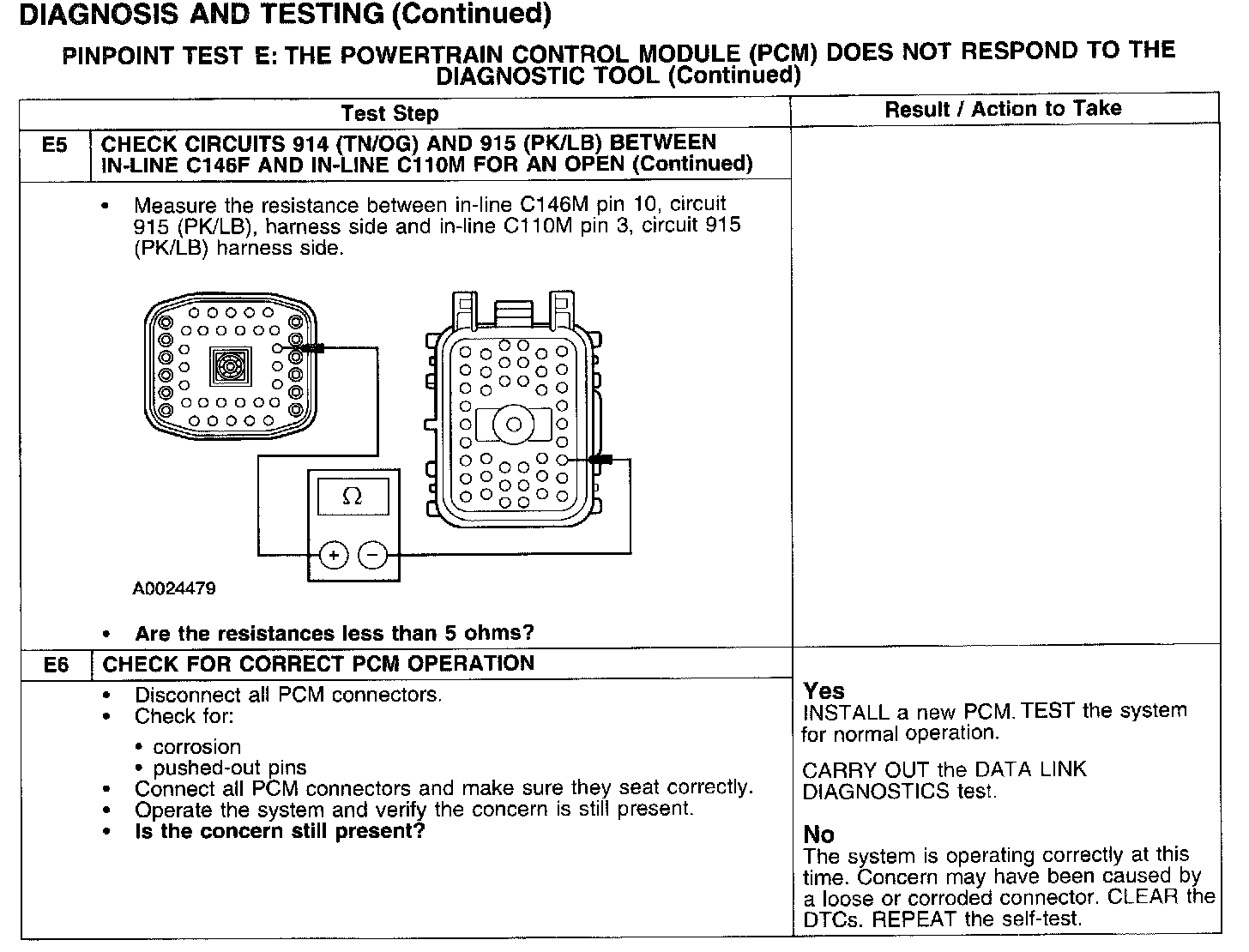

Test E5-E6:
