Cylinder Block and Lower End Components

WARNING: This page is about a different variant/trim than selected.

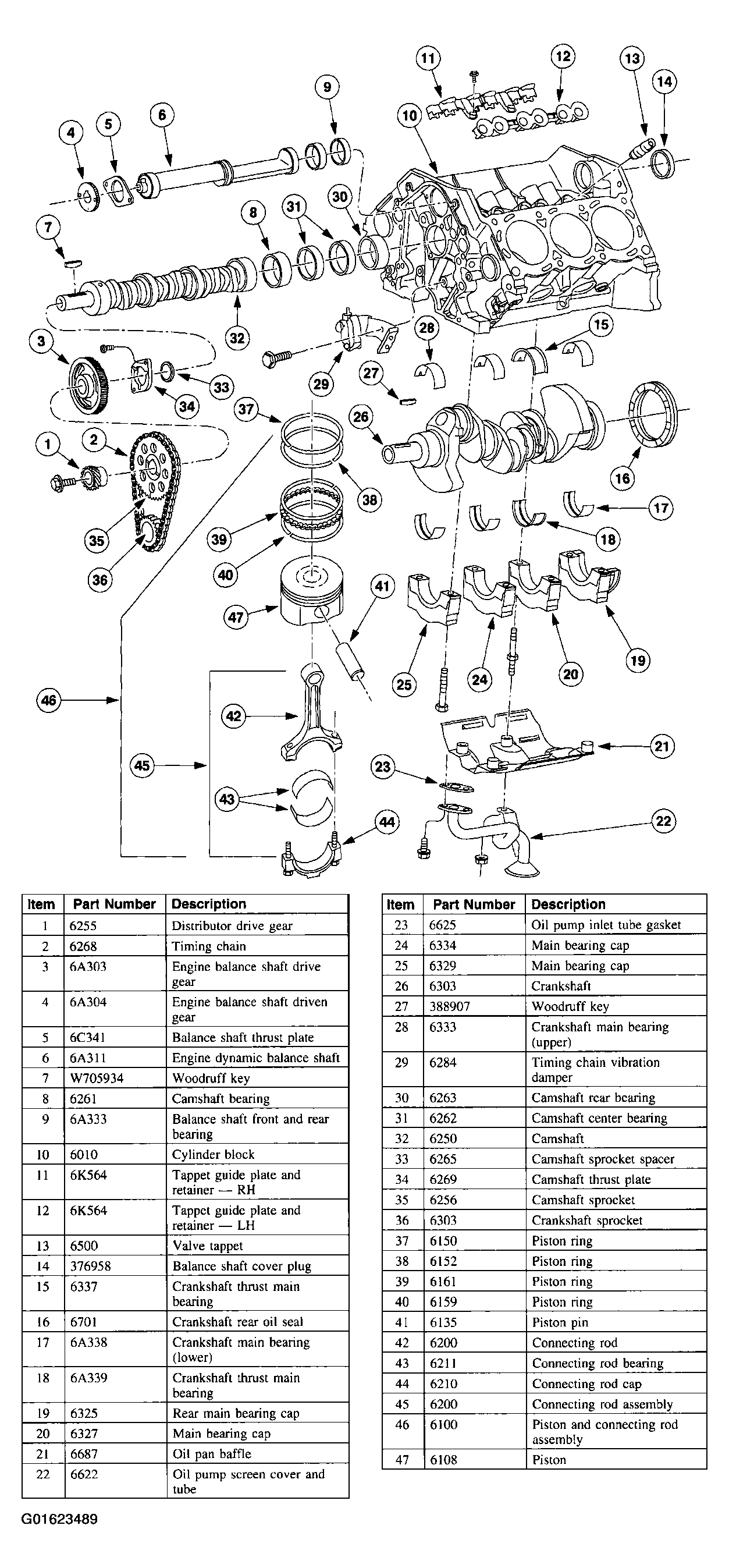

Fig 1: Identifying Cylinder Block And Lower End Components
G01623489Courtesy of FORD MOTOR CO.
