Removal and Installation

  1. Remove the fuel tank. For additional information, refer to FUEL TANK .
    2. NOTE: For installation, tighten the bolts in the sequence shown.

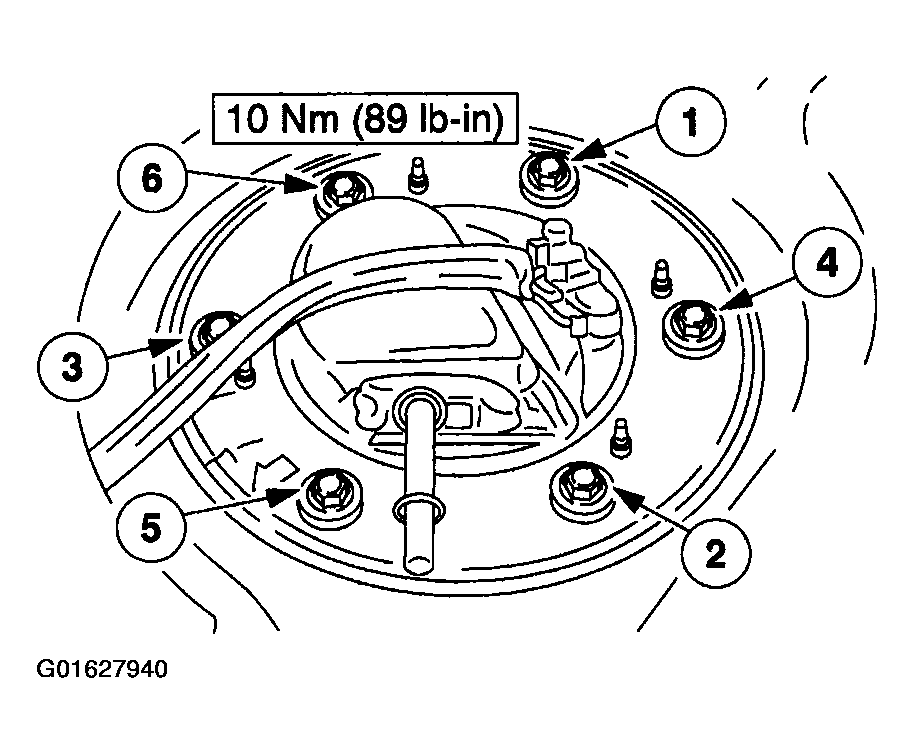

    Fig 1: Removing Module Assembly Flange Bolts
    G01627940Courtesy of FORD MOTOR CO.
  2. Remove the module assembly flange bolts.
  3. Clean the area around the fuel delivery module mounting flange.
  4. Lift the fuel pump, carefully detach the fuel float arm and remove the fuel pump from the fuel tank.

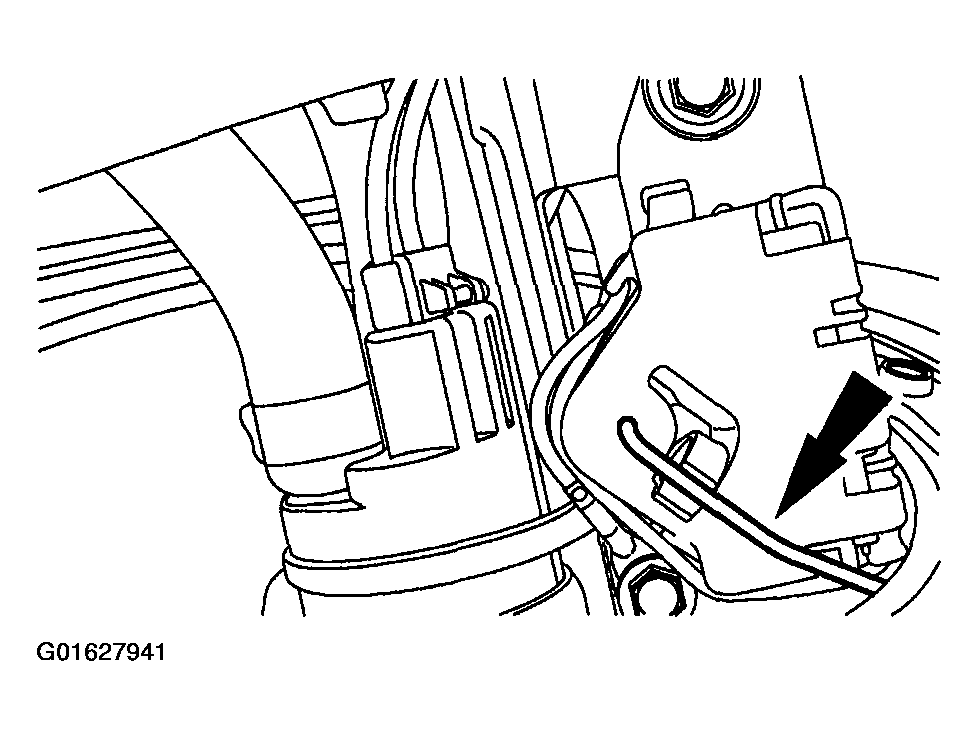

    Fig 2: Removing Fuel Float Arm And Fuel Pump From Fuel Tank
    G01627941Courtesy of FORD MOTOR CO.
    5. NOTE: Install a new fuel pump O-ring.
  5. To install, reverse the removal procedure.
