Steering System Components - 3.8L Engine

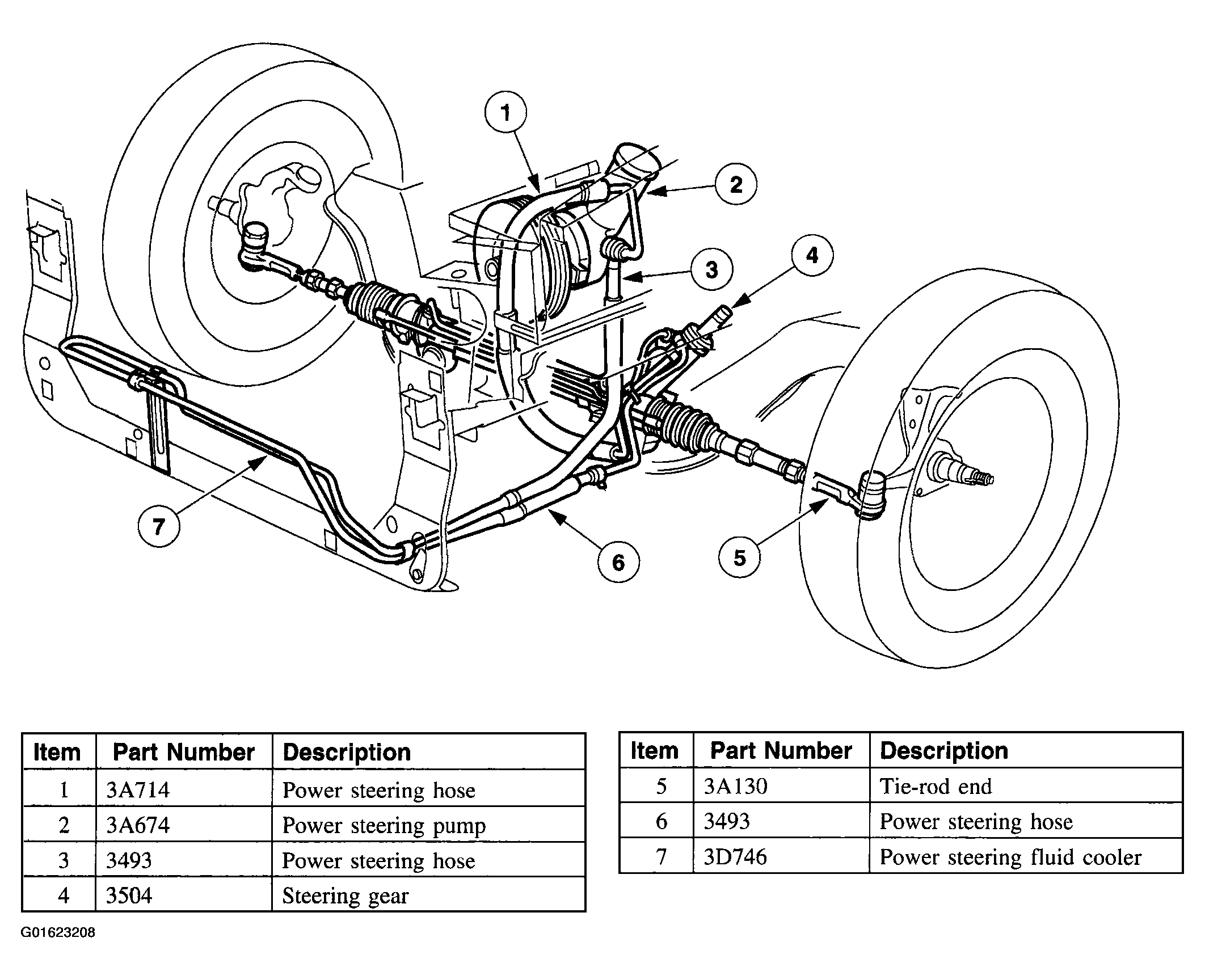

Fig 1: Identifying Steering System Components - 3.8L Engine
G01623208Courtesy of FORD MOTOR CO.
