Piston - Pin Connecting Rod, Floating Pin: Assembly

WARNING: This page is about a different variant/trim than selected.
    NOTE: Connecting rod must be installed into piston with identification markings toward front.

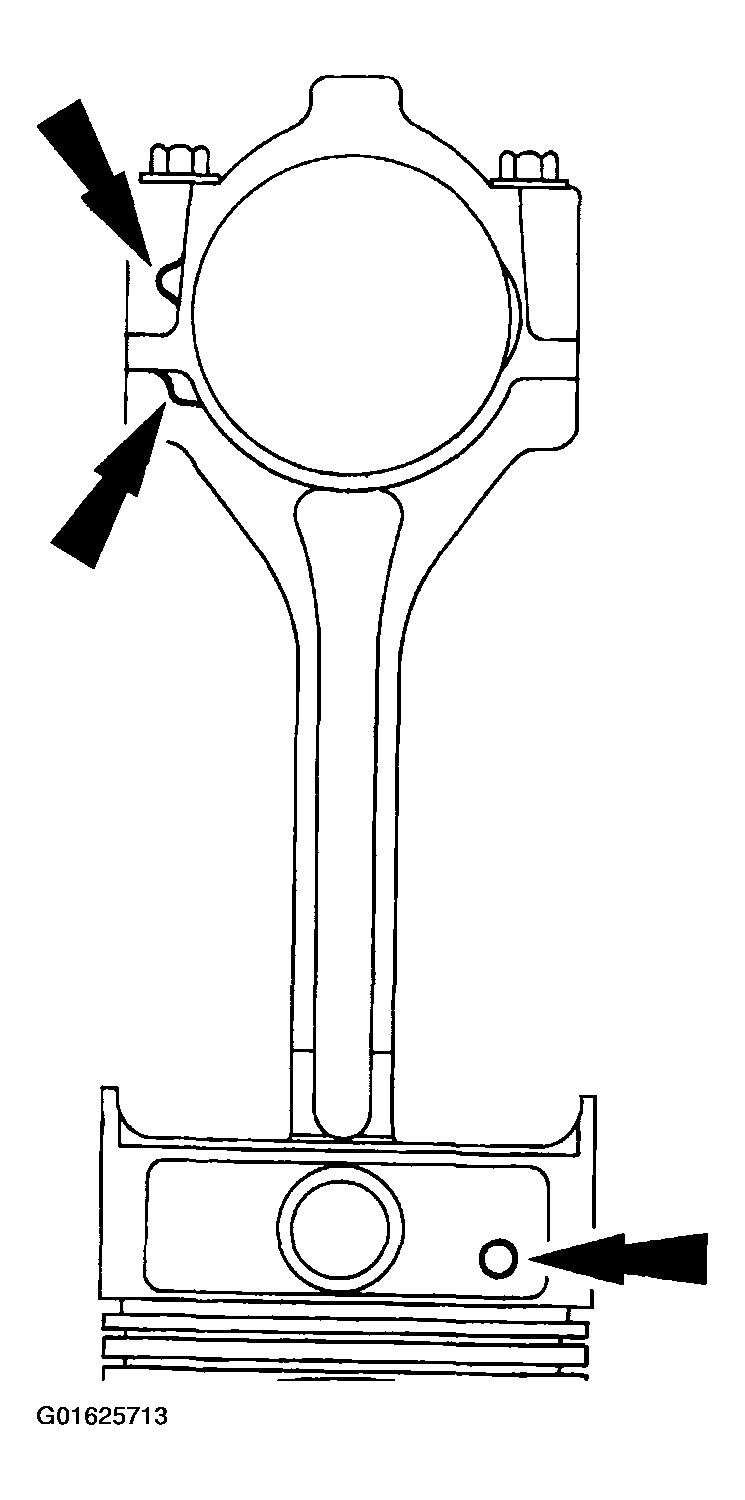

    Fig 1: Positioning Connecting Rod In Piston
    G01625713Courtesy of FORD MOTOR CO.
  1. Position the connecting rod in the piston.
  2. Lubricate the piston pin and pin bore with clean engine oil.
    Fig 2: Identifying Piston Pin And Pin Bore For Lubrication
    G01625714Courtesy of FORD MOTOR CO.
  3. Install the piston pin in the piston and connecting rod assembly.
    Fig 3: Installing Piston Pin In Piston And Connecting Rod Assembly
    G01625715Courtesy of FORD MOTOR CO.
  4. Install the piston pin retaining clips in the piston.
    Fig 4: Installing Piston Pin Retaining Clips In Piston
    G01625716Courtesy of FORD MOTOR CO.
