Gearshift Lever: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove the gearshift lever knob.
    • Remove the compression spring and damping sleeve.

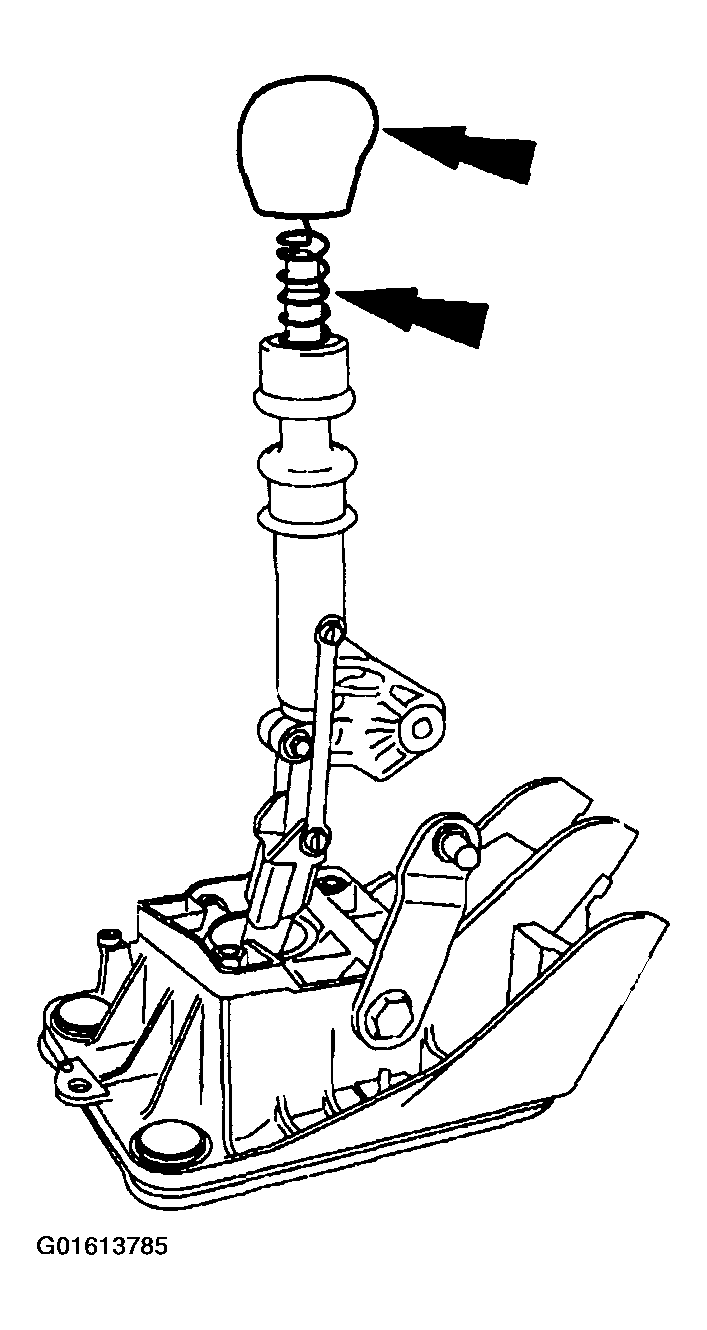

      Fig 1: Removing Gearshift Lever Knob
      G01613785Courtesy of FORD MOTOR CO.
  2. Detach the reverse gear release from the gearshift lever.
    • Remove the reverse gear release.

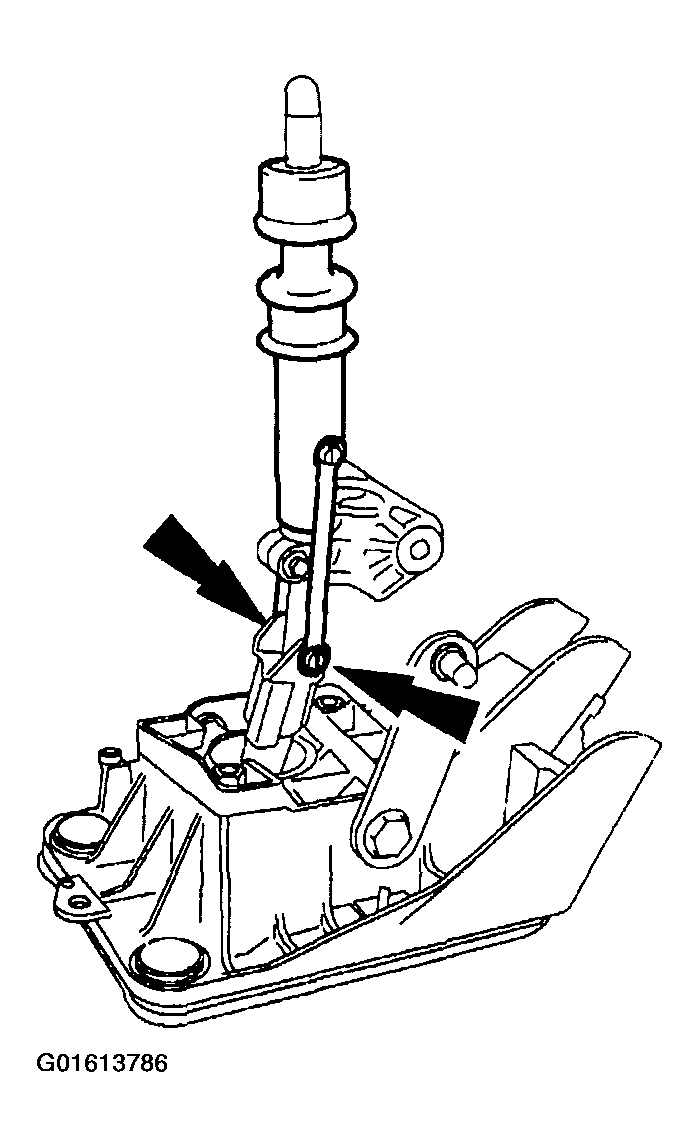

      Fig 2: Detaching Reverse Gear Release From Gearshift Lever
      G01613786Courtesy of FORD MOTOR CO.
  3. Remove the gearshift lever cover.

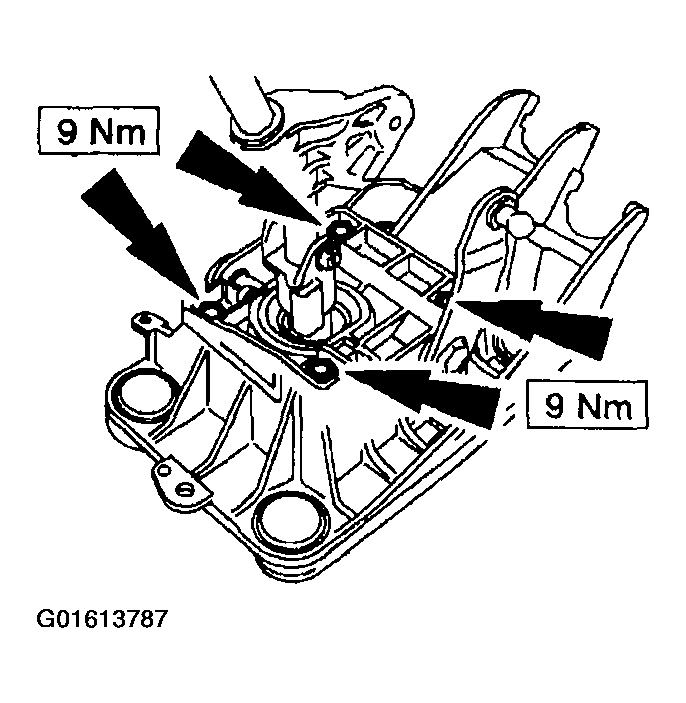

    Fig 3: Removing Gearshift Lever Cover
    G01613787Courtesy of FORD MOTOR CO.
  4. Remove the gearshift lever.

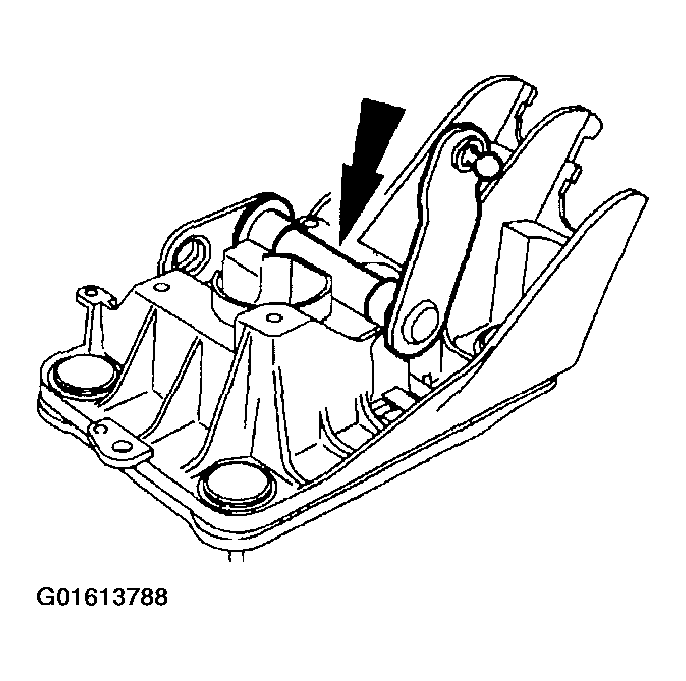

    Fig 4: Removing Gearshift Lever
    G01613788Courtesy of FORD MOTOR CO.
