Removal And Installation: Radiator: Installation

  1. To install, reverse the removal procedure.

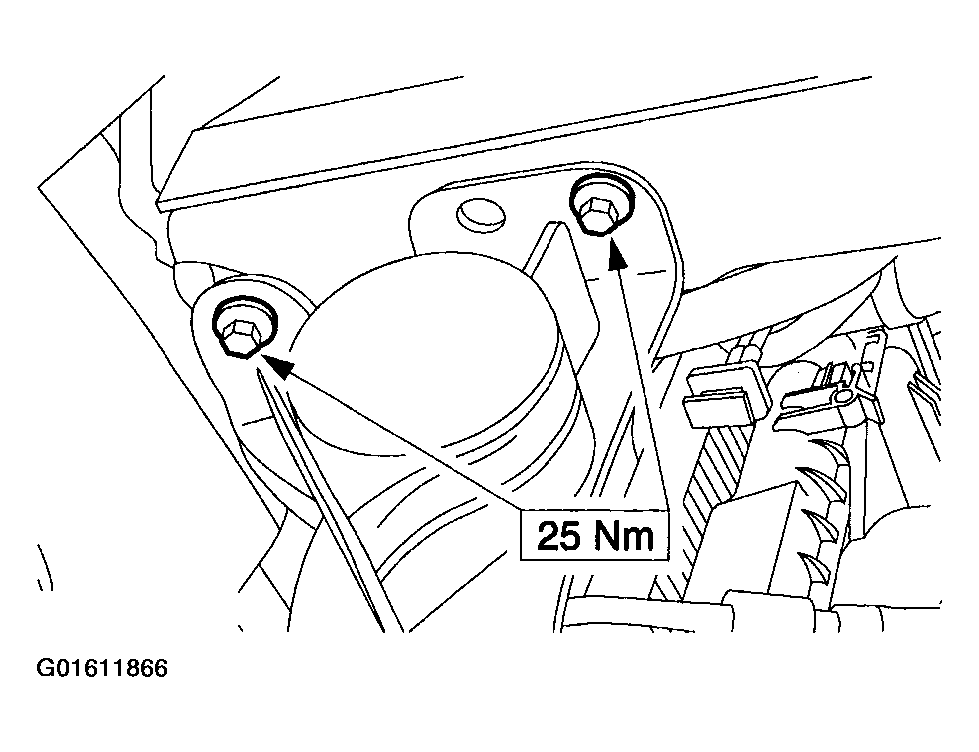

    Fig 1: Installing Radiator Support Bracket
    G01611866Courtesy of FORD MOTOR CO.
    Fig 2: Installing Radiator Support Bracket Bolts
    G01611867Courtesy of FORD MOTOR CO.
  2. Fill and bleed the cooling system. For additional information, COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
