Pinpoint Test H: Red Brake Warning Indicator Does Not Self-Check

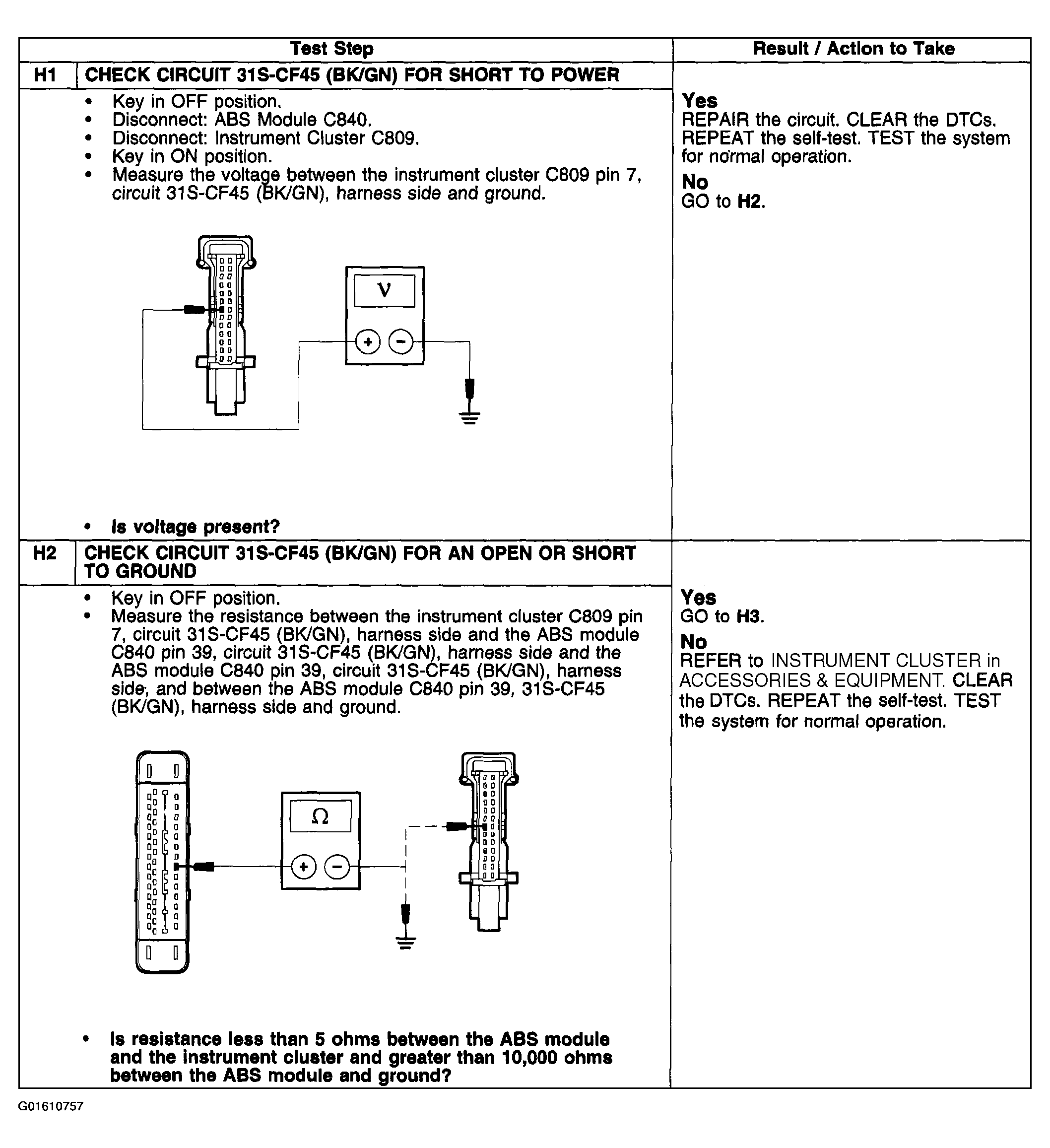

Fig 1: Pinpoint Test H: Red Brake Warning Indicator Does Not Self-Check (H1-H2)
G01610757Courtesy of FORD MOTOR CO.

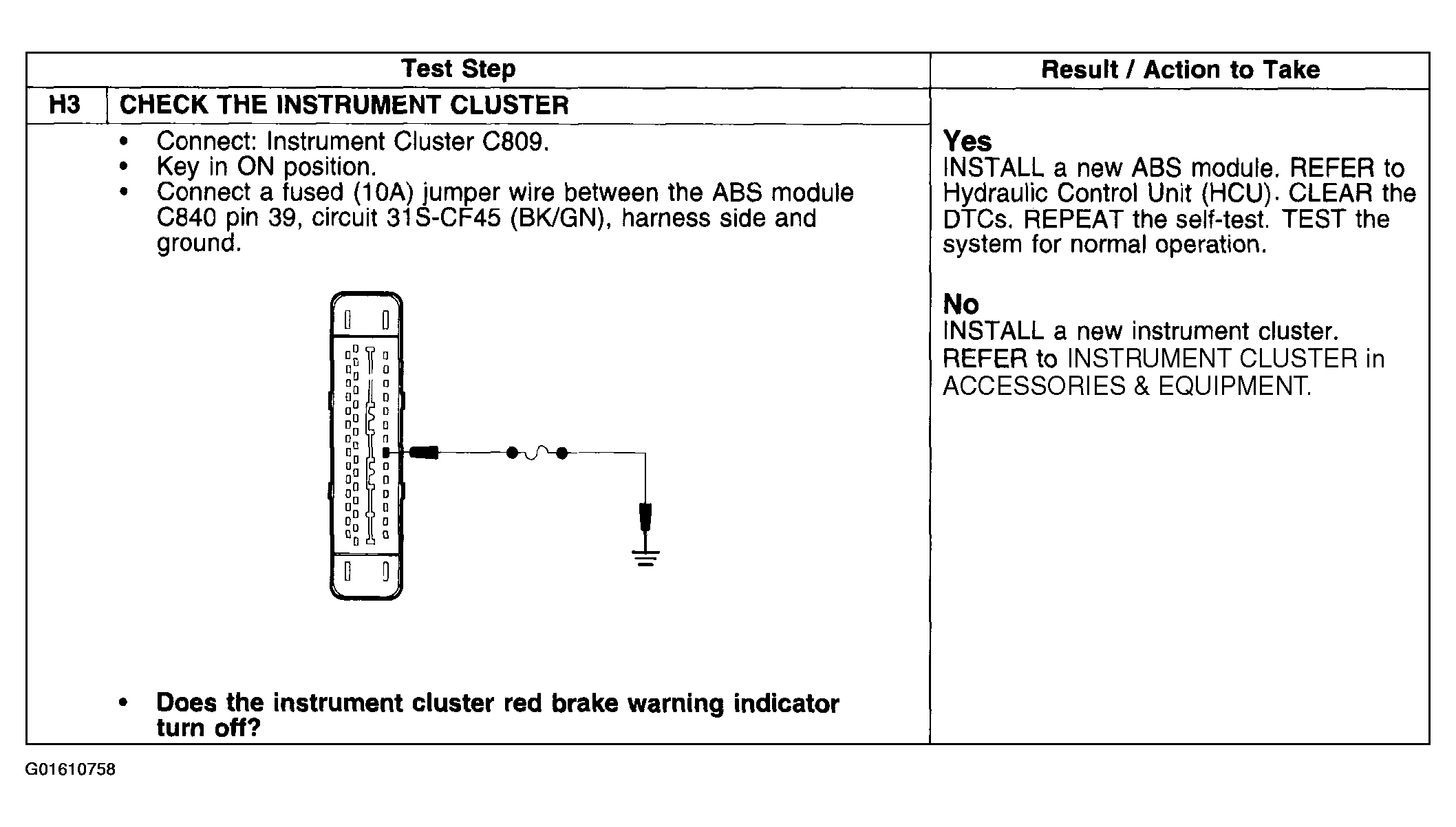

Fig 2: Pinpoint Test H: Red Brake Warning Indicator Does Not Self-Check (H3)
G01610758Courtesy of FORD MOTOR CO.
