Test F

PINPOINT TEST F: SINGLE POWER WINDOW IS INOPERATIVE - DRIVER SIDE


Test F1:

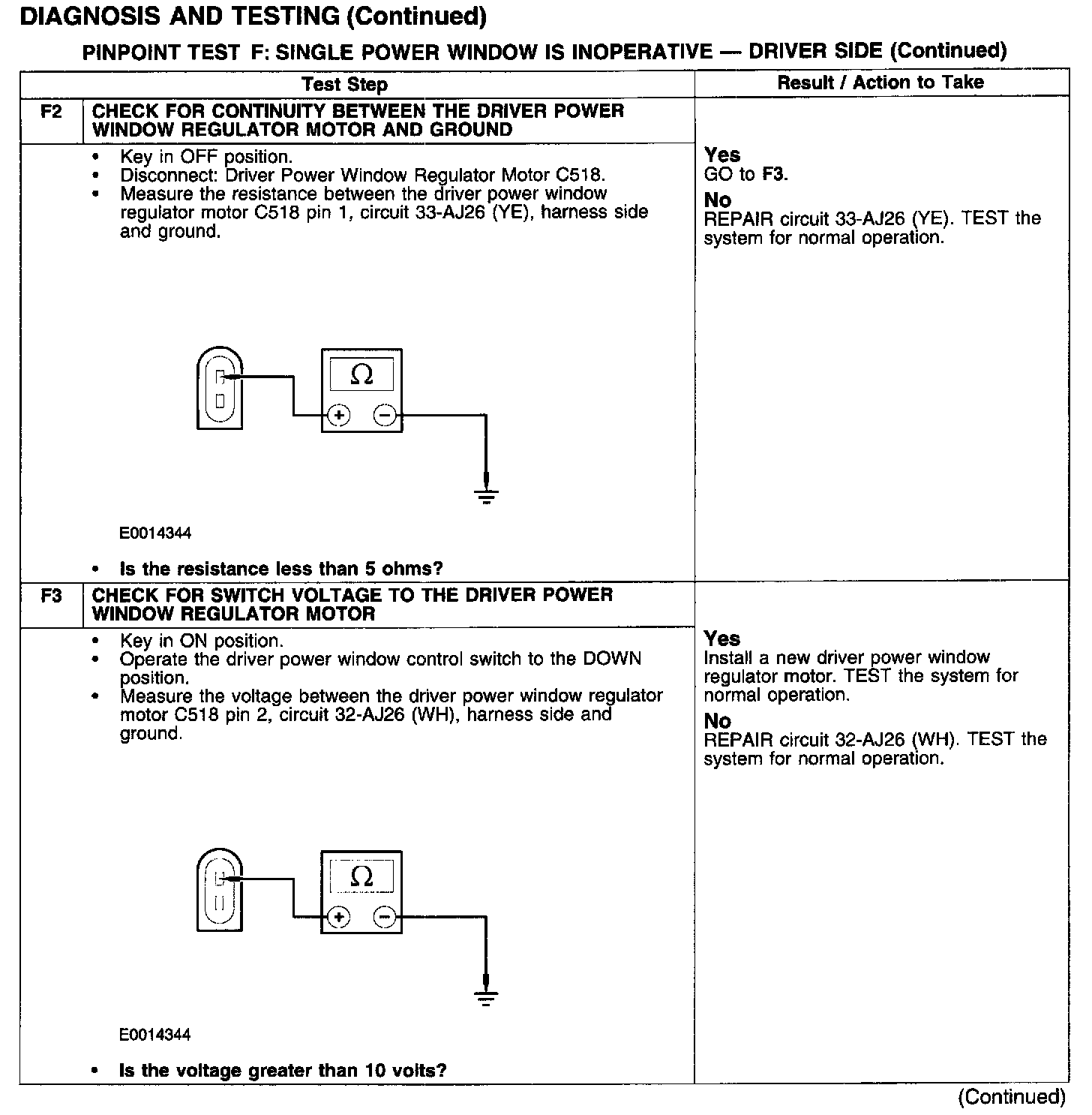

Test F2-F3:

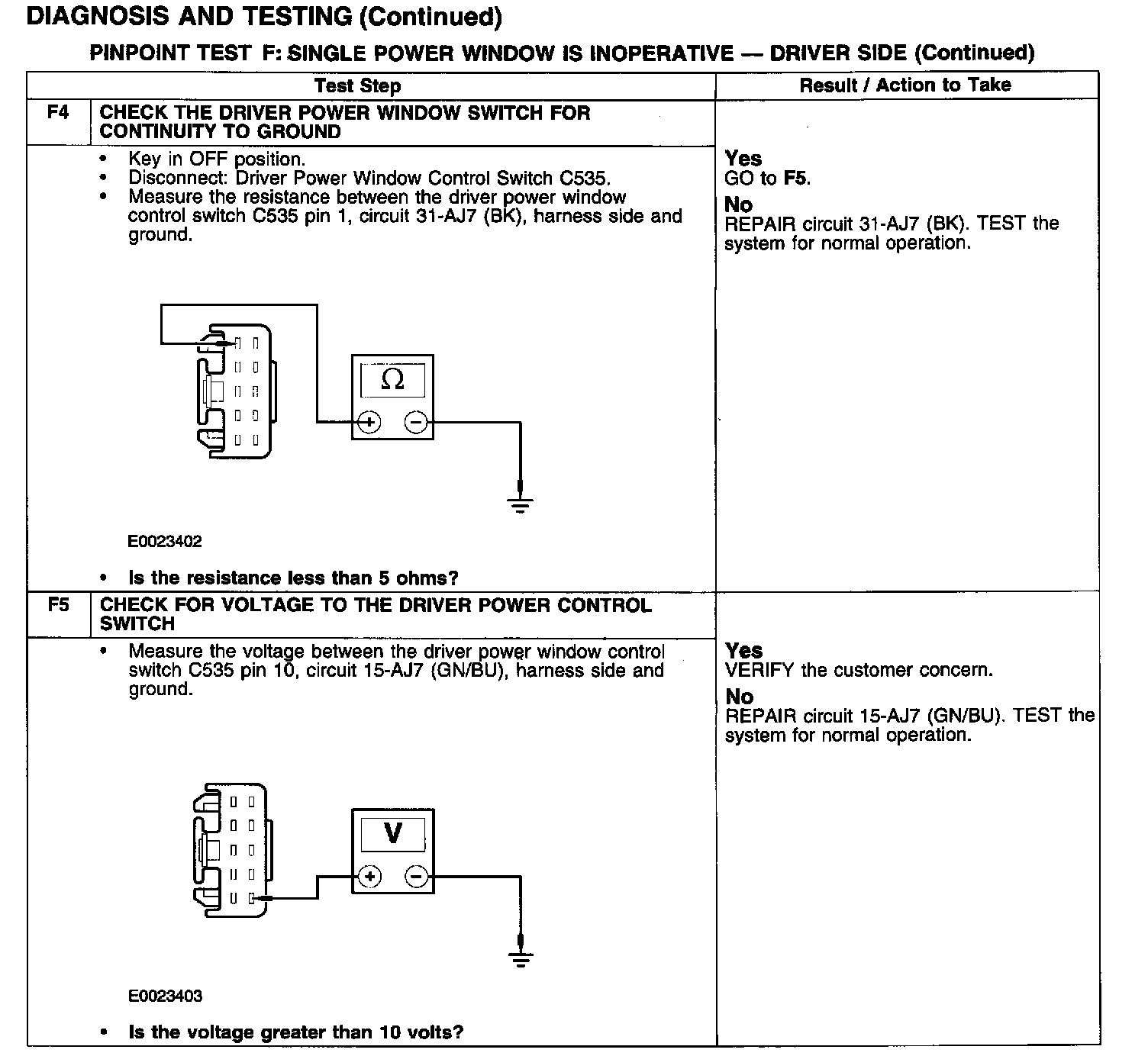

Test F4-F5:
