Tests TJ: Output Shaft Speed (OSS) Sensor



TJ INTRODUCTION 1 OF 3:





TJ INTRODUCTION 2 OF 3:





TJ INTRODUCTION 3 OF 3:





TJ1 - TJ2:





TJ3 - TJ5:

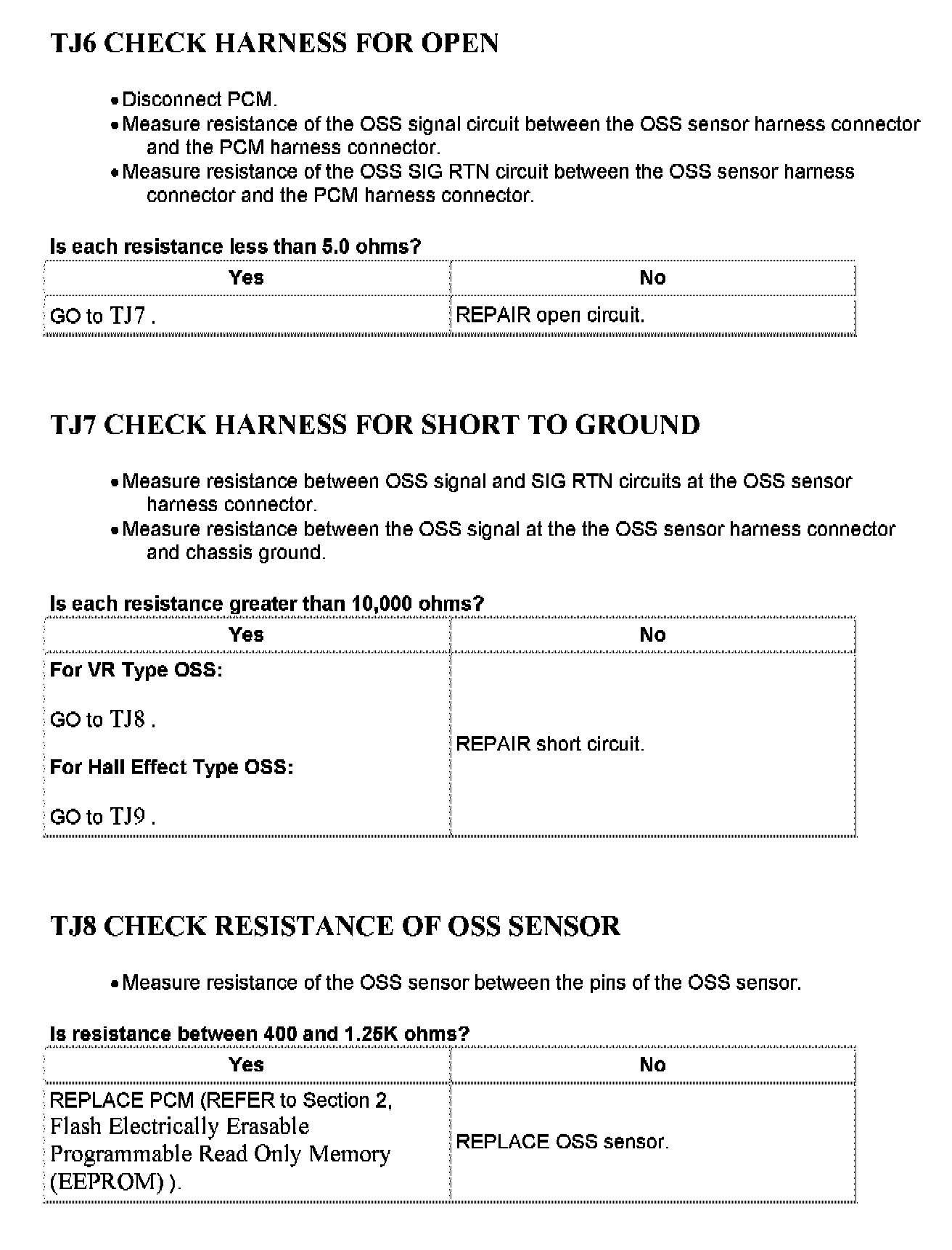

TJ6 - TJ8:





TJ9:
