Rear

Rear Suspension

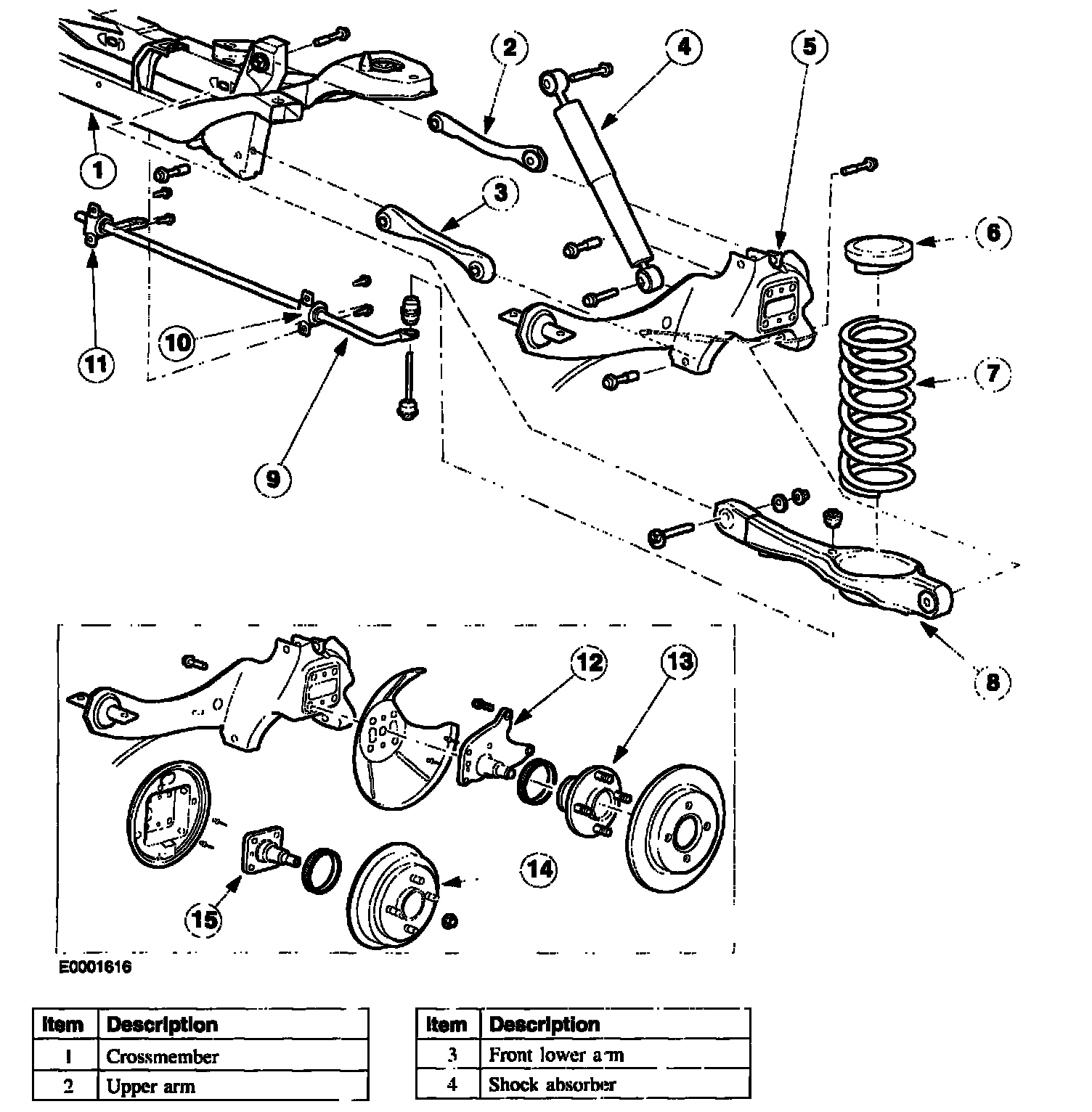

Part 1 Of 2:

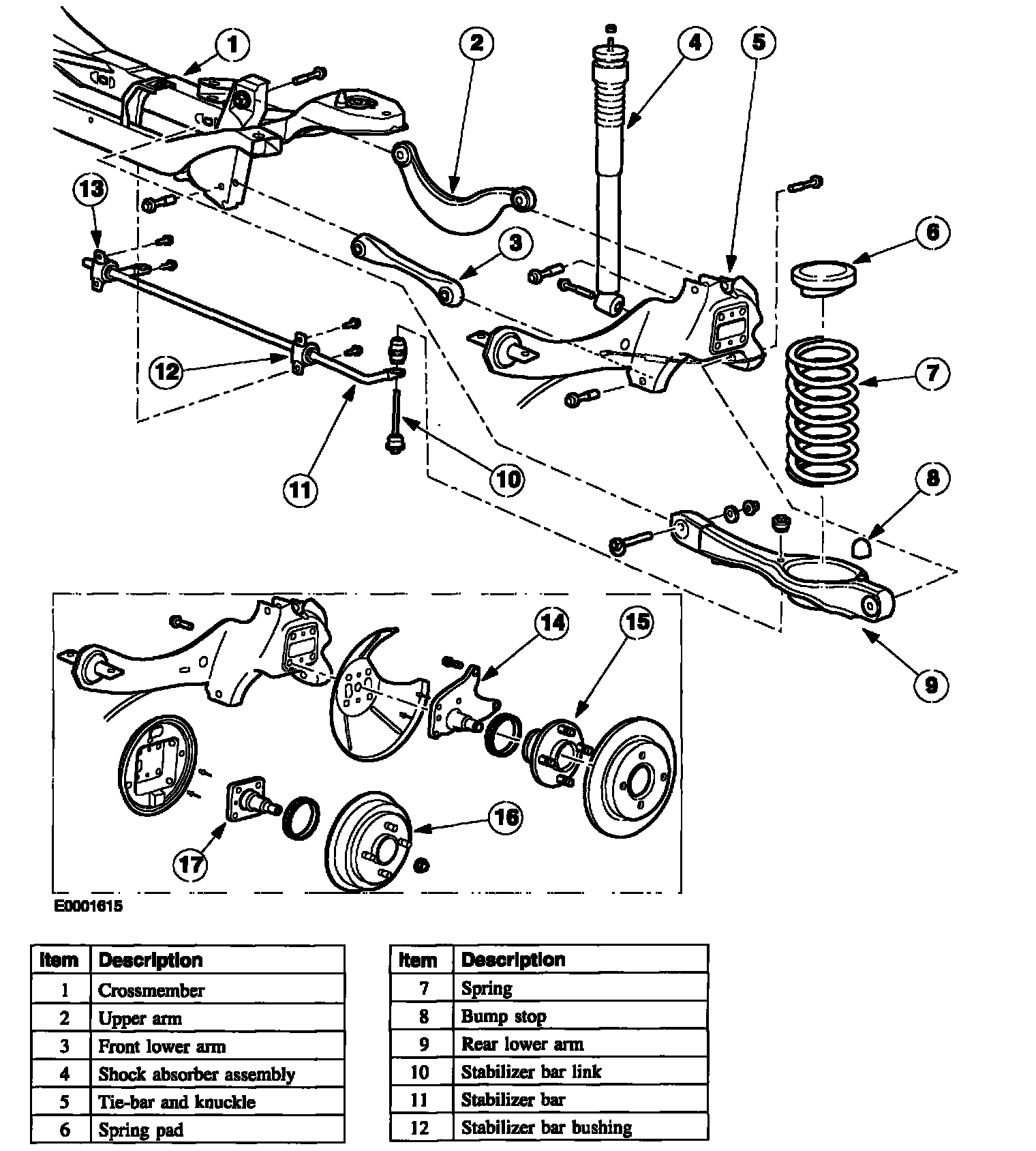

Part 2 Of 2:





All Except Wagon


Part 1 Of 2:




Part 2 Of 2:





Wagon
