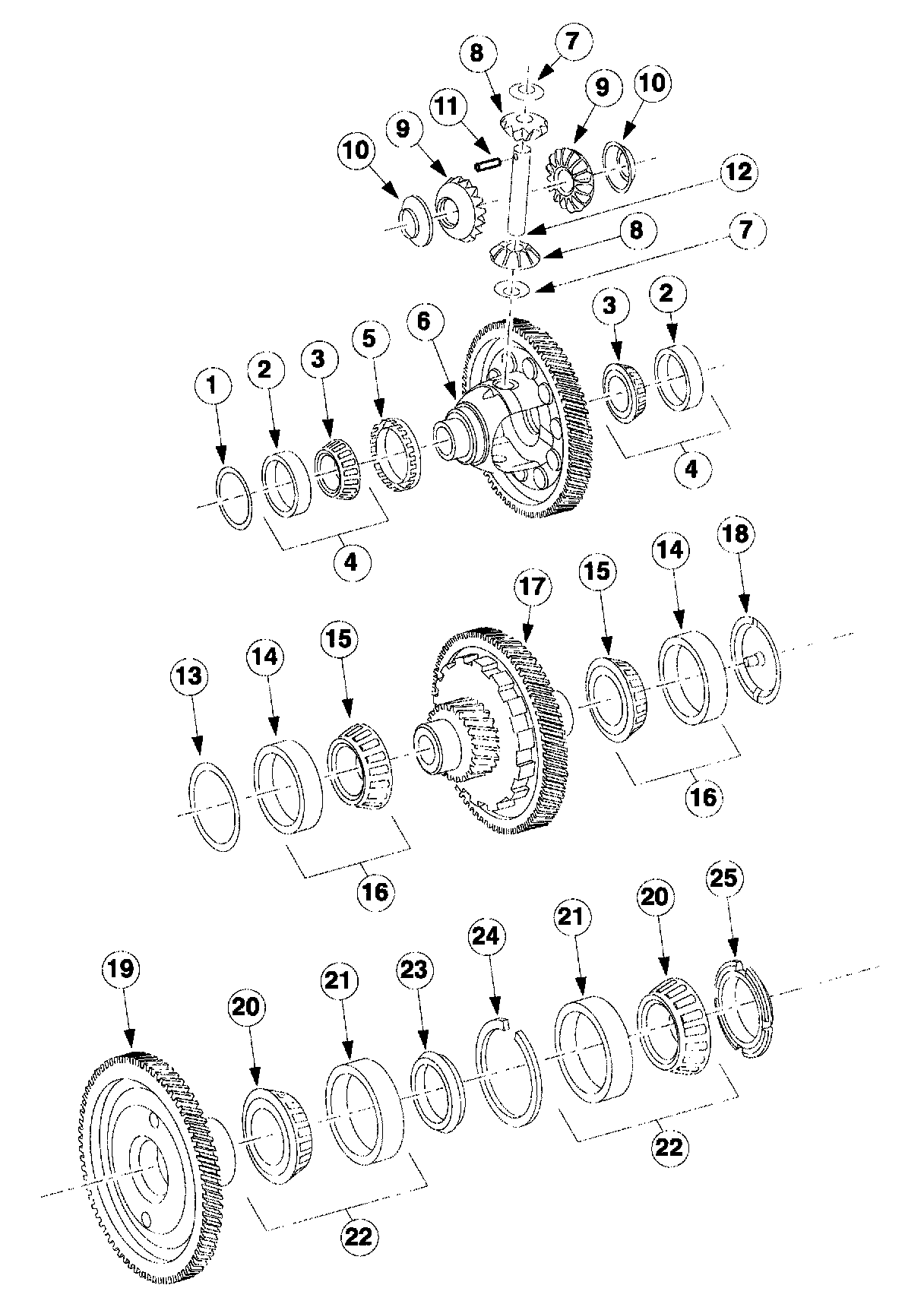

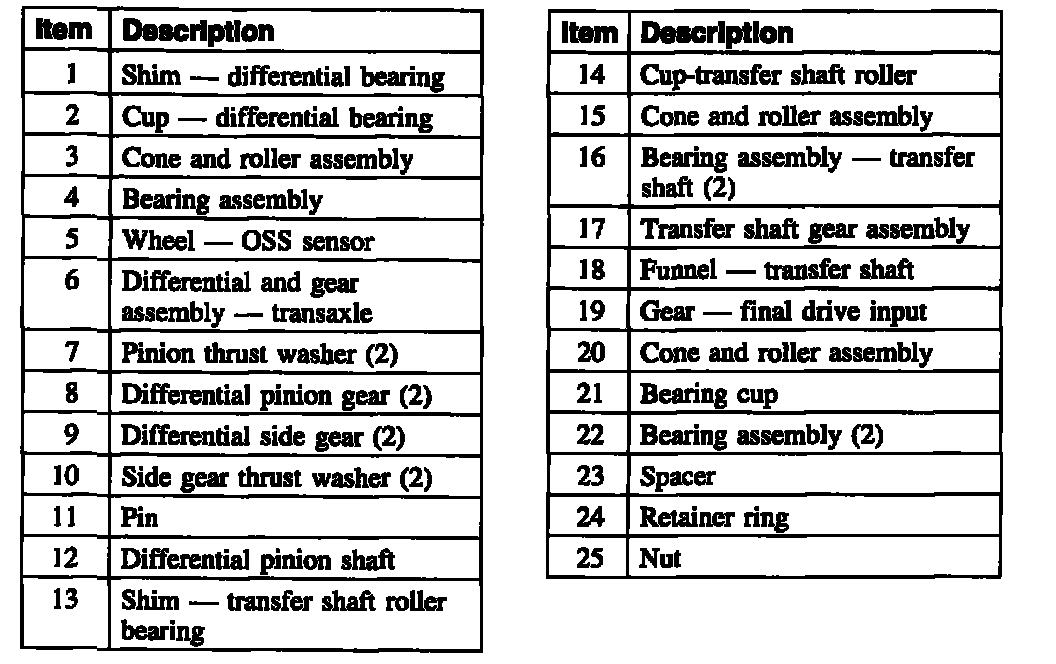

Differential Assembly and Final Drive Input

Differential Assembly and Final Drive Input

Part 1 Of 2:




Part 2 Of 2:
