Acceleration Control
>>
Symptom Chart
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Symptom Chart

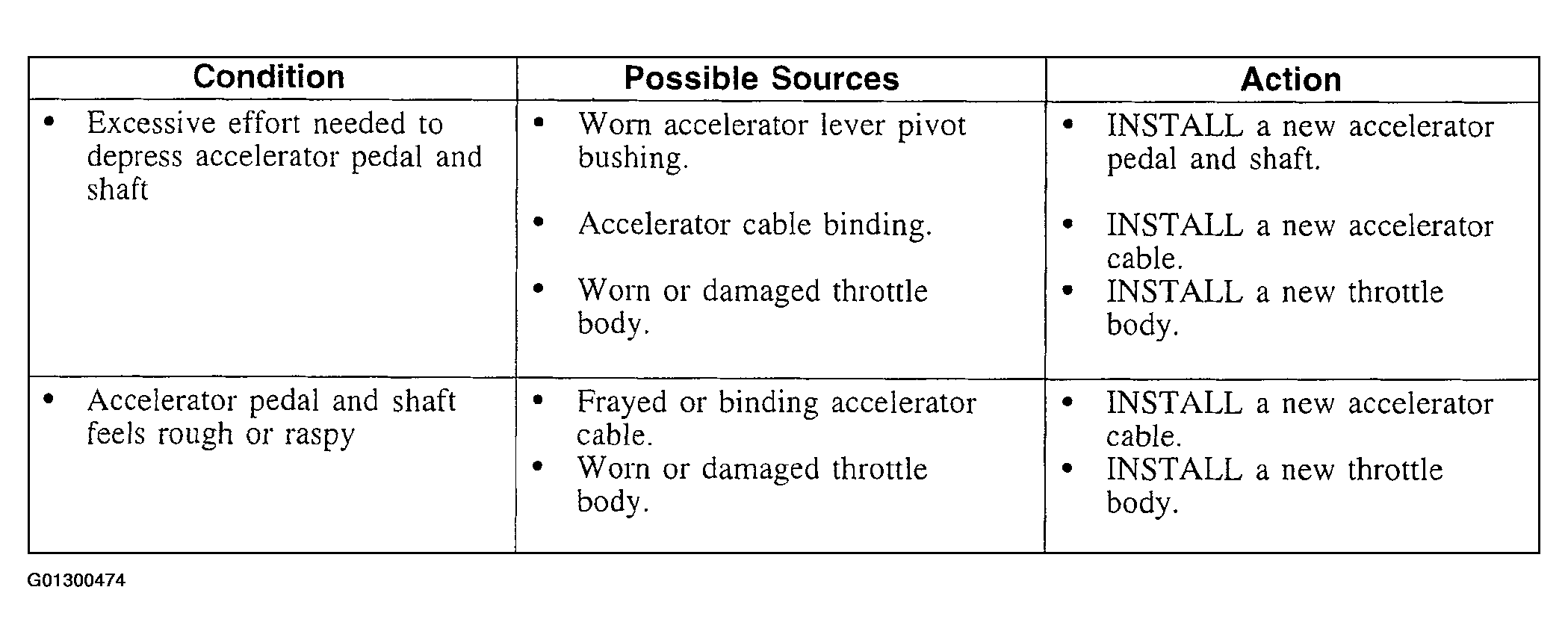

Fig 1: Acceleration Control Symptom Chart (1 Of 2)
Courtesy of FORD MOTOR CO.

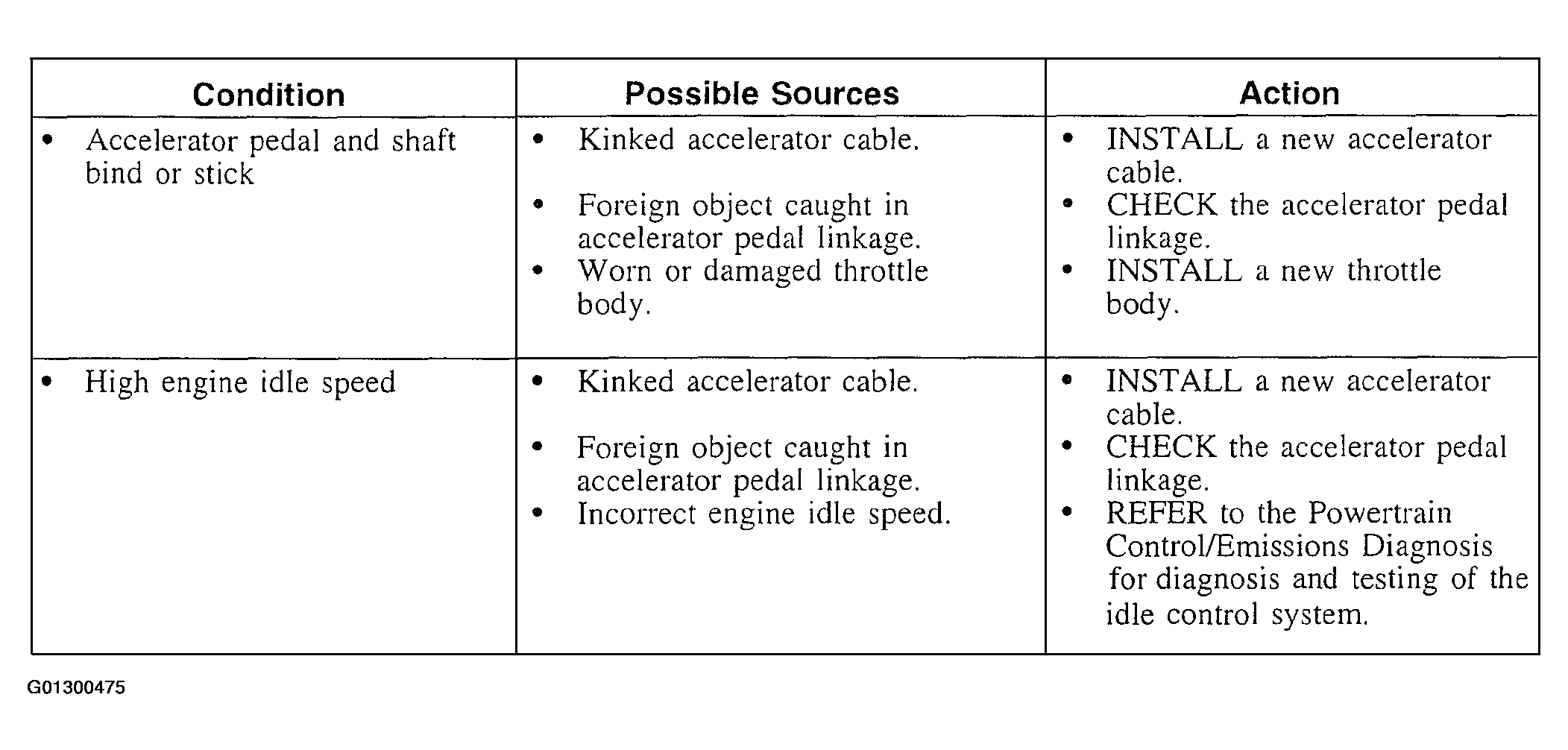

Fig 2: Acceleration Control Symptom Chart (2 Of 2)
Courtesy of FORD MOTOR CO.
