Test P

PINPOINT TEST P: THE KEYLESS ENTRY KEYPAD ILLUMINATION IS INOPERATIVE

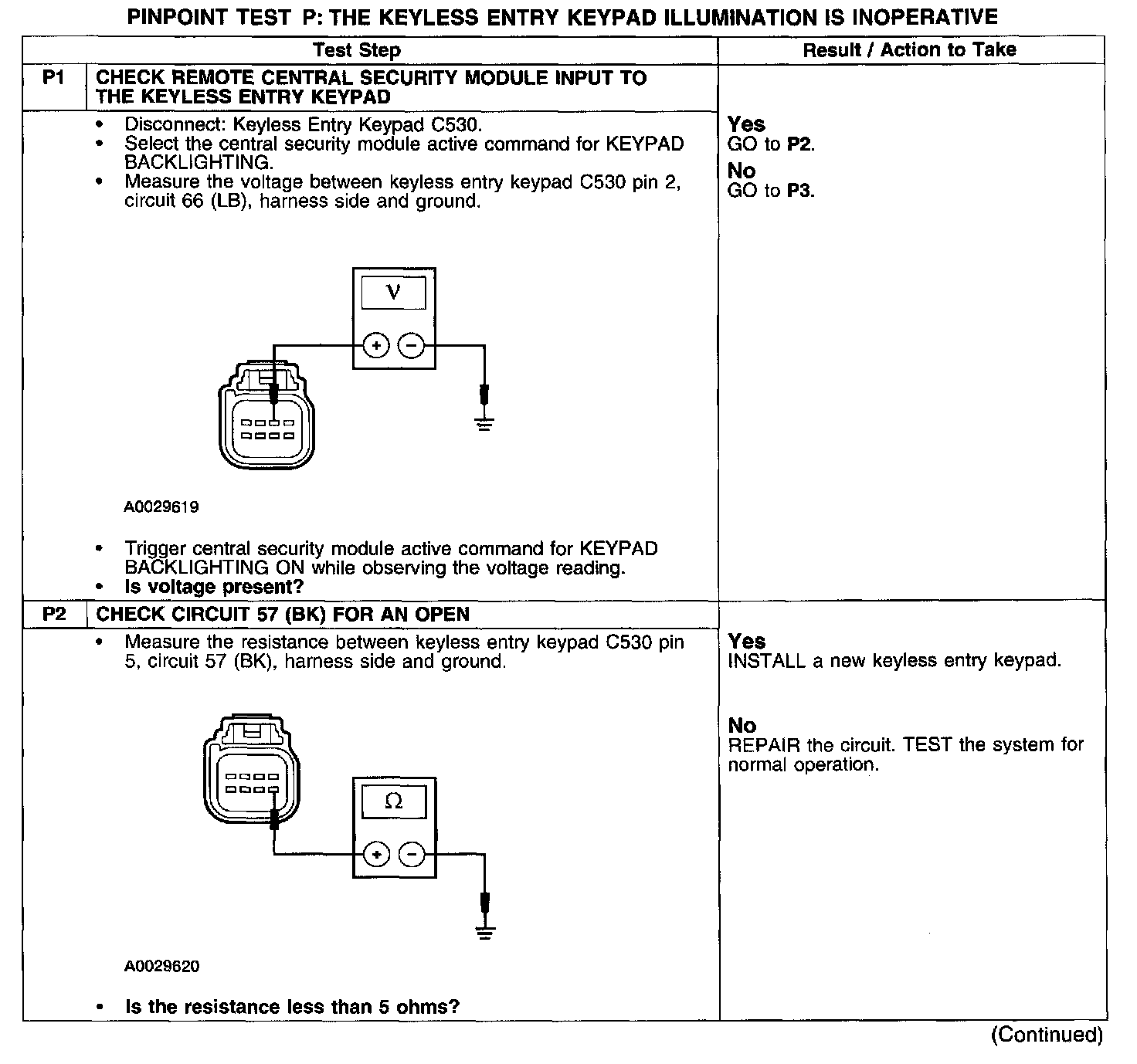

Test P1-P2:

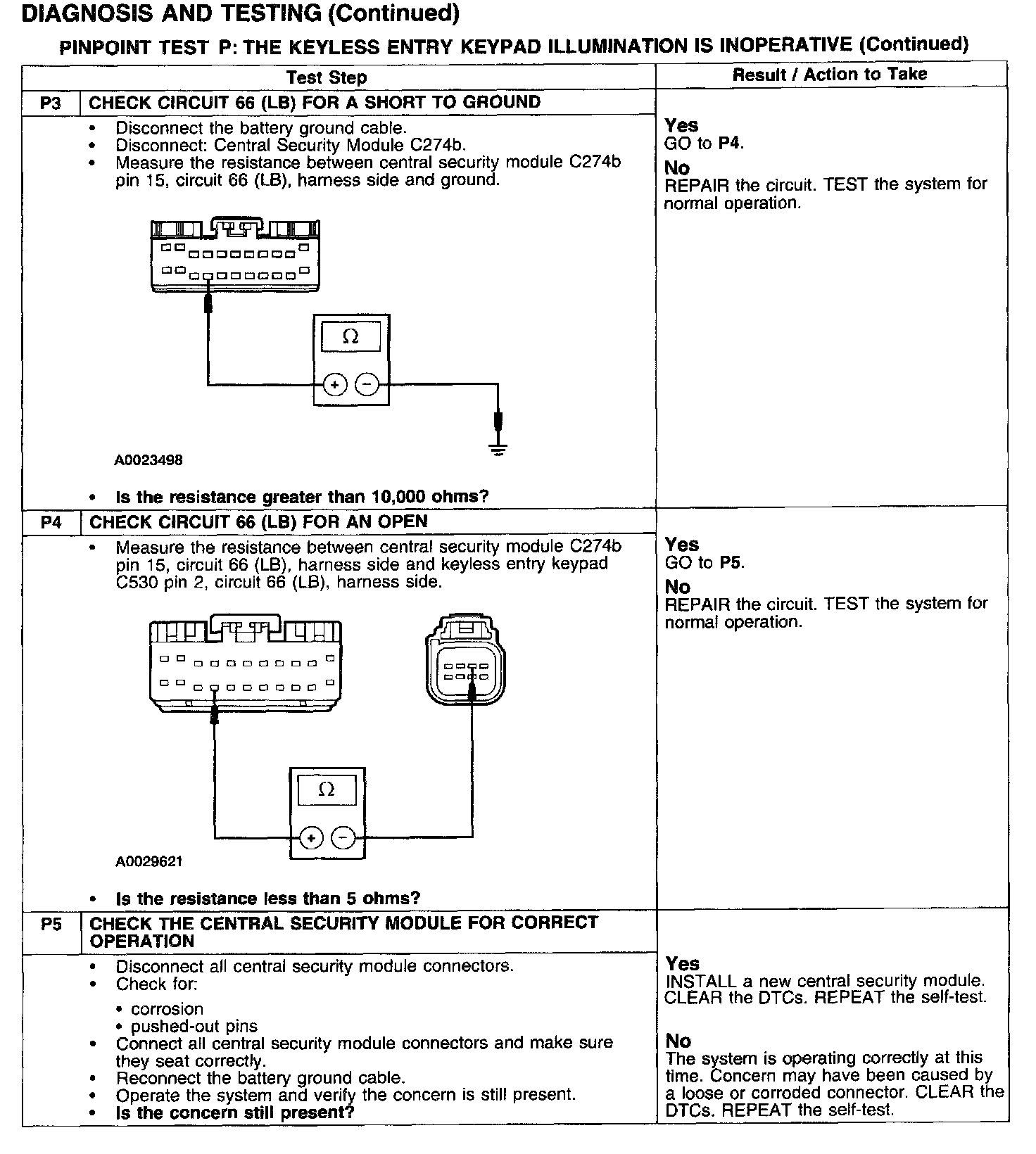

Test P3-P5:
