Test L

PINPOINT TEST L: THE DOORS DO NOT LOCK/UNLOCK USING THE KEYLESS ENTRY KEYPAD

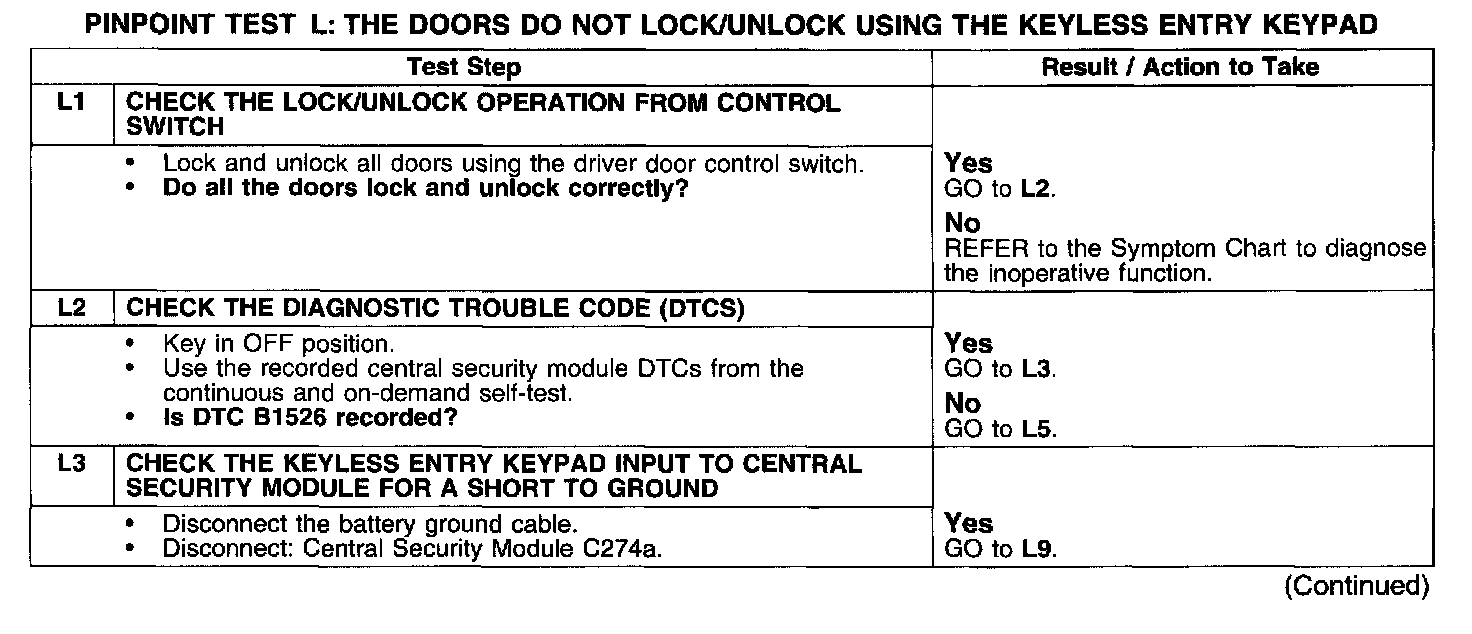

Test L1-L3:

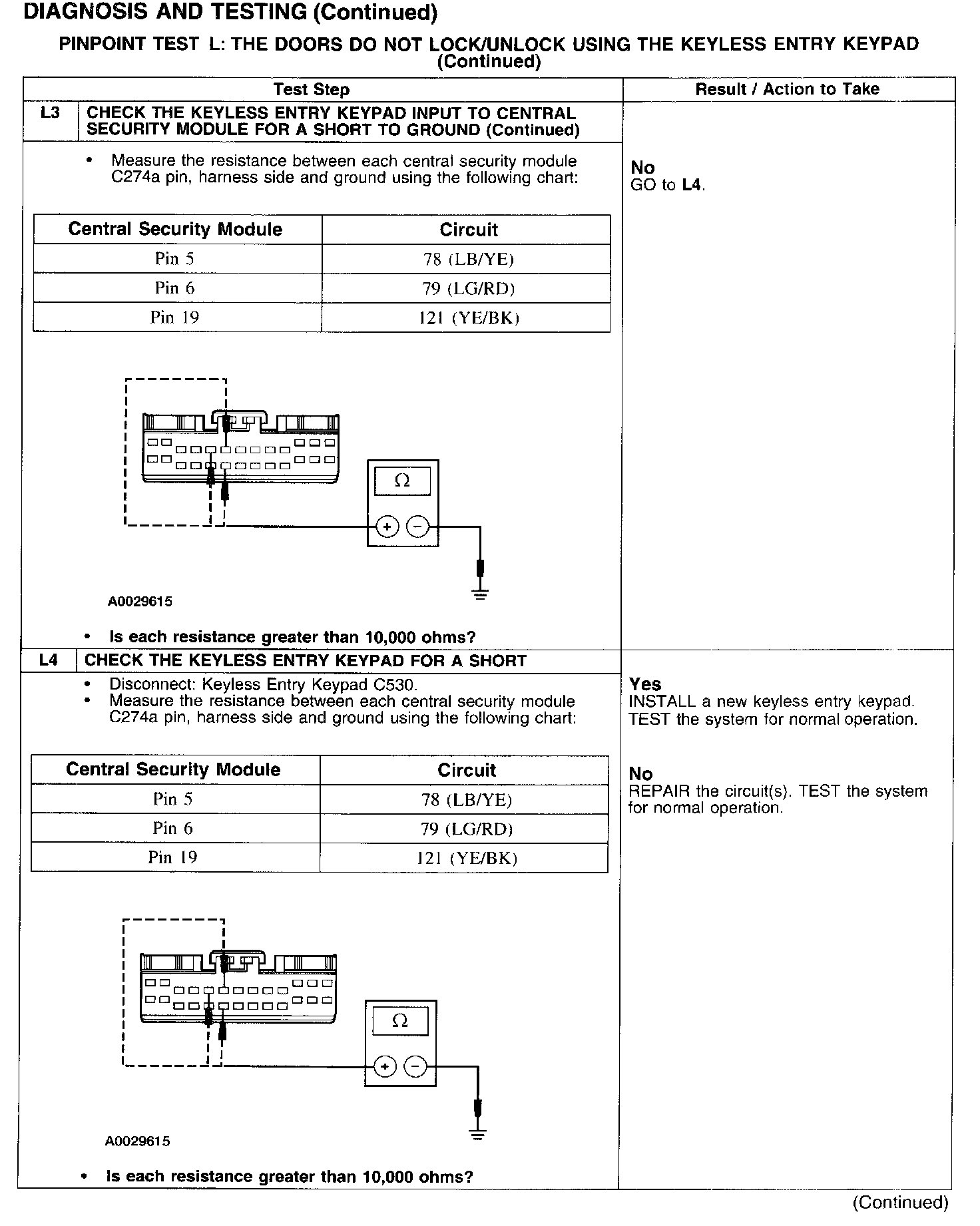

Test L3-L4:

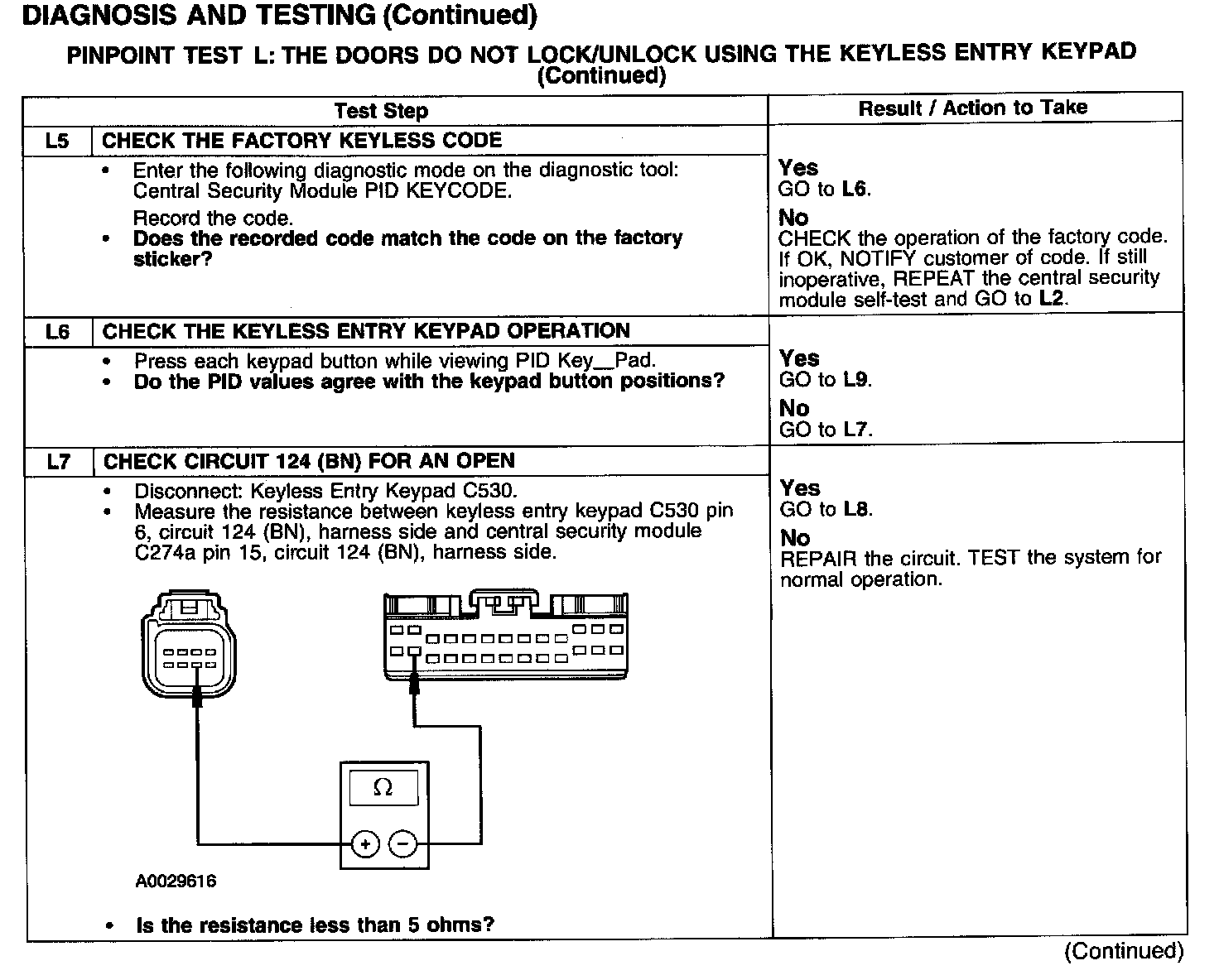

Test L5-L7:

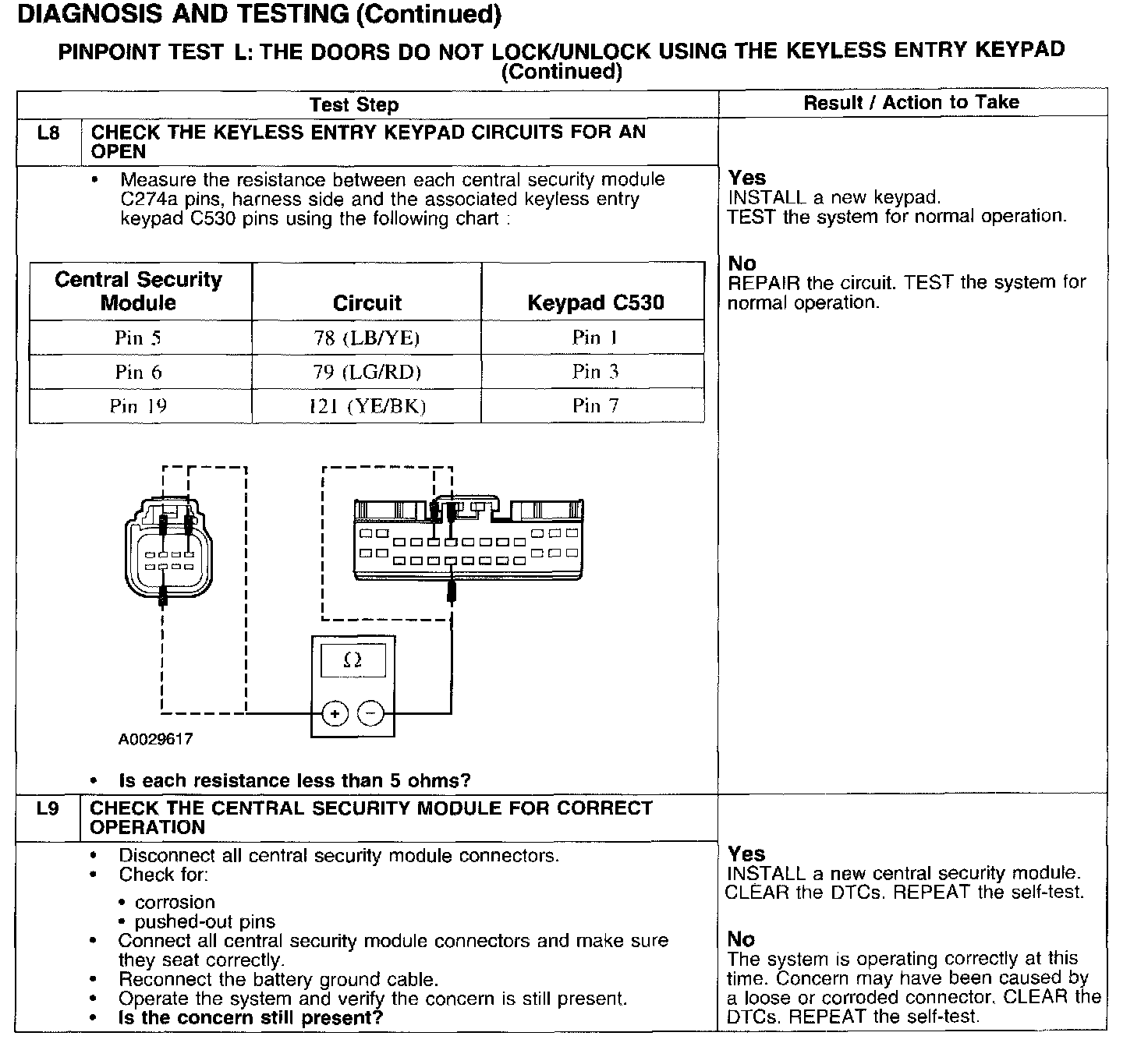

Test L8-L9:
