Test K

PINPOINT TEST K: THE AUTOLOCK DOES NOT OPERATE CORRECTLY

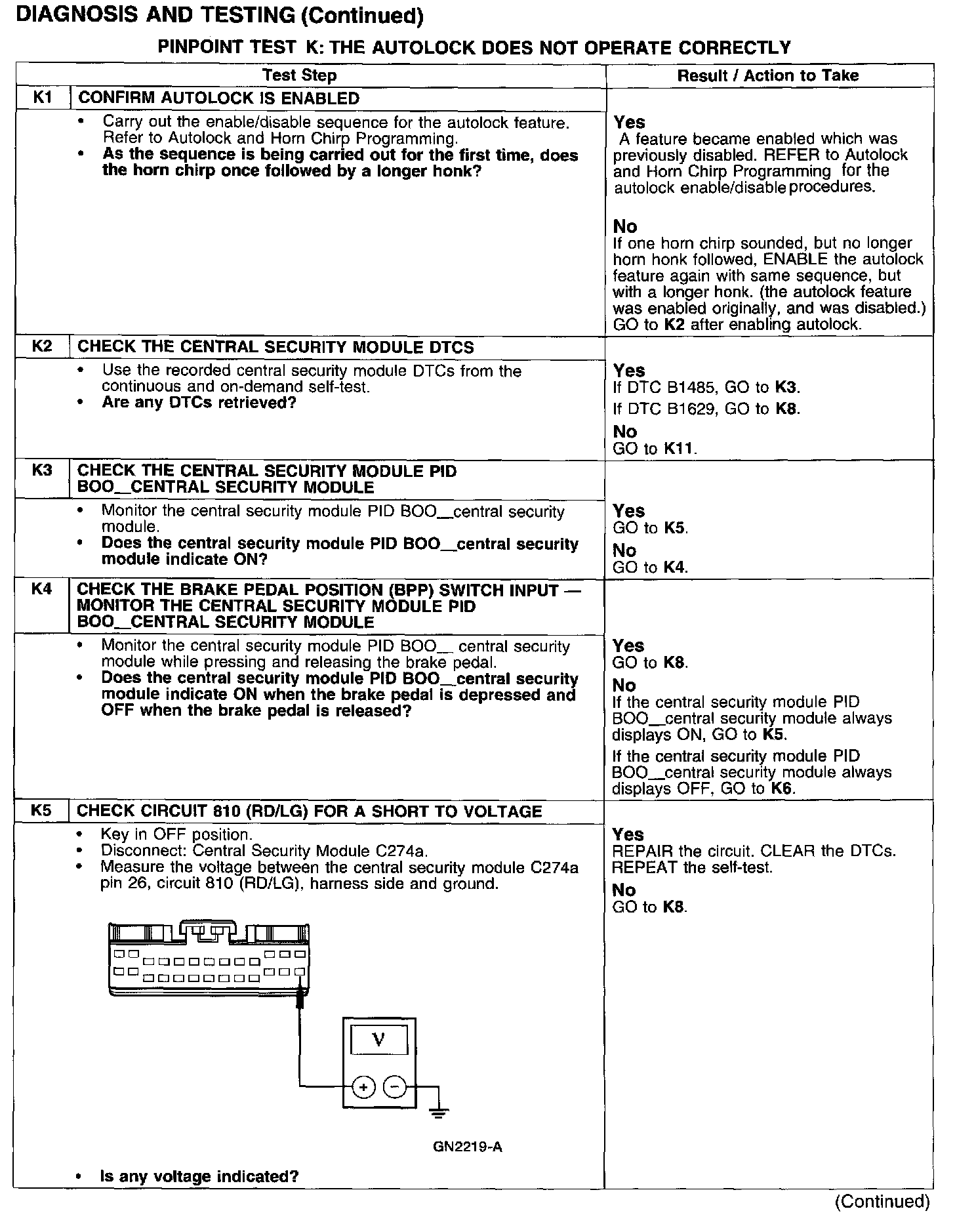

Test K1-K5:

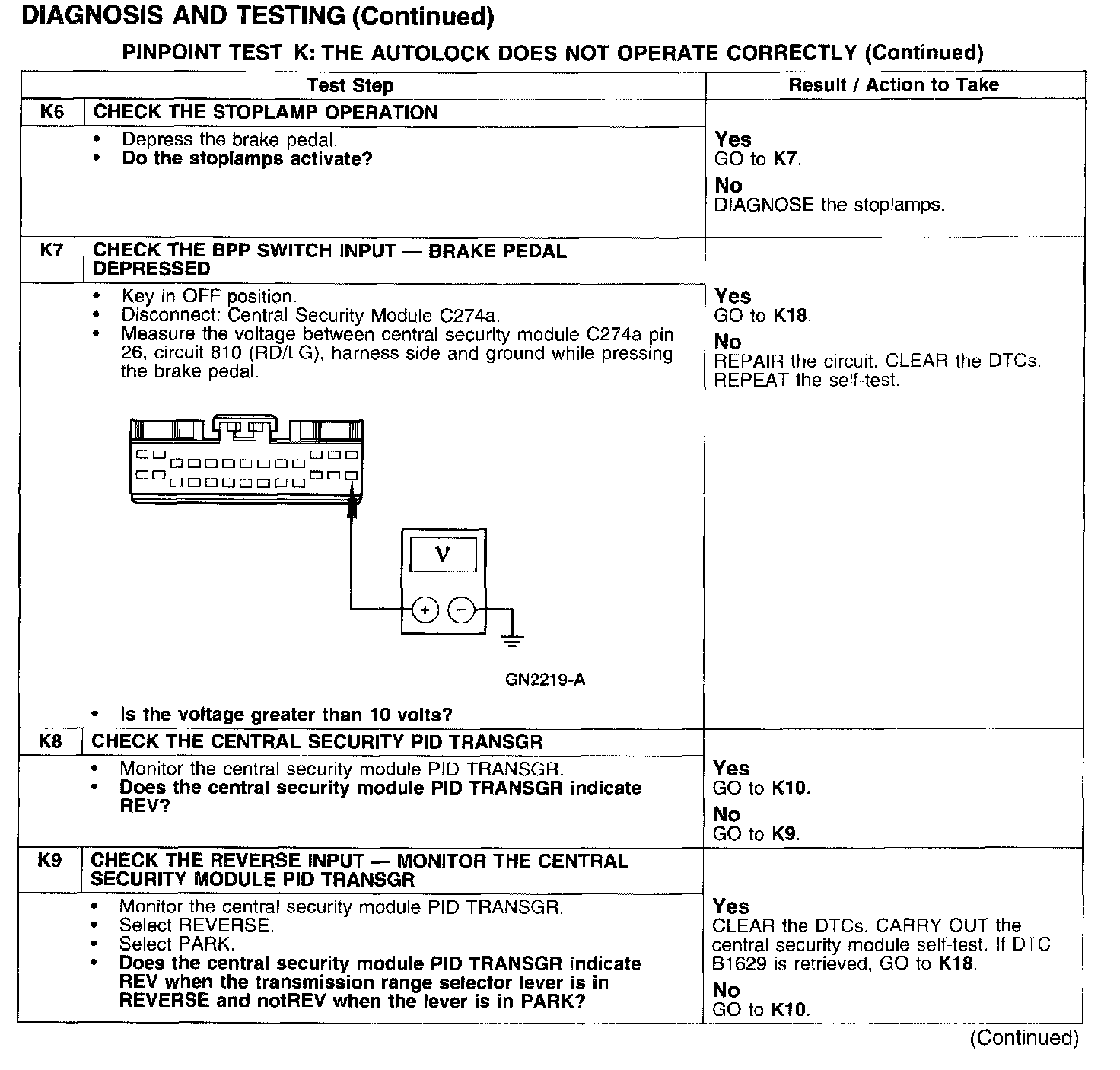

Test K6-K9:

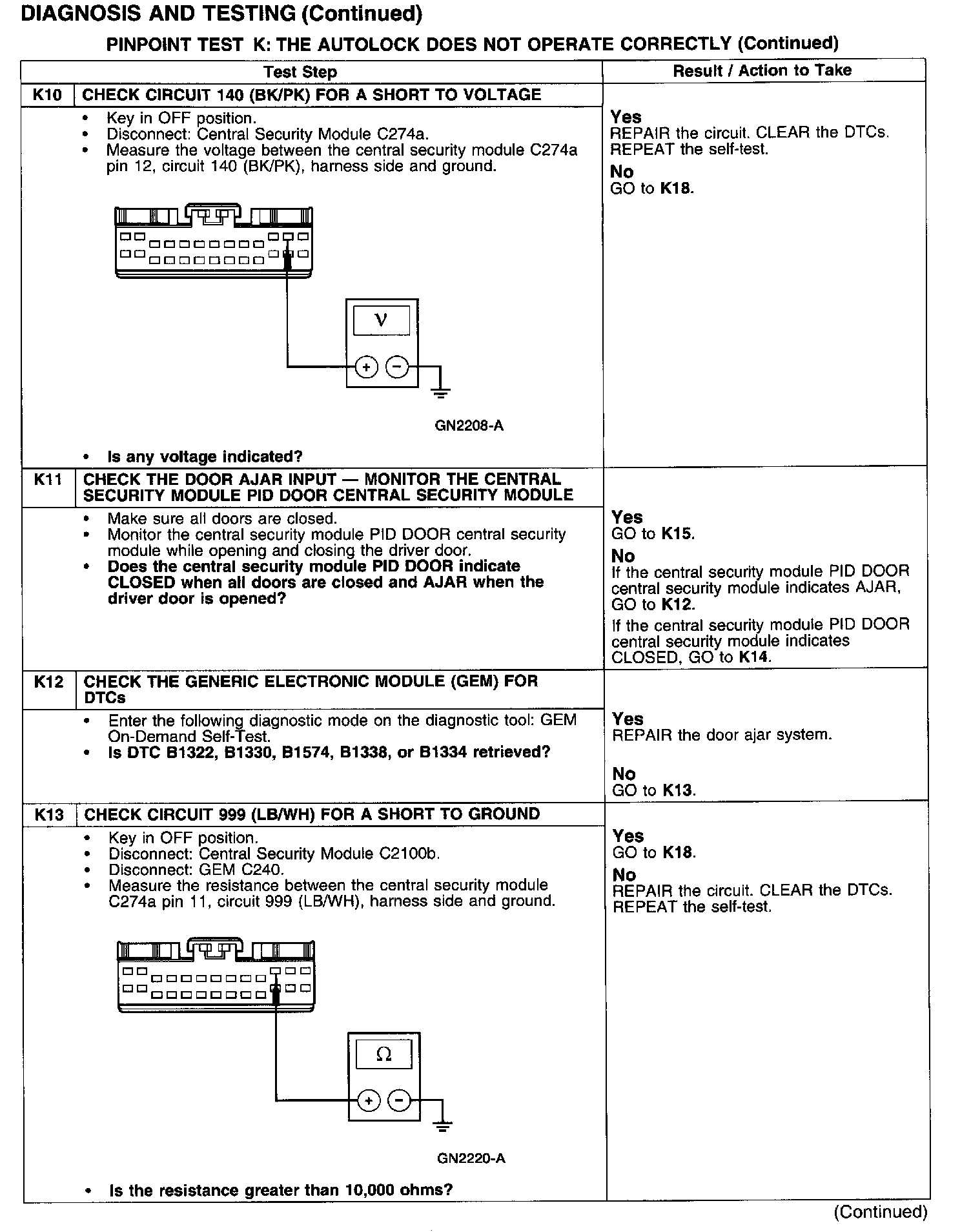

Test K10-K13:

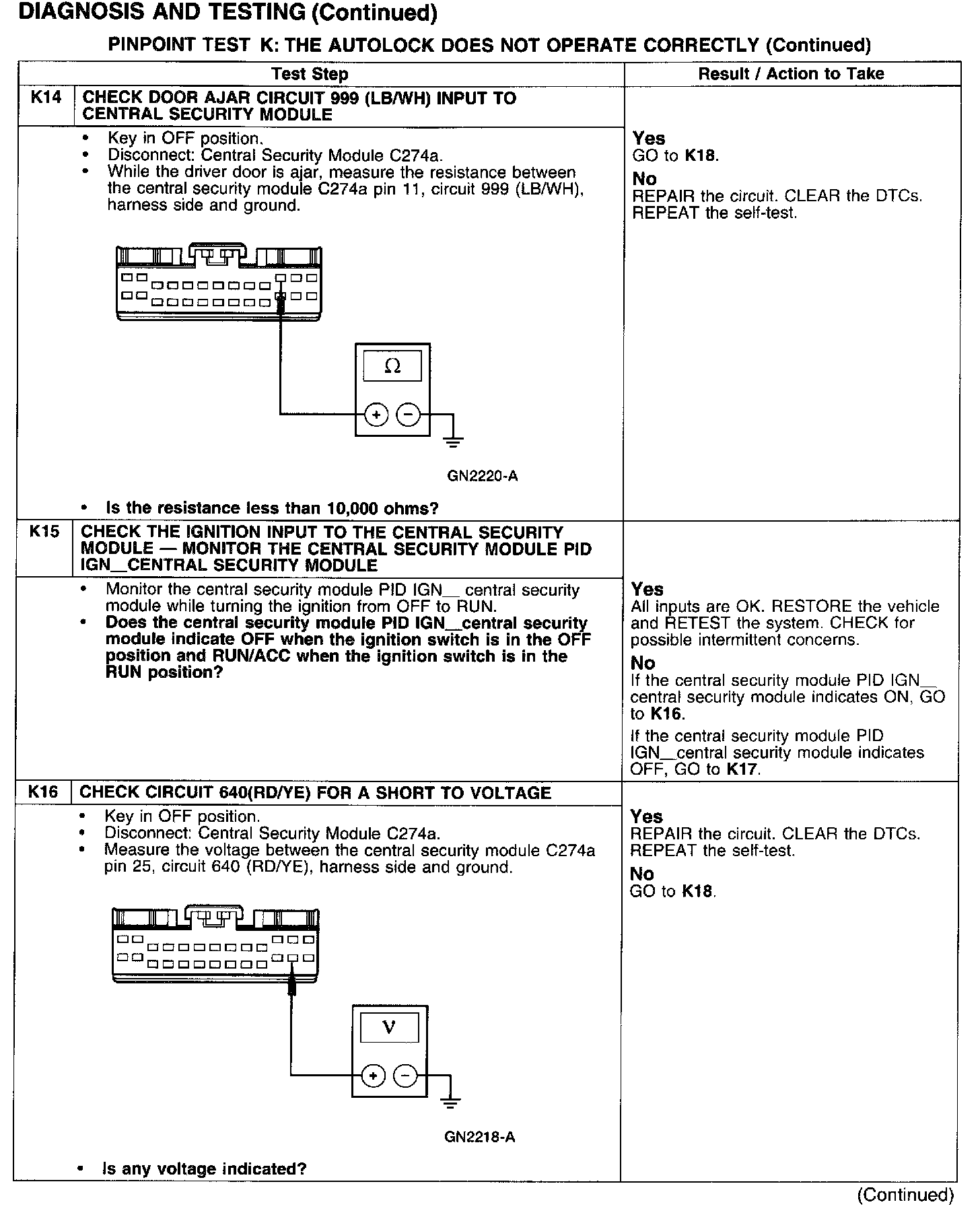

Test K14-K16:

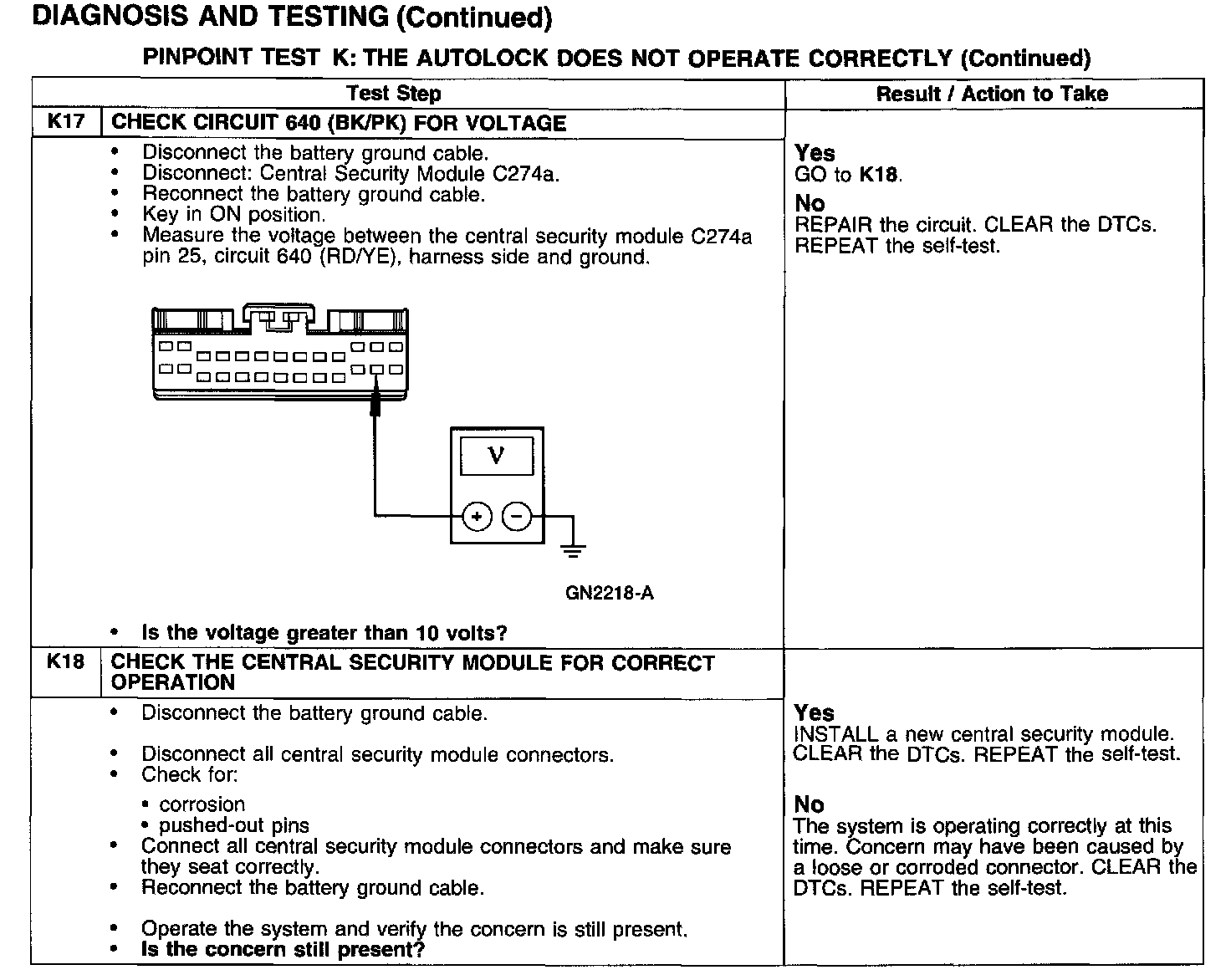

Test K17-K18:
