Test H

PINPOINT TEST H: ALL DOOR LOCKS ARE INOPERATIVE


Test H1:

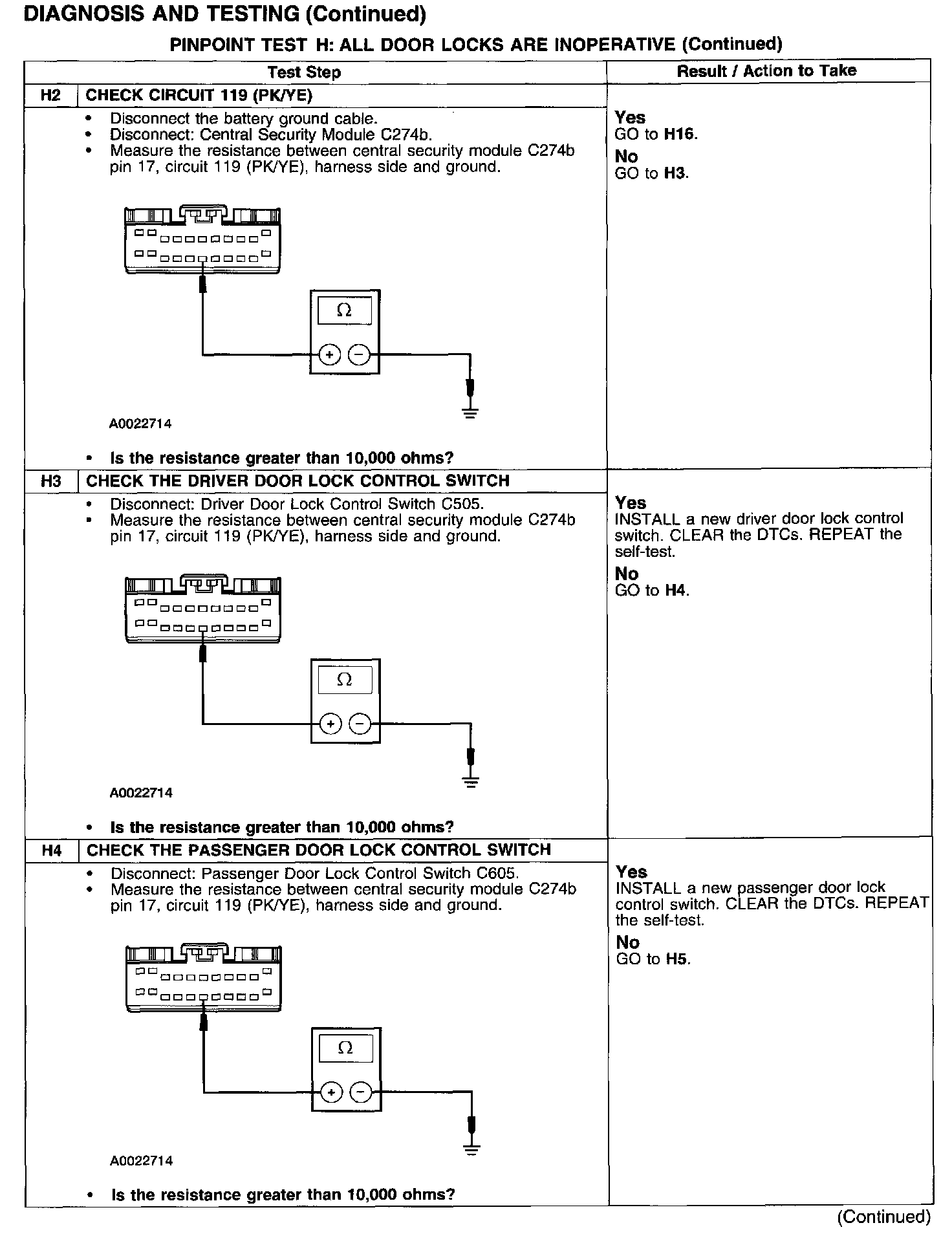

Test H2-H4:

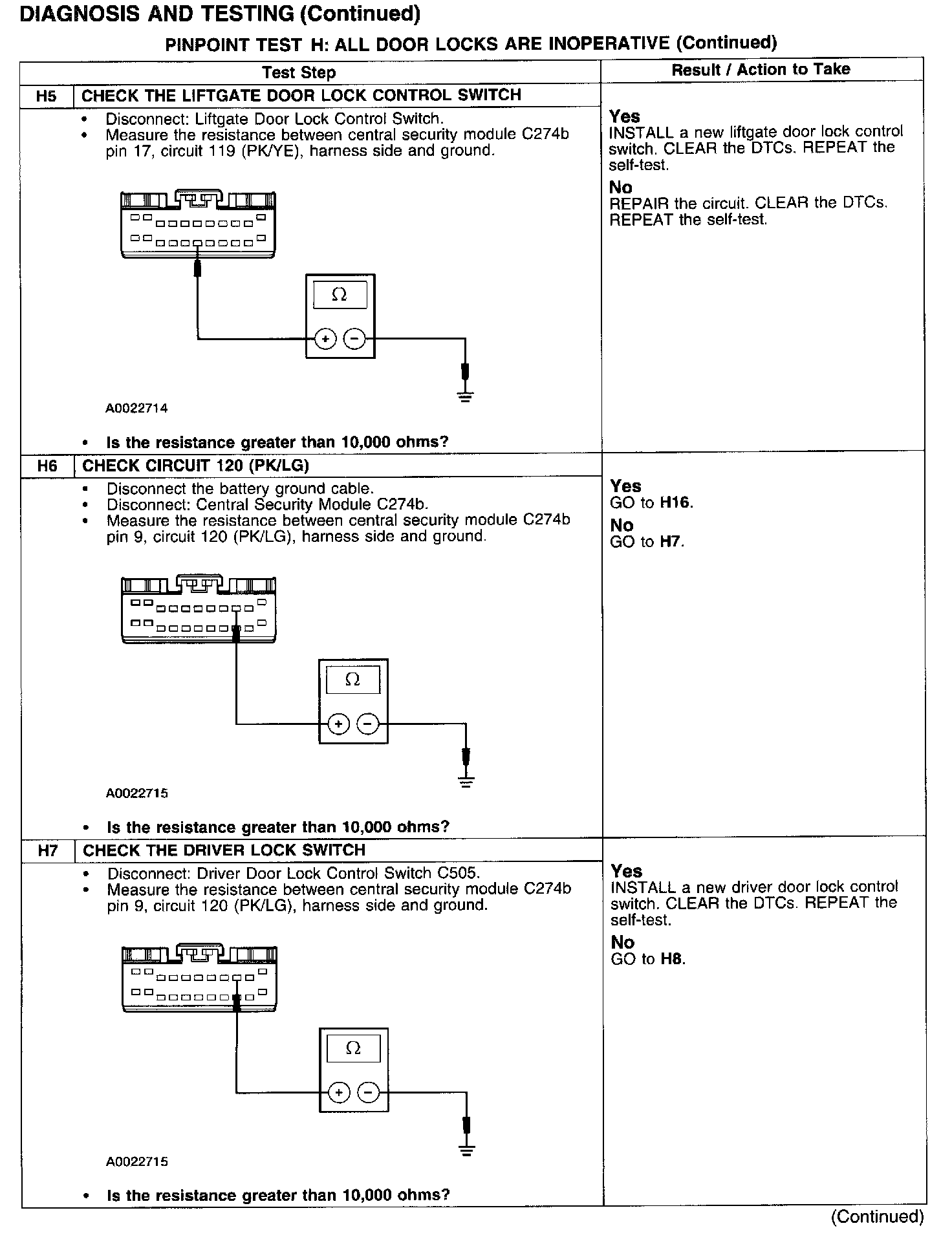

Test H5-H7:

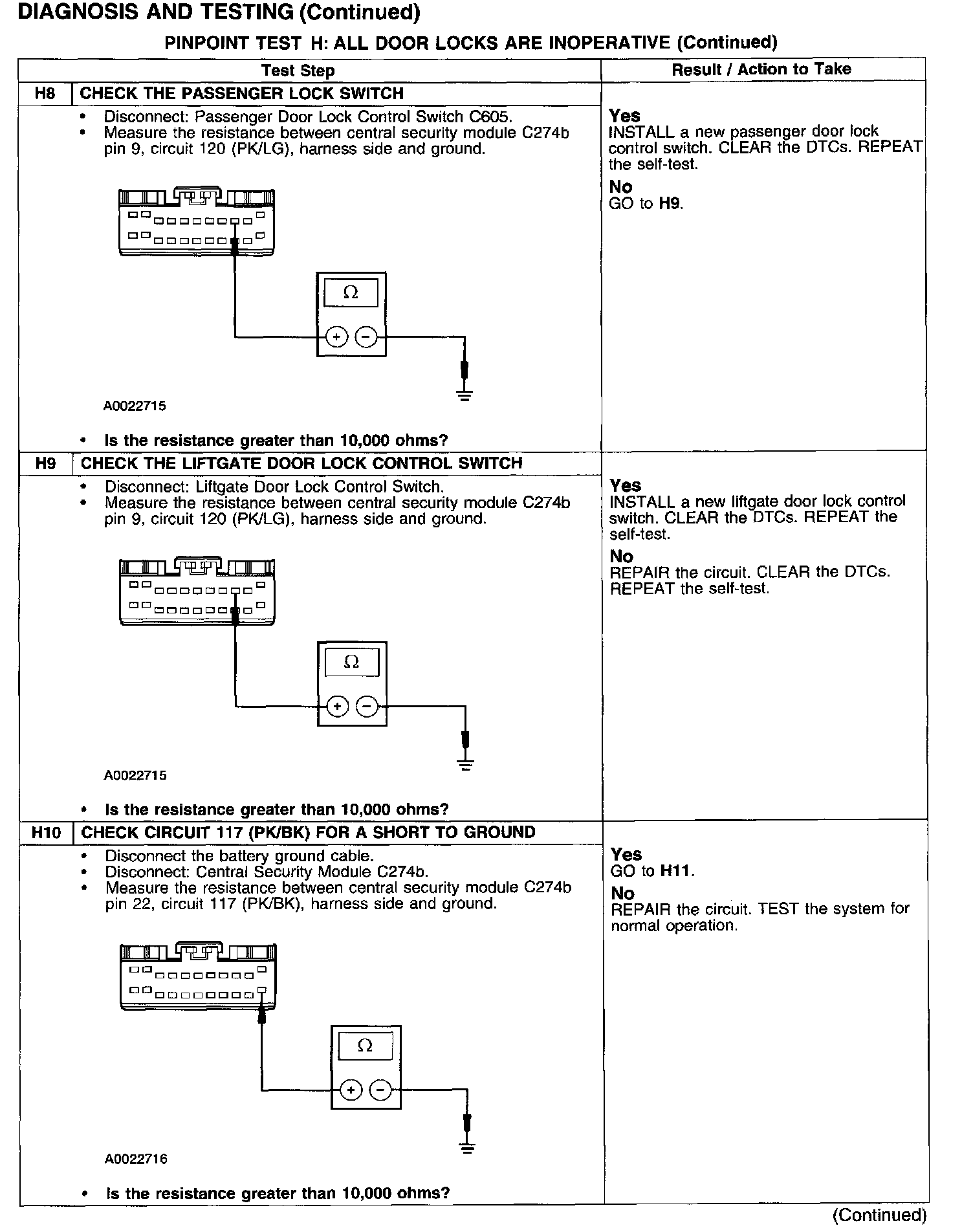

Test H8-H10:

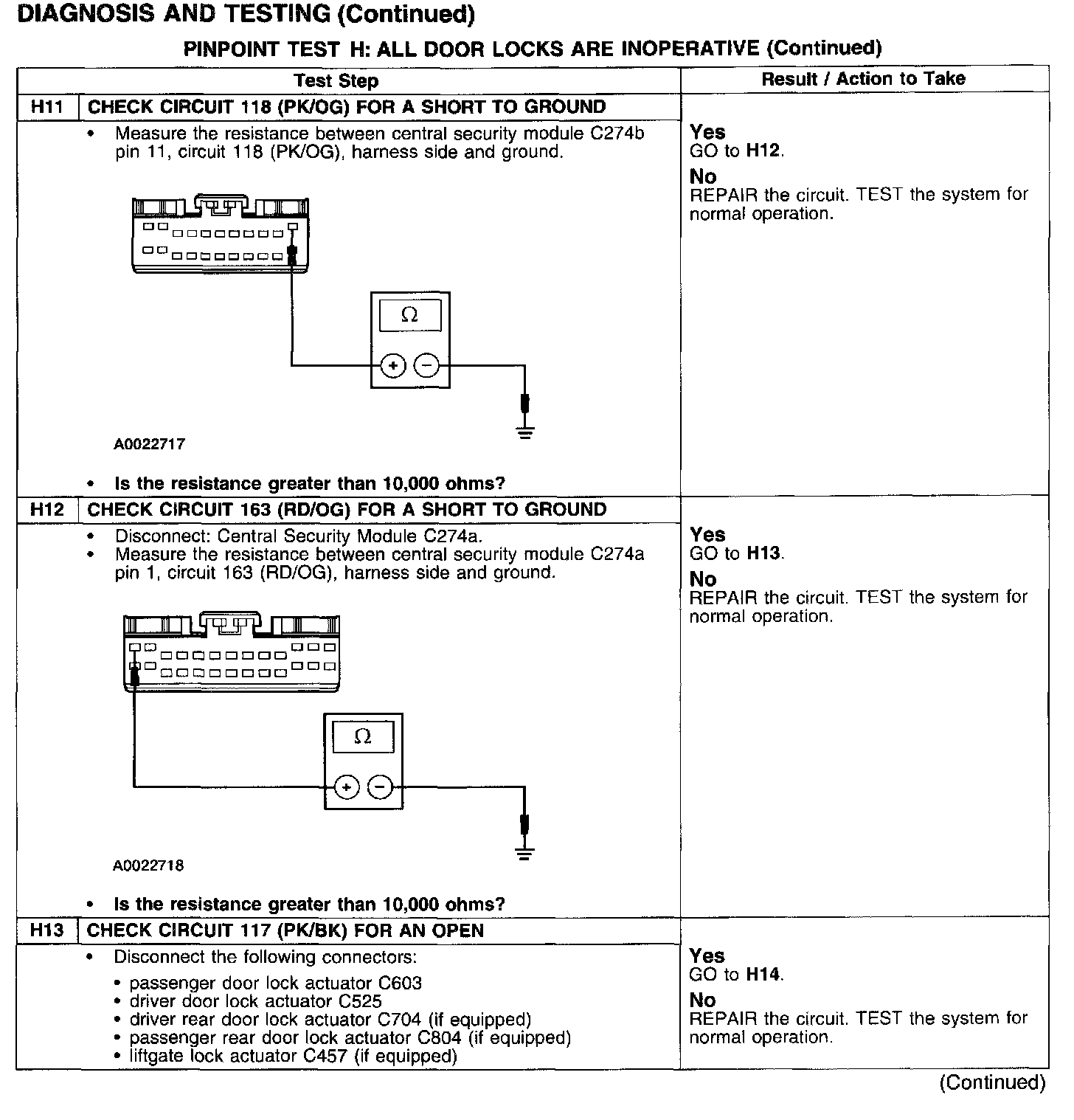

Test H11-H13:

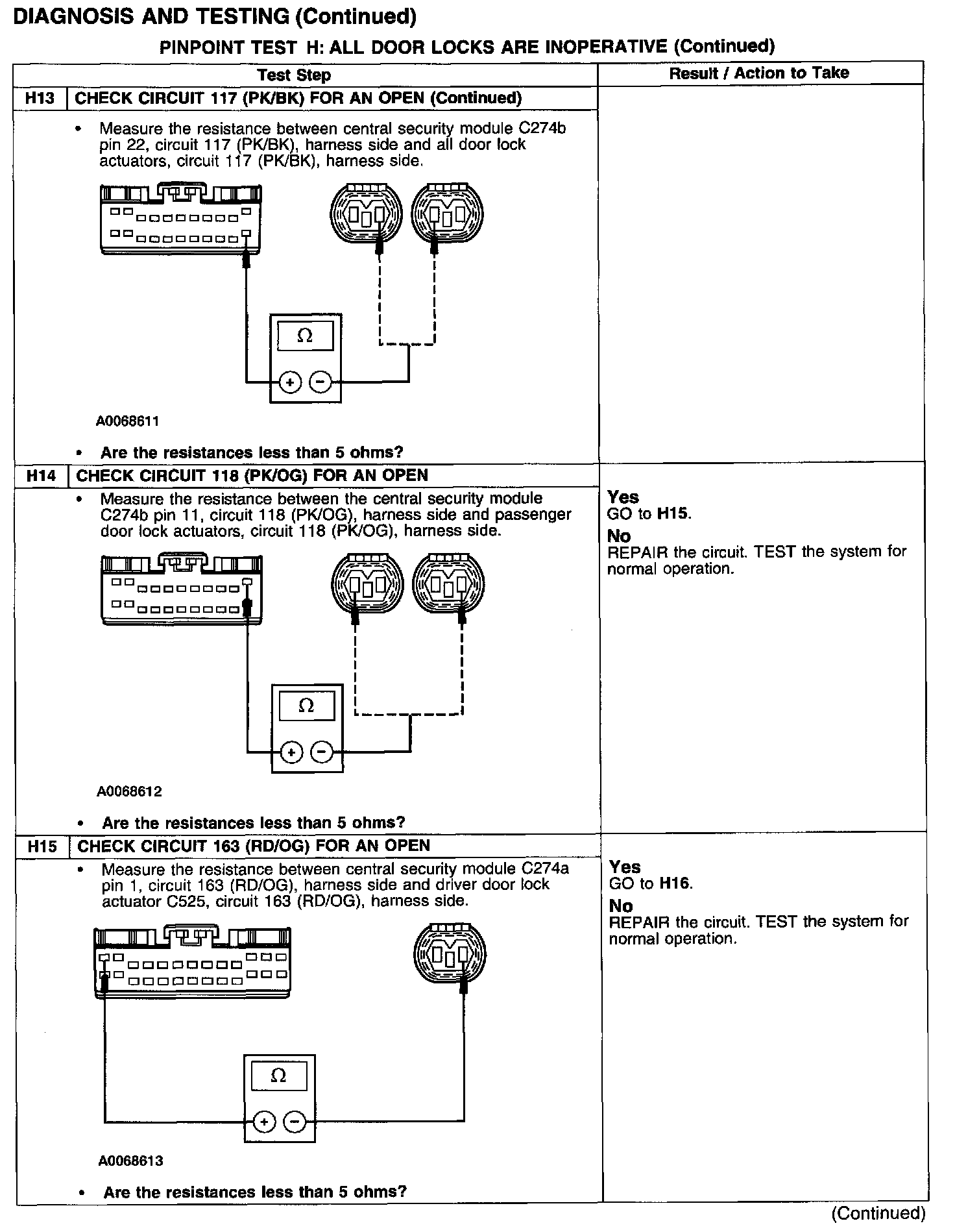

Test H13-H15:

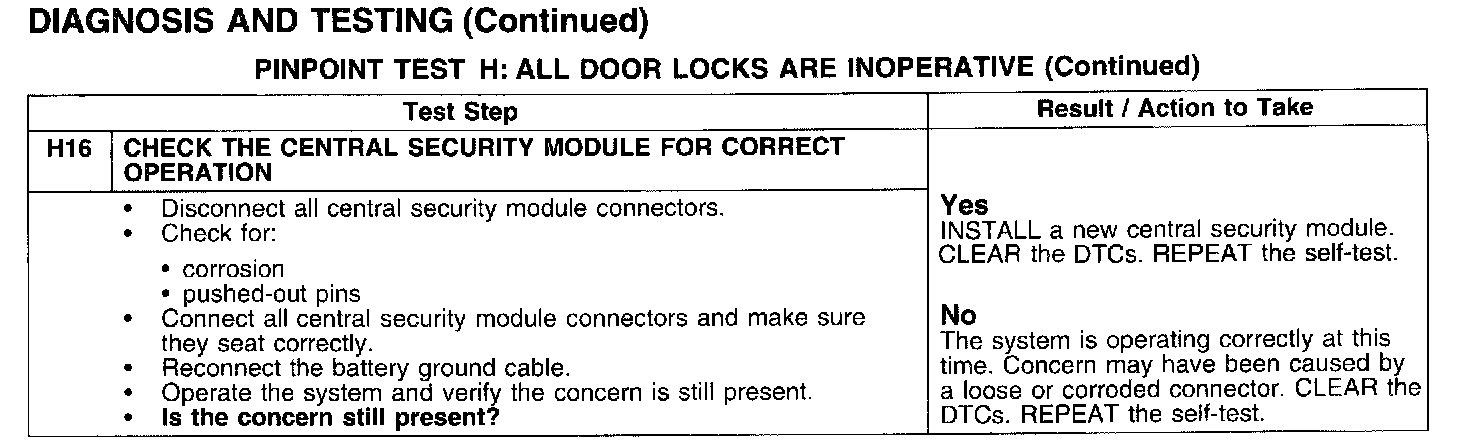

Test H16:
