Test F

PINPOINT TEST F: ALL DOOR LOCKS ARE INOPERATIVE FROM THE PASSENGER DOOR LOCK CONTROL SWITCH

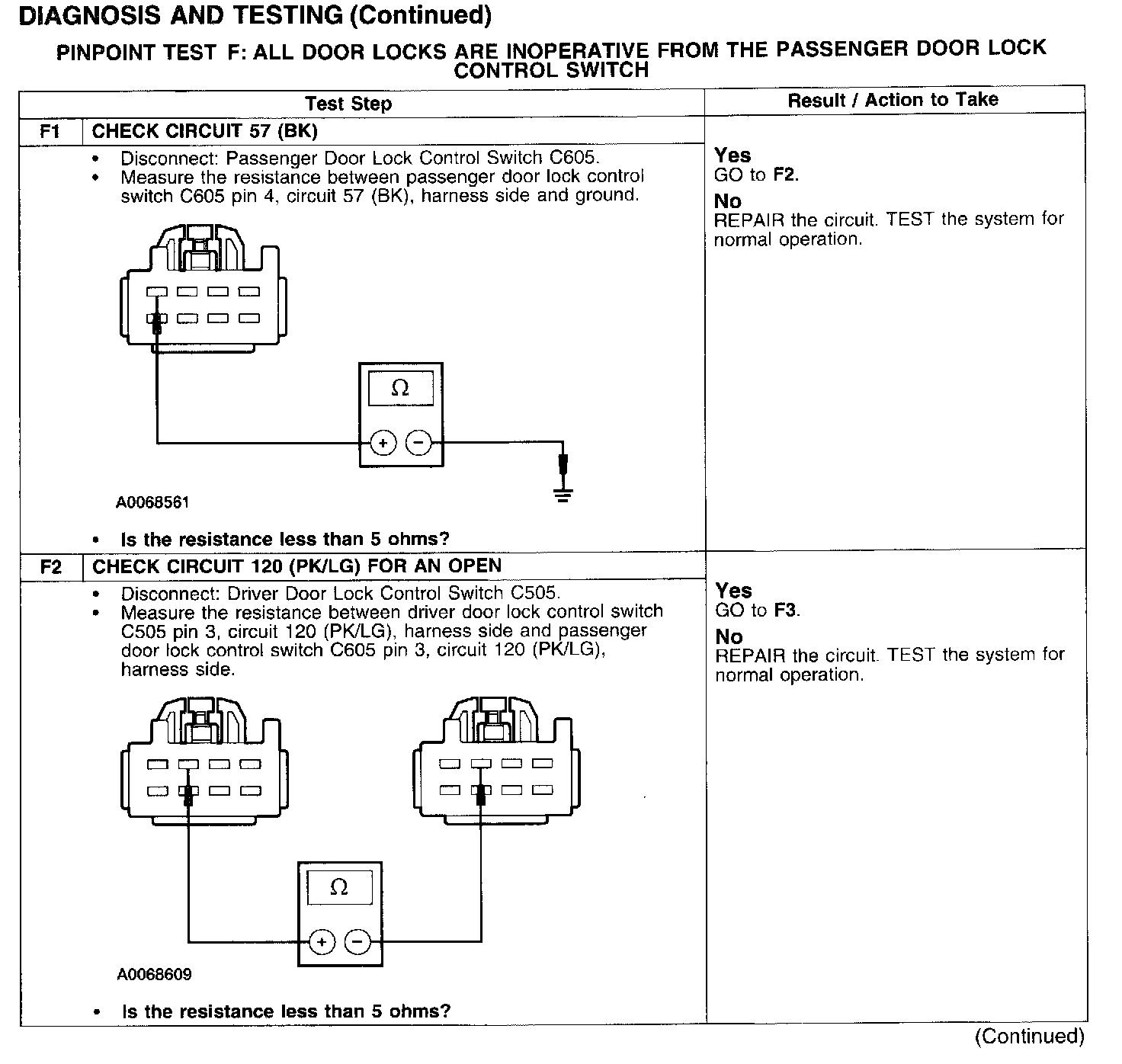

Test F1-F2:

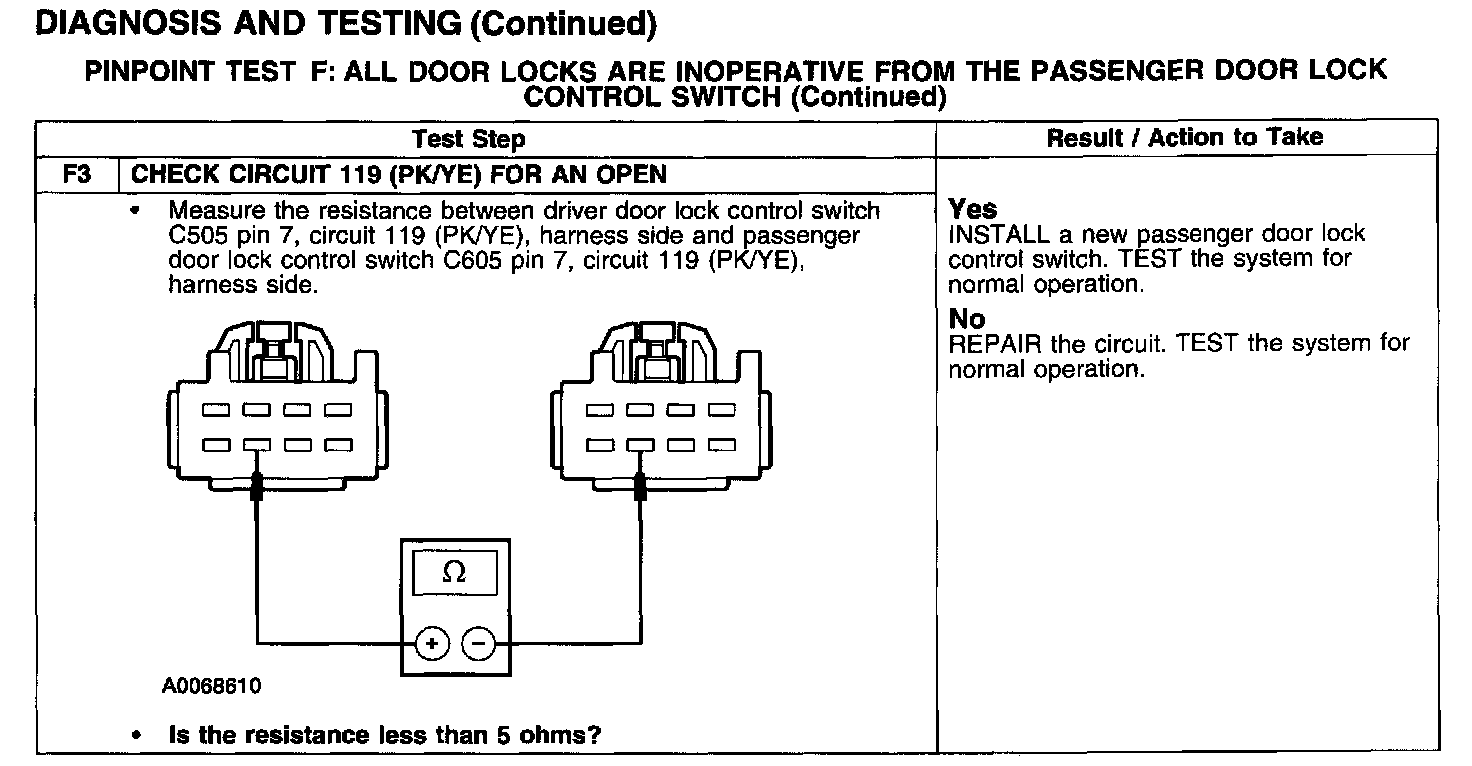

Test F3:
