Test E
PINPOINT TEST E: ALL DOOR LOCKS ARE INOPERATIVE FROM THE DRIVER DOOR LOCK CONTROL SWITCH
Test E1:

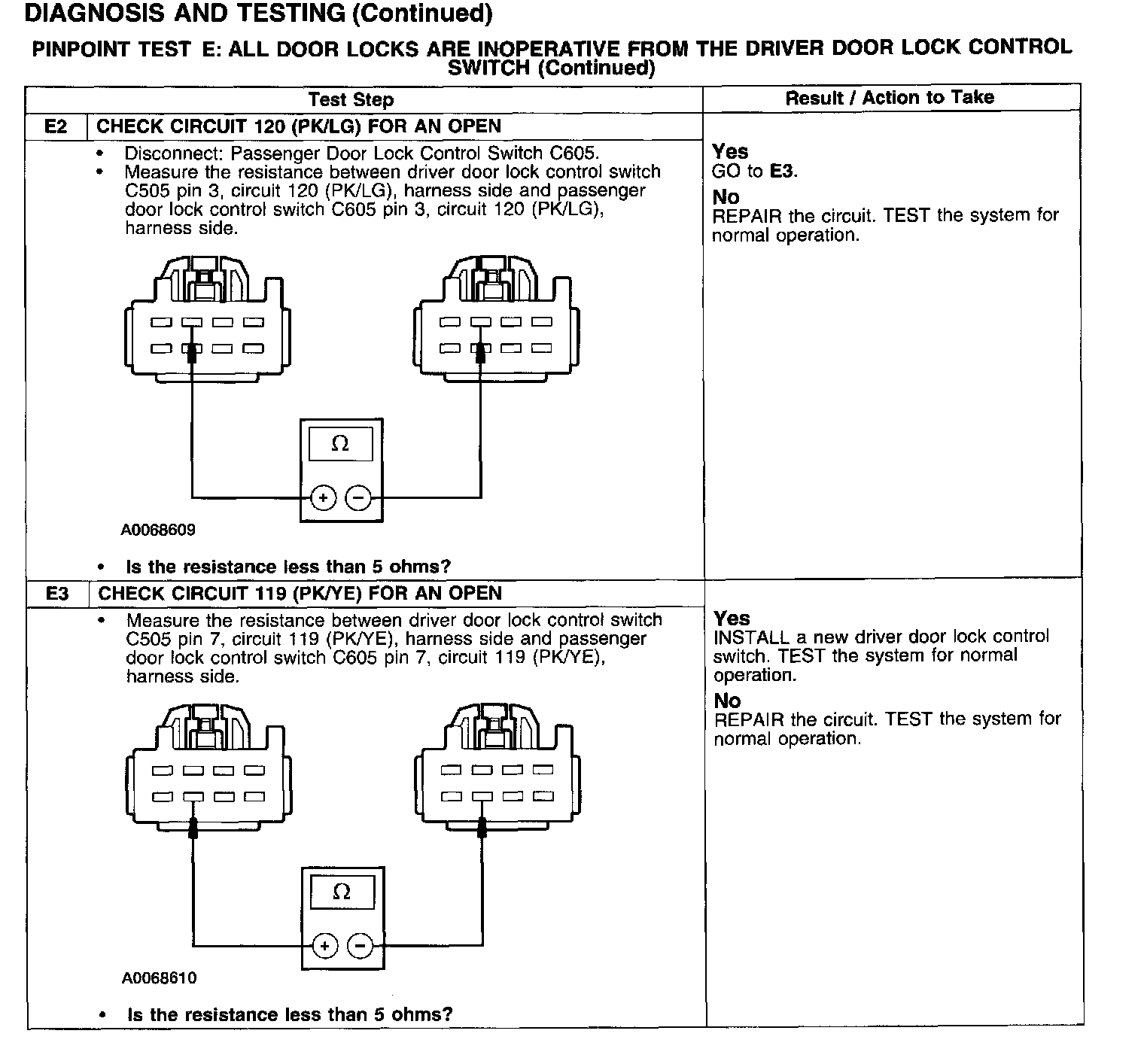

Test E2-E3:
