EGR Valve: Service and Repair

Exhaust Gas Recirculation (EGR) Valve

Removal and Installation

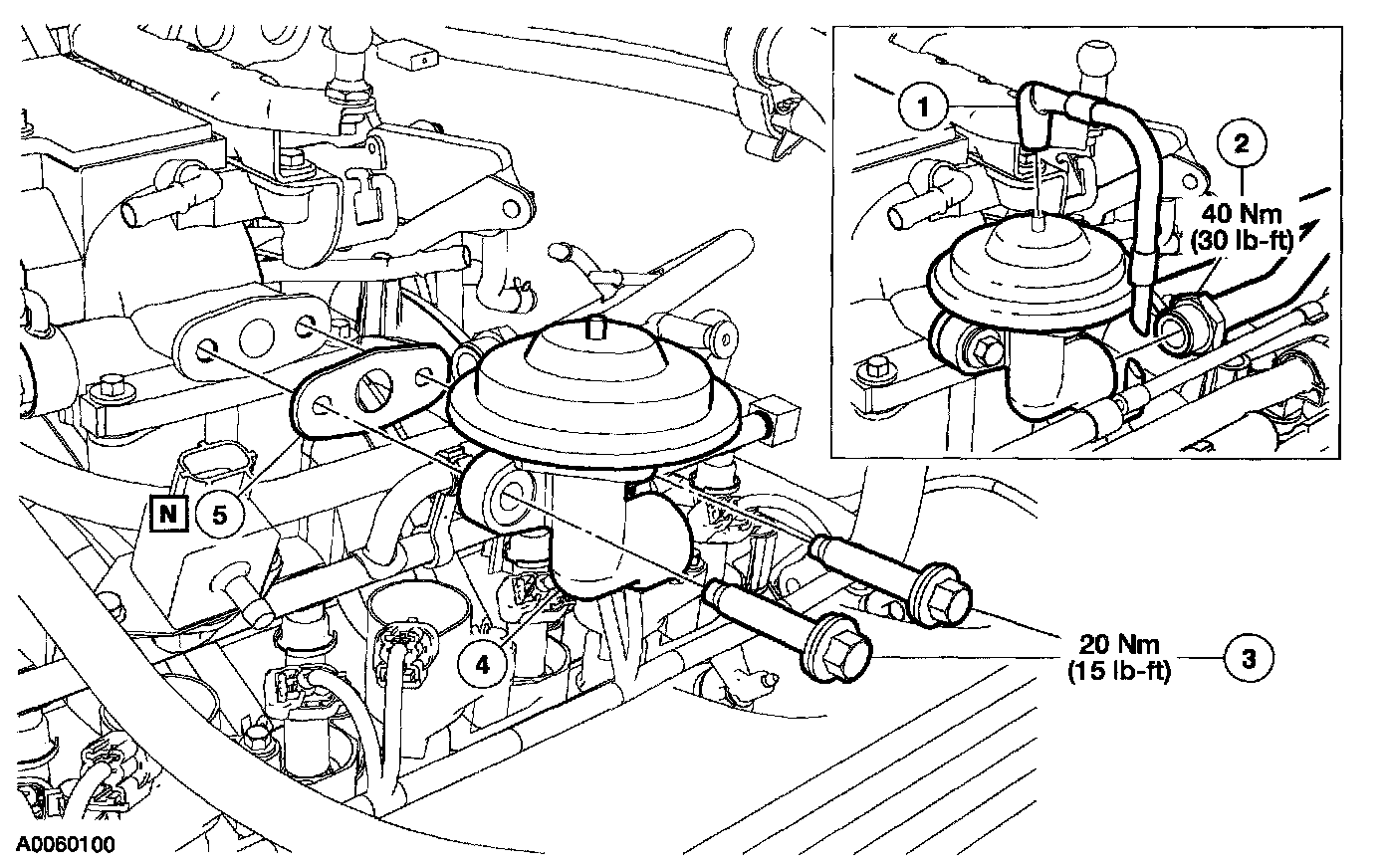

Part 1 Of 2:




Part 2 Of 2:





1. Remove the components in the order indicated.
2. To install, reverse the removal procedure.
