Home >> Ford >> 2003 >> Explorer AWD V8-4.6L VIN W >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> Function Selector Switch Assembly
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

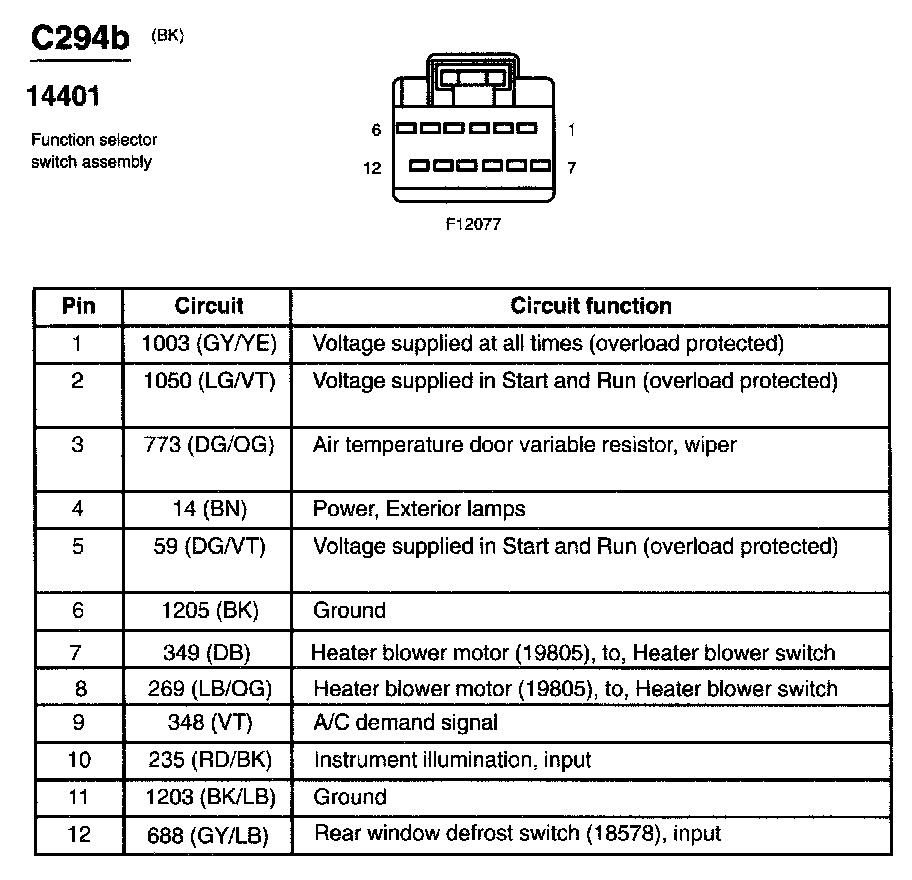

Function Selector Switch Assembly
