Speed Control Deactivator Switch-Without Stability Assist

SPEED CONTROL DEACTIVATOR SWITCH - WITHOUT STABILITY ASSIST

REMOVAL

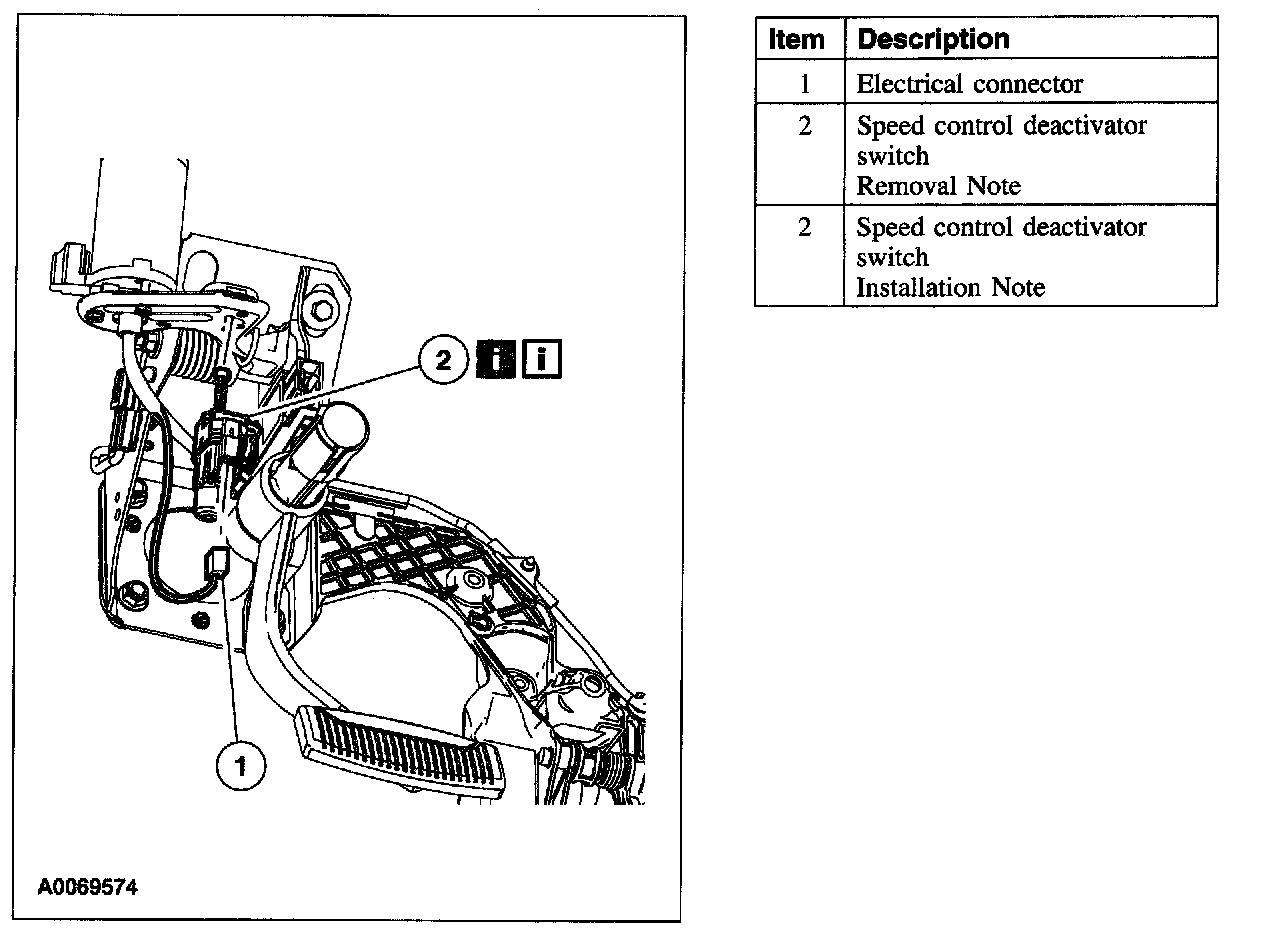

1. Remove the components in the order indicated in the illustration and table.

Item 2: Speed Control Deactivator Switch Removal Note
1. Rotate counterclockwise 45 degrees to remove the speed control deactivator switch.

INSTALLATION
1. To install, reverse the removal procedure.

Item 2: Speed Control Deactivator Switch Installation Note
1. Press the brake pedal and rotate clockwise 45 degrees to install the speed control deactivator switch.
