Home
>>
Ford
>>
2003
>>
Explorer AWD V6-4.0L VIN E
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Connector Circuit Reference
>>
Keyless Entry Keypad C500
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Keyless Entry Keypad C500

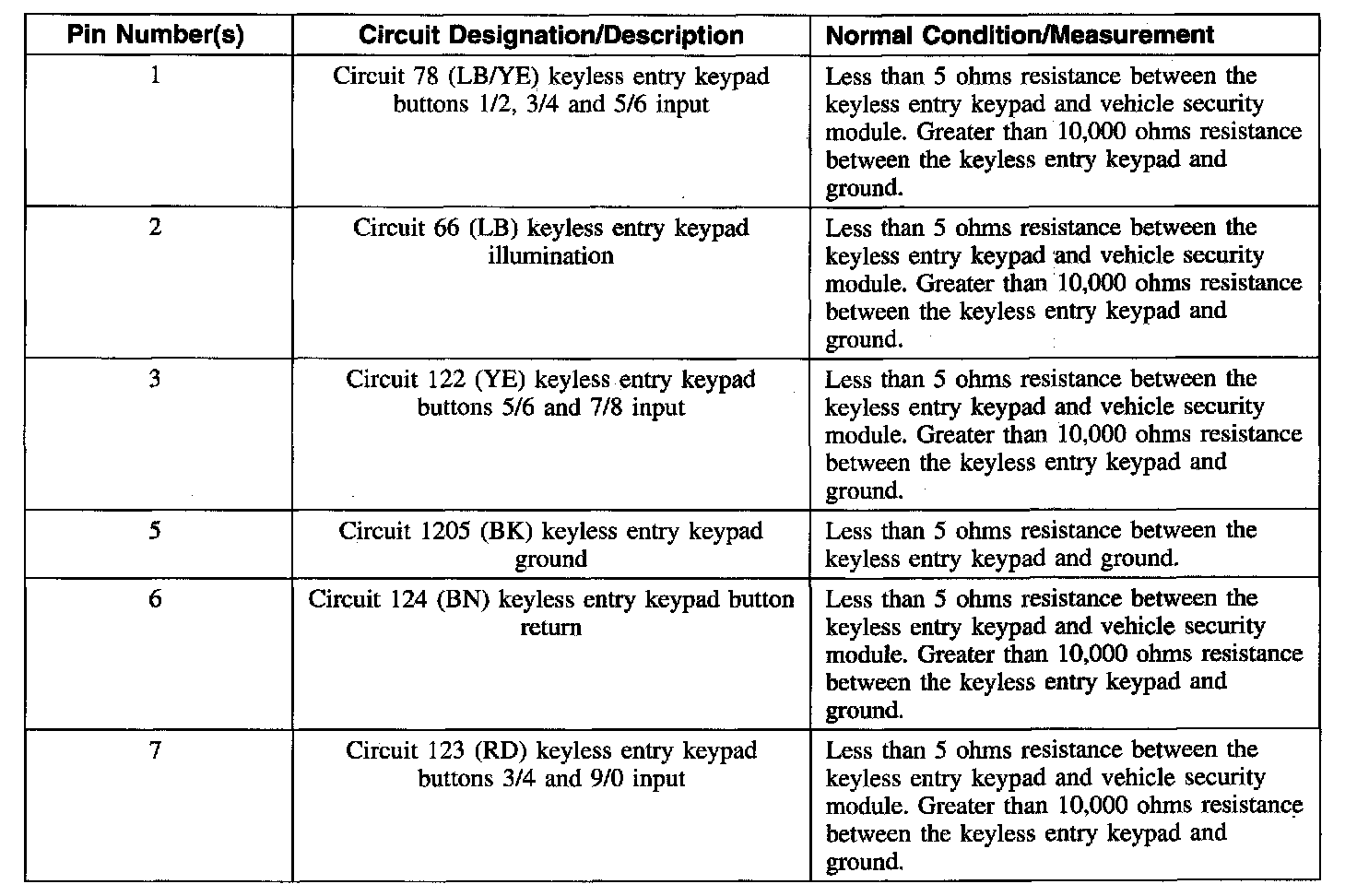

Keyless Entry Keypad C500, Part 1:
Keyless Entry Keypad C500, Part 2:
