Valve - Stem Diameter

  1. Measure the diameter of each intake and exhaust valve stem at the points shown. Verify the diameter is within specification.
    • Refer to the appropriate ENGINE article for the procedure.
    • If out of specification, install new components as necessary. Refer to the appropriate ENGINE article for the procedure.

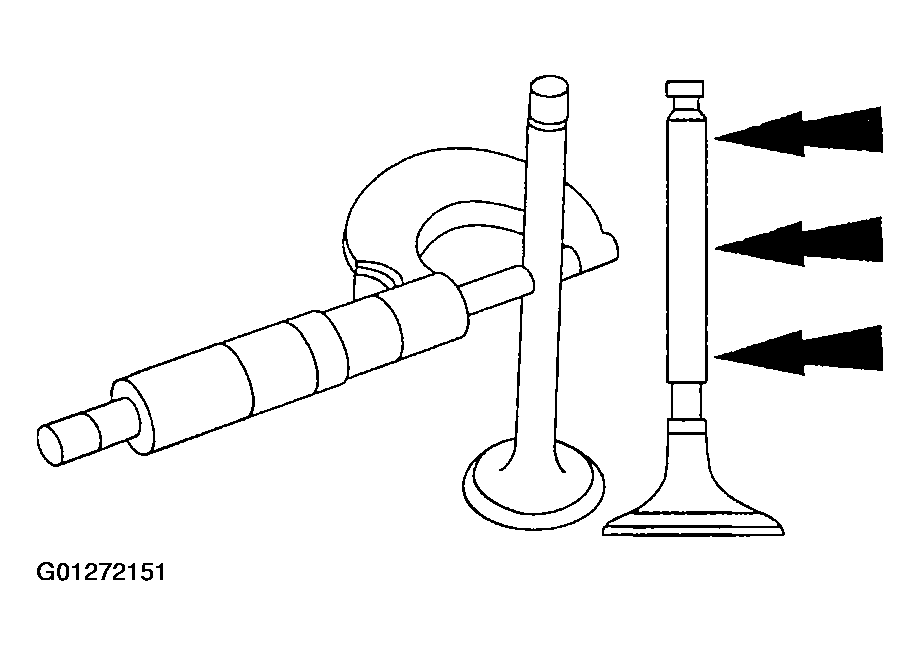

Fig 1: Measuring Diameter Of Intake And Exhaust Valve Stem
G01272151Courtesy of FORD MOTOR CO.
