Disassembled Views

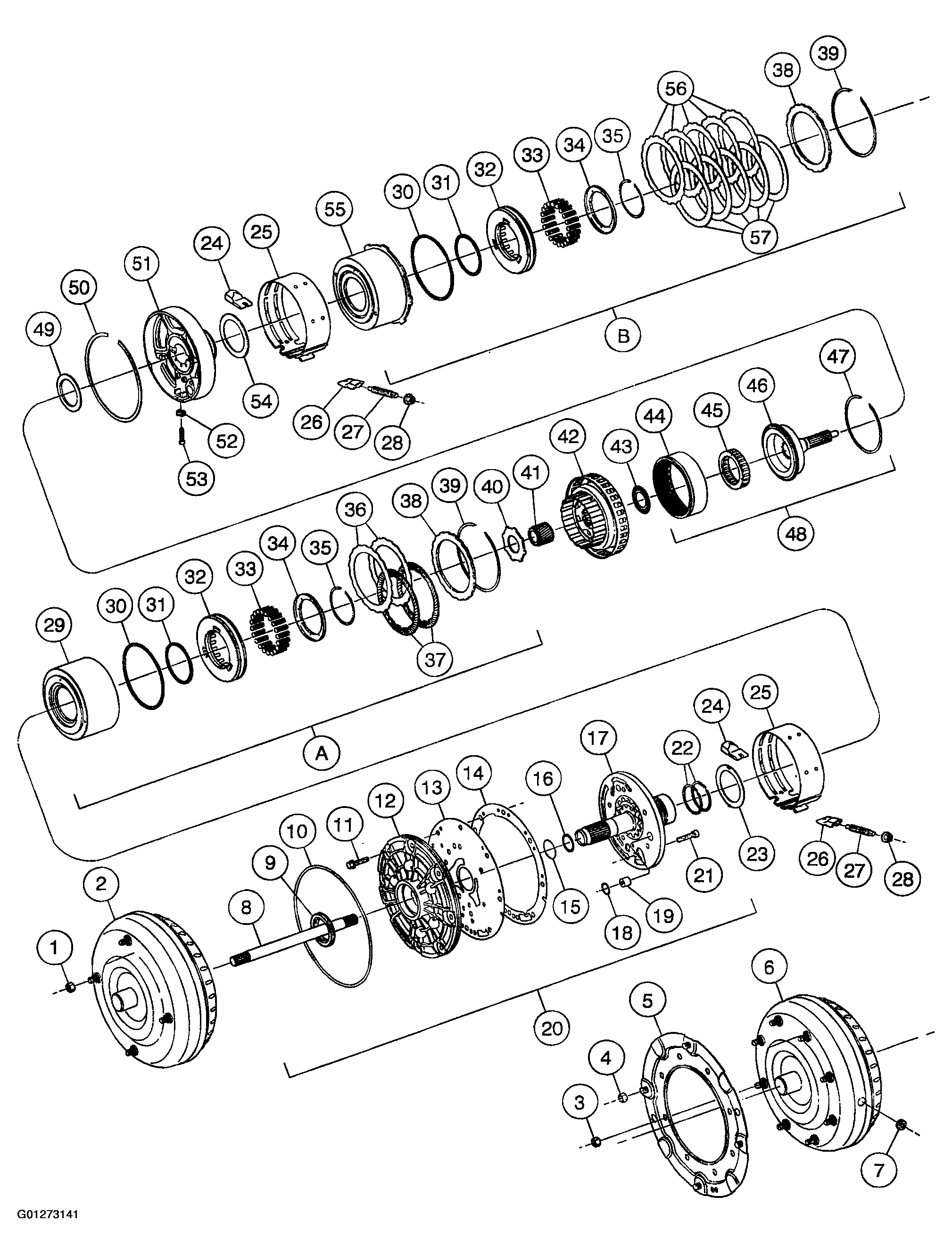

Fig 1: Identifying Disassembled View Of Transmission (1 Of 9)
Courtesy of FORD MOTOR CO.
Fig 2: Identifying Disassembled View Of Transmission (2 Of 9)
Courtesy of FORD MOTOR CO.

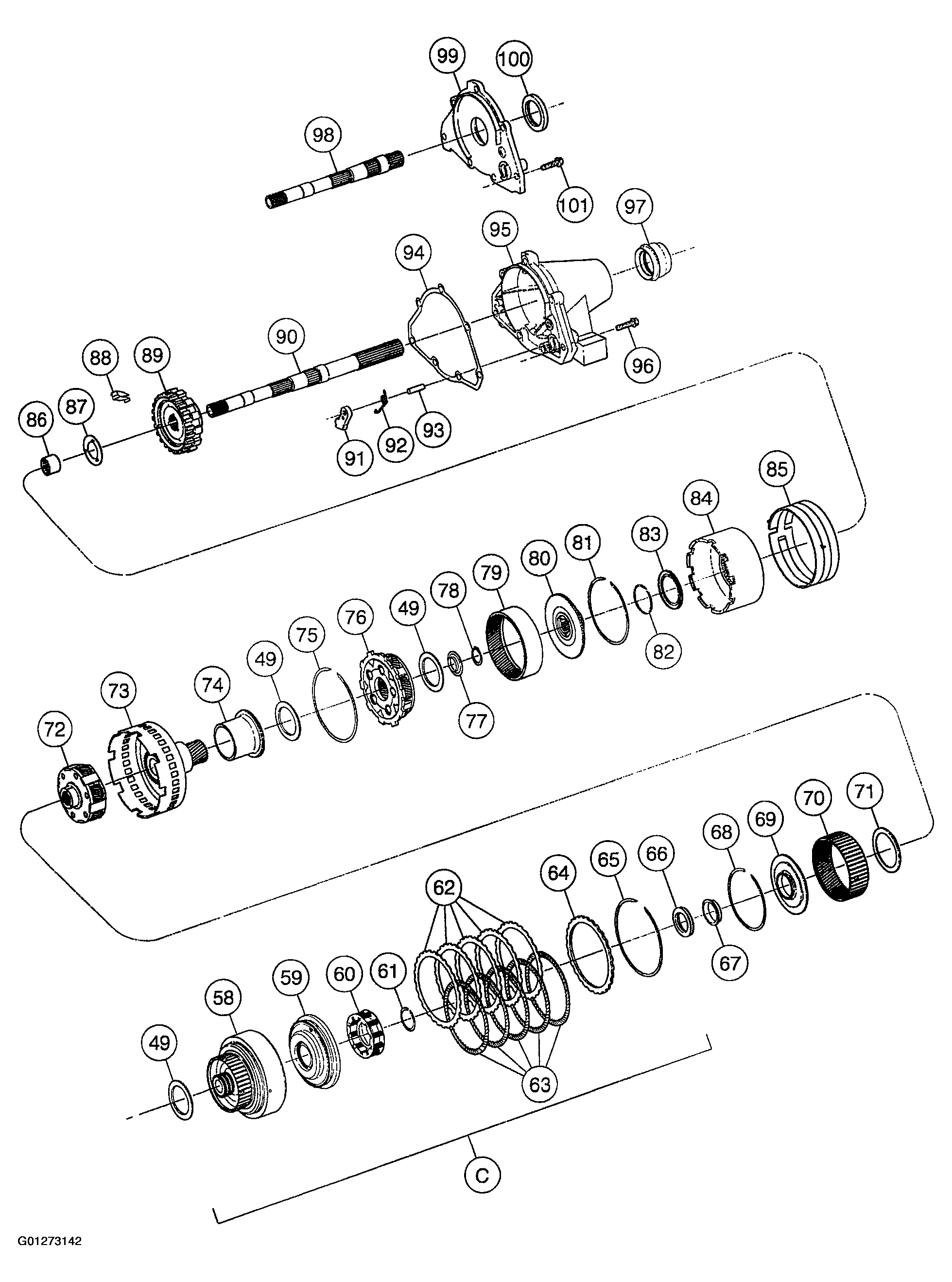

Fig 3: Identifying Disassembled View Of Transmission (3 Of 9)
Courtesy of FORD MOTOR CO.

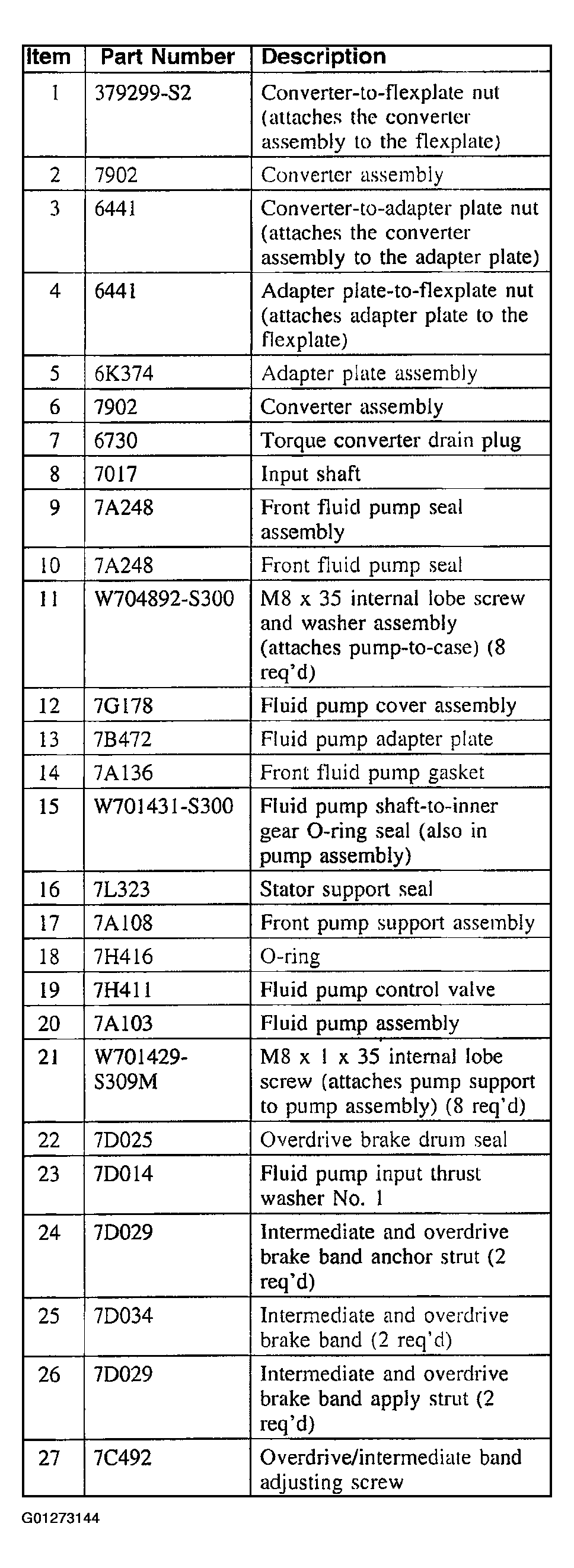

Fig 4: Identifying Disassembled View Of Transmission (4 Of 9)
Courtesy of FORD MOTOR CO.

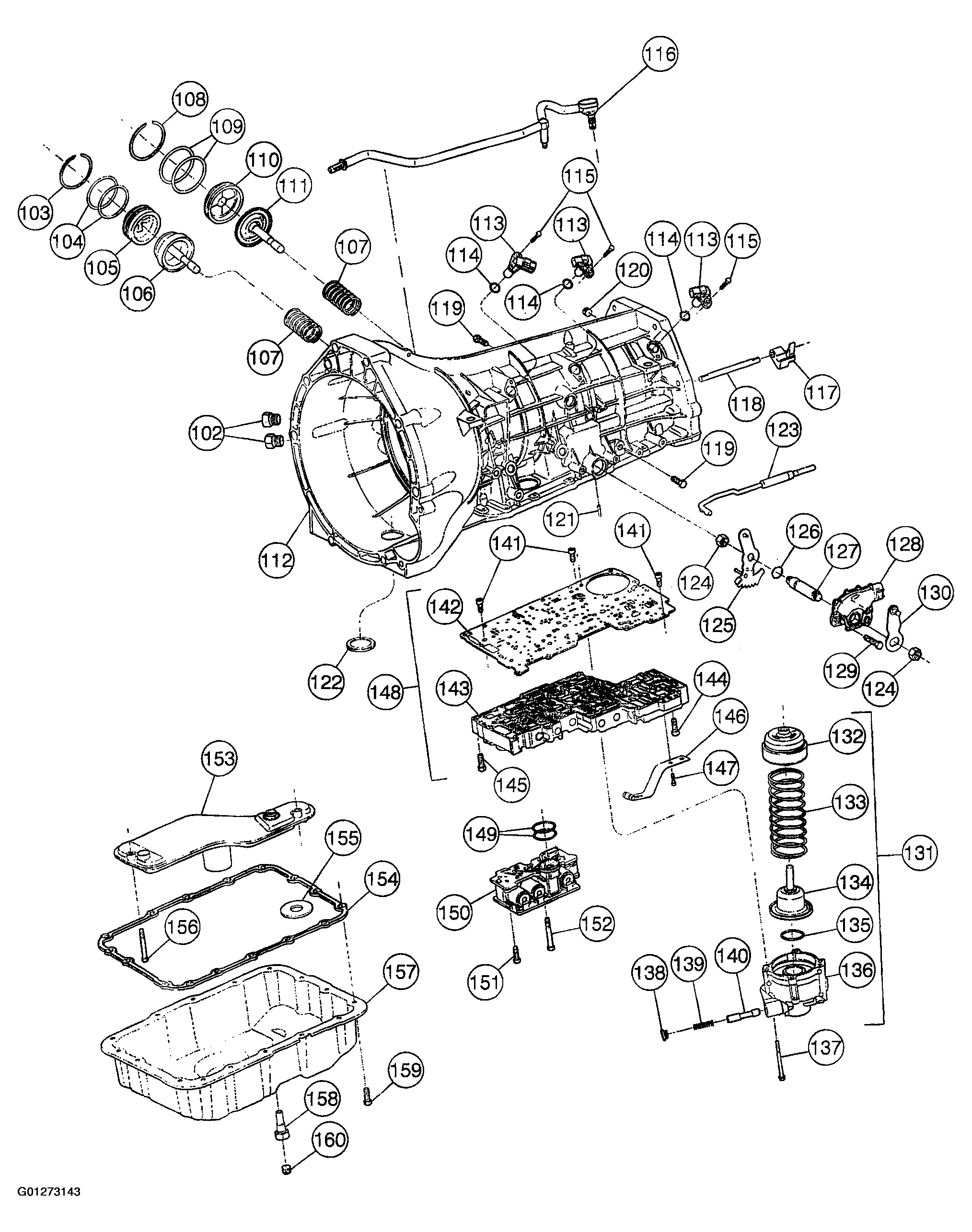

Fig 5: Identifying Disassembled View Of Transmission (5 Of 9)
Courtesy of FORD MOTOR CO.

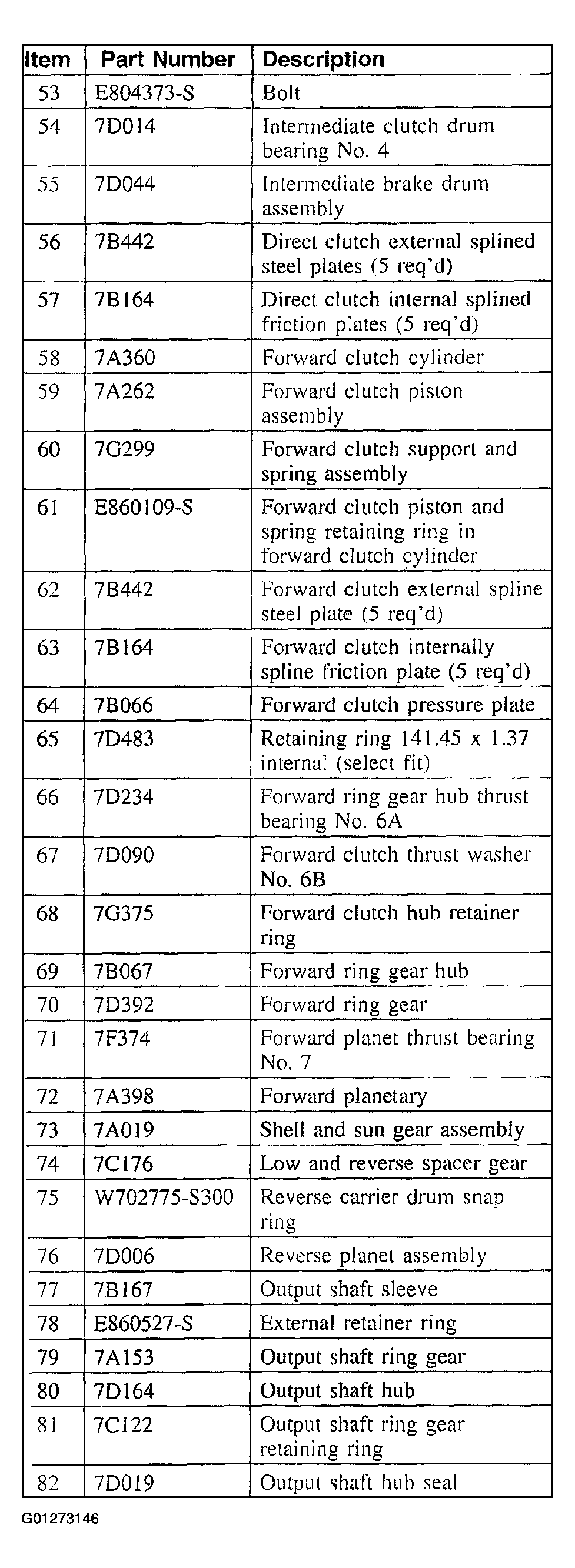

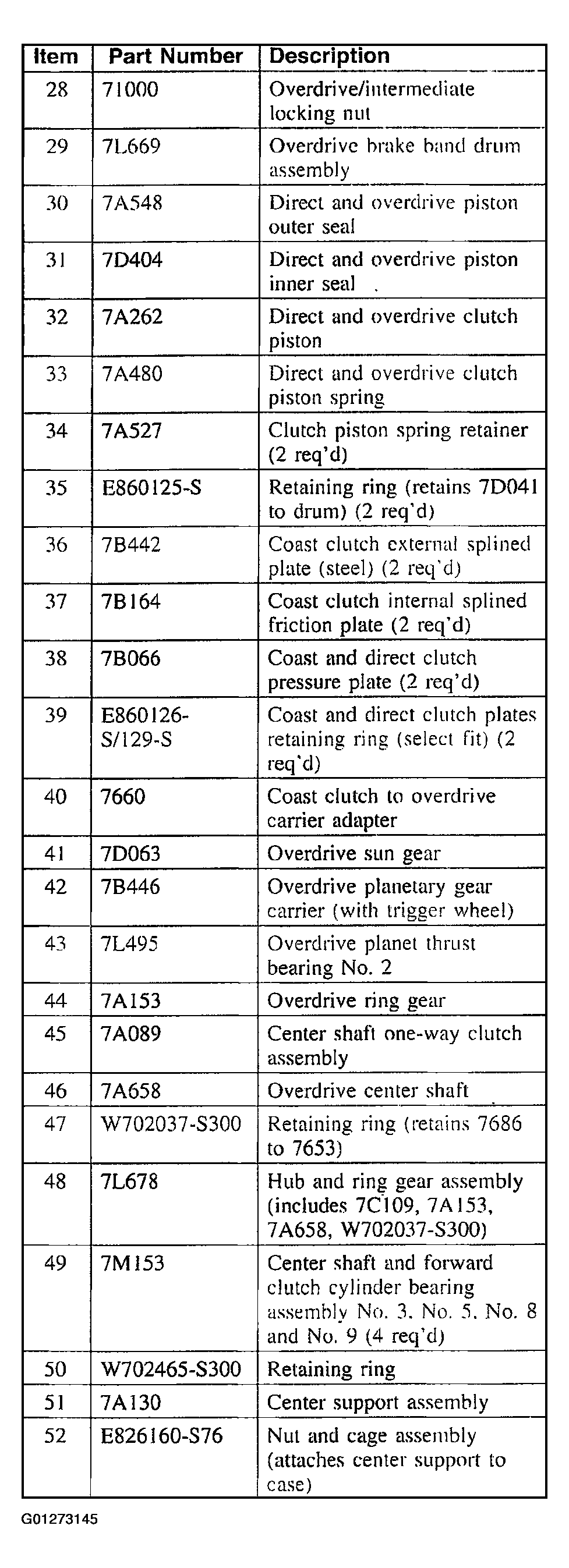

Fig 6: Identifying Disassembled View Of Transmission (6 Of 9)
Courtesy of FORD MOTOR CO.

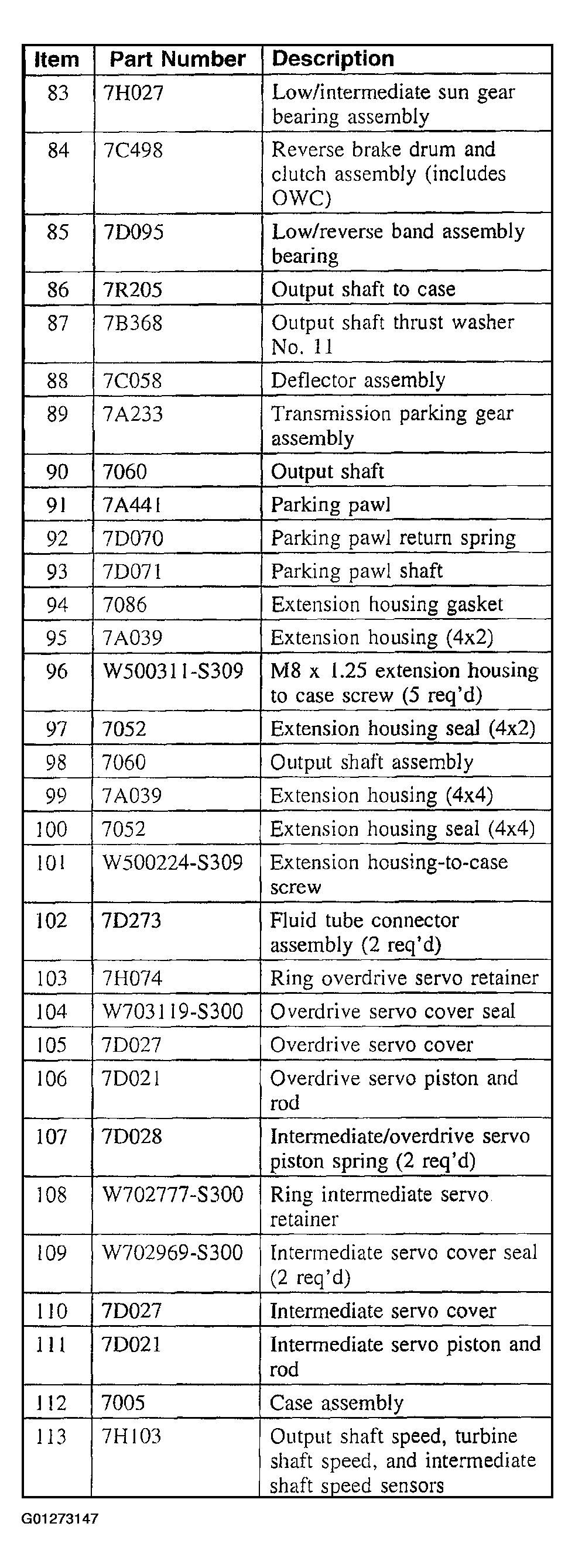

Fig 7: Identifying Disassembled View Of Transmission (7 Of 9)
Courtesy of FORD MOTOR CO.

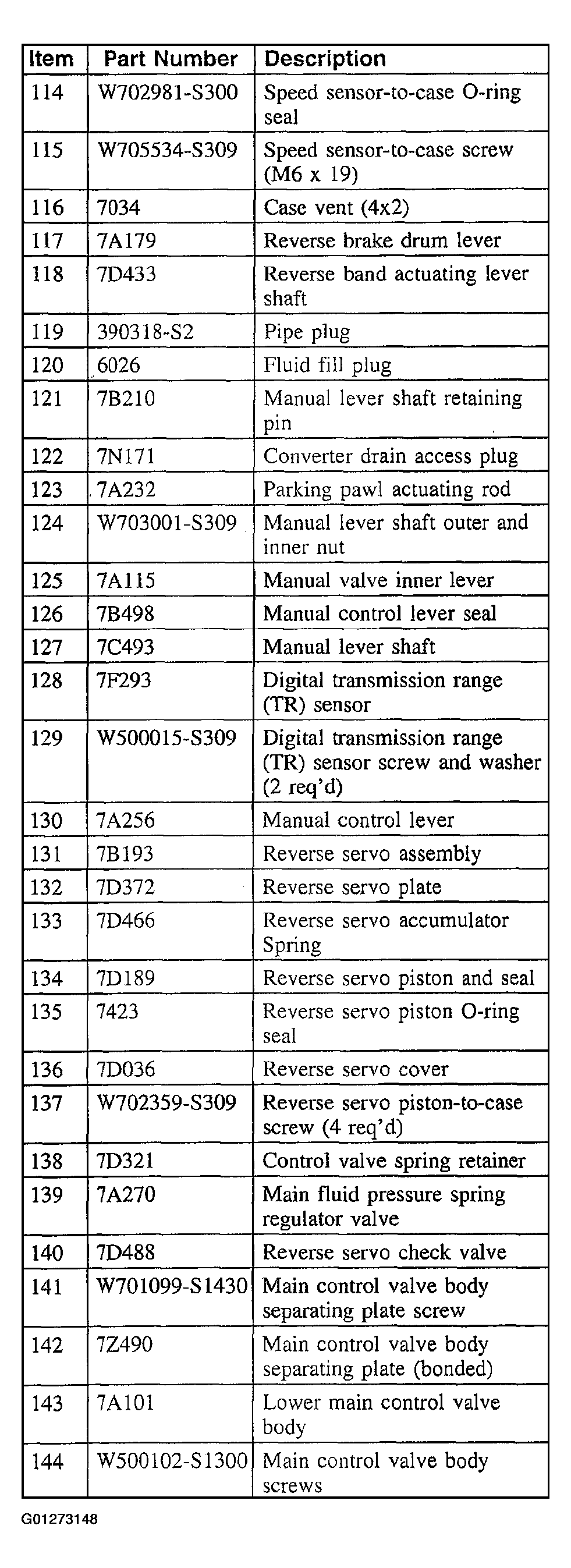

Fig 8: Identifying Disassembled View Of Transmission (8 Of 9)
Courtesy of FORD MOTOR CO.

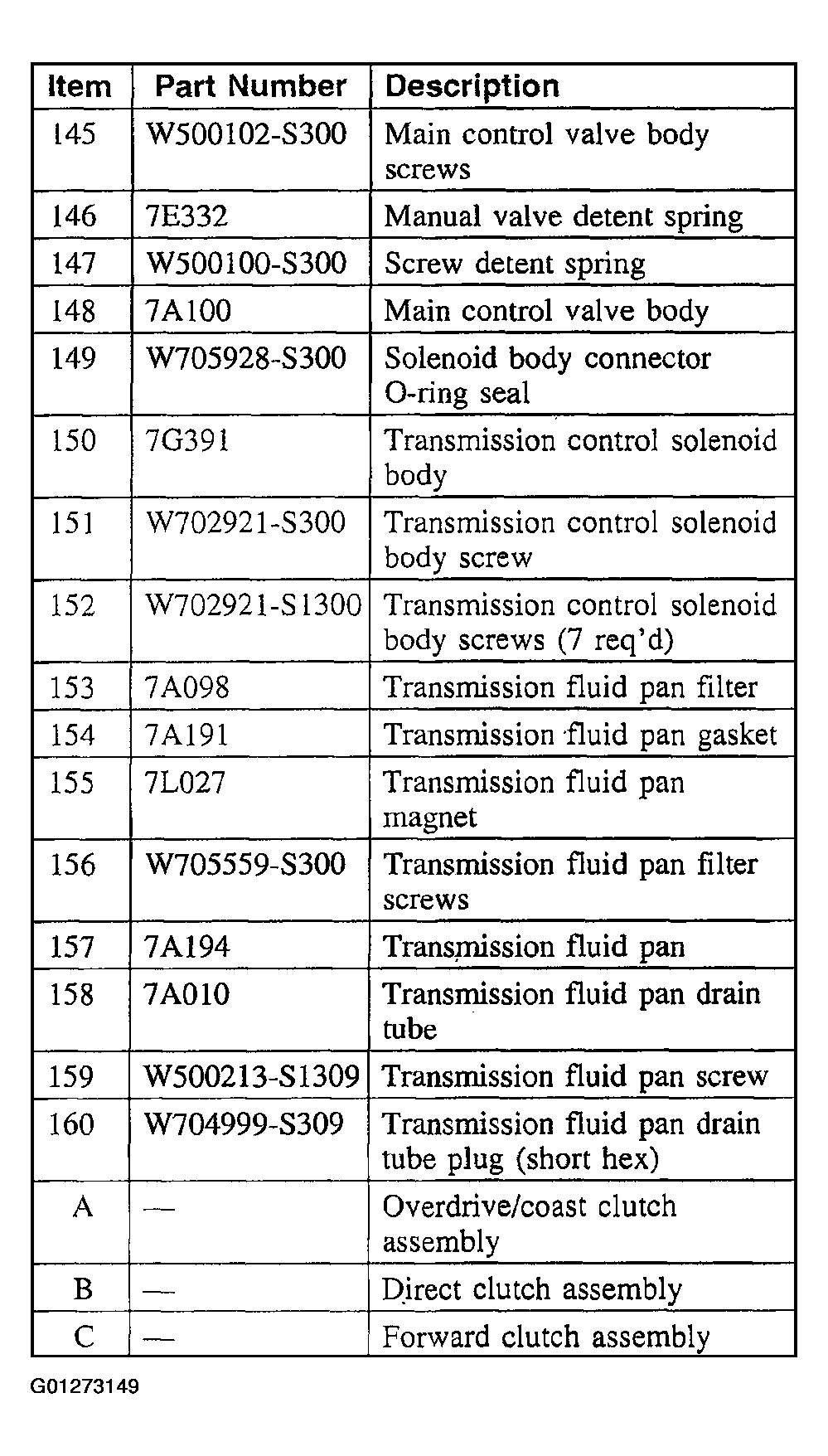

Fig 9: Identifying Disassembled View Of Transmission (9 Of 9)
Courtesy of FORD MOTOR CO.
