Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

Drain the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
Raise the vehicle. For additional information, refer to JACKING & HOISTING .
Disconnect the block heater power cable from the block heater.

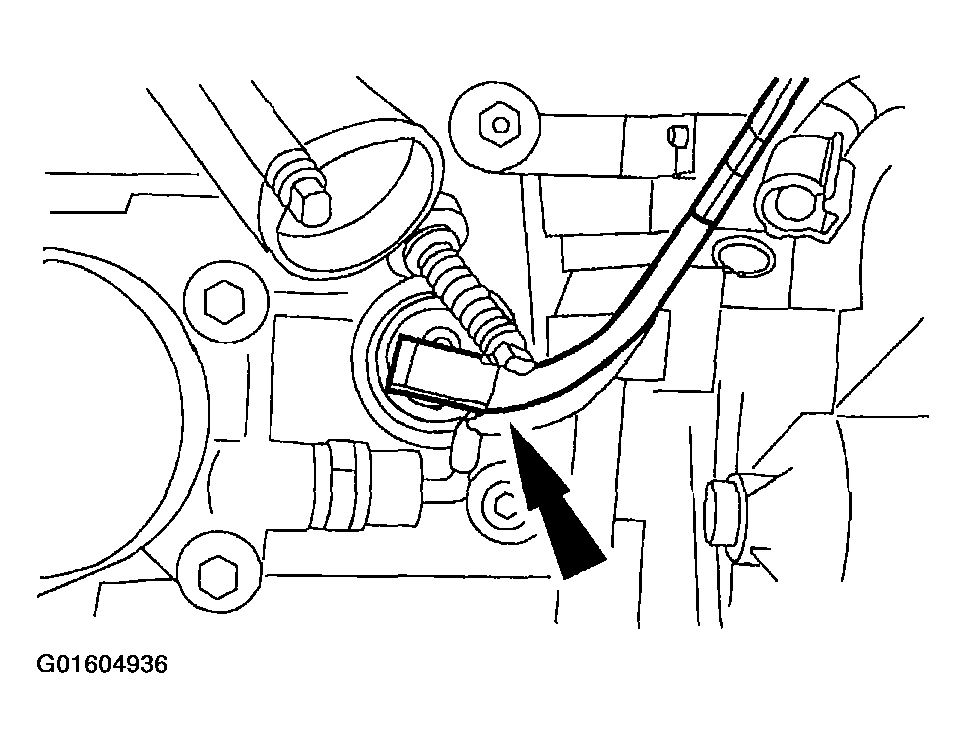

Fig 1: Disconnecting Block Heater Power Cable From Block Heater
Courtesy of FORD MOTOR CO.

CAUTION: Do not loosen the block heater retaining screw more than necessary for removal.

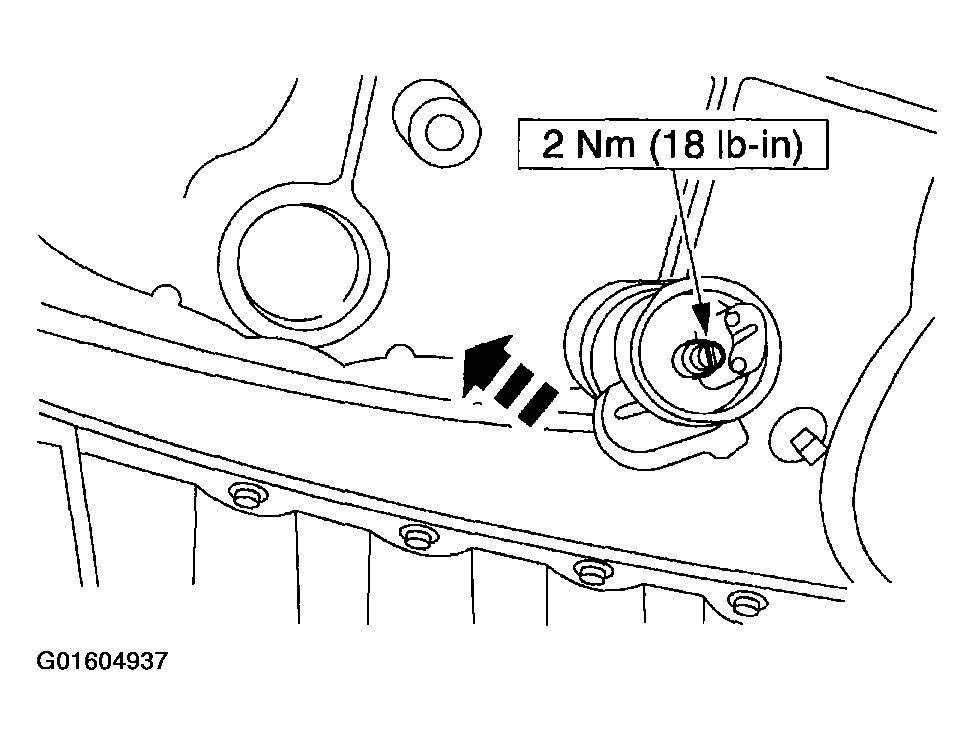

Fig 2: Removing Block Heater

Courtesy of FORD MOTOR CO.

Remove the block heater.

CAUTION: Make sure the power cable is routed and secured away from rotating or hot components, or damage to the cable can occur.

To install, reverse the removal procedure.
