Advance Trac Switch C280
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Advance Trac Switch C280
Fig 1: Identifying Advance Trac Switch C280 Connector Pin(s)
Courtesy of FORD MOTOR CO.

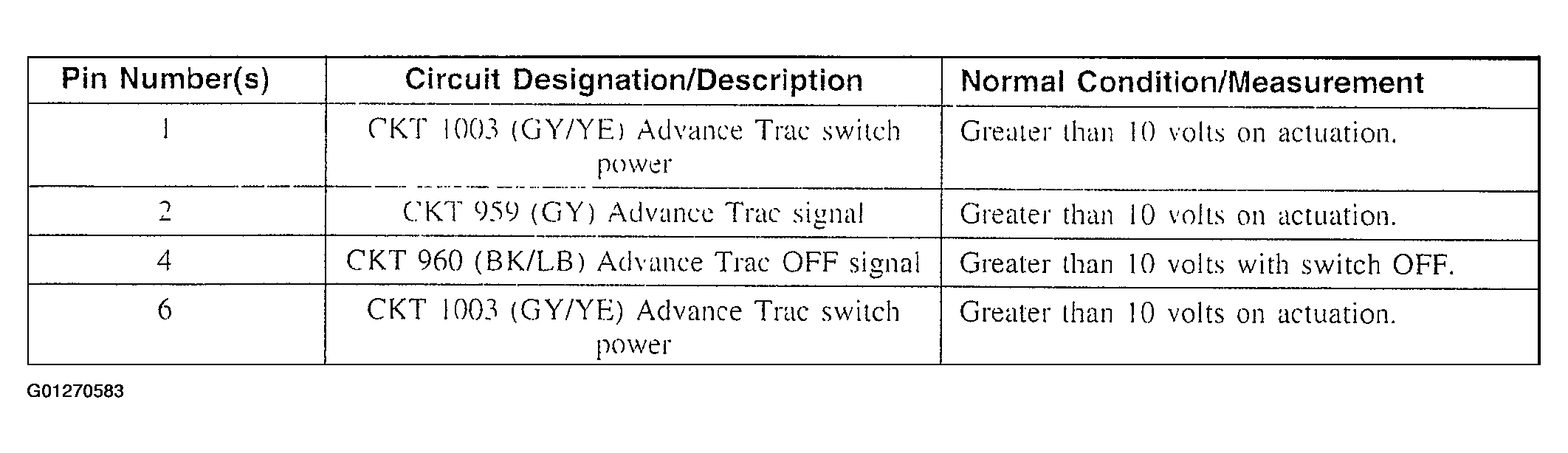

Fig 2: Identifying Advance Trac Switch C280 Connector Pin Reference Table (1 Of 2)
Courtesy of FORD MOTOR CO.

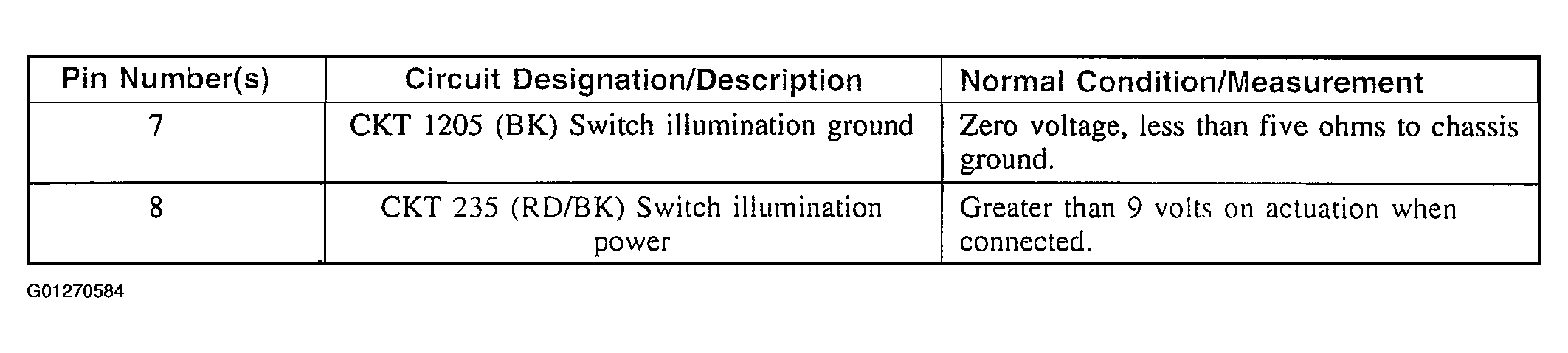

Fig 3: Identifying Advance Trac Switch C280 Connector Pin Reference Table (2 Of 2)
Courtesy of FORD MOTOR CO.
