Explorer 4.0 K, AWD
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Anti-Lock Brake Control System
>>
Diagnosis And Testing
>>
Anti-Lock Control
>>
Connector Reference and Terminal Readings
>>
Brake Pressure Transducer C147
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Brake Pressure Transducer C147

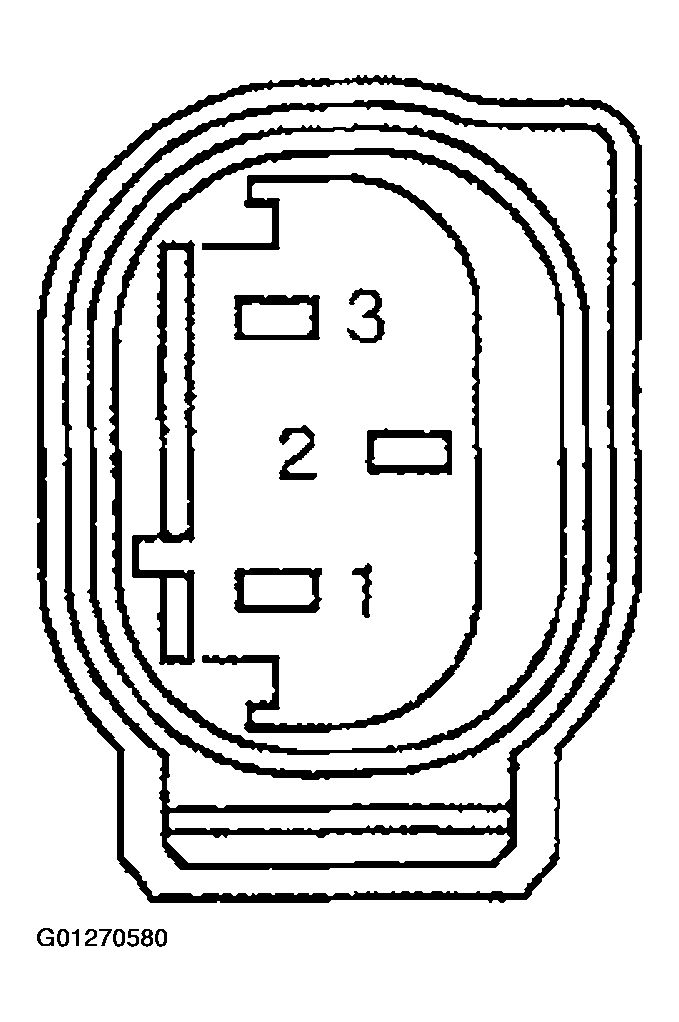

Fig 1: Locating Brake Pressure Transducer C147 Connector Pin(s)
Courtesy of FORD MOTOR CO.

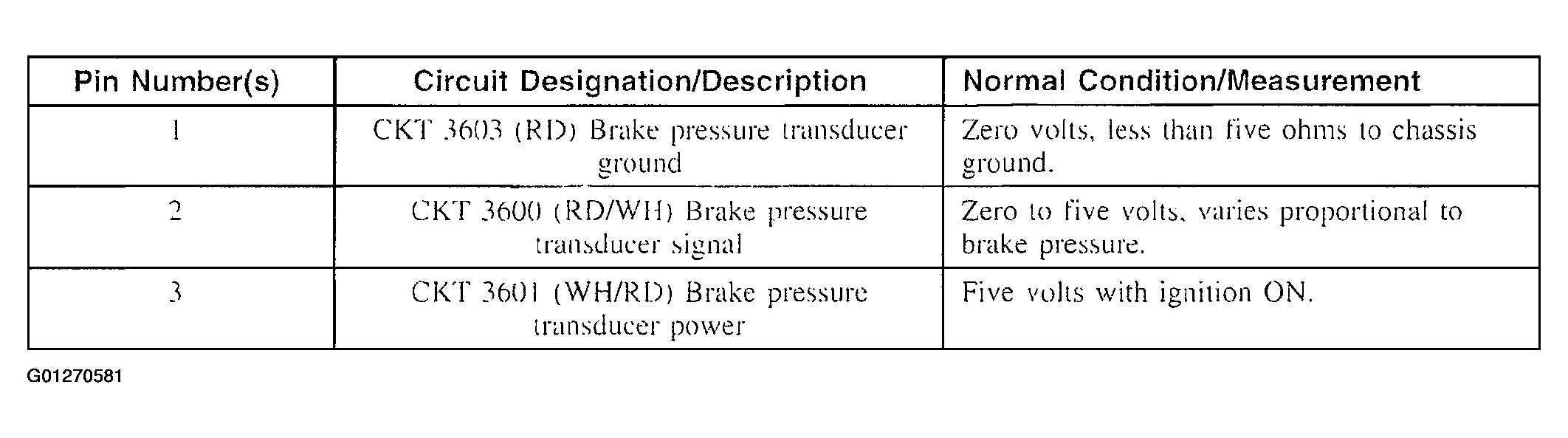

Fig 2: Brake Pressure Transducer C147 Connector Pin Reference Table
Courtesy of FORD MOTOR CO.
