Symptom Chart

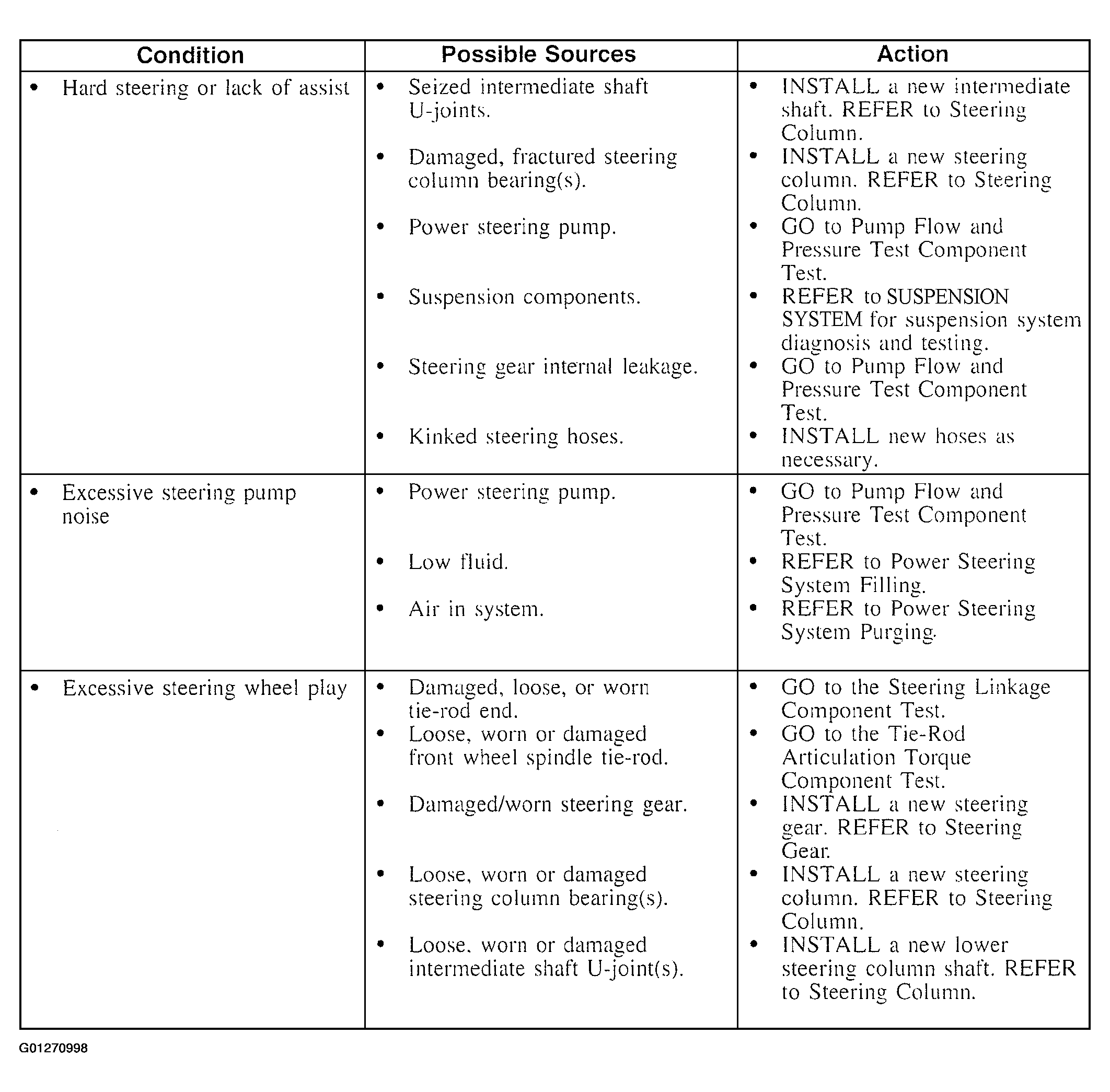

Fig 1: Symptom Chart - Steering System (1 Of 3)
G01270998Courtesy of FORD MOTOR CO.

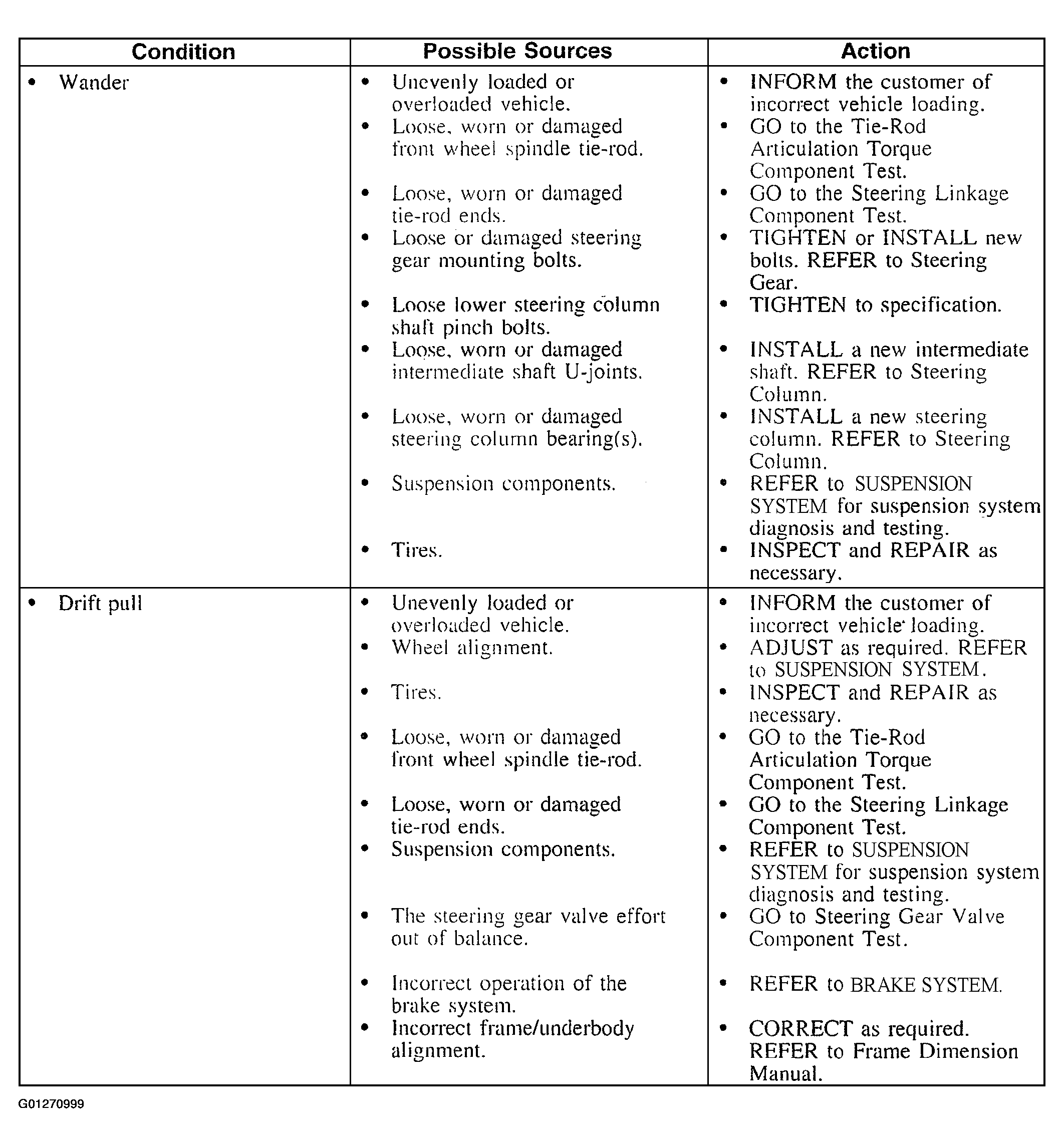

Fig 2: Symptom Chart - Steering System (2 Of 3)
G01270999Courtesy of FORD MOTOR CO.

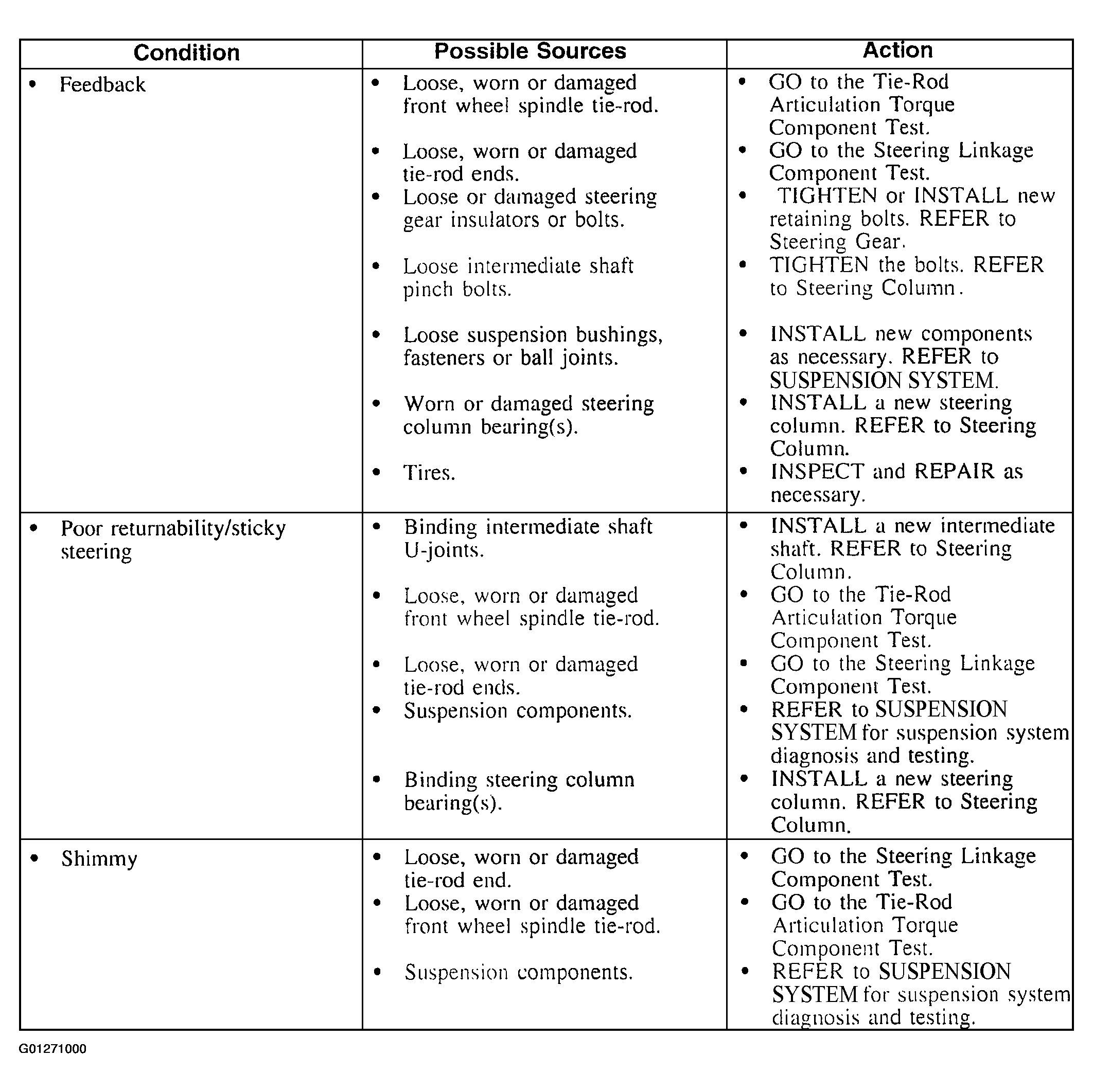

Fig 3: Symptom Chart - Steering System (3 Of 3)
G01271000Courtesy of FORD MOTOR CO.
