Direct Clutch Pack Specifications

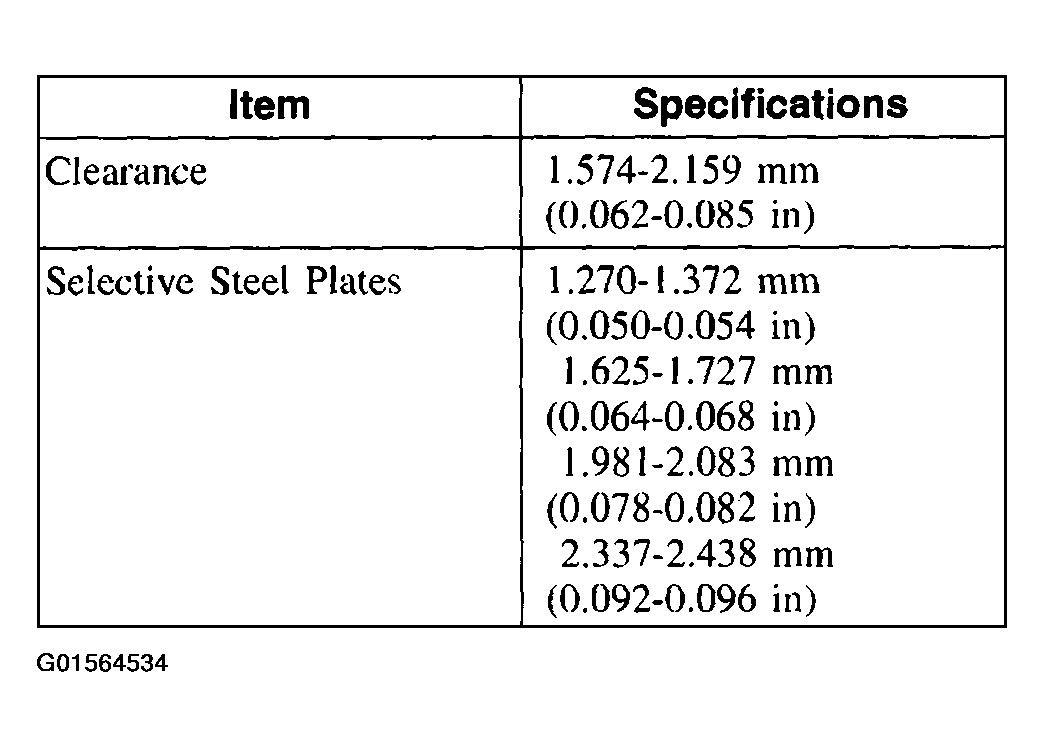

Fig 1: Direct Clutch Pack Specifications
G01564534Courtesy of FORD MOTOR CO.
