Overdrive Servo: Installation

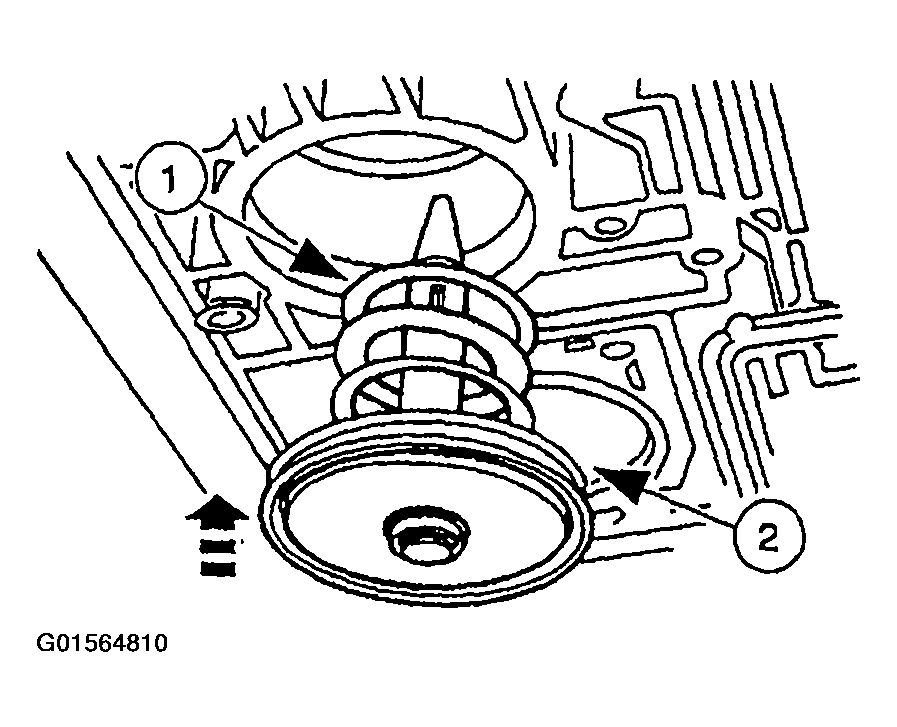

- Install the overdrive servo piston assembly.
- Install the overdrive servo piston return spring.
- Install the overdrive servo piston assembly.
Courtesy of FORD MOTOR CO.

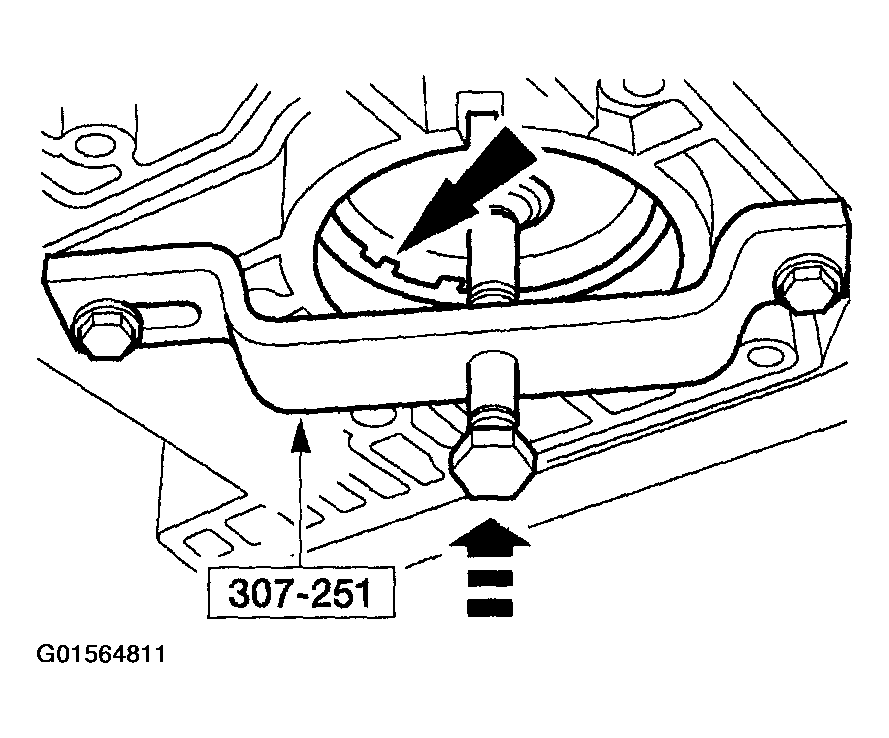

- Use the special tool to install the overdrive servo piston retaining ring.
Courtesy of FORD MOTOR CO.
- Install the main control valve body. For additional information, refer to MAIN CONTROL VALVE BODY .
