Output Shaft And Direct Clutch Cylinder: Notes

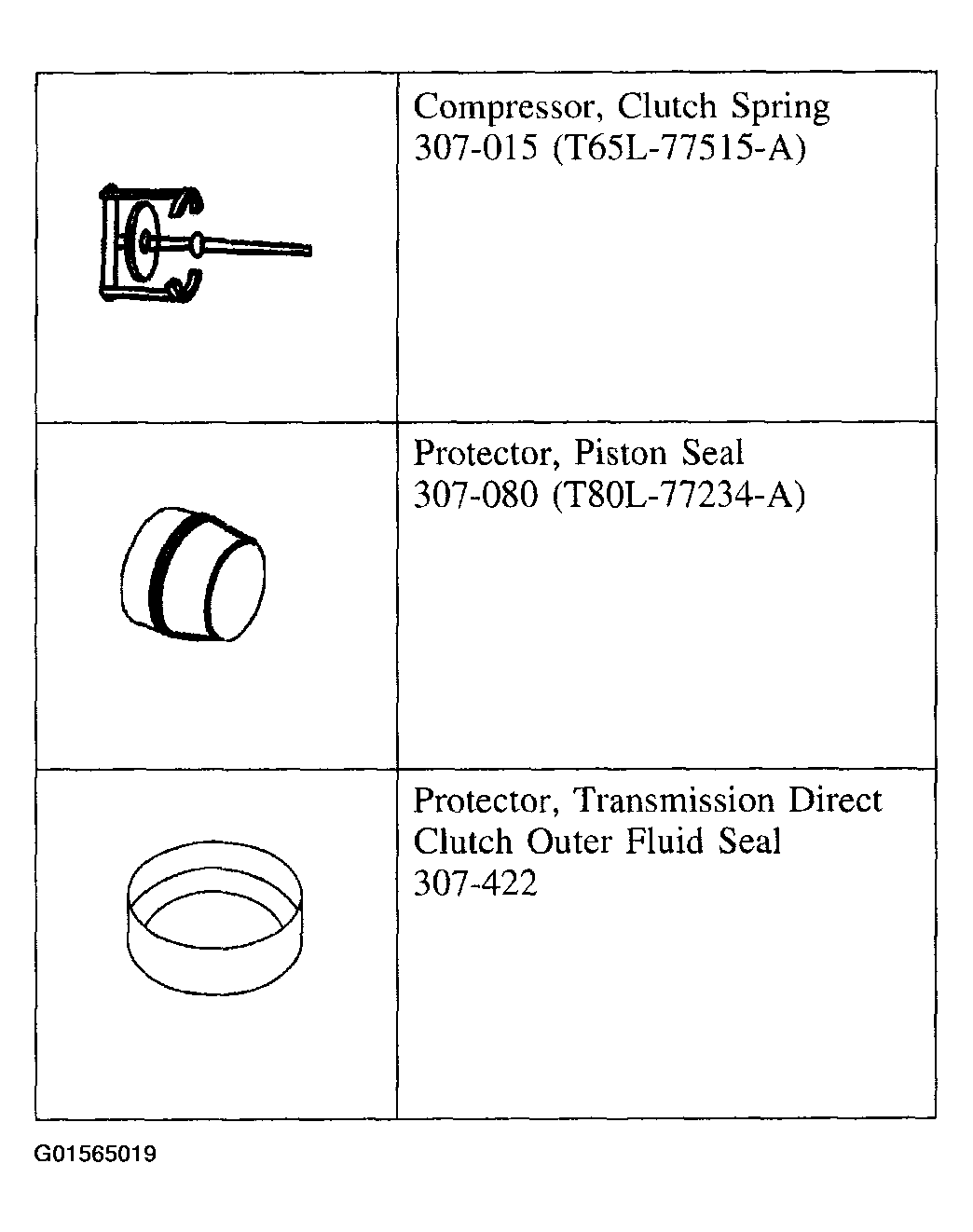

Fig 1: Identifying Special Tools

Courtesy of FORD MOTOR CO.

Fig 2: Identifying Material Specifications

Courtesy of FORD MOTOR CO.

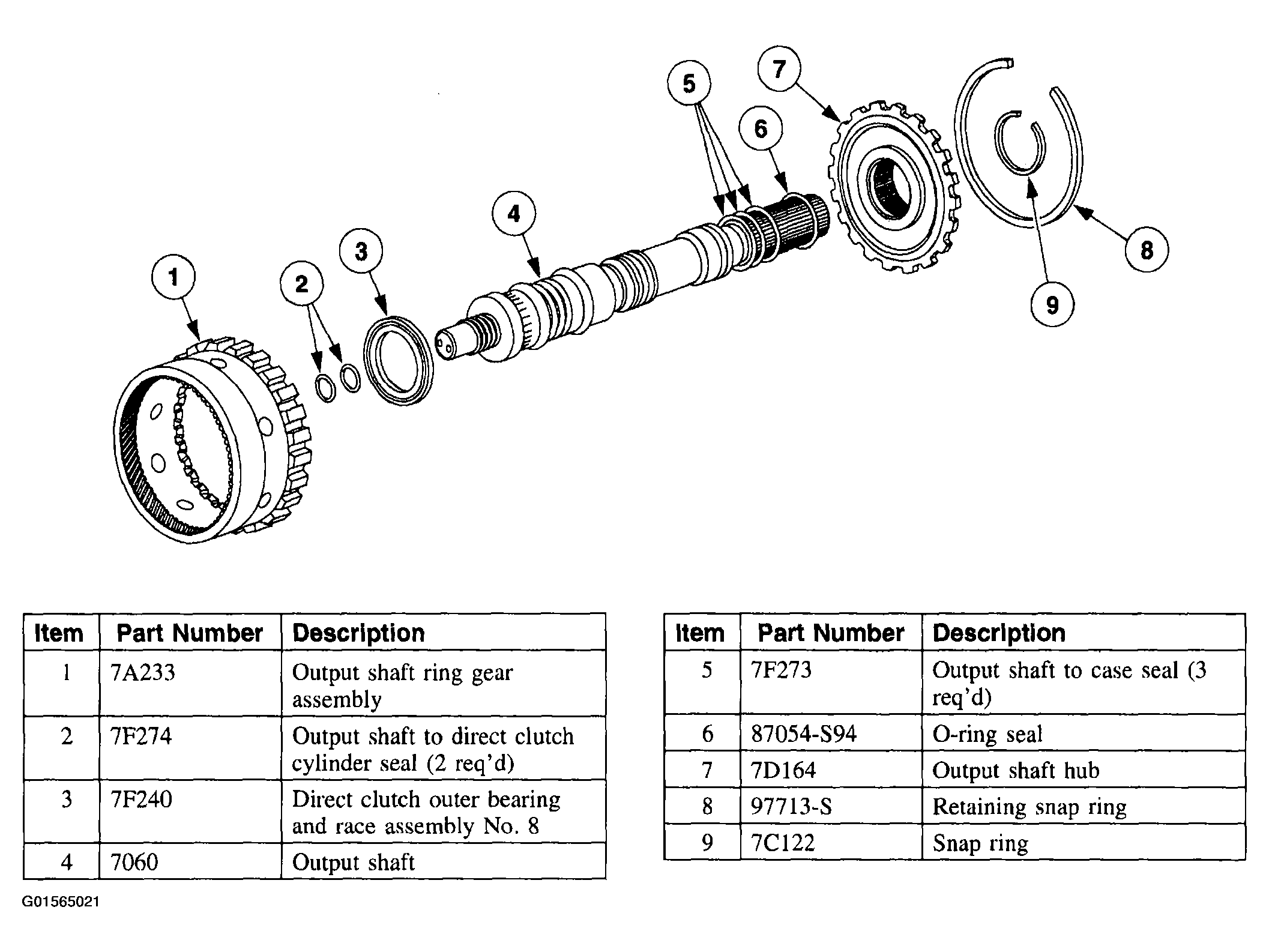

Fig 3: Exploded View Of Output Shaft, Direct Clutch Cylinder And Ring Gear Components And Parts Description Chart

Courtesy of FORD MOTOR CO.

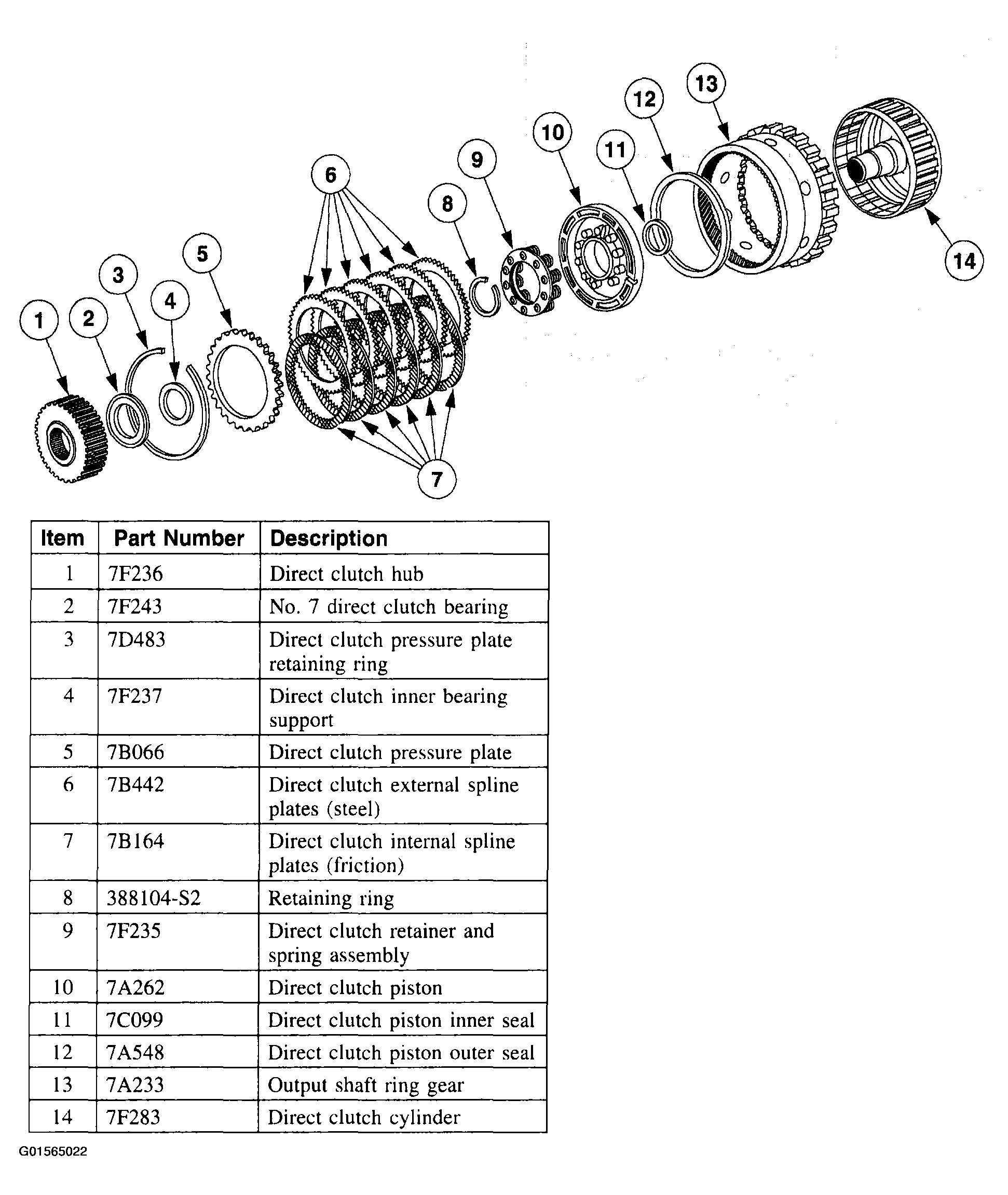

Fig 4: Exploded View Of Direct Clutch Components And Parts Description Chart

Courtesy of FORD MOTOR CO.
