SSP Relay Index

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

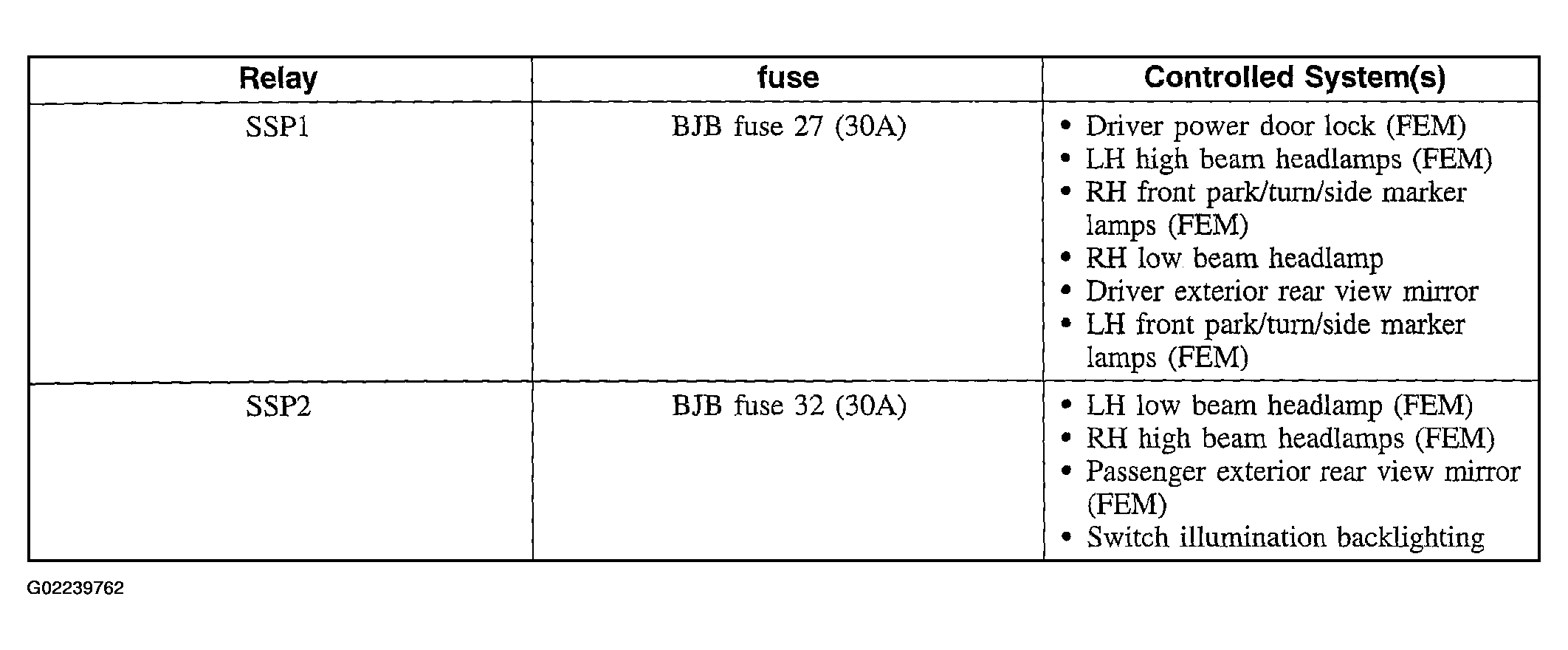

Fig 1: SSP Relay Index (1 Of 2)

Courtesy of FORD MOTOR CO.

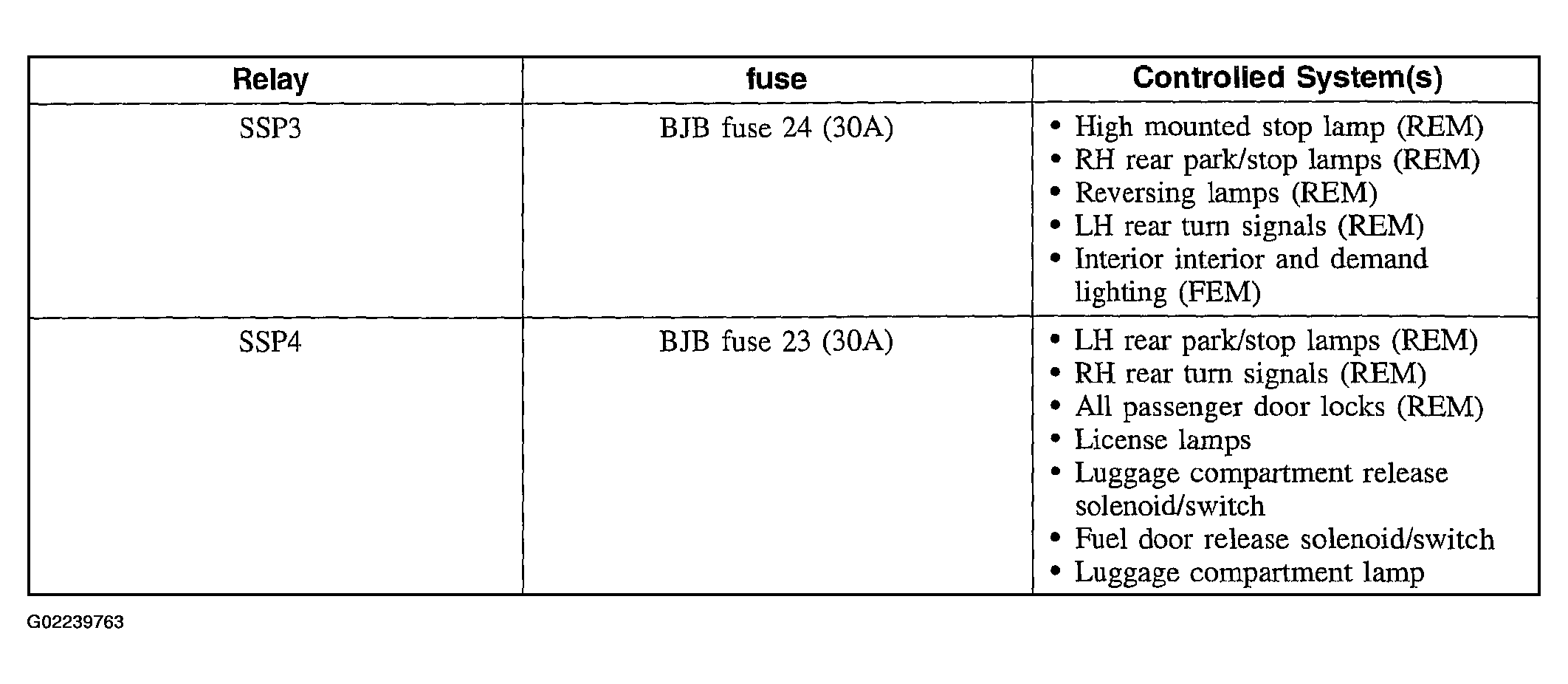

Fig 2: SSP Relay Index (2 Of 2)

Courtesy of FORD MOTOR CO.

When diagnosing an SSP relay, check that all systems for that relay are inoperative. Refer to EXTERIOR LIGHTING .
