Roof Opening Panel Drive Cables and Guide Rails: Notes

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the roof opening panel. Refer to ROOF OPENING PANEL for additional information.
To disassemble individual components only, carry out the following steps.

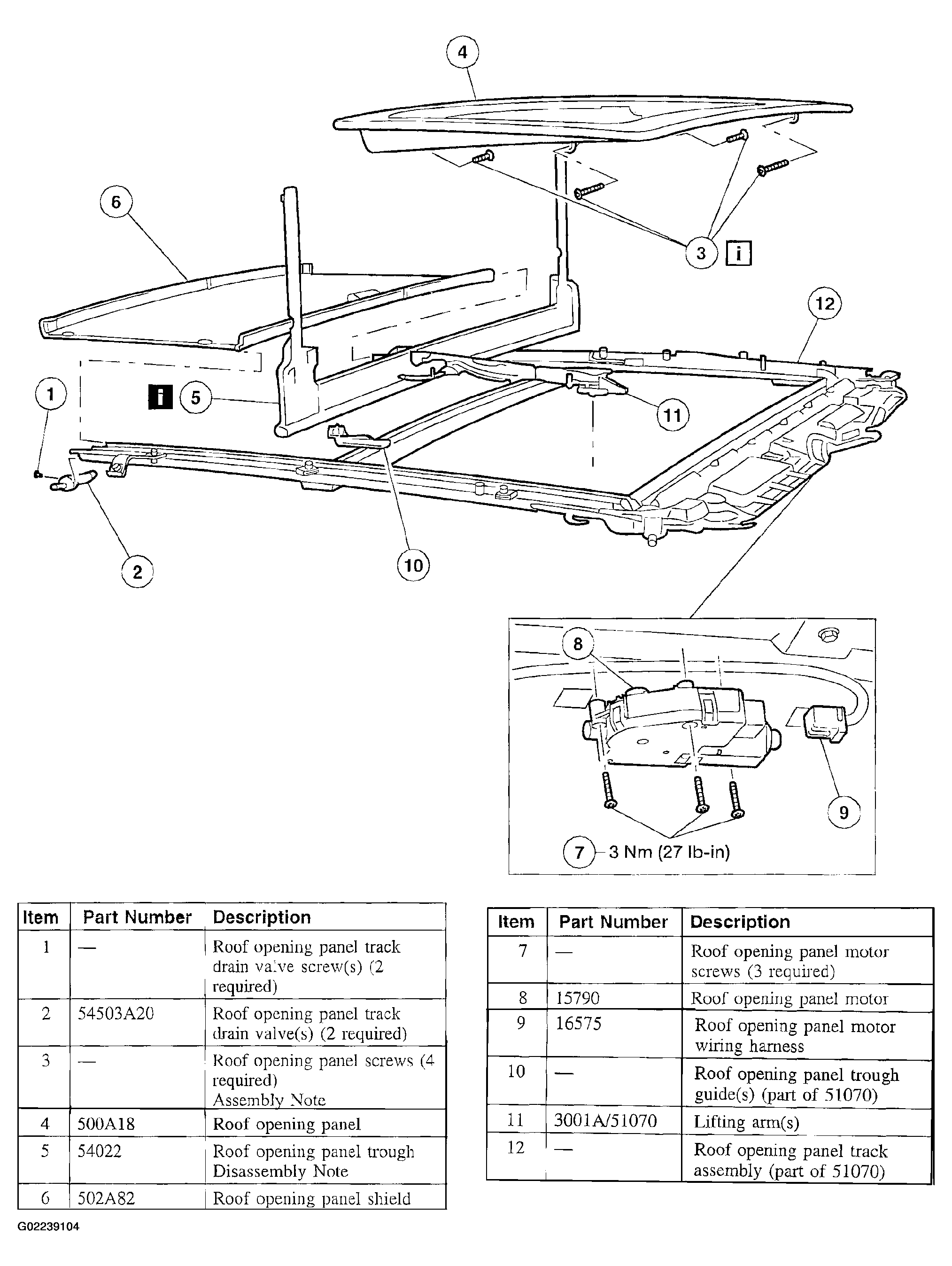

Fig 1: Components Disassembly Chart (1 Of 2)
Courtesy of FORD MOTOR CO.

Fig 2: Components Disassembly Chart (2 Of 2)
Courtesy of FORD MOTOR CO.
Disassemble the components in the order indicated in Fig 3.

Fig 3: Exploded View Of Roof Opening Panel Drive Cables And Guide Rails Components
Courtesy of FORD MOTOR CO.
To assemble, reverse the disassembly procedure.
