VNR Audio Unit C2253a

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

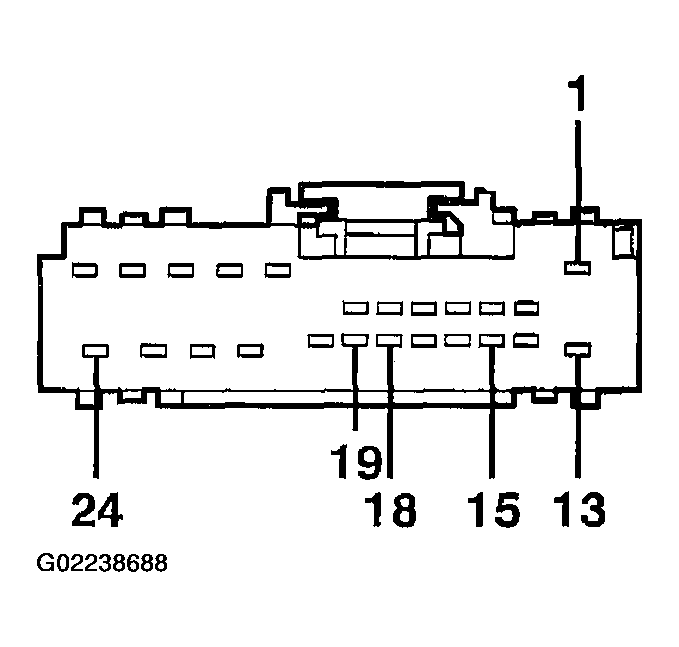

Fig 1: Identifying VNR Audio Unit C2253a Connector Pinouts
G02238688Courtesy of FORD MOTOR CO.

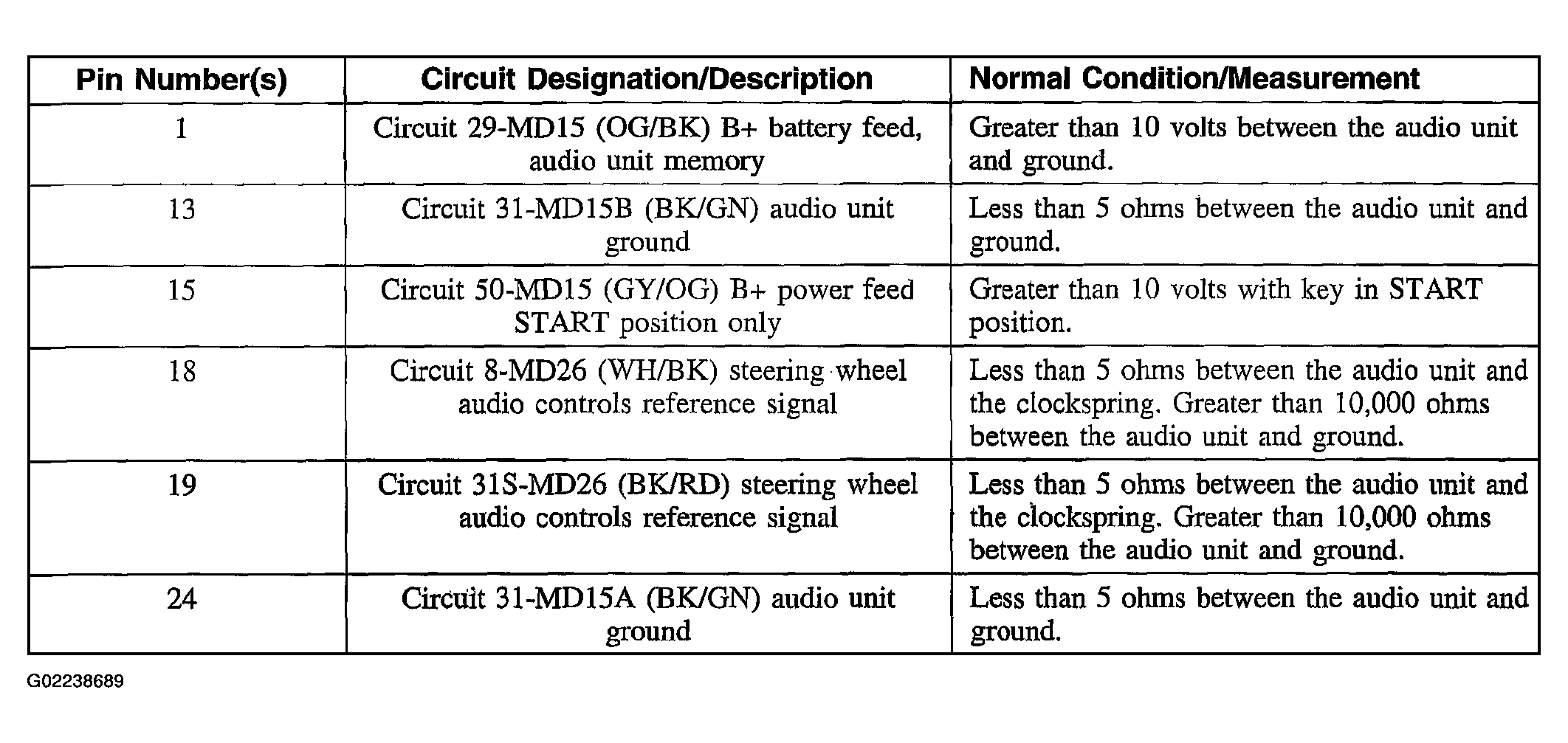

Fig 2: VNR Audio Unit C2253a Connector Pins Reference Chart
G02238689Courtesy of FORD MOTOR CO.
