Items 1 and 2: Flexplate Disassembly Note

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the flexplate.
    • Remove the bolts in the sequence shown.
    • Remove the flexplate.

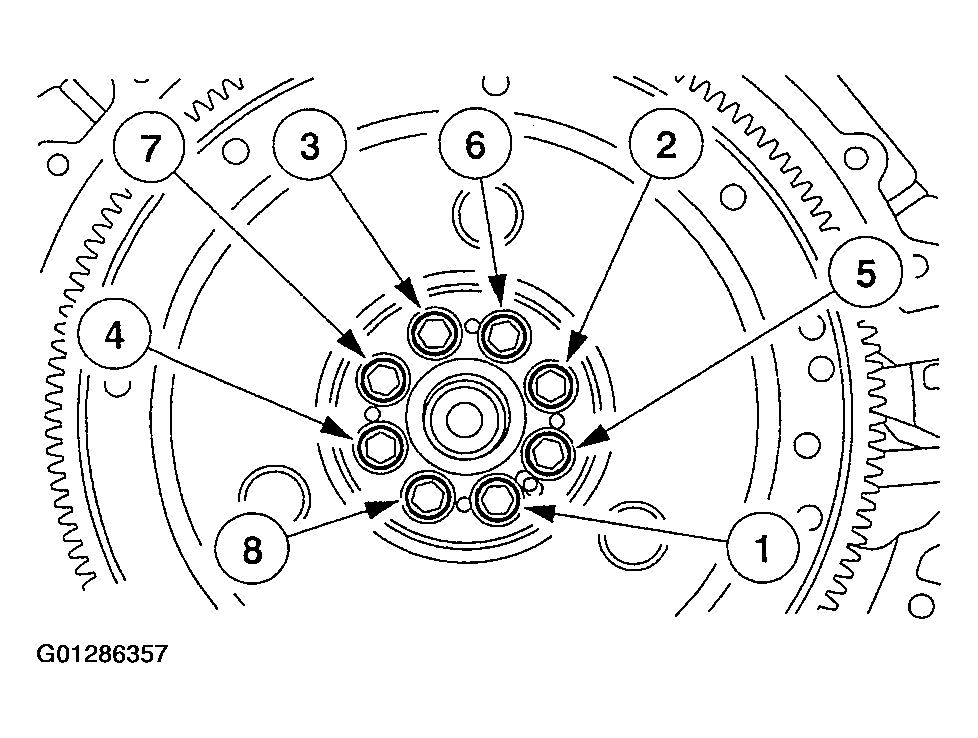

    Fig 1: Removing Bolts In Sequence
    G01286357Courtesy of FORD MOTOR CO.
