Test C: Speed Control Does Not Disengage With Brakes Applied

PINPOINT TEST C: THE SPEED CONTROL DOES NOT DISENGAGE WHEN THE BRAKES ARE APPLIED

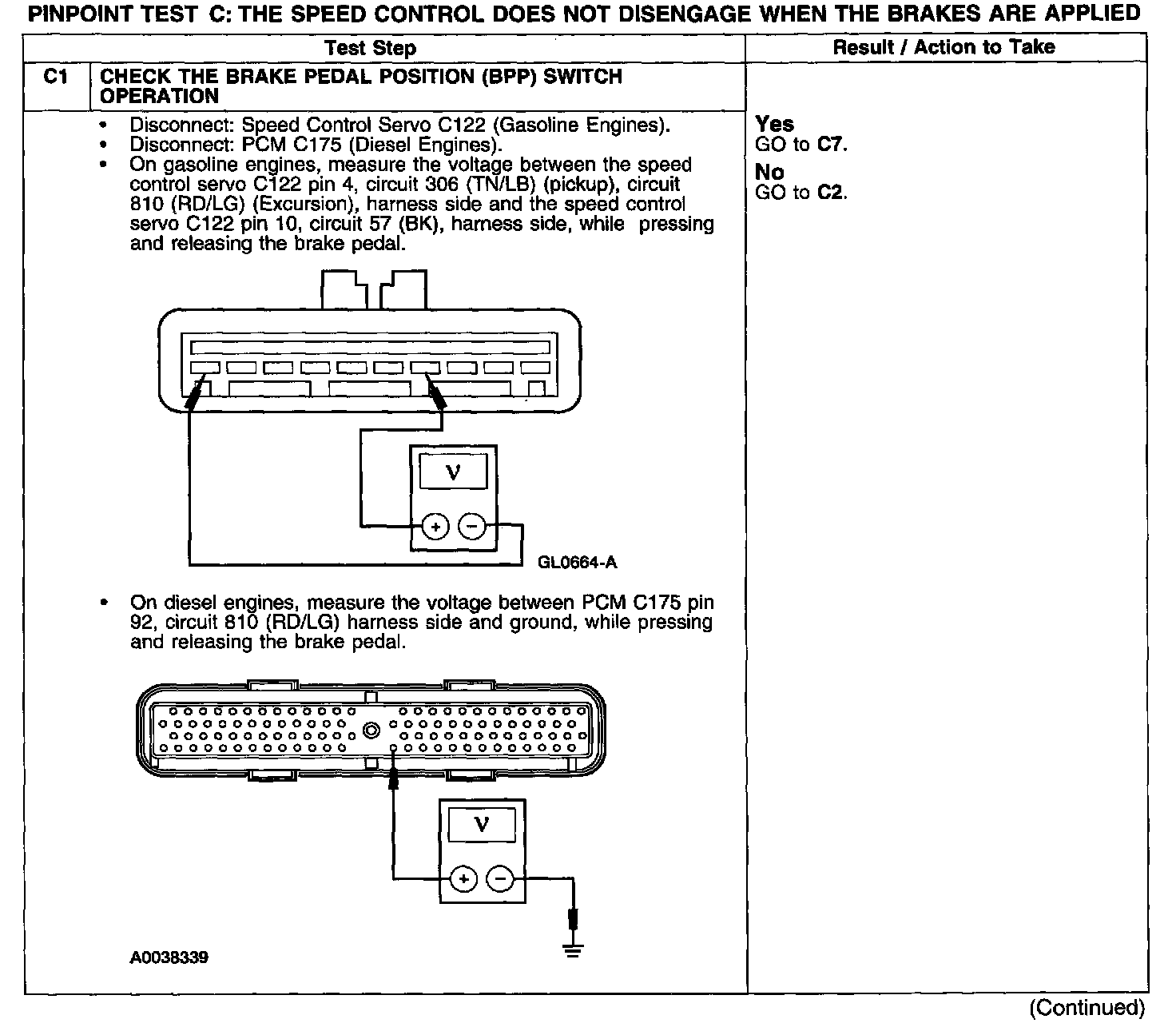

Test C1:

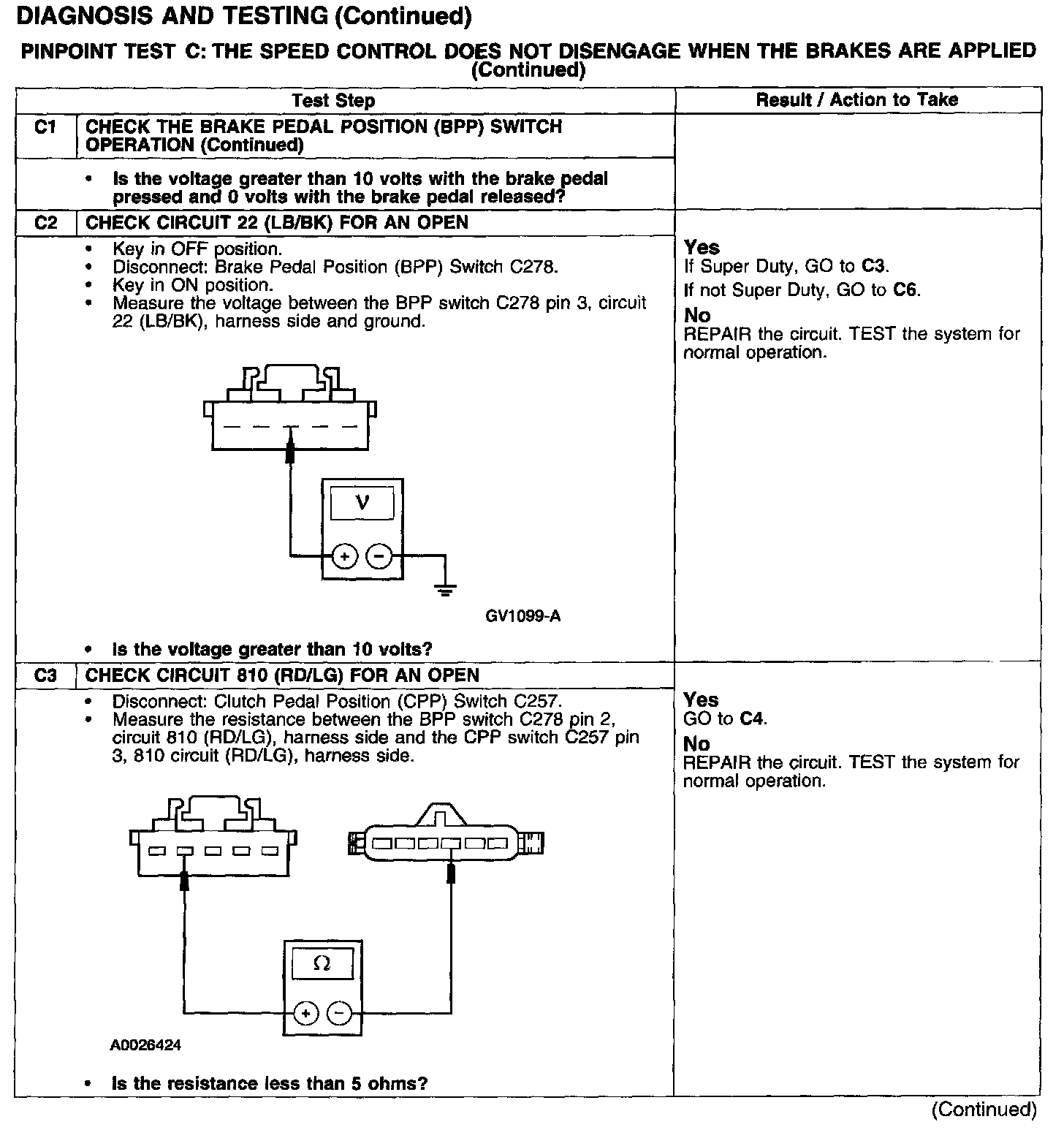

Test C1-C3:

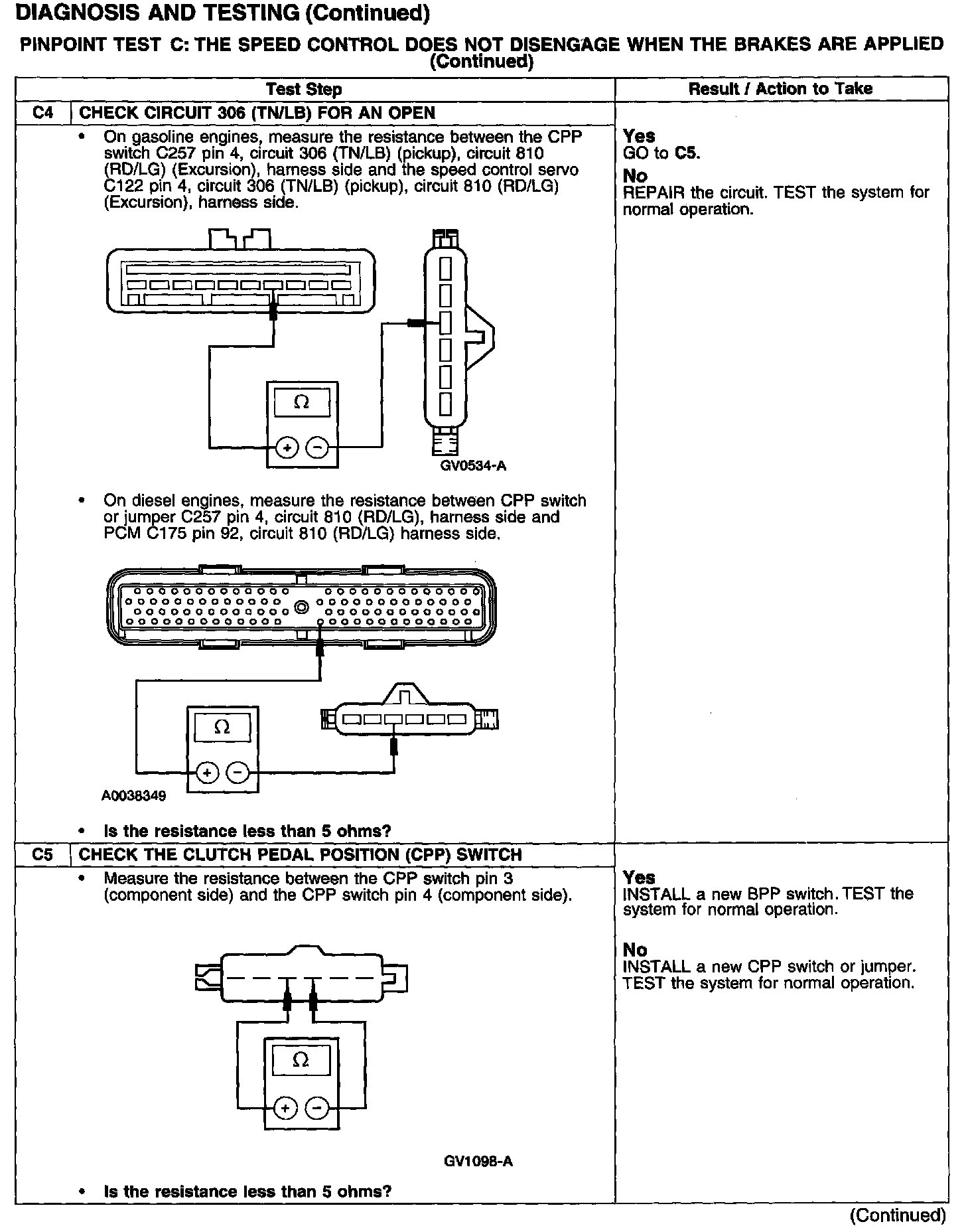

Test C4-C5:

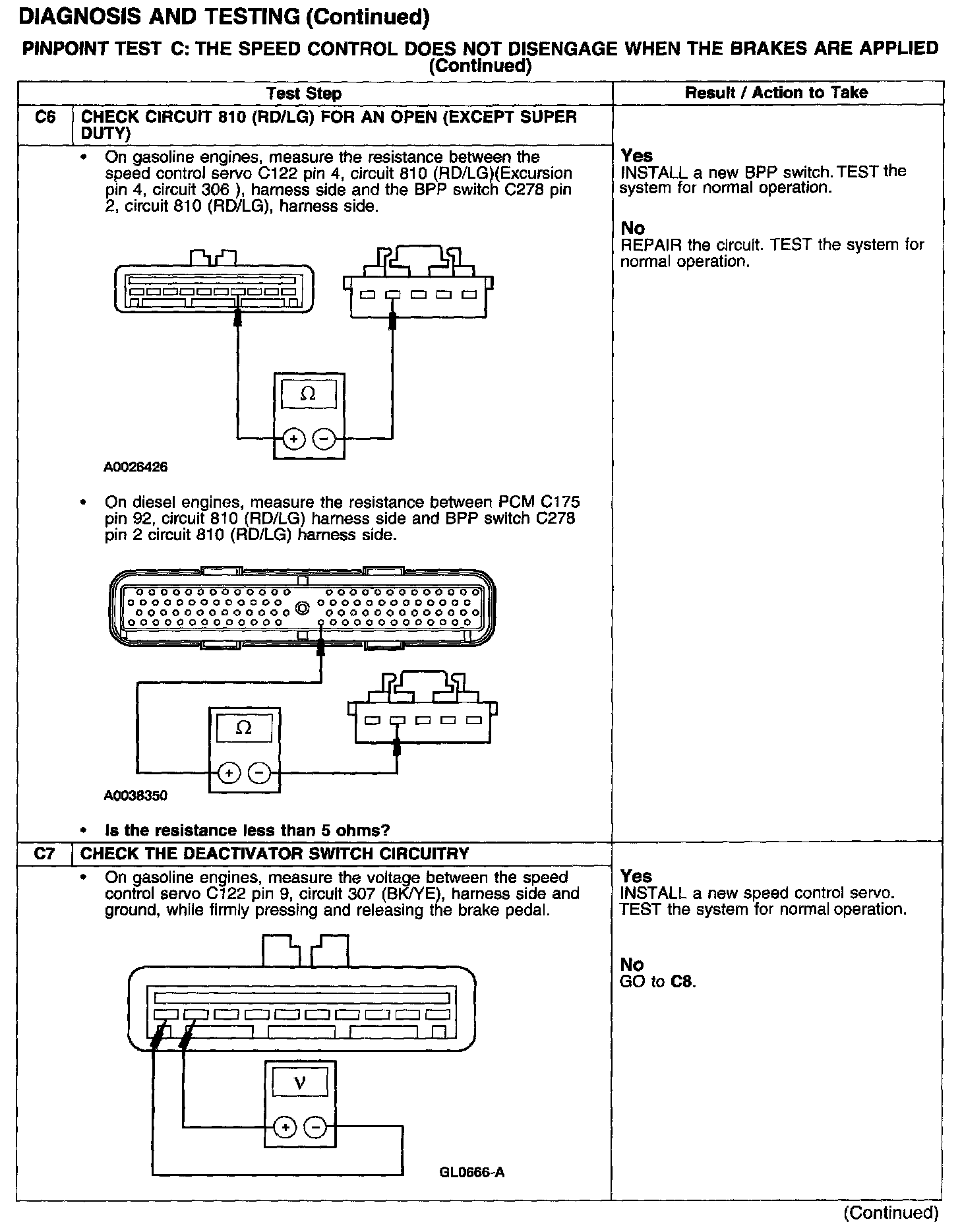

Test C6-C7:

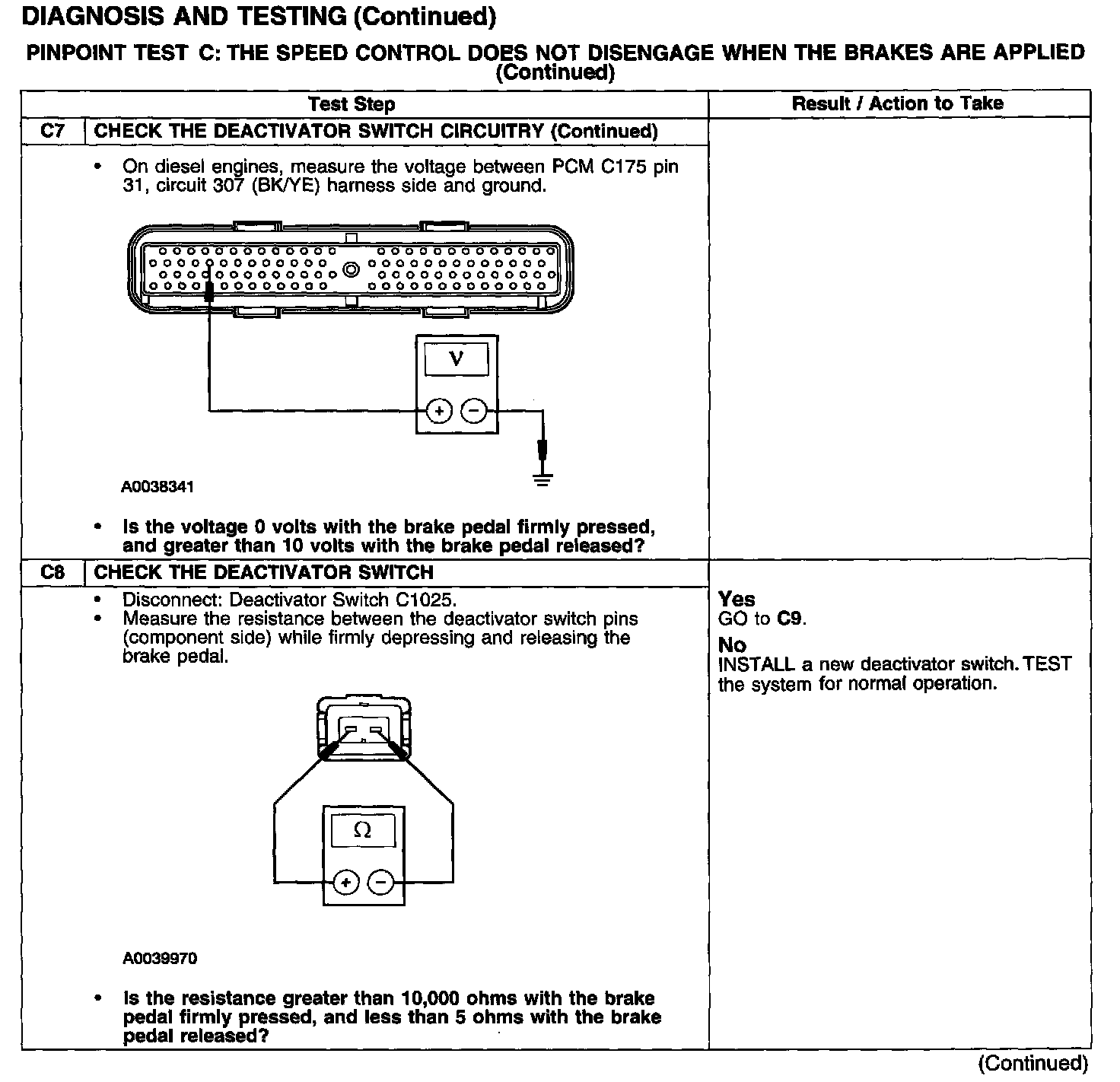

Test C7-C8:

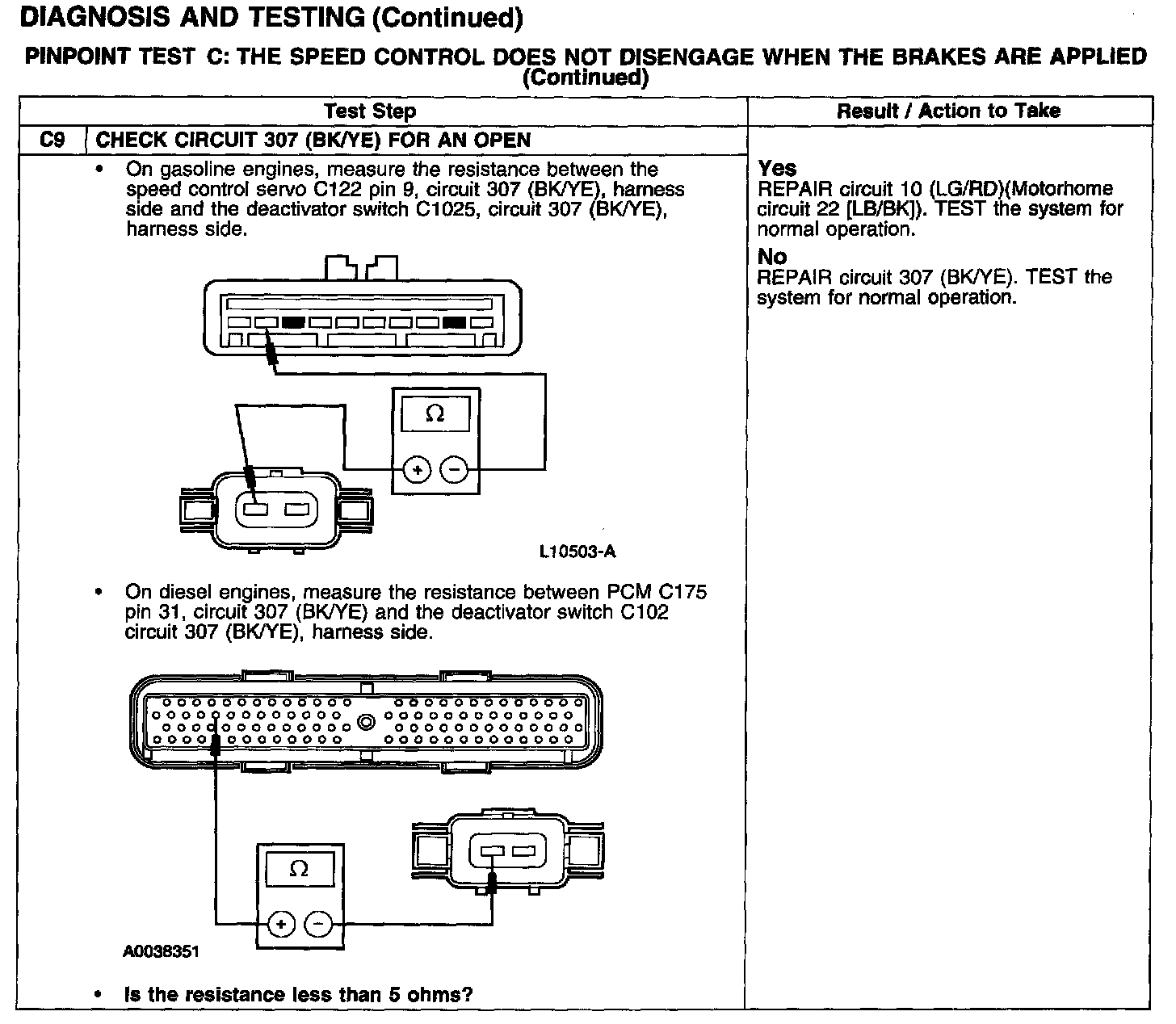

Test C9:
