Reference Values

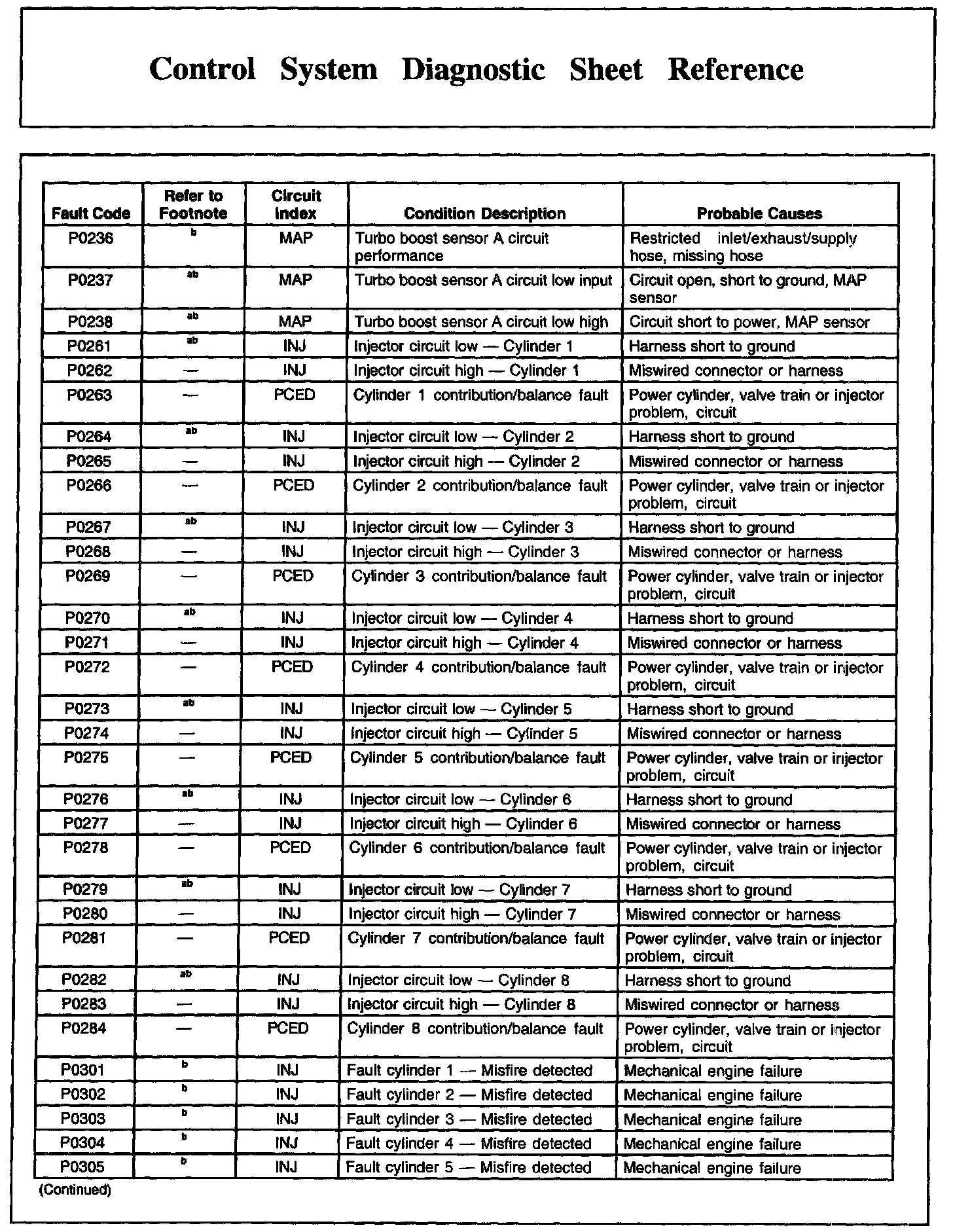

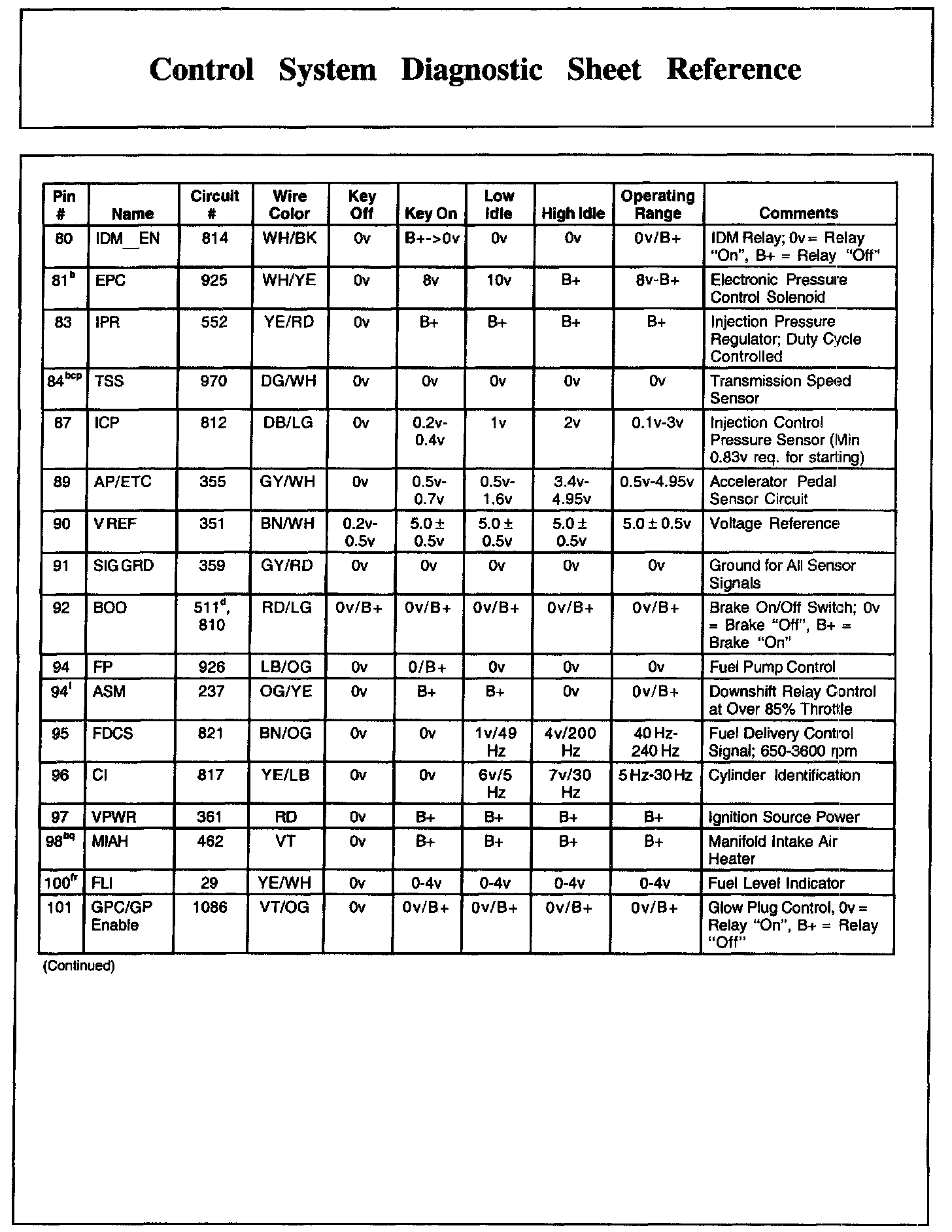

Control System Diagnostic Sheet Reference, Part 1:

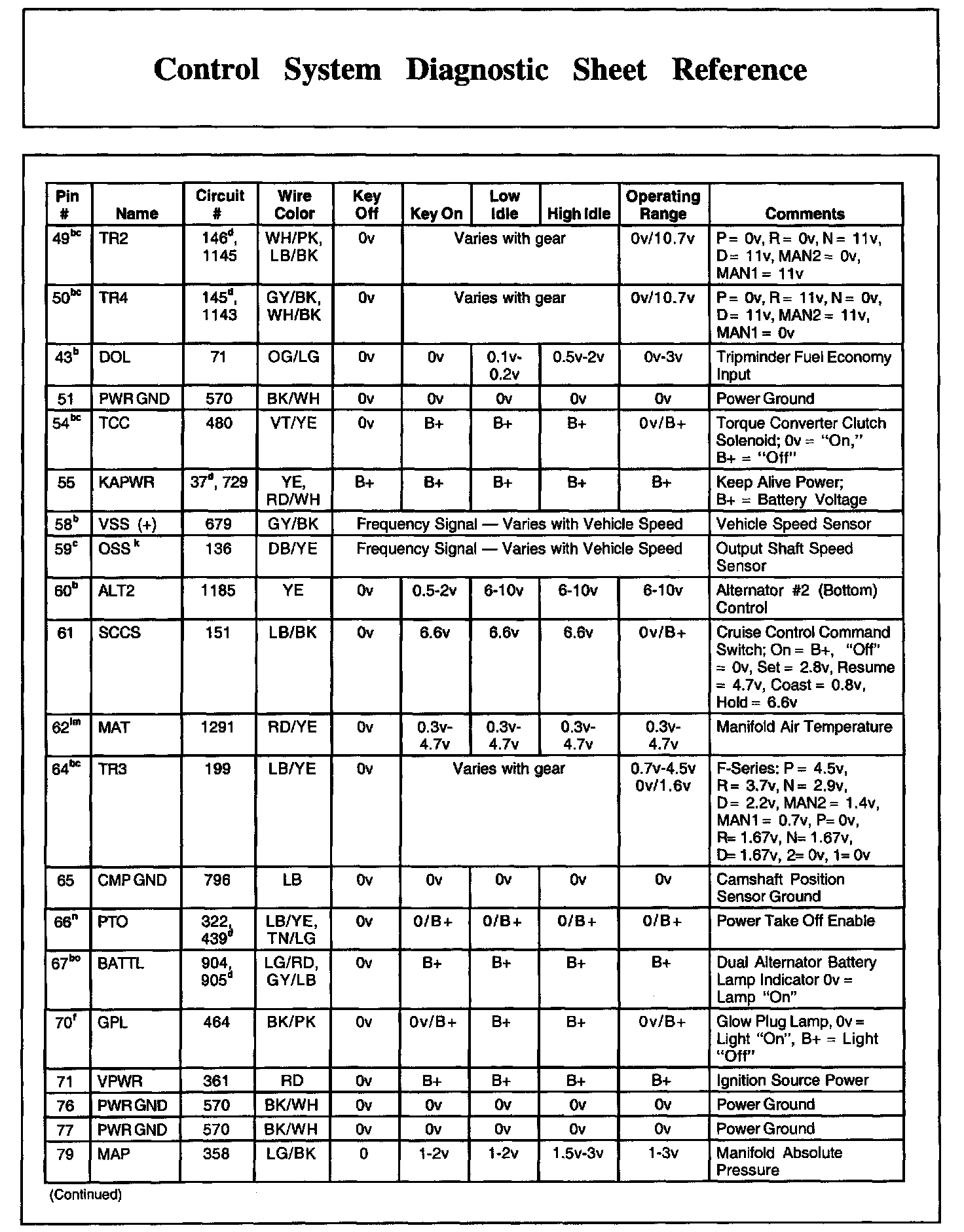

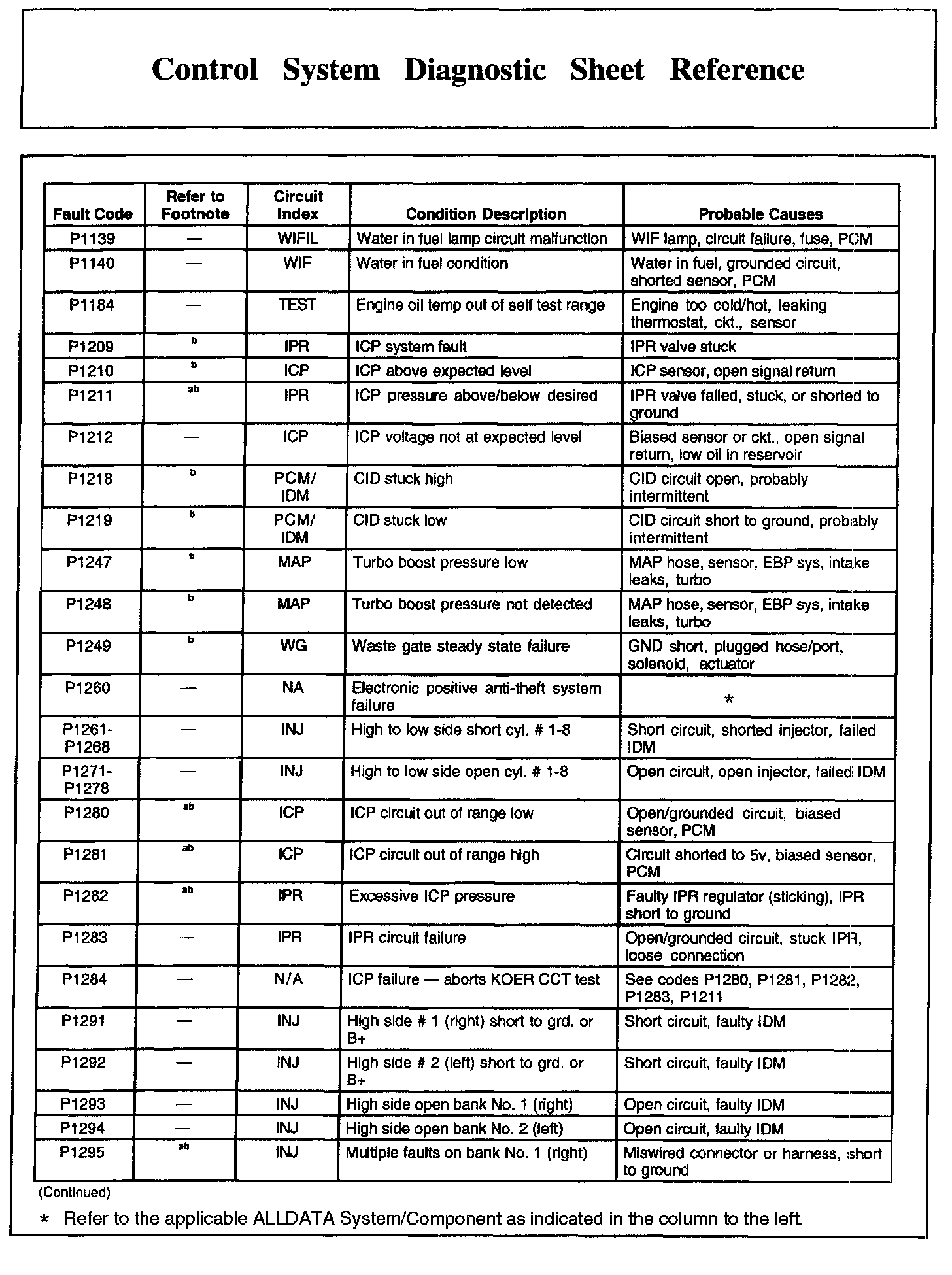

Control System Diagnostic Sheet Reference, Part 2:

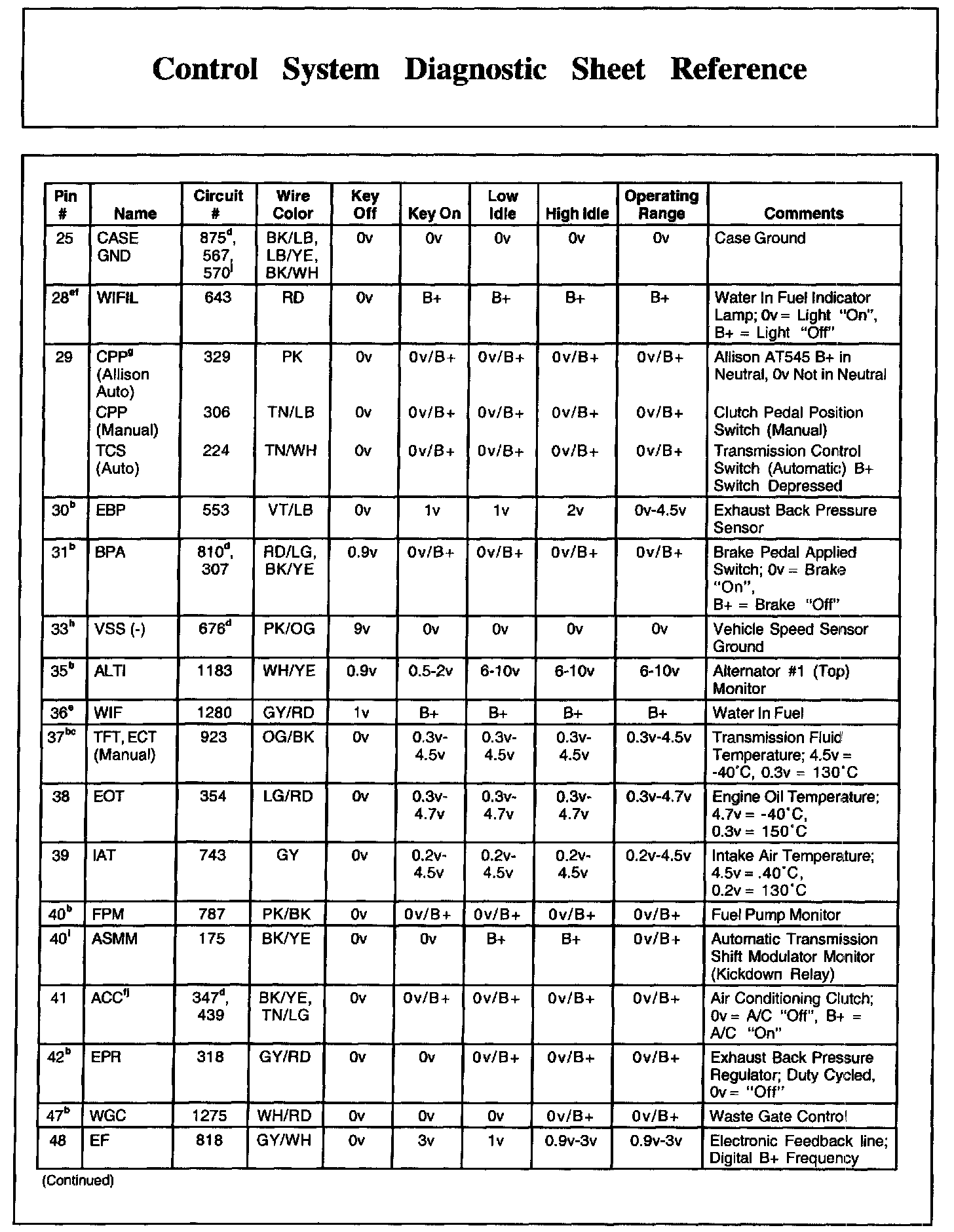

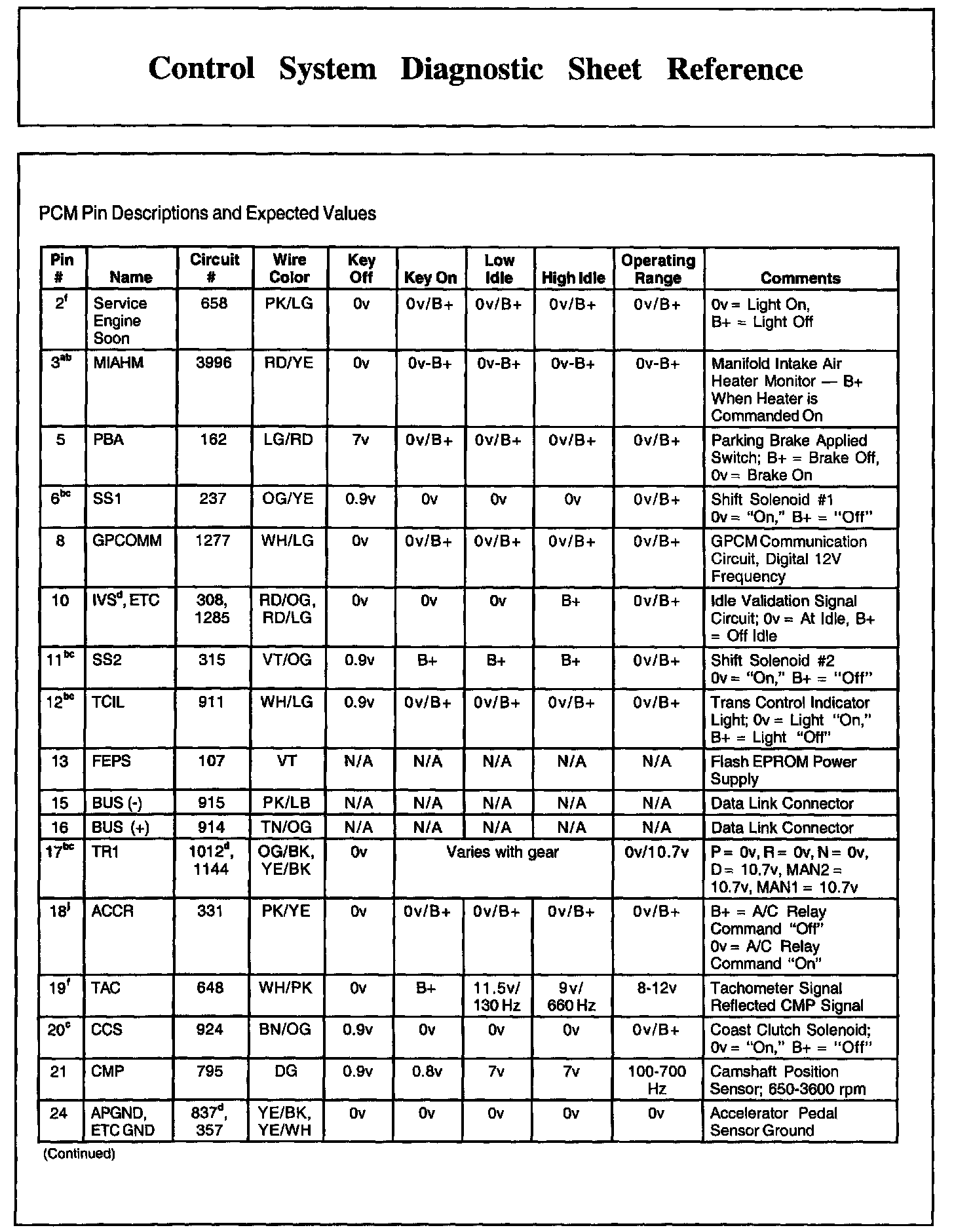

Control System Diagnostic Sheet Reference, Part 3:

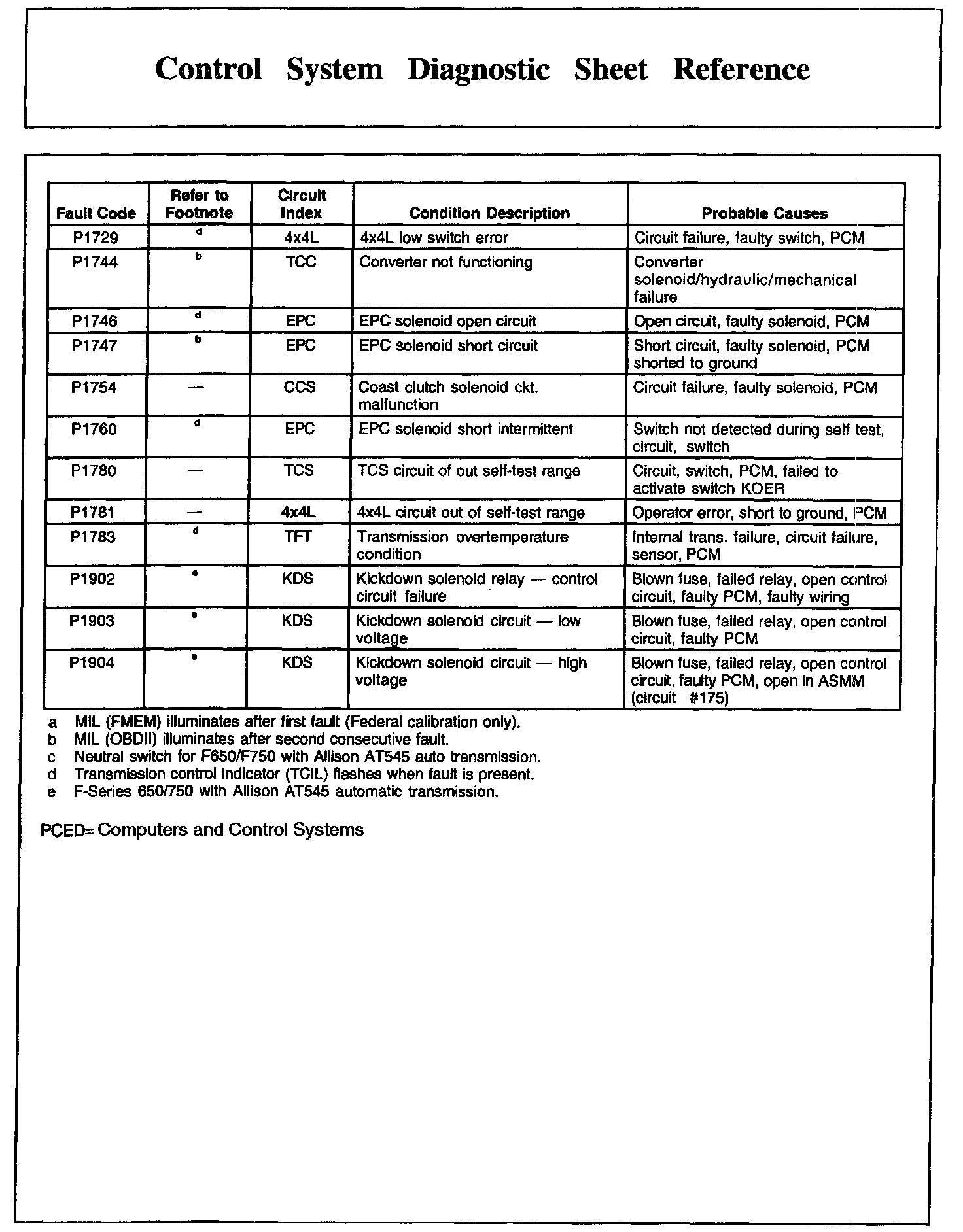

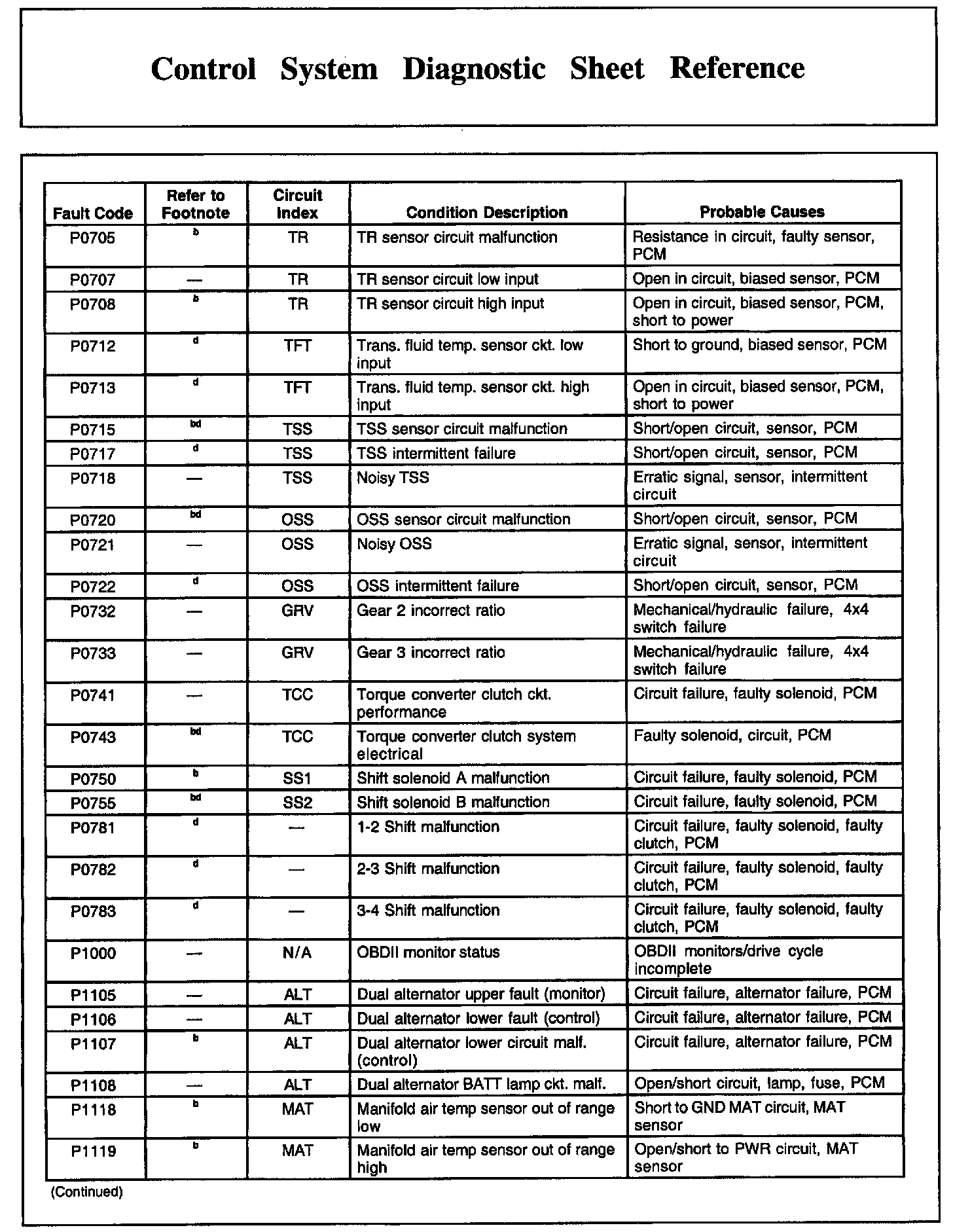

Control System Diagnostic Sheet Reference, Part 4:

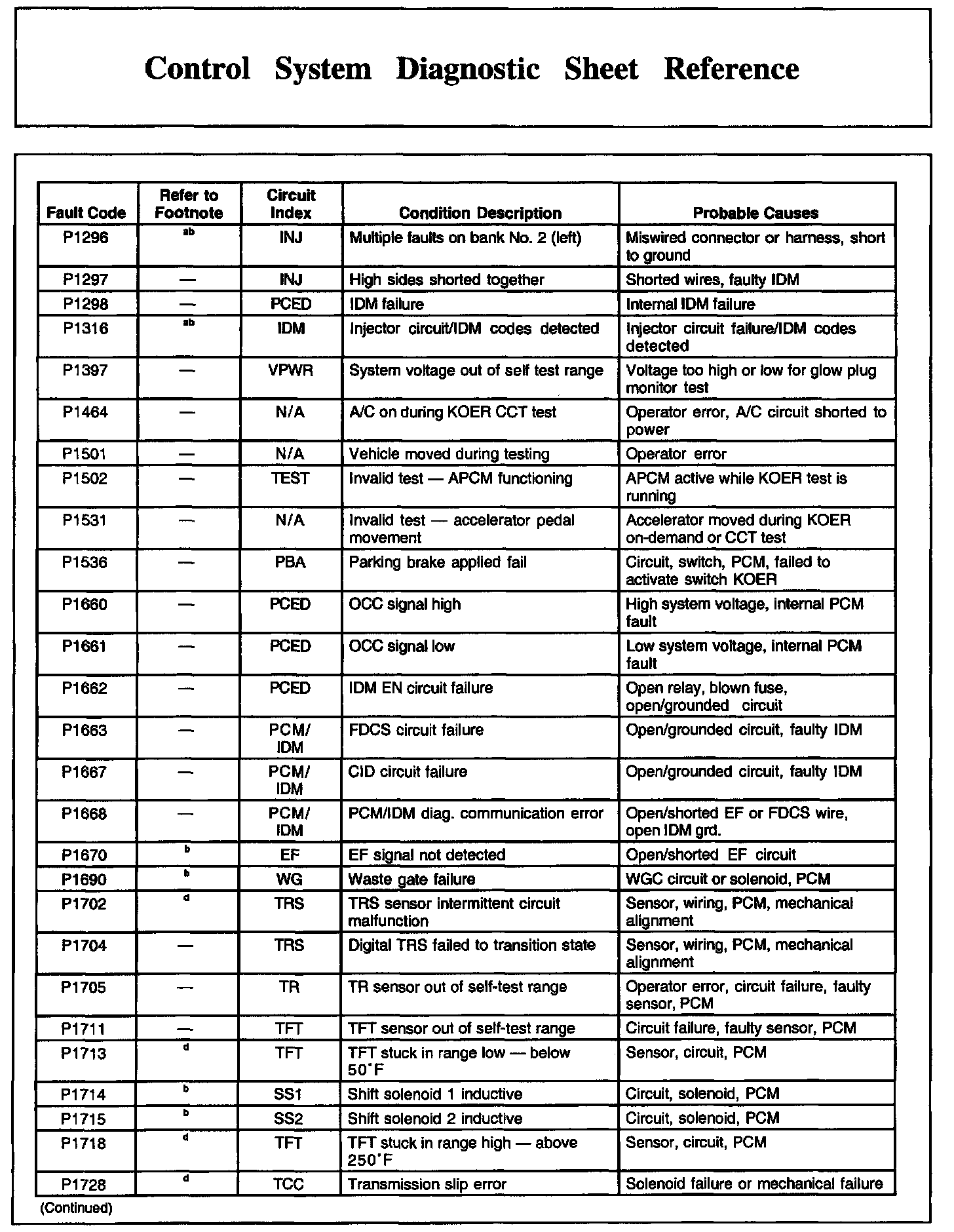

Control System Diagnostic Sheet Reference, Part 5:

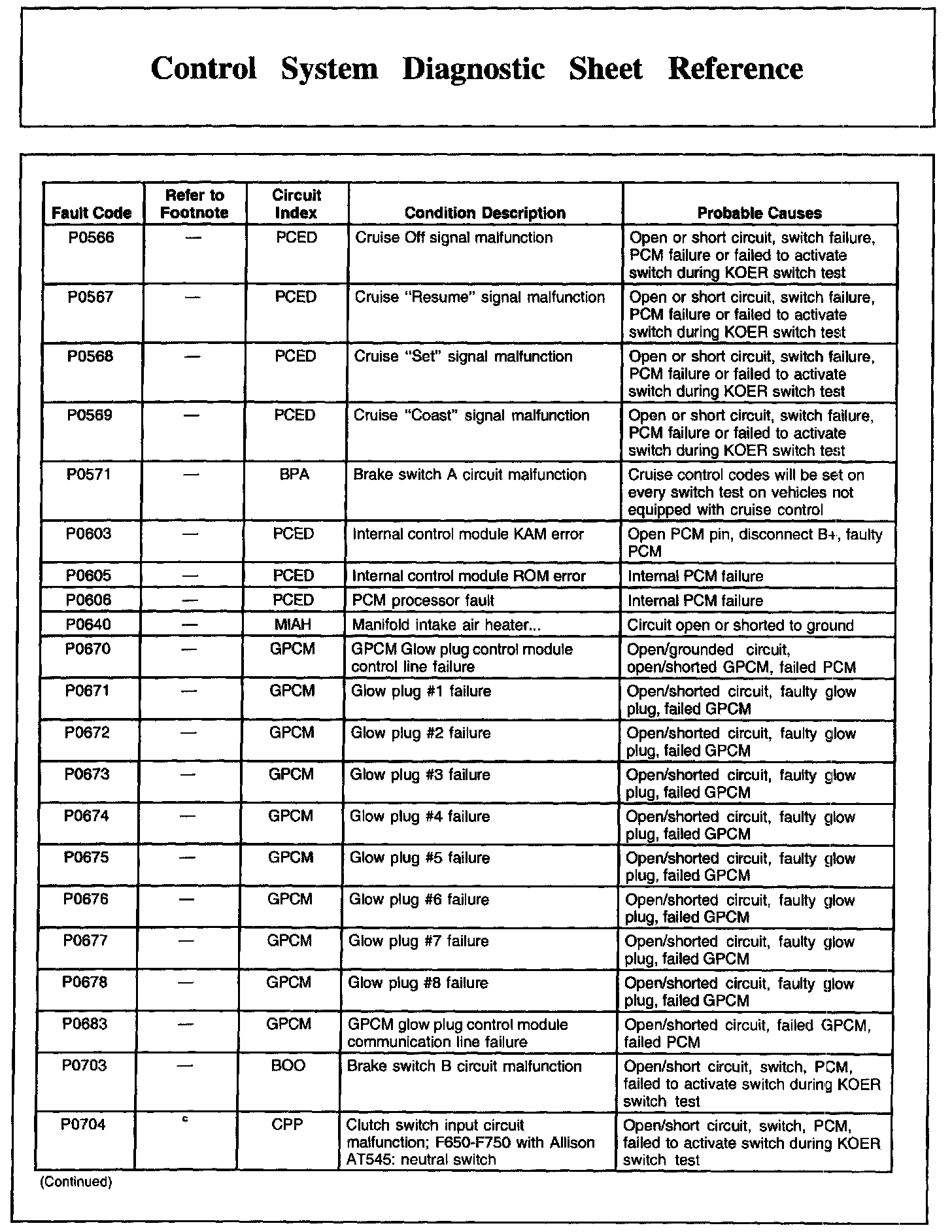

Control System Diagnostic Sheet Reference, Part 6:

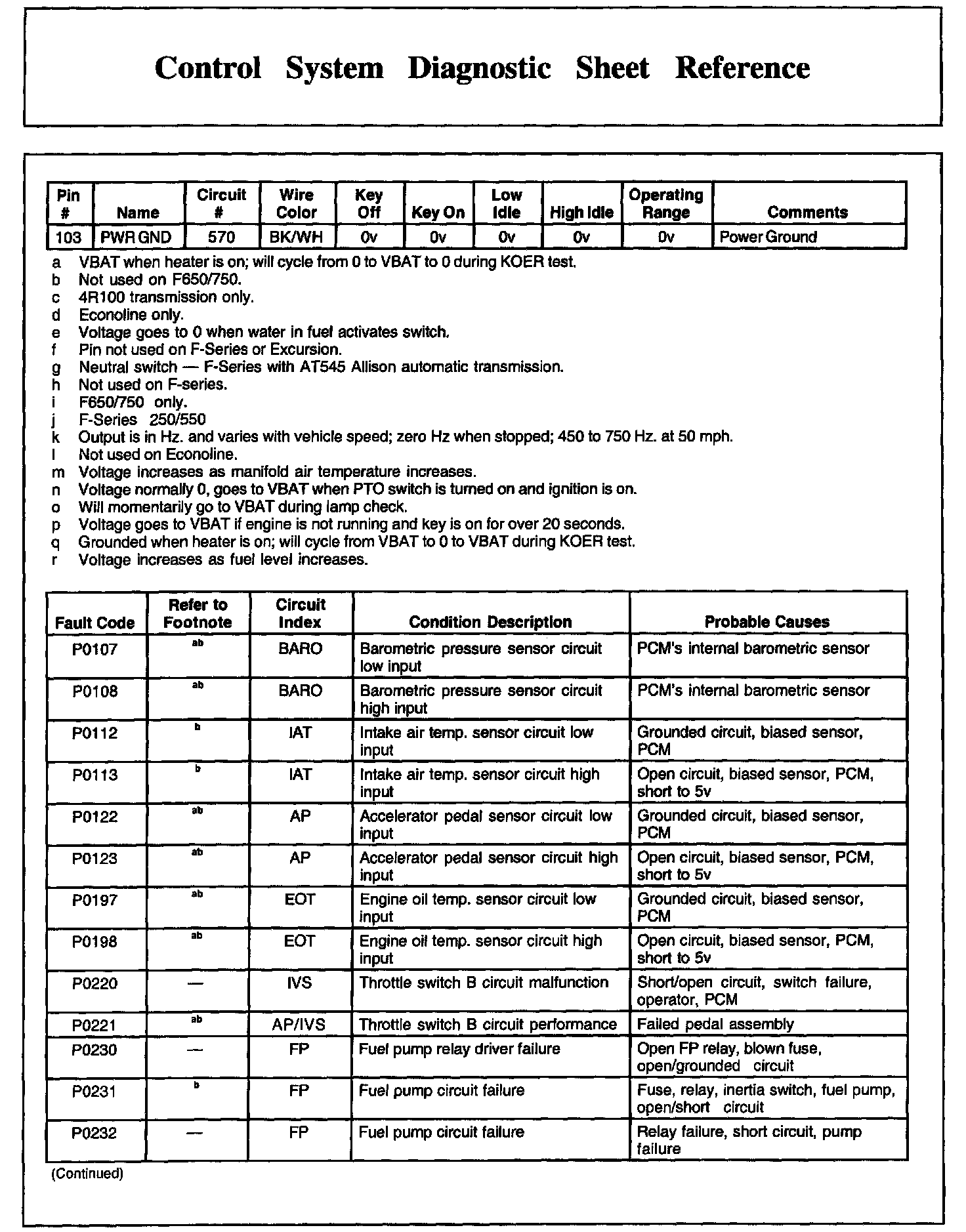

Control System Diagnostic Sheet Reference, Part 7:

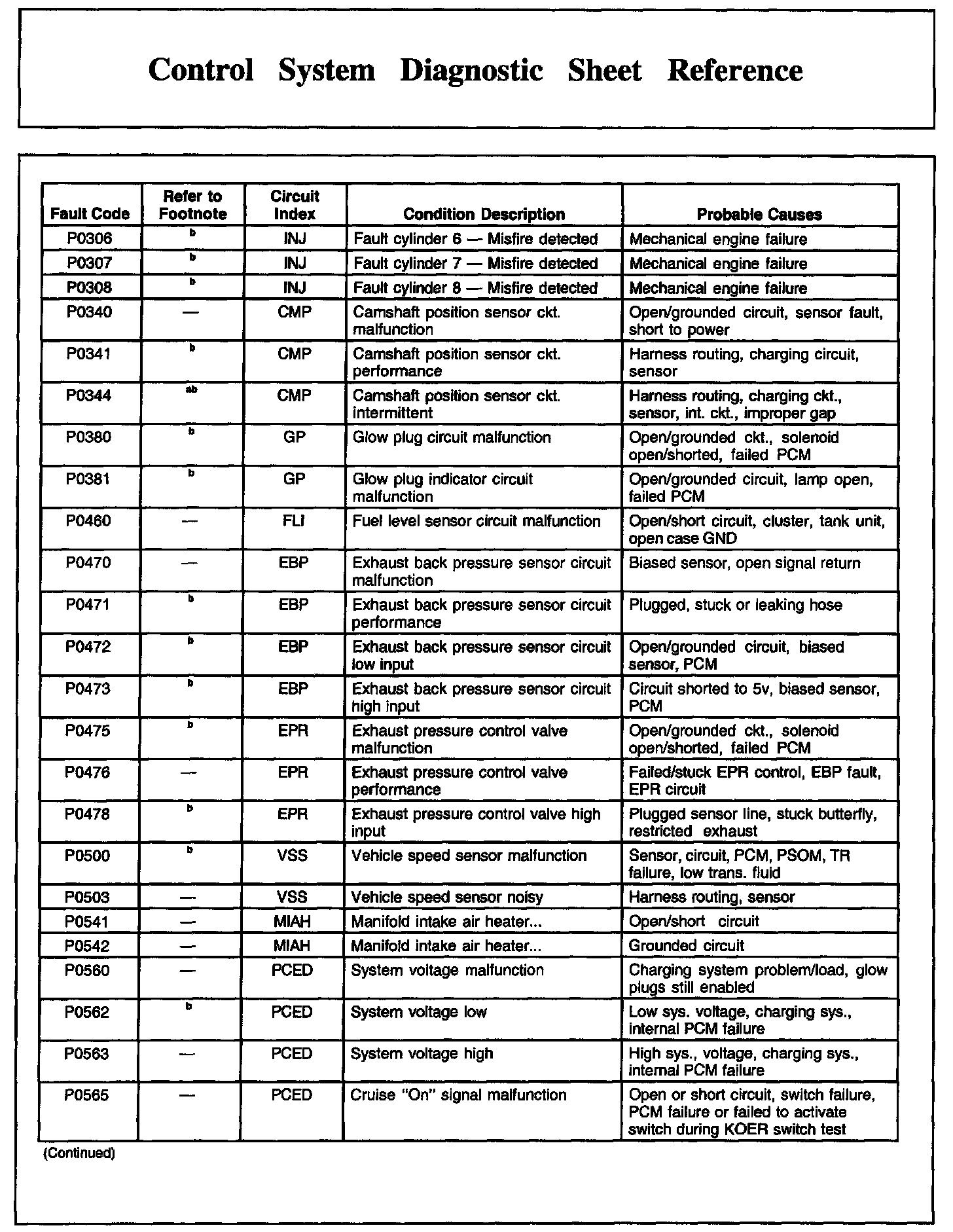

Control System Diagnostic Sheet Reference, Part 8:






Control System Diagnostic Sheet Reference, Part 9:






Control System Diagnostic Sheet Reference, Part 10:






Control System Diagnostic Sheet Reference, Part 11:






Control System Diagnostic Sheet Reference, Part 12:
