Parameter Identification (PID)

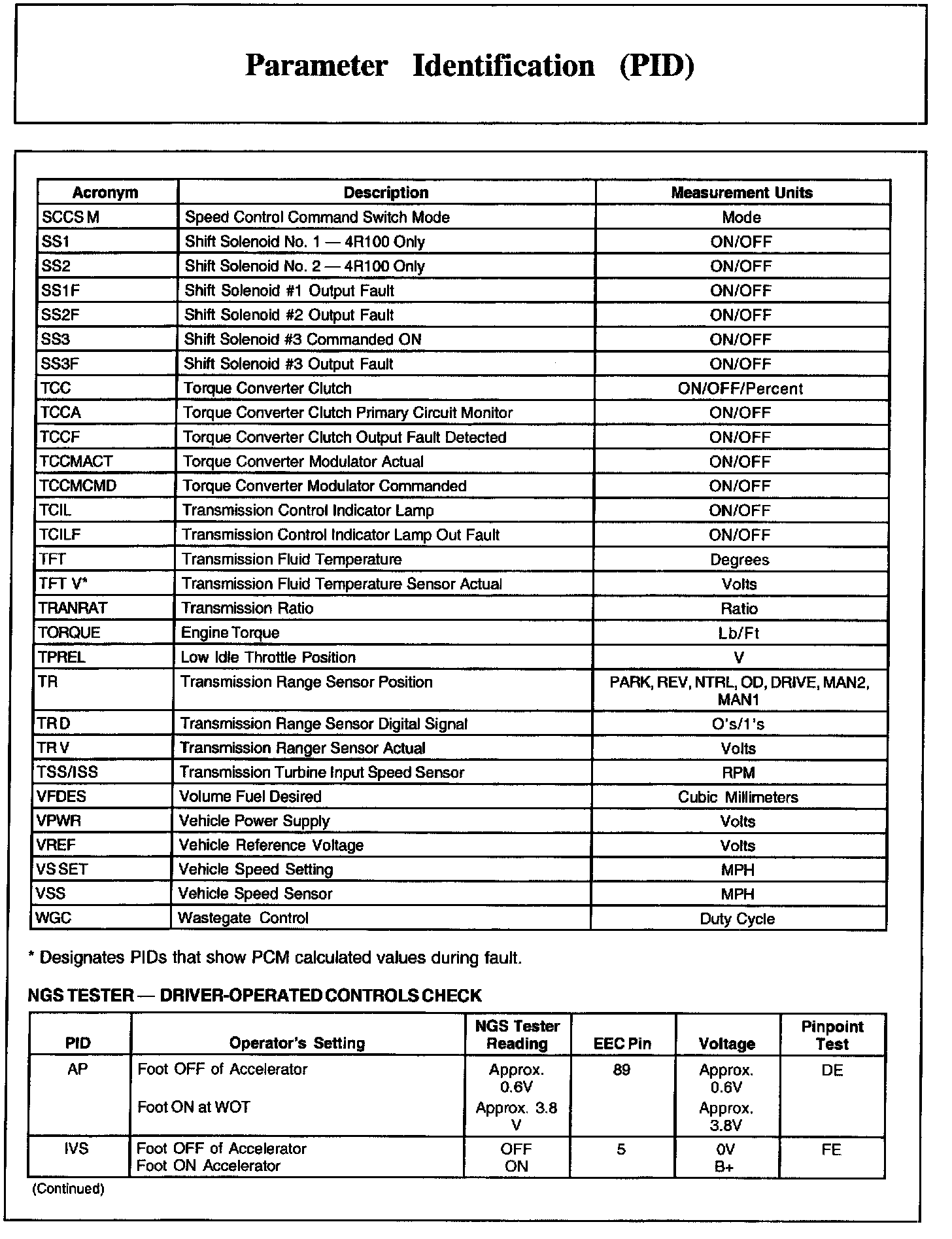

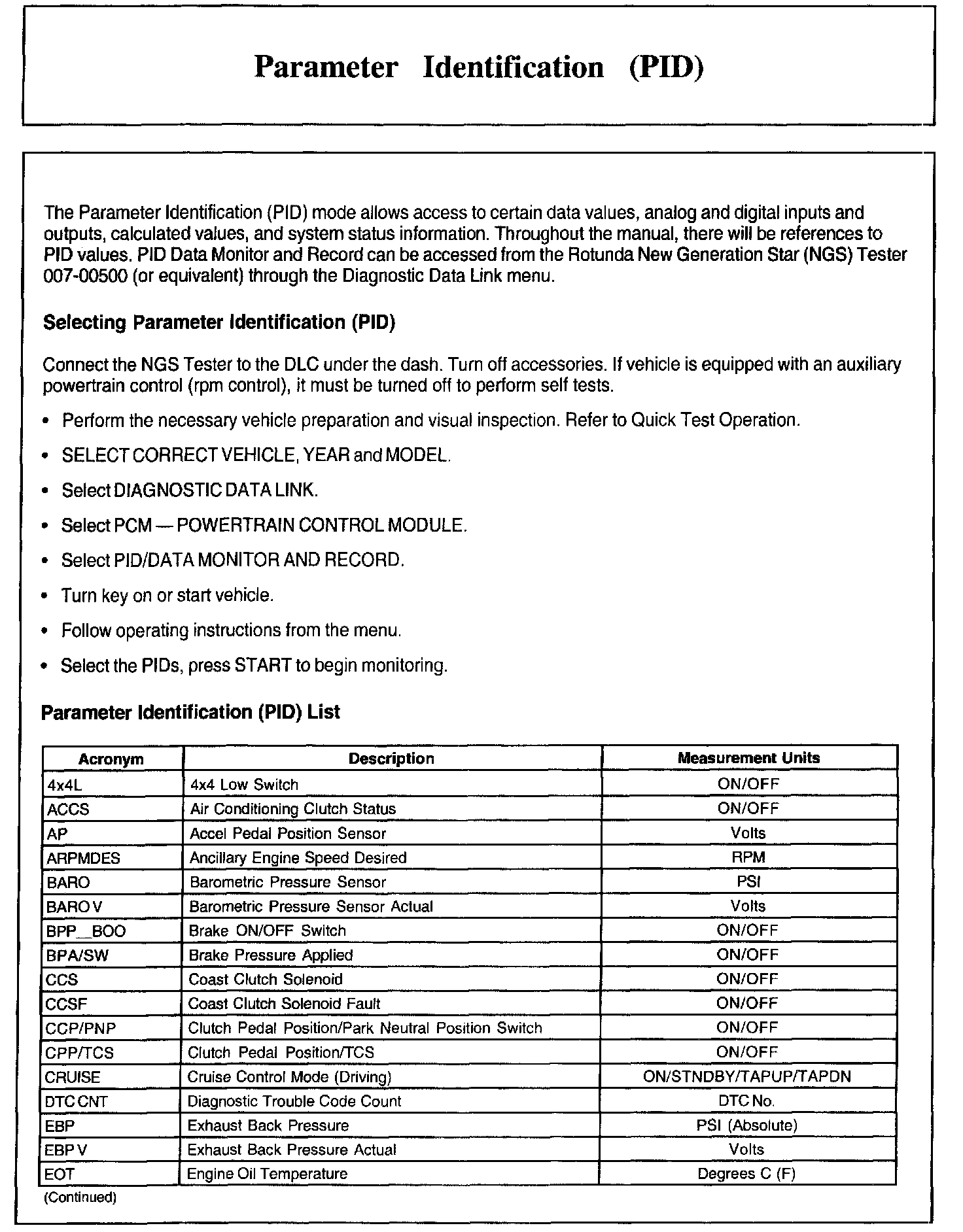

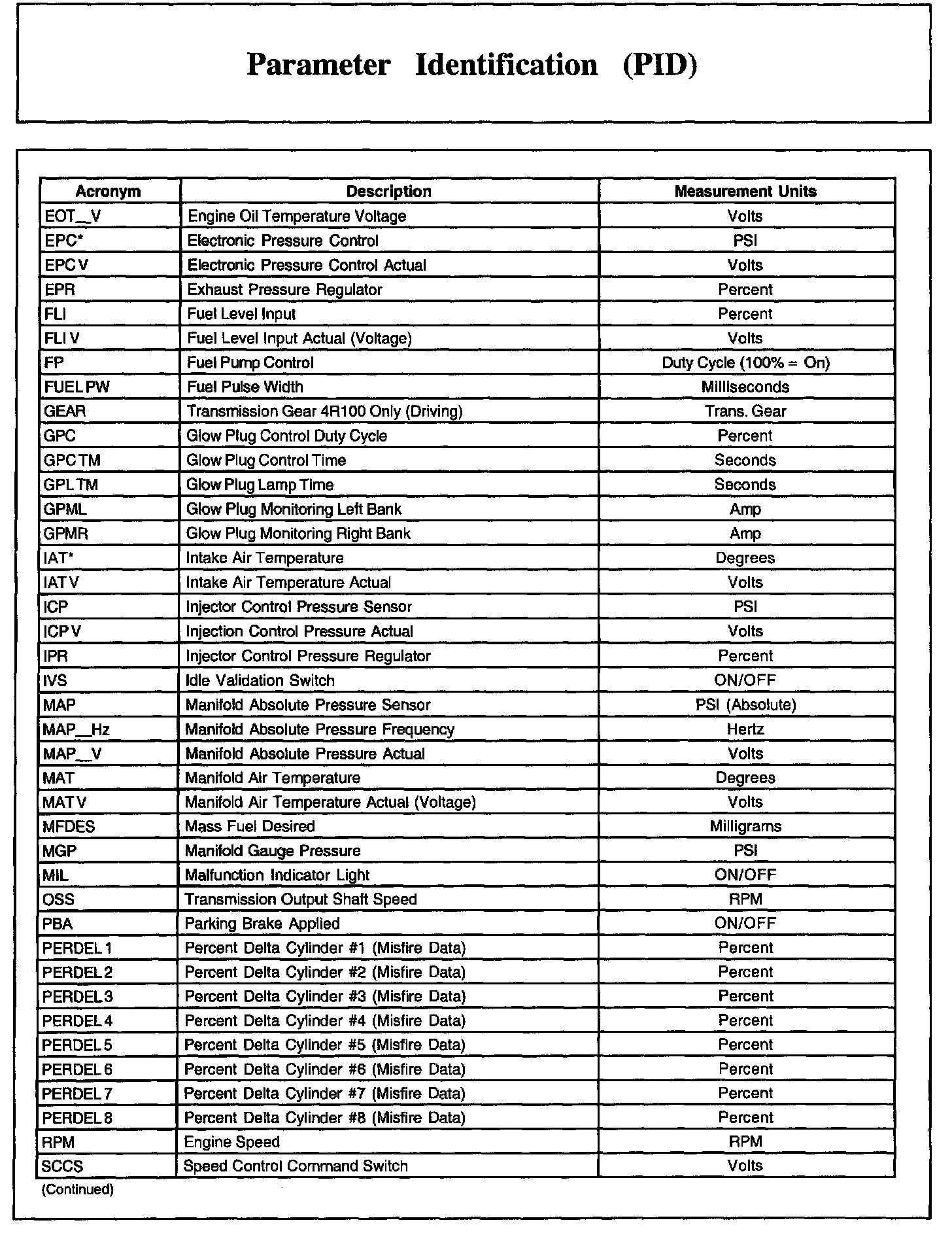

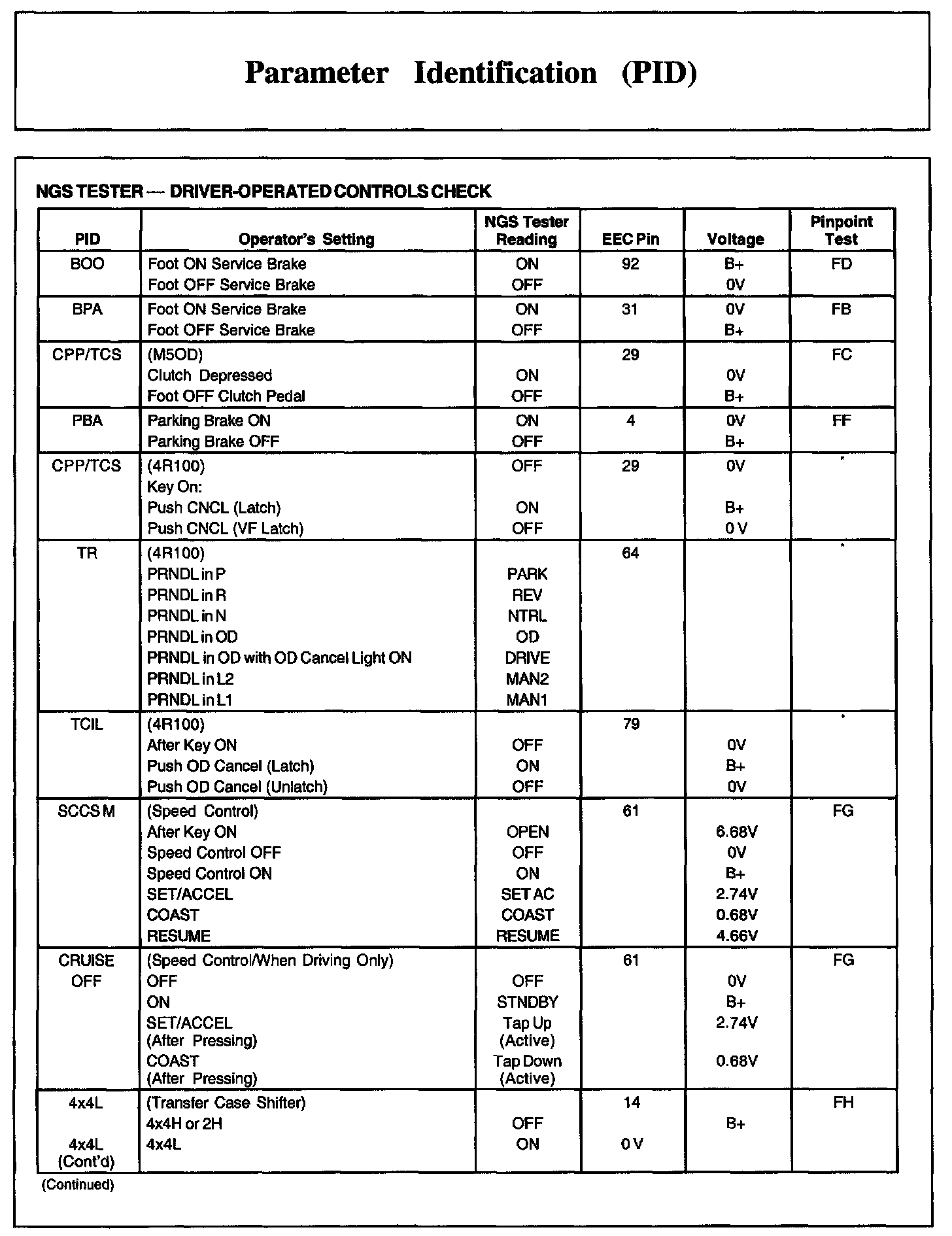

Parameter Identification (PID) List, Part 1:





Parameter Identification (PID) List, Part 2:





Parameter Identification (PID) List, Part 3:





Parameter Identification (PID) List, Part 4:





Parameter Identification (PID) List, Part 5:
