Tests FK: Fuel Pump Monitor/Control

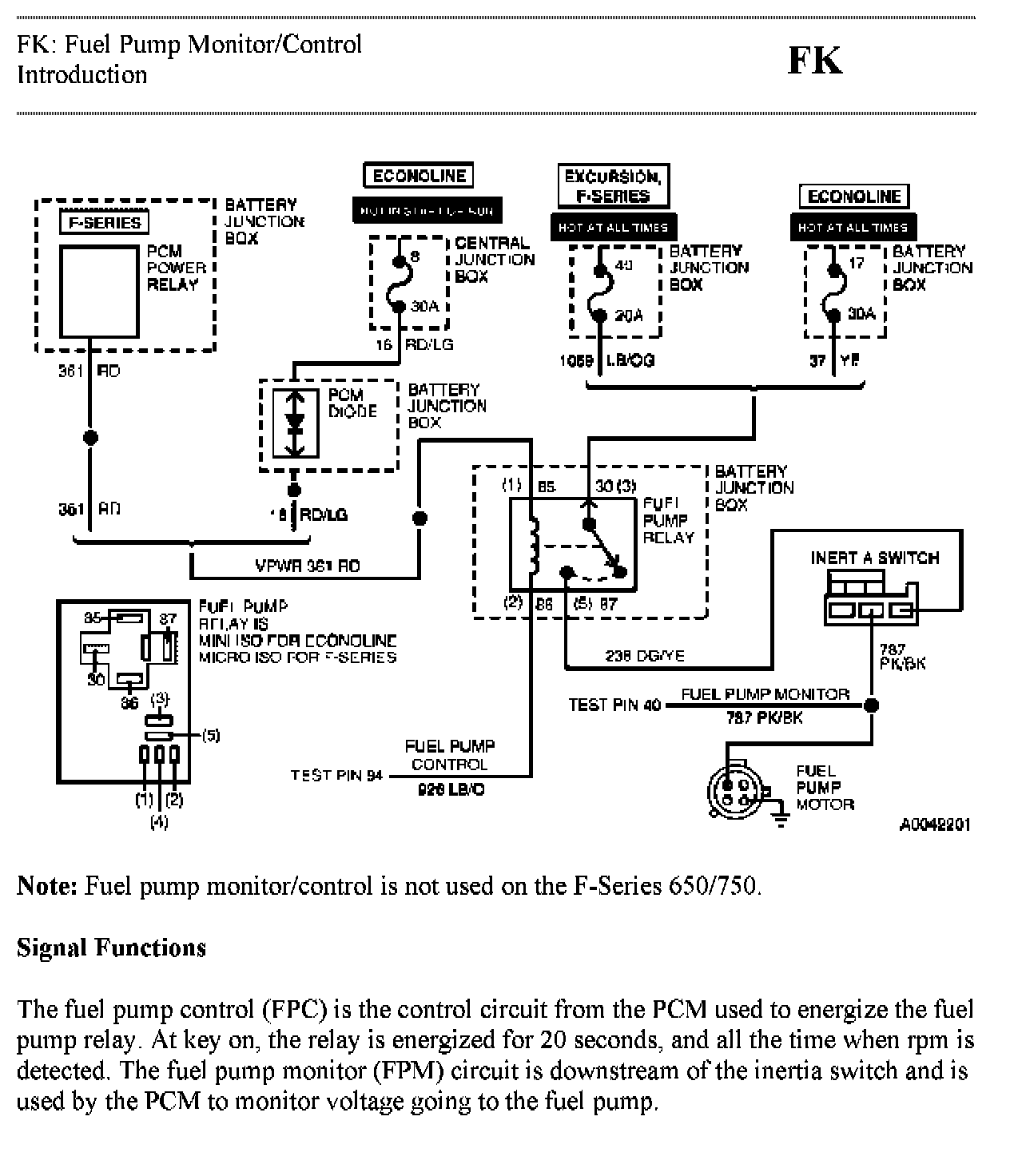

FK Introduction:









FK1 - FK2:





FK3 - FK4:





FK5 - FK6:

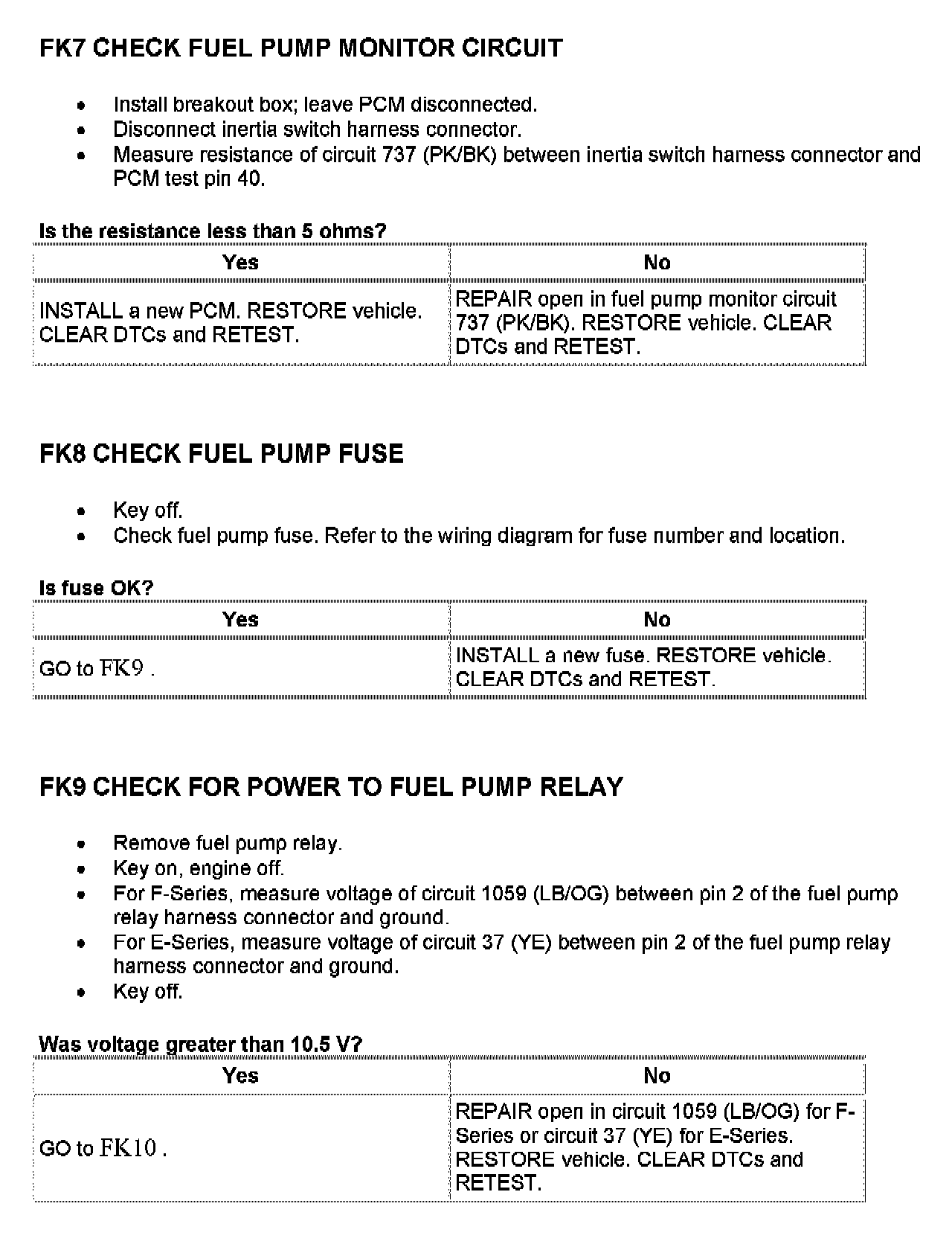

FK7 - FK9:

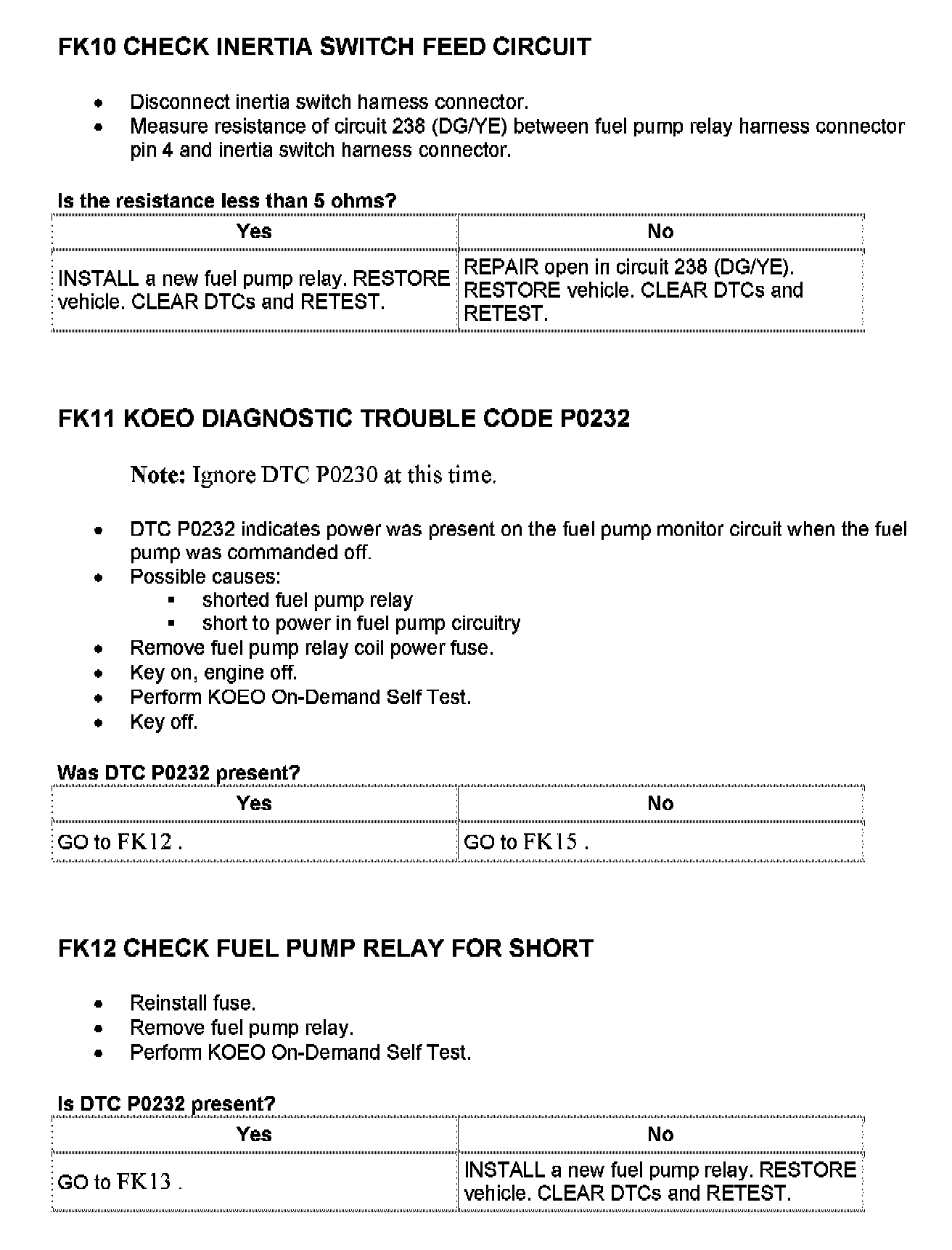

FK10 - FK12:

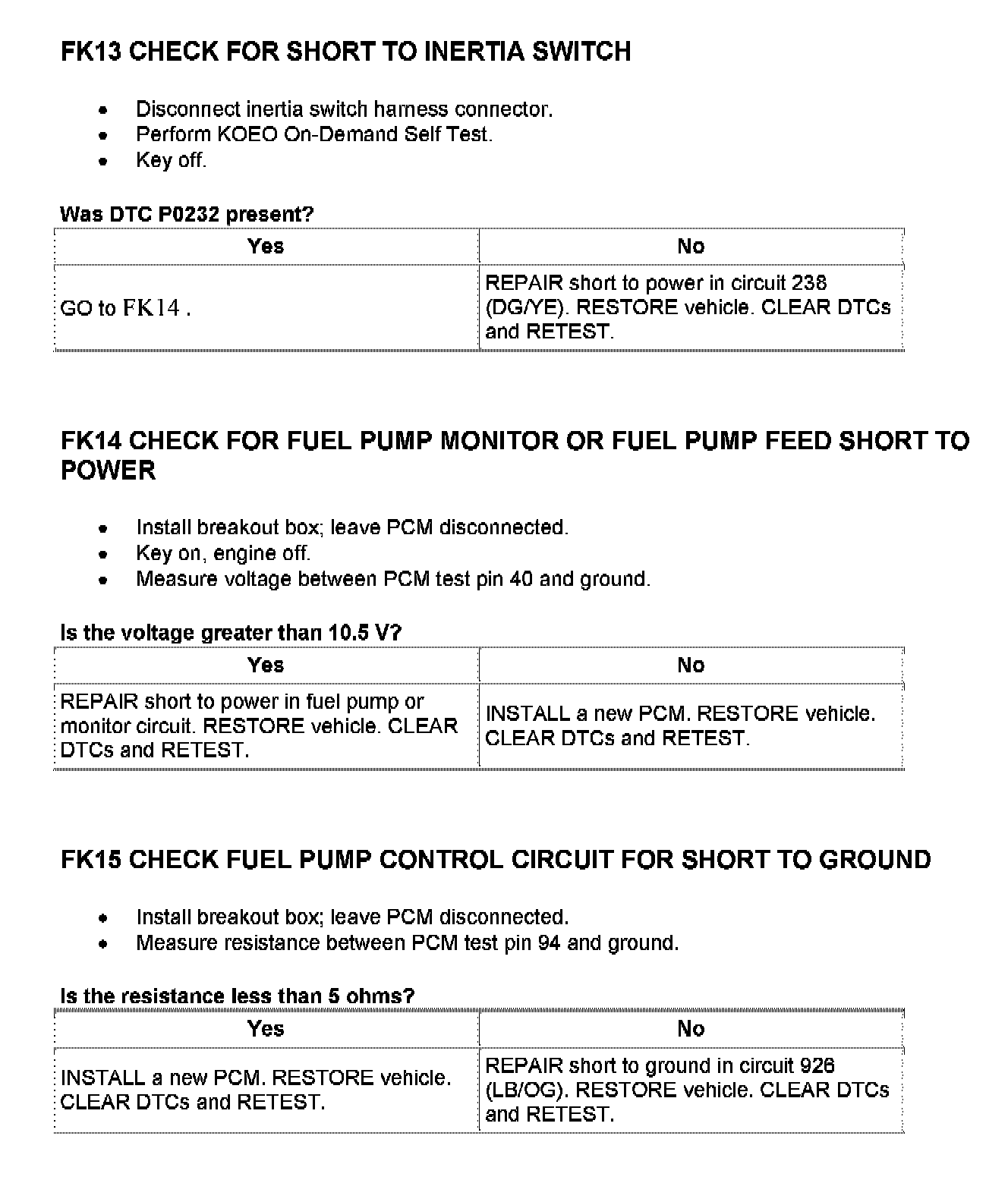

FK13 - FK15:





FK16 - FK17:

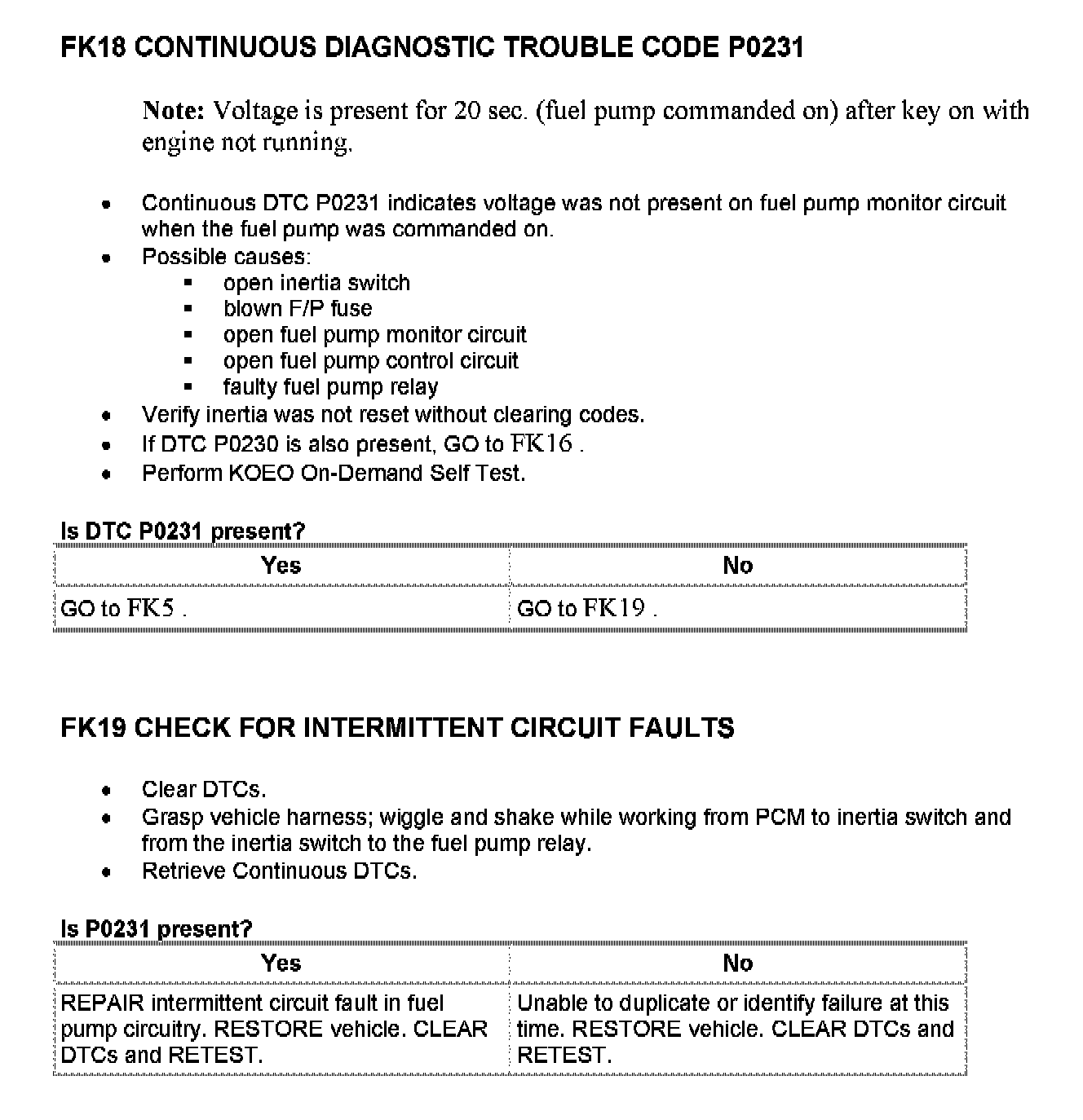

FK18 - FK19:





FK20 - FK21:
