Tests DA: Intake Air Temperature (IAT) Sensor

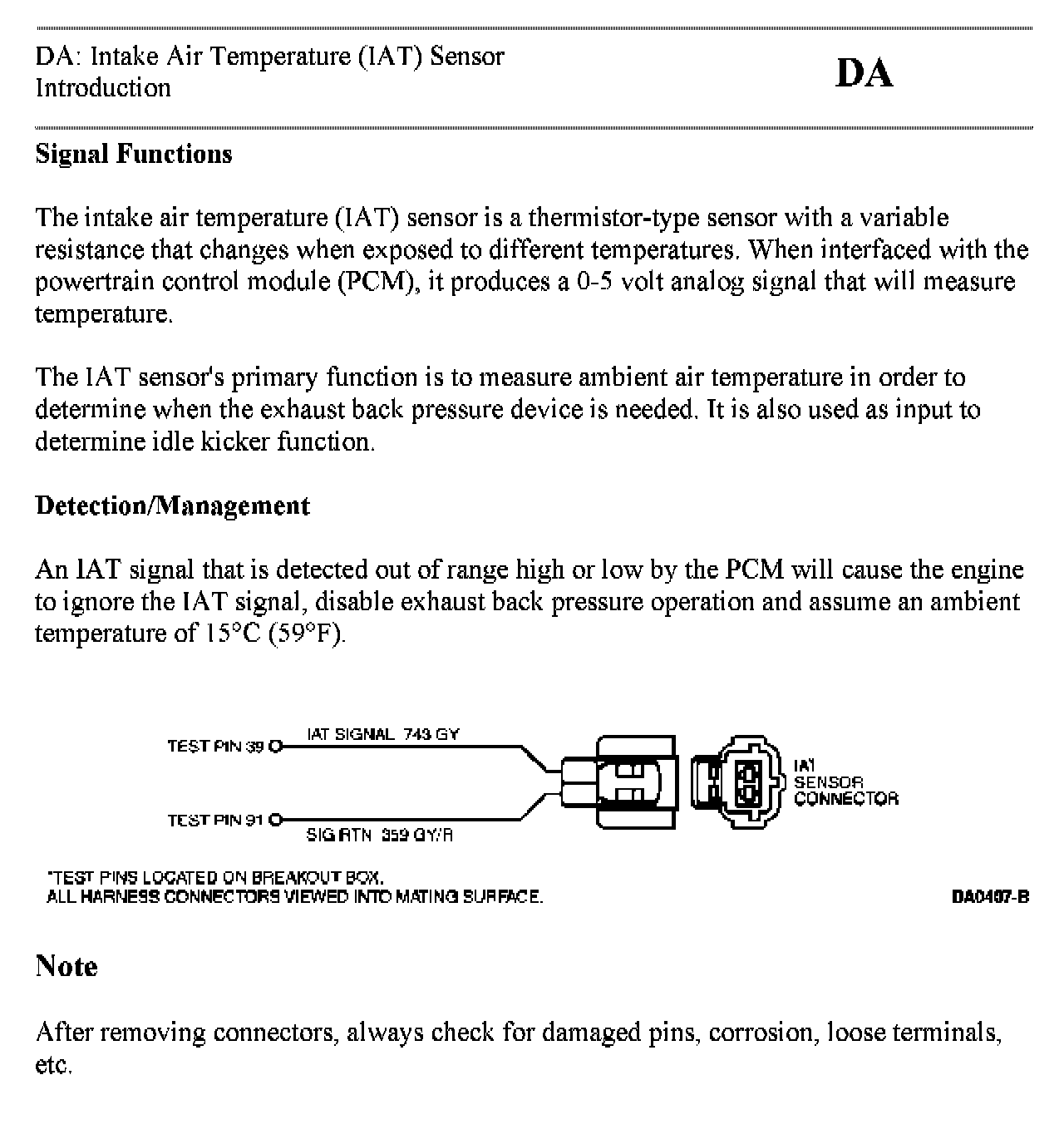

DA Introduction:

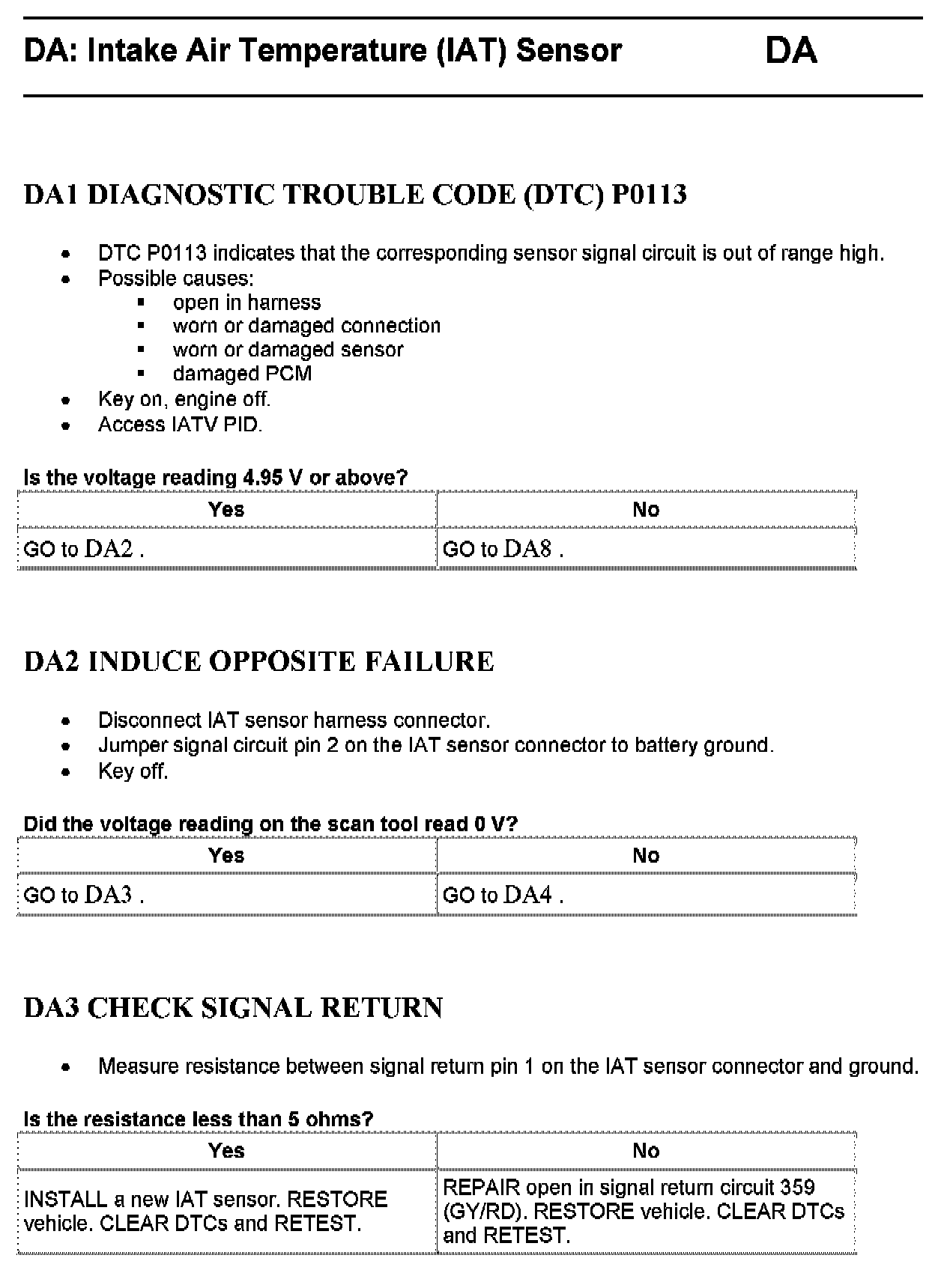

DA1 - DA3:

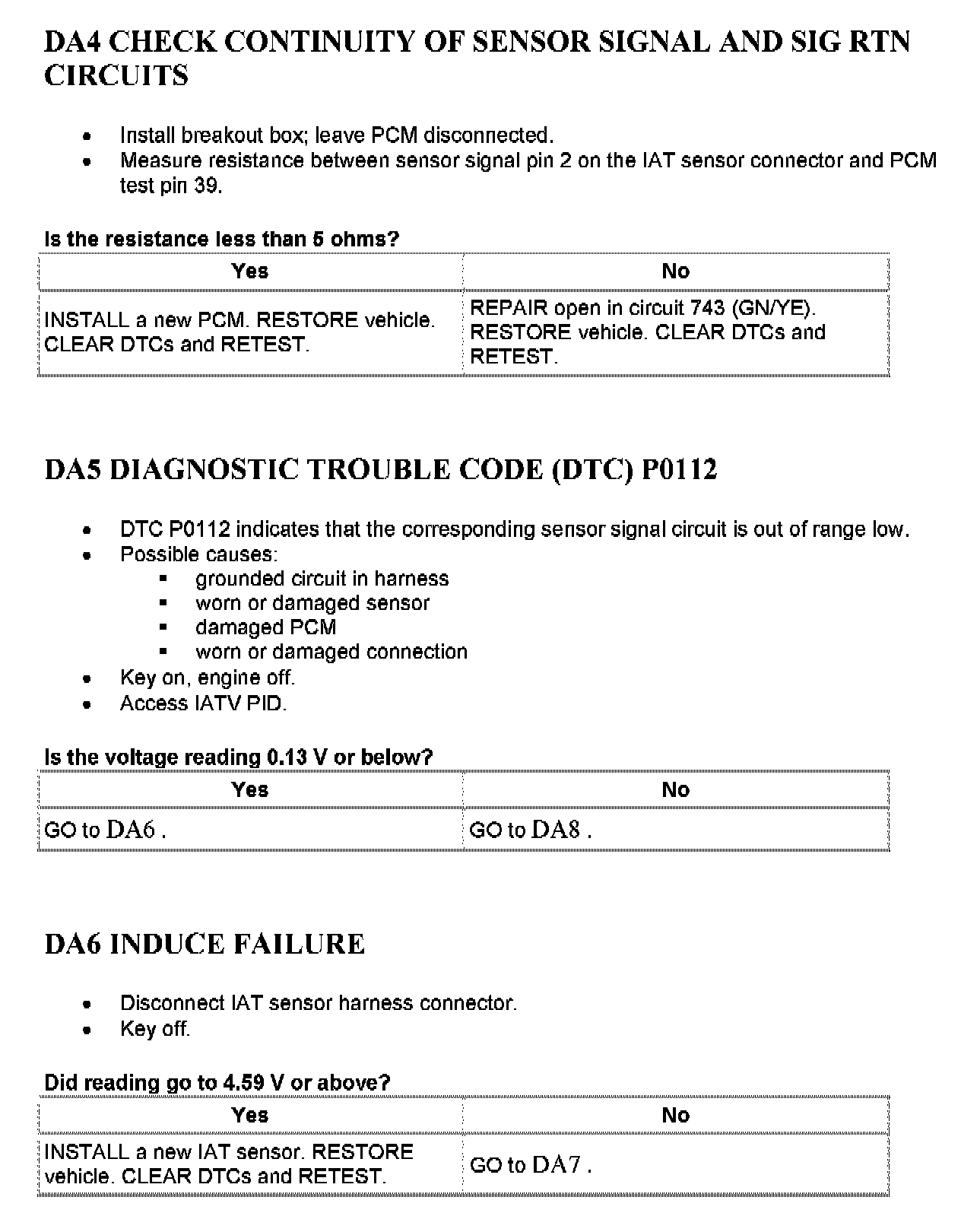

DA4 - DA6:

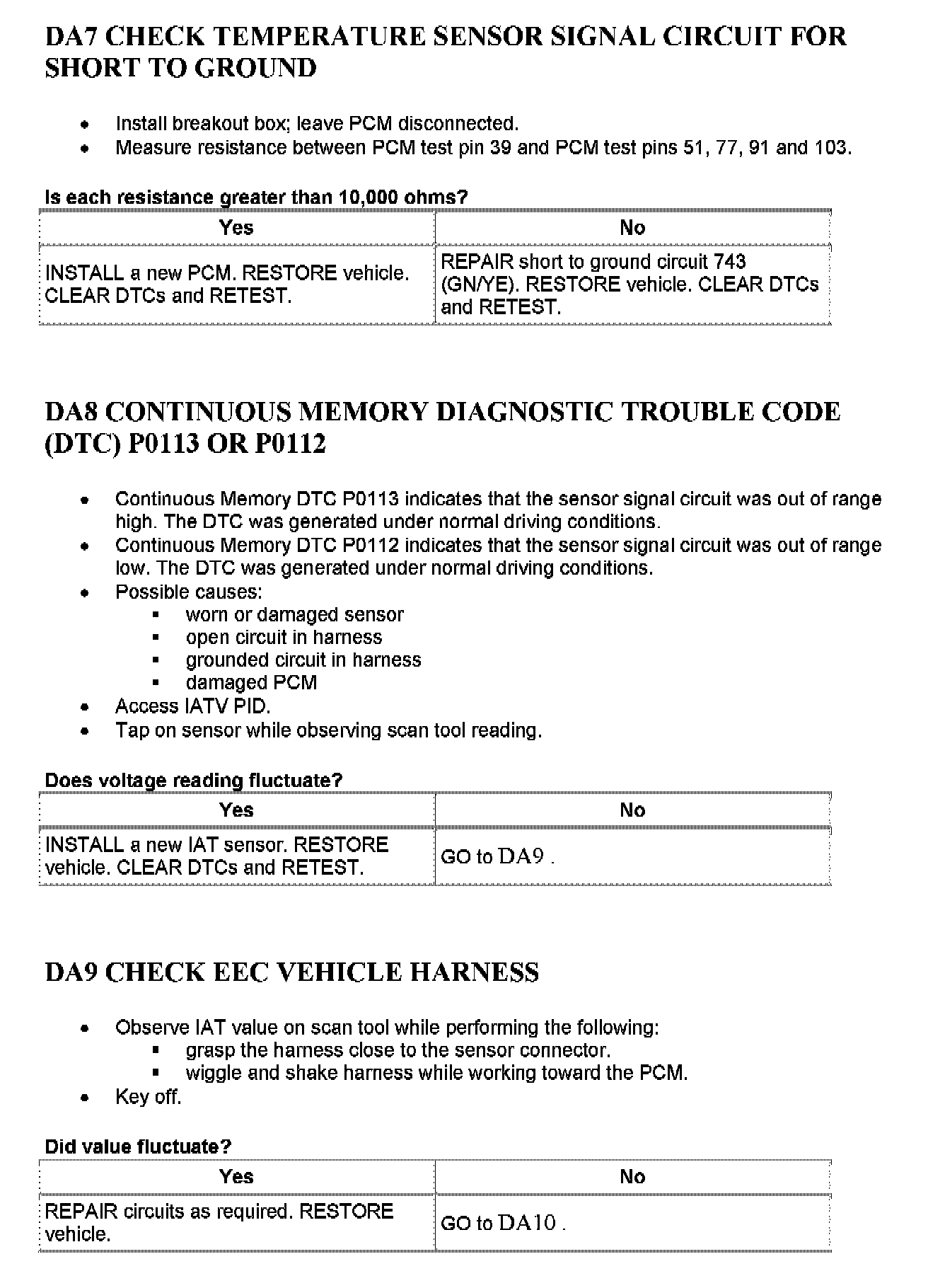

DA7 - DA9:





DA10:
